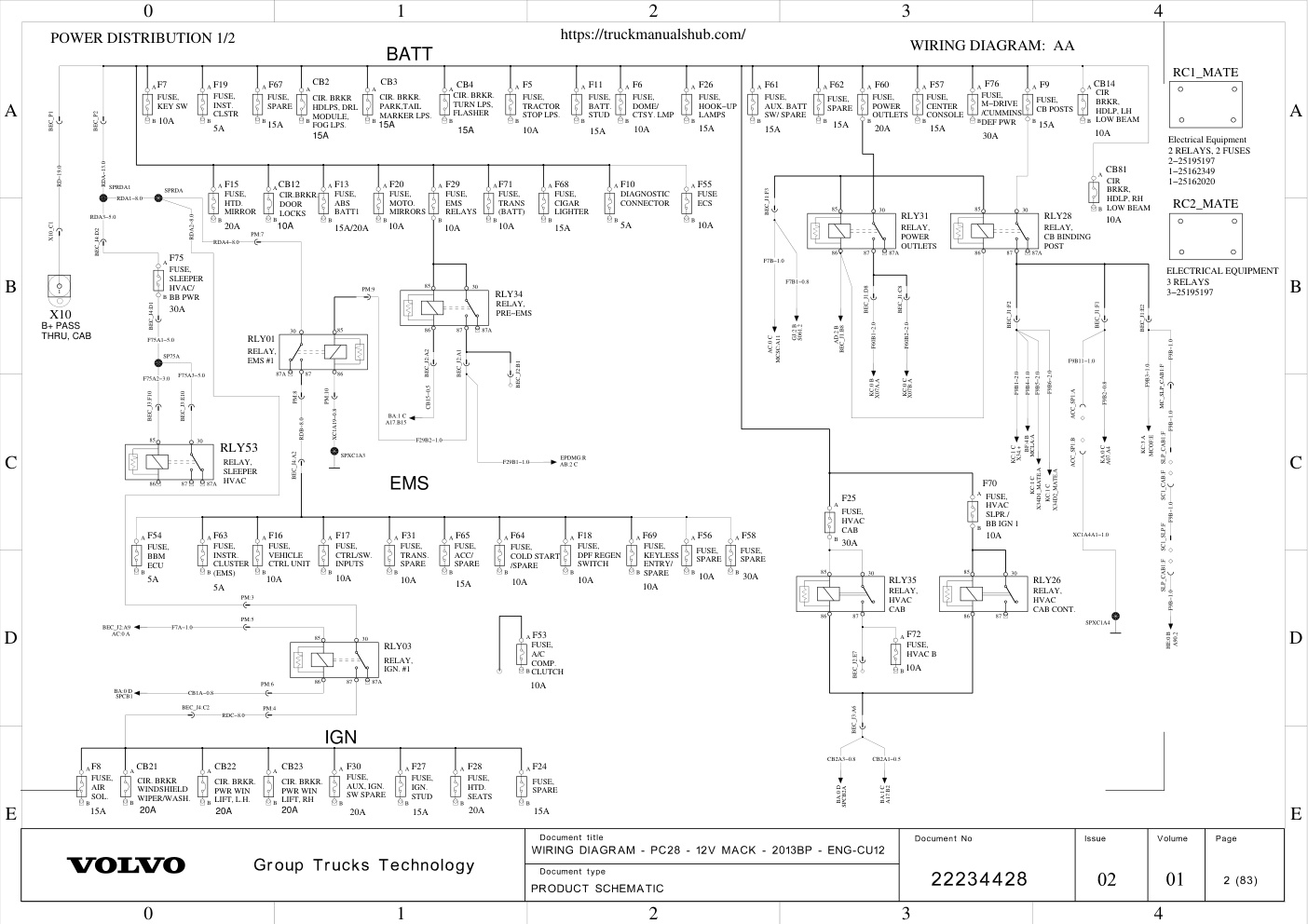

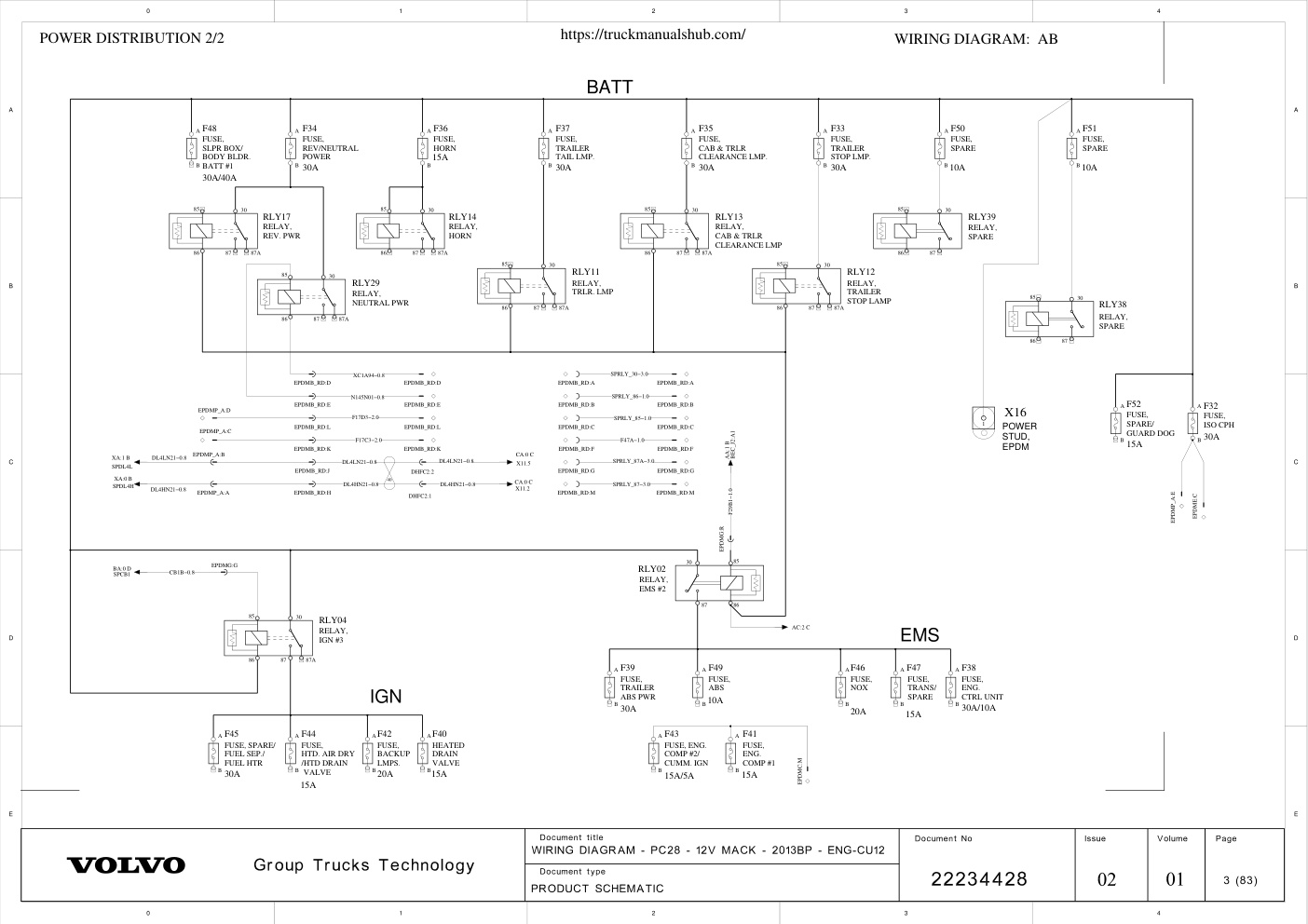

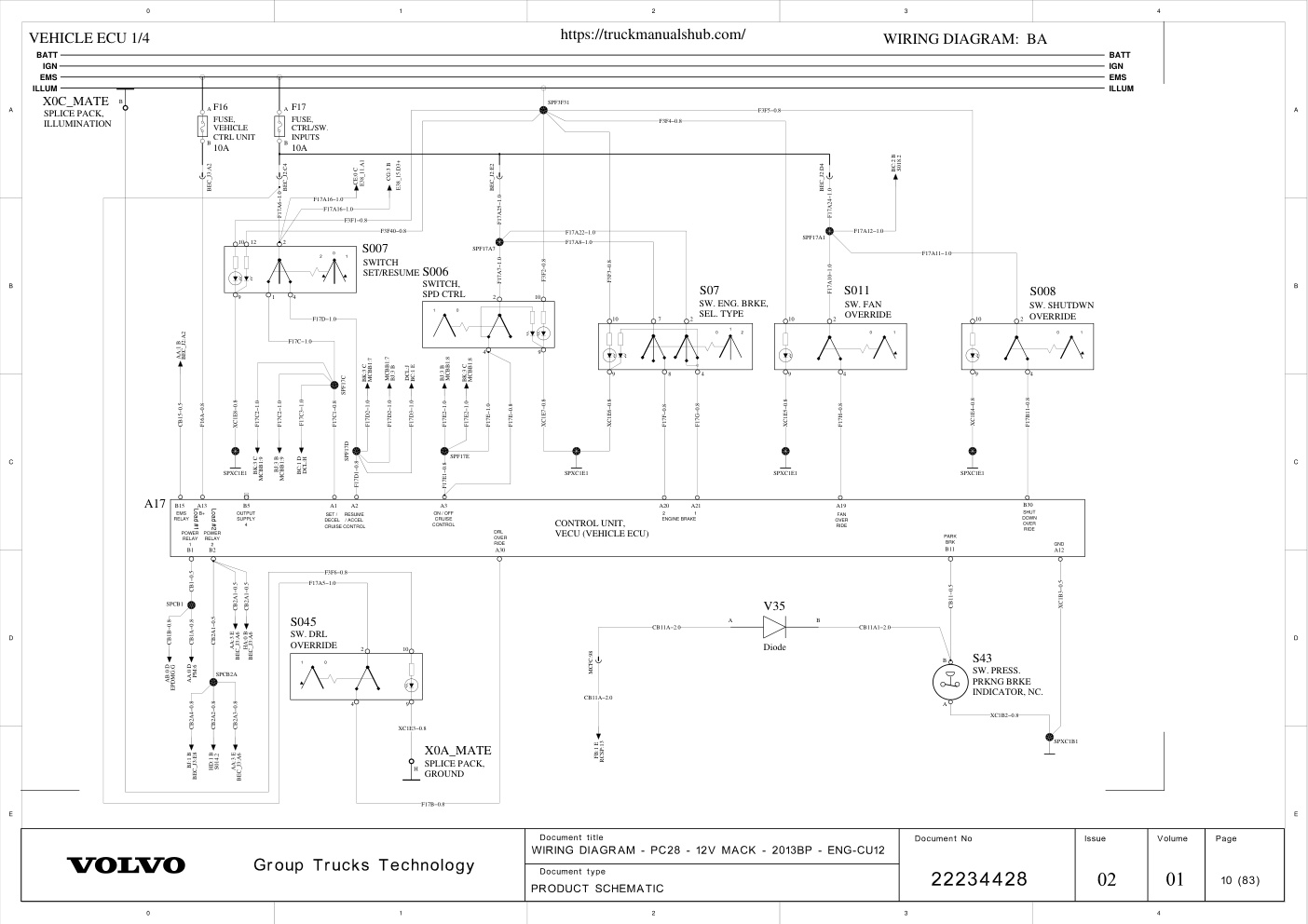

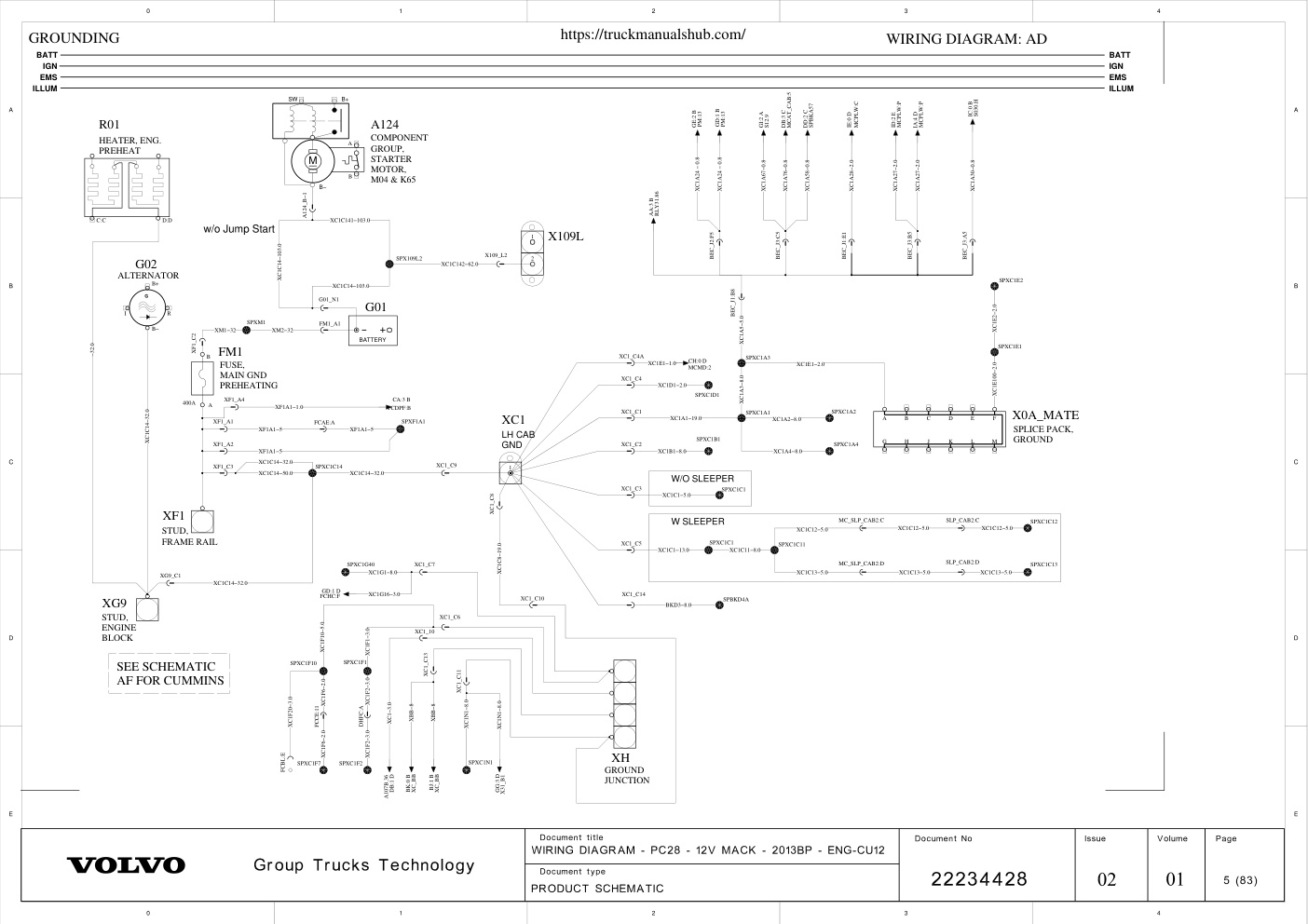

Engineering Release Location Change Description A = Added W = Was Document Release Status Date Modification Count D-15704-42 SEE DCN WIRING DIAGRAM INDEX, 12V NAME DESCRIPTION PAGE NAME DESCRIPTION PAGE AA POWER DISTRIBUTION 1/2 2 EC VEHICLE ECU (ECS) 43 AB POWER DISTRIBUTION 2/2 3 FA AIR DRYER/HEATED DRAIN 44 AC KEY SW., START & CHARGING 4 FB CHASSIS SOLENOIDS 45 AD GROUNDING 1/2 5 FD PARKER PTO 46 AE BATTERY CONFIGURATION 6 FE CENTRAL TIRE INFLATION 47 AF GROUNDING 2/2 CUMMINS 7 GA LIGHTING CONTROL 48 AG STARTING AND CHARGING CUMMINS 8 GD LIGHTING-FORWARD/SIGNAL (CXU,GU7,GU8) 49 AH EARC CUMMINS 9 GE LIGHTING-FORWARD/SIGNAL (CHU ONLY) 50 BA VEHICLE ECU 1/4 10 GF LIGHTING-TAIL/PERIMETER 51 BB VEHICLE ECU 2/4 11 GG TRAILER LIGHTING CONTROL 52 BC VEHICLE ECU 3/4- DCL CONNECTOR 12 GH INTERIOR LIGHTING 53 BD VEHICLE ECU 4/4 13 GI SNOW PLOW PREP CONNECTOR 54 BE INSTRUMENT CLUSTER 1/3 14 GJ TR

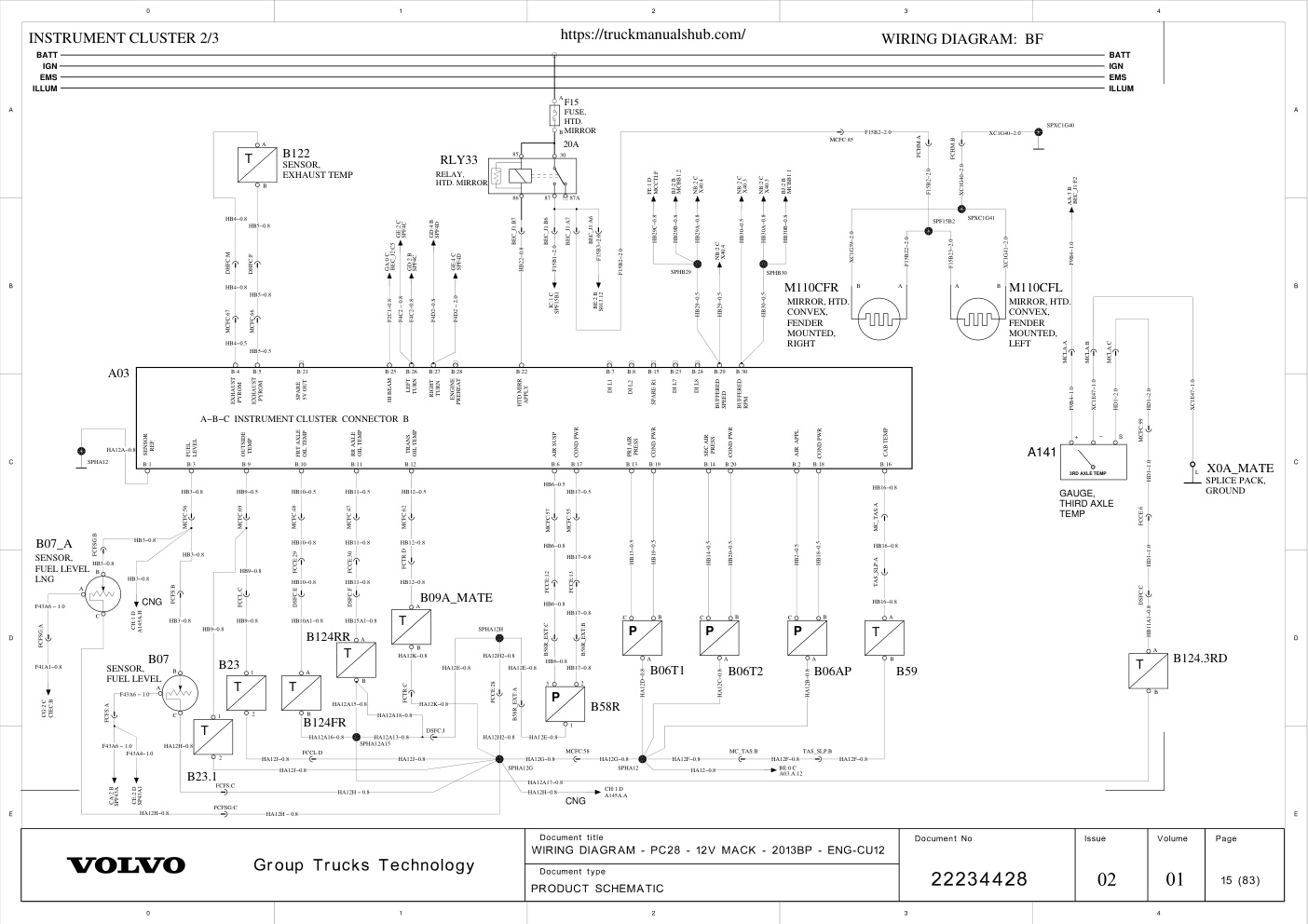

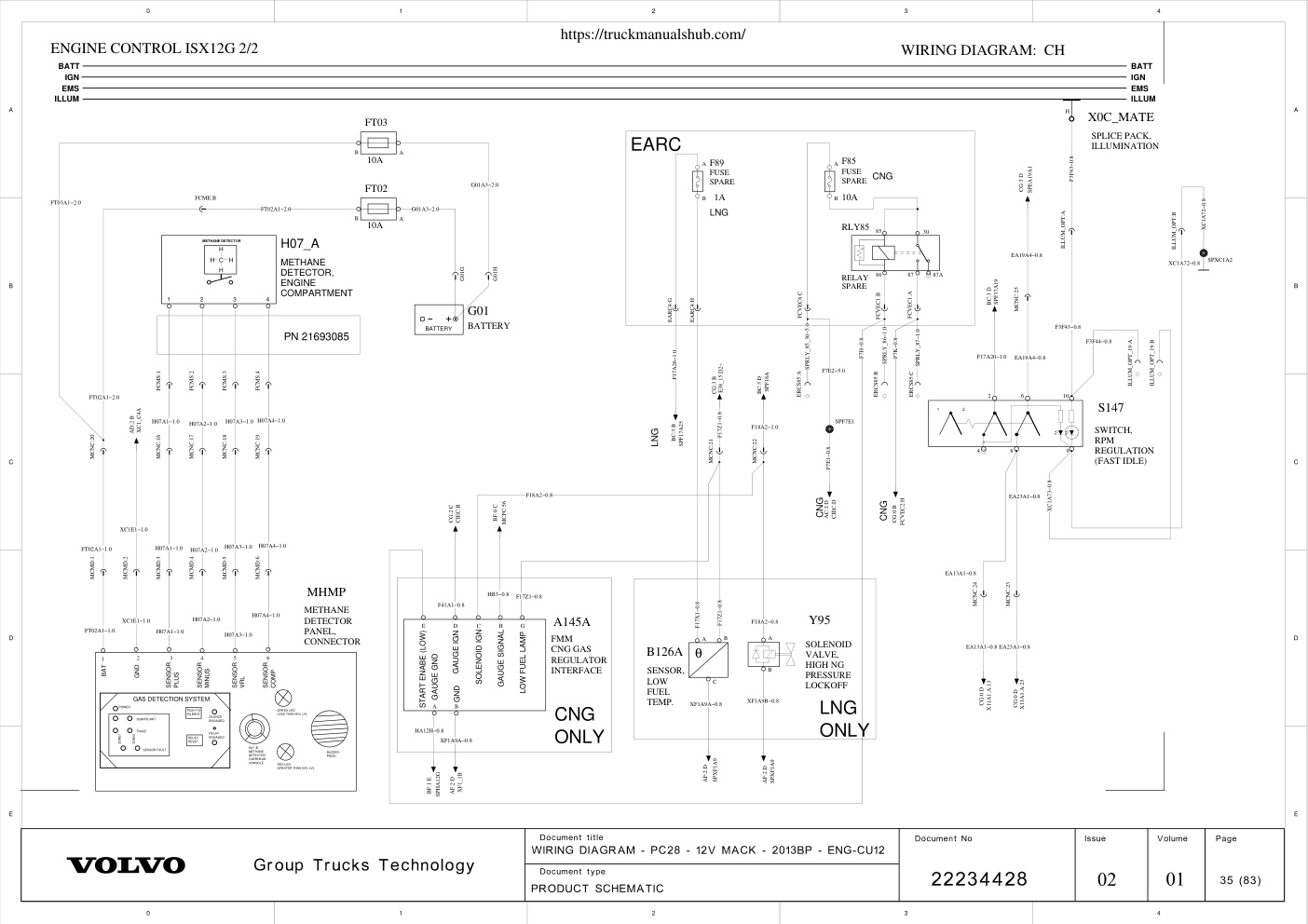

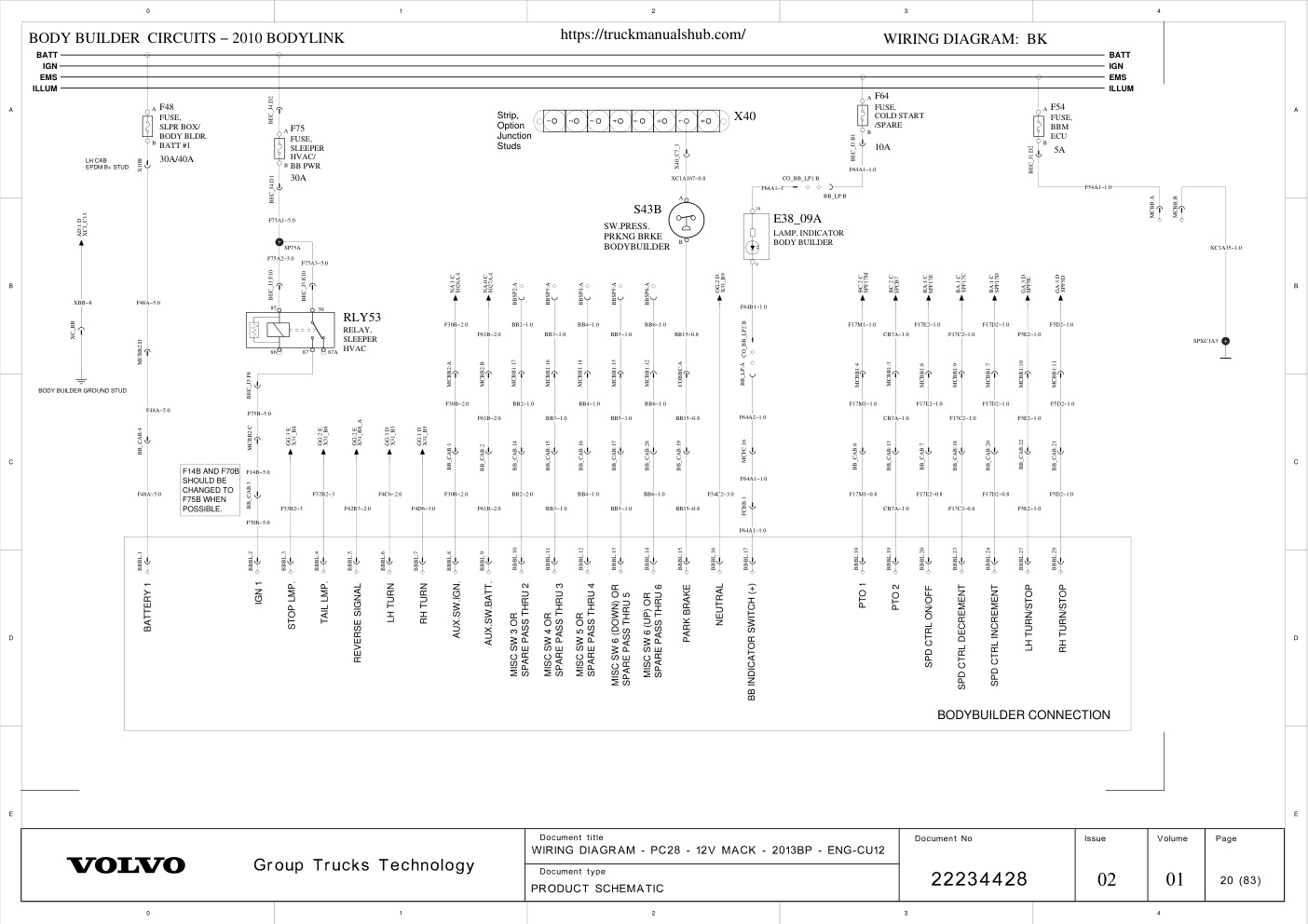

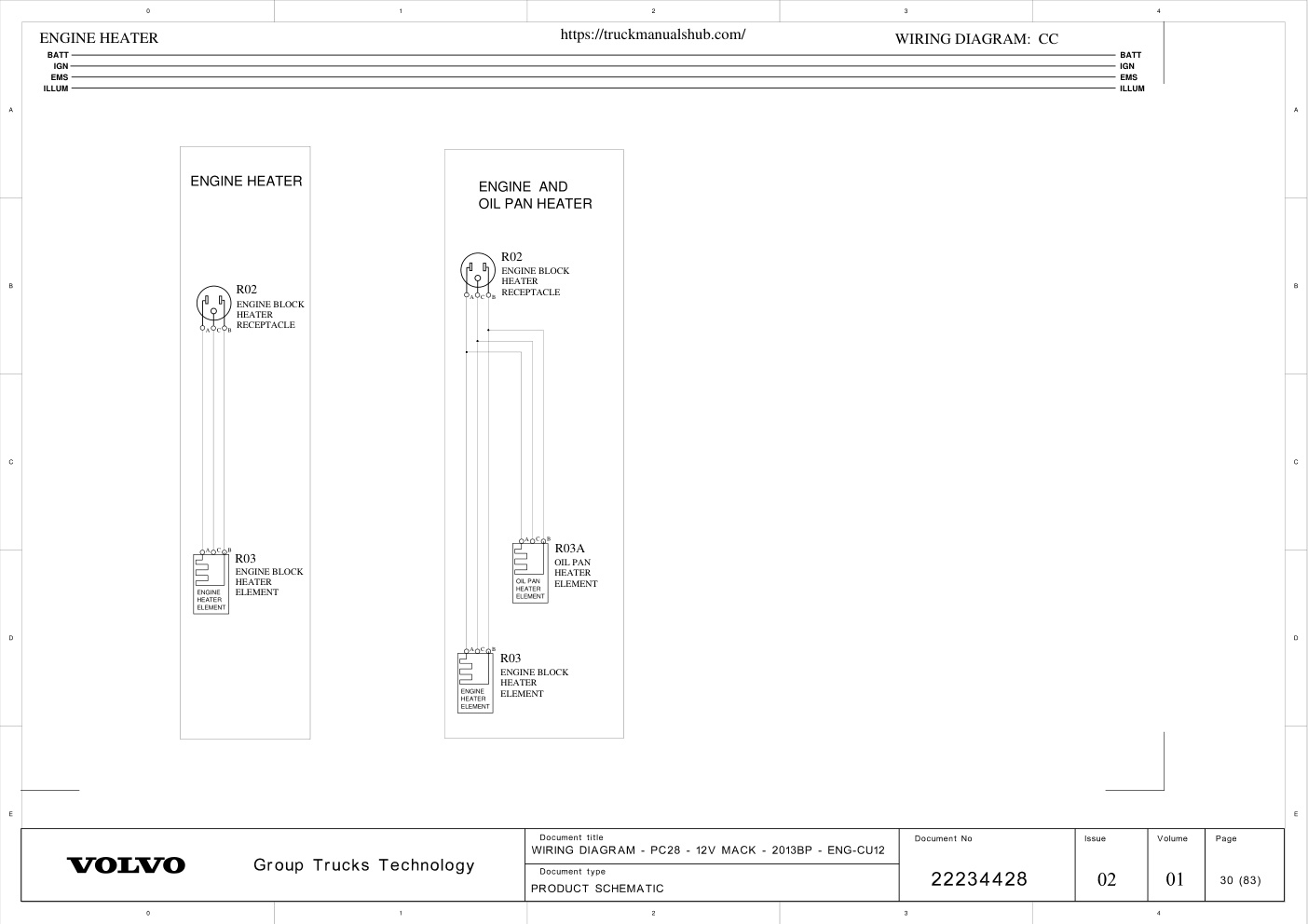

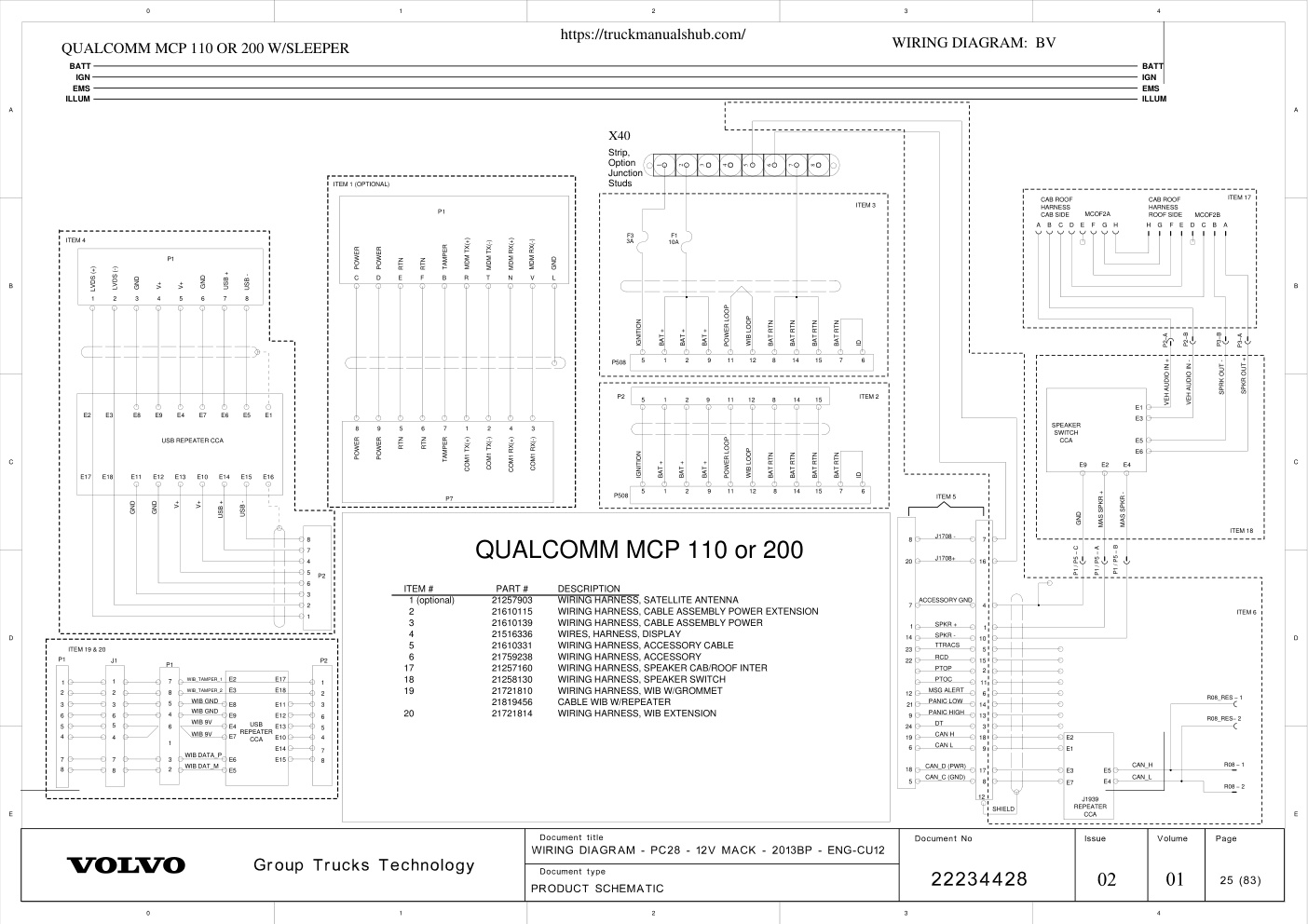

https://truckmanualshub.com/ Engineering Release Location Change Description A = Added W = Was Document Release Status Notice (ERN) D = Deleted RELEASED Date Modification Count D-15704-42 SEE DCN WIRING DIAGRAM INDEX, 12V NAME DESCRIPTION PAGE NAME DESCRIPTION PAGE AA POWER DISTRIBUTION 1/2 2 EC VEHICLE ECU (ECS) 43 AB POWER DISTRIBUTION 2/2 3 FA AIR DRYER/HEATED DRAIN 44 AC KEY SW., START & CHARGING 4 FB CHASSIS SOLENOIDS 45 AD GROUNDING 1/2 5 FD PARKER PTO 46 AE BATTERY CONFIGURATION 6 FE CENTRAL TIRE INFLATION 47 AF GROUNDING 2/2 CUMMINS 7 GA LIGHTING CONTROL 48 AG STARTING AND CHARGING CUMMINS 8 GD LIGHTING-FORWARD/SIGNAL (CXU,GU7,GU8) 49 AH EARC CUMMINS 9 GE LIGHTING-FORWARD/SIGNAL (CHU ONLY) 50 BA VEHICLE ECU 1/4 10 GF LIGHTING-TAIL/PERIMETER 51 BB VEHICLE ECU 2/4 11 GG TRAILER LIGHTING CONTROL 52 BC VEHICLE ECU 3/4- DCL CONNECTOR 12 GH INTERIOR LIGHTING 53 BD VEHICLE ECU 4/4 13 GI SNOW PLOW PREP CONNECTOR 54 BE INSTRUMENT CLUSTER 1/3 14 GJ TRAILER RECEPTACLE CENTER PIN HOT 55 BF INSTRUMENT CLUSTER 2/3 15 GK TITAN LIGHTING OPTIONS 56 BG INSTRUMENT CLUSTER 3/3 16 GL LIGHTING – BEACON LAMPS 57 BH ALLISON BODY BUILDER INTERFACE 17 GM LIGHTING: ROOF W / OPTIONS 58 BI…
