BODY BUILDER INSTRUCTIONS

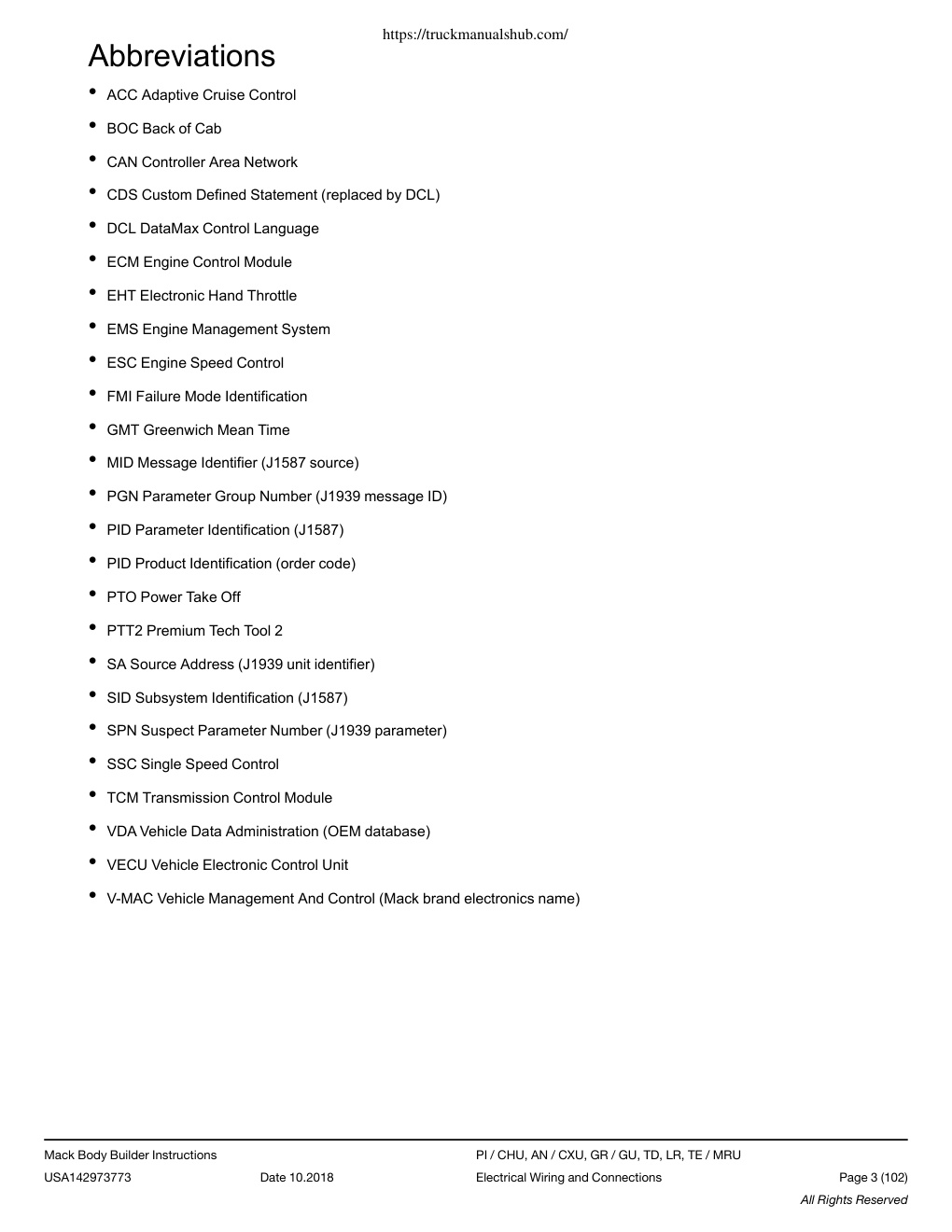

Electrical Wiring and Connections PI / CHU, AN / CXU, GR / GU, TD This information provides design and function, specification and procedure details for Electrical Wiring and Connections for MACK vehicles. Note: For information on mDrive PTO installation and wiring see Section 9 PTO Installation, mDrive. Note: For information on PTO parameter programming see Section 9 PTO Parameter Unless stated otherwise, following a recommendation listed in this manual does not automatically guarantee compliance with applicable government regulations. Compliance with applicable government regulations is your responsibility as the party making the additions/modifications. Please be advised that the MACK Trucks, Inc. vehicle warranty does not apply to any MACK vehicle that has been modified in any way, which in MACK's judgment might affect the vehicles stability or reliability. • “Abbreviations”, page 3

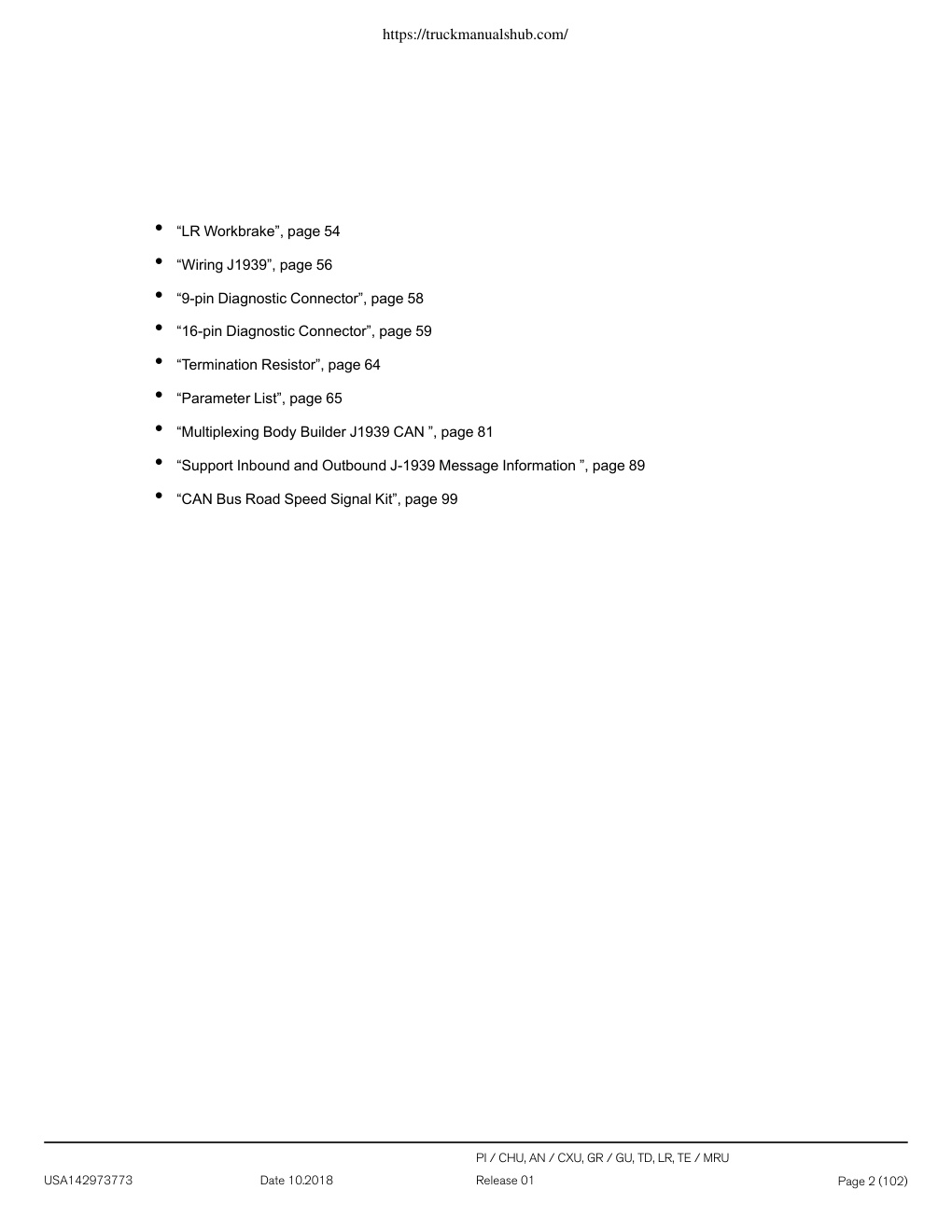

https://truckmanualshub.com/ BODY BUILDER INSTRUCTIONS Mack Trucks Electrical Wiring and Connections PI / CHU, AN / CXU, GR / GU, TD LR, TE / MRU Section 3 Introduction This information provides design and function, specification and procedure details for Electrical Wiring and Connections for MACK vehicles. Note: For information on mDrive PTO installation and wiring see Section 9 PTO Installation, mDrive. Note: For information on PTO parameter programming see Section 9 PTO Parameter Programming. Unless stated otherwise, following a recommendation listed in this manual does not automatically guarantee compliance with applicable government regulations. Compliance with applicable government regulations is your responsibility as the party making the additions/modifications. Please be advised that the MACK Trucks, Inc. vehicle warranty does not apply to any MACK vehicle that has been modified in any way, which in MACK's judgment might affect the vehicles stability or reliability. Contents • “Abbreviations”, page 3 • “General Wiring Definitions”, page 4 • “Routing and Clipping Guidelines”, page 5 • “Body Builder Connectors, Schematic Examples”, page 17 • “Remote Start n Stop”, page 23 •…
