BODY BUILDER INSTRUCTIONS

Cab, Instrument Panel PI / CHU, AN / CXU, GR / GU, TD This information provides specifications for chassis body installation for MACK vehicles. Note: We have attempted to cover as much information as possible. However, this information does not cover all the unique variations that a vehicle chassis may present. Note that illustrations are typical but may not reflect all the variations of assembly. All data provided is based on information that was current at time of release. However, this information is subject to change without notice. Please note that no part of this information may be reproduced, stored, or transmitted by any means without the express written permission of MACK Trucks, Inc. • “AN, GR, PI DASHBOARD SWITCH LOCATIONS”, page 3 • “Overview of Instruments”, page 7 • “Instrument Cluster”, page 8 • “Gauge Layout”, page 9 • “Alarm, Check and Information Symbols”, page 15 • “Wa

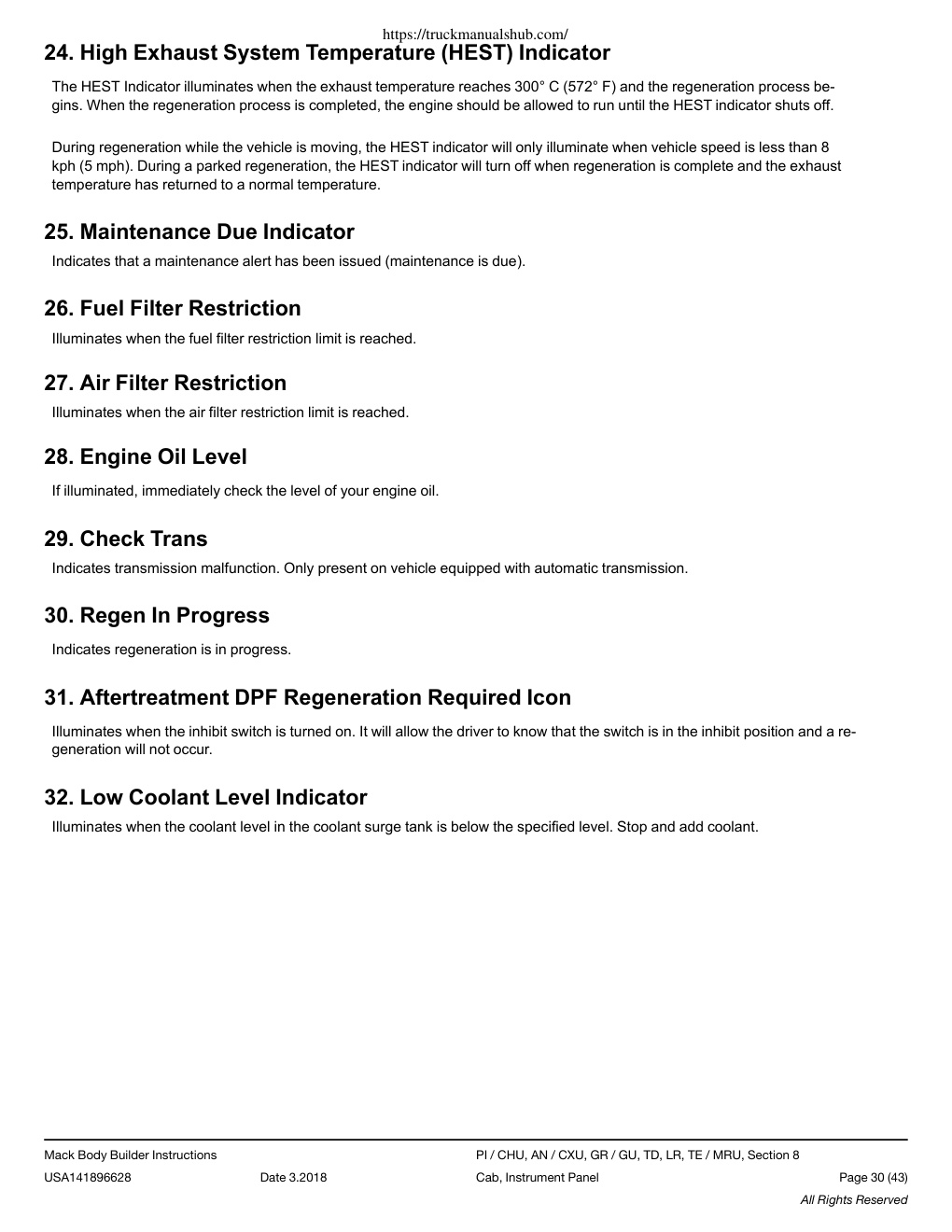

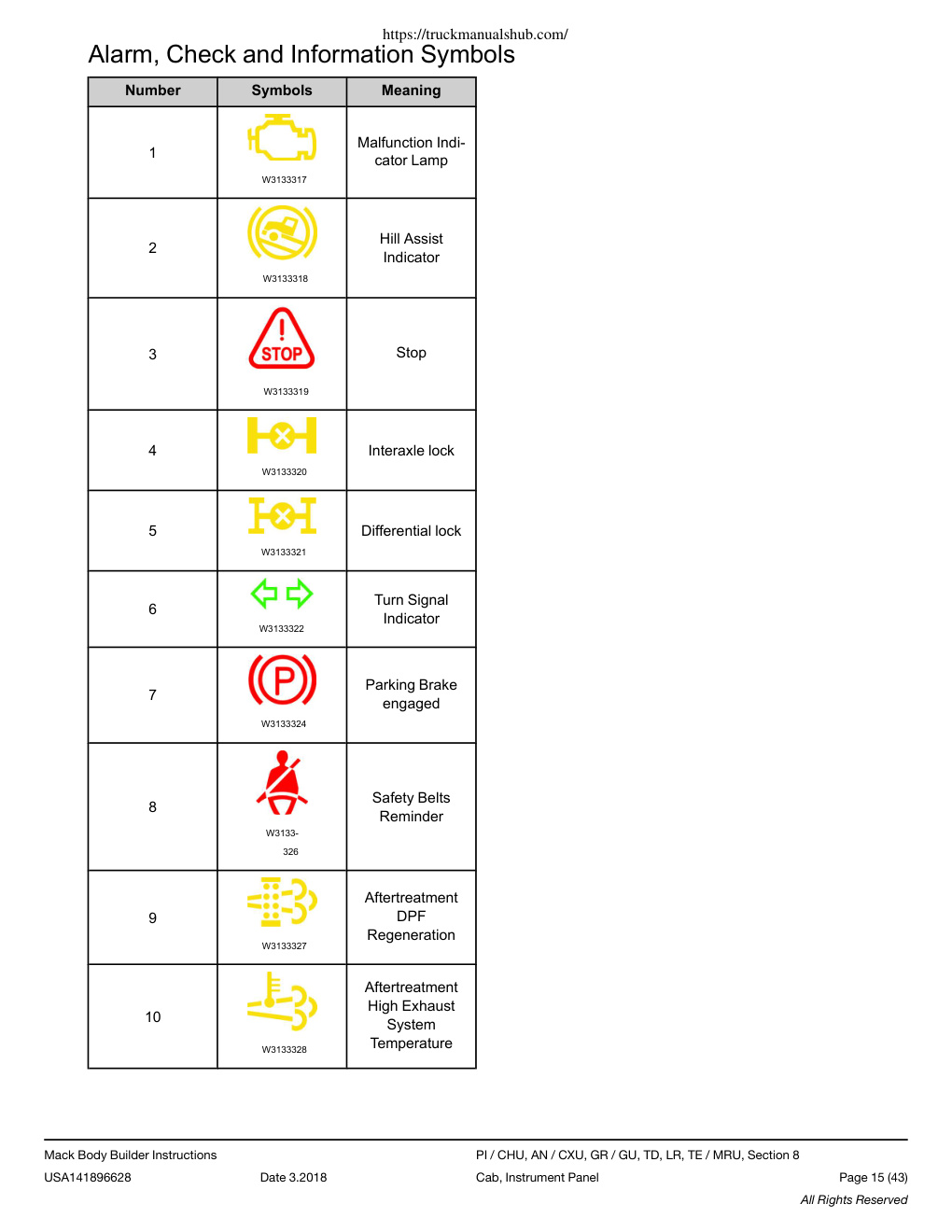

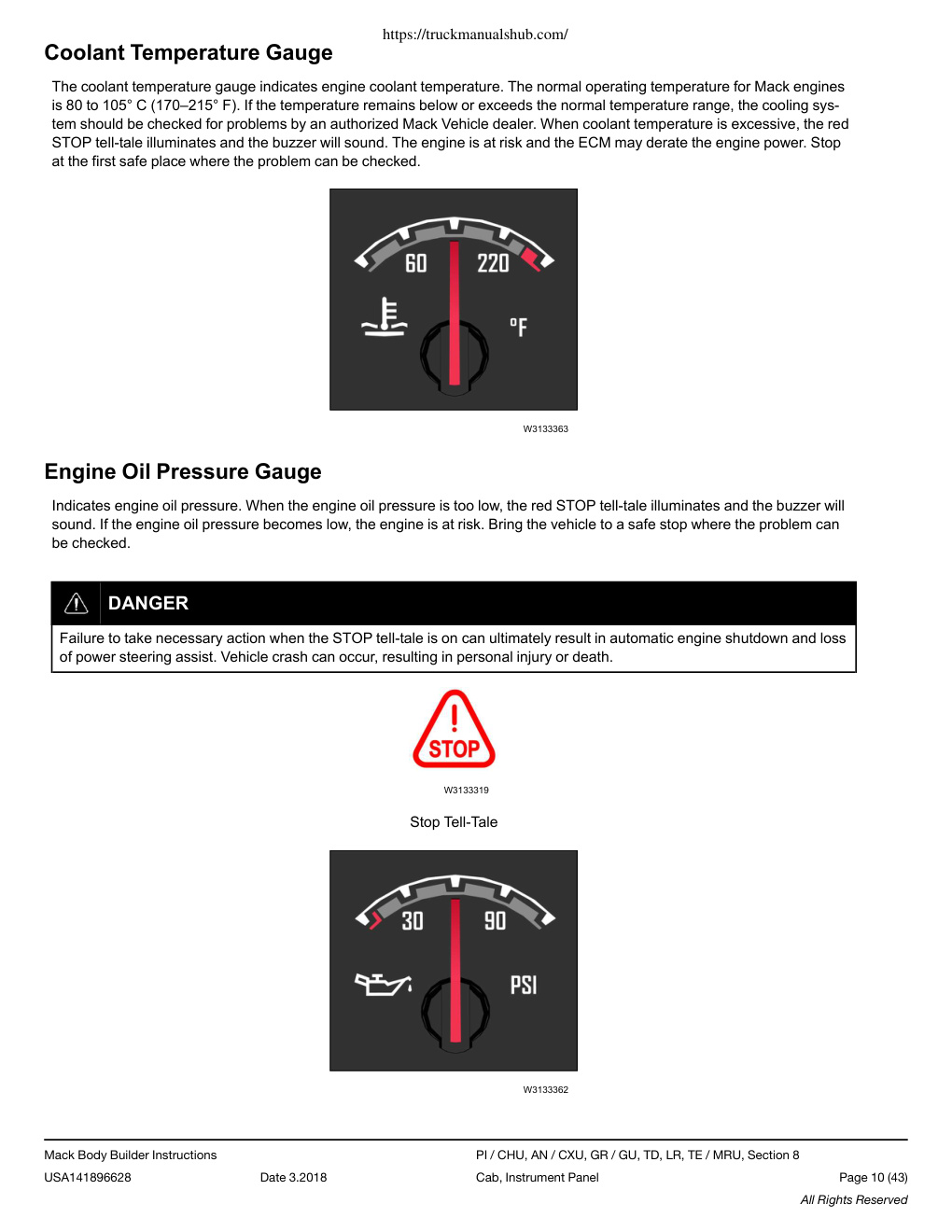

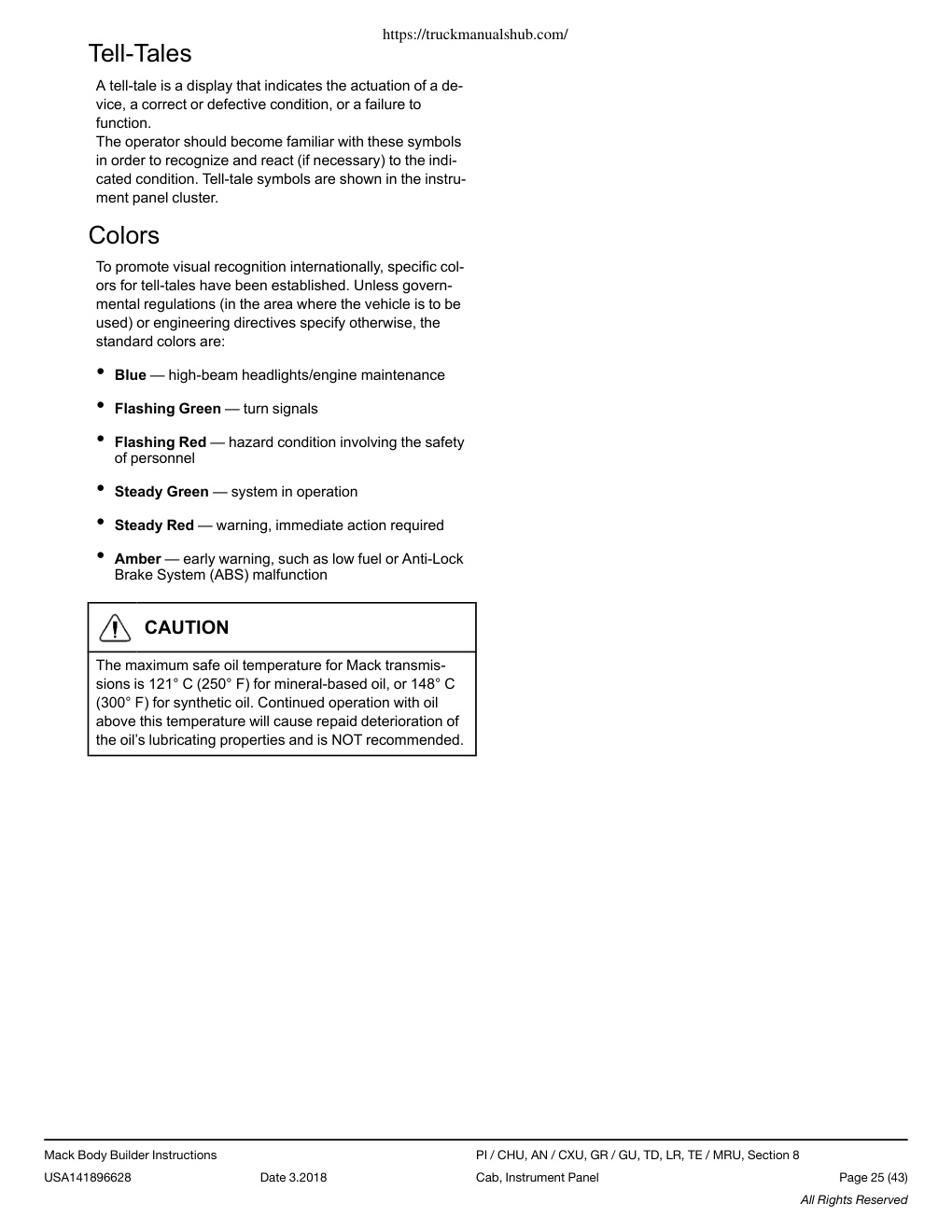

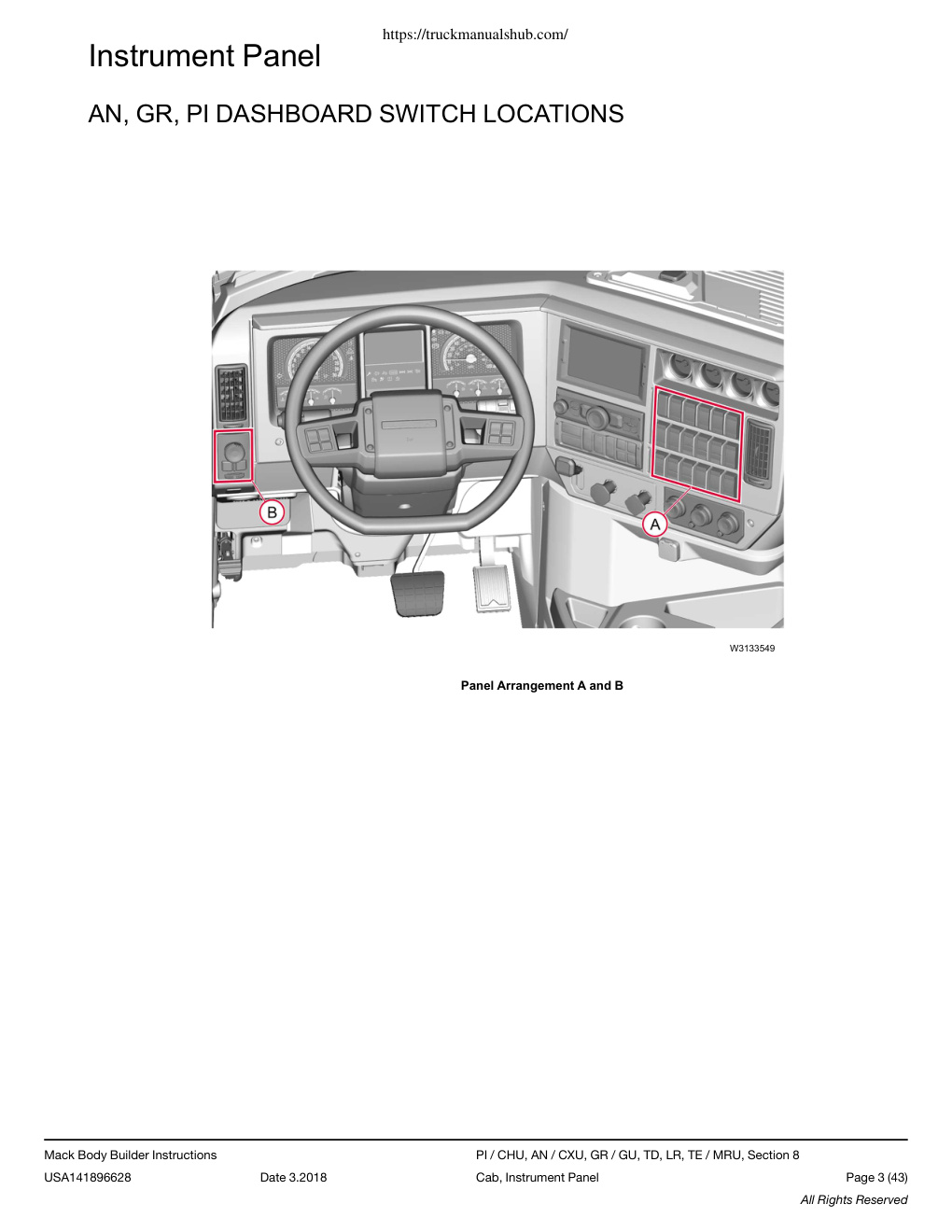

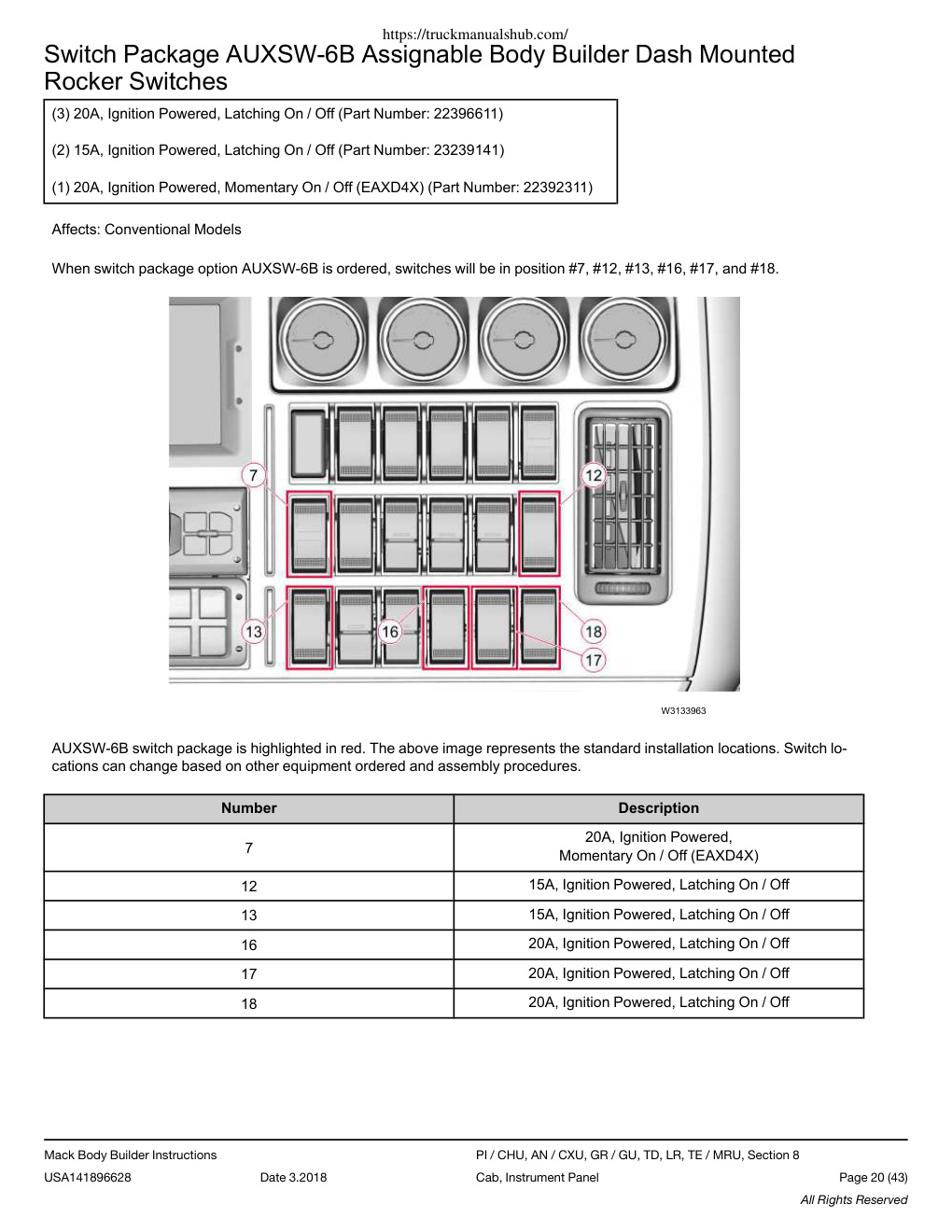

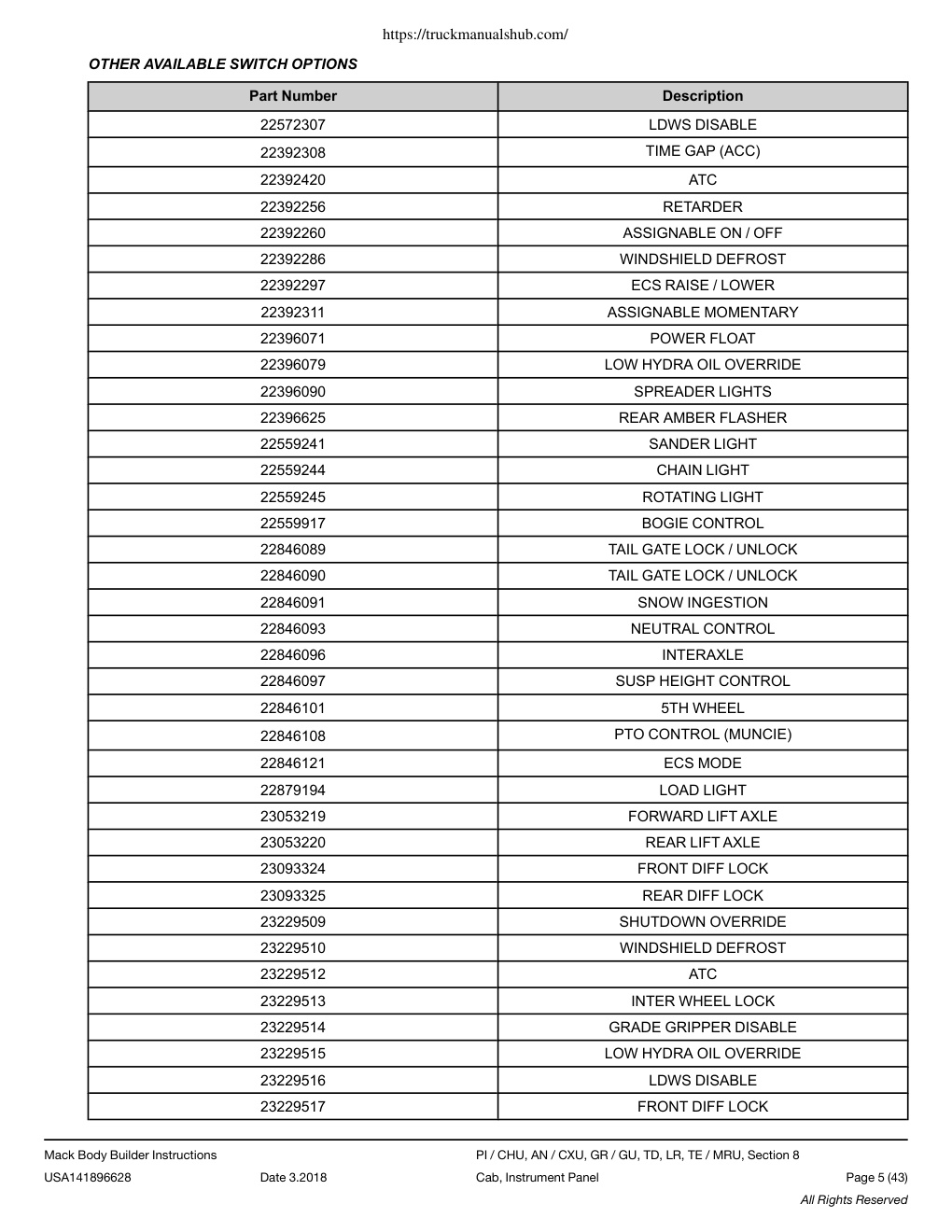

https://truckmanualshub.com/ BODY BUILDER INSTRUCTIONS Mack Trucks Cab, Instrument Panel PI / CHU, AN / CXU, GR / GU, TD LR, TE / MRU Section 8 Introduction This information provides specifications for chassis body installation for MACK vehicles. Note: We have attempted to cover as much information as possible. However, this information does not cover all the unique variations that a vehicle chassis may present. Note that illustrations are typical but may not reflect all the variations of assembly. All data provided is based on information that was current at time of release. However, this information is subject to change without notice. Please note that no part of this information may be reproduced, stored, or transmitted by any means without the express written permission of MACK Trucks, Inc. Contents: • “AN, GR, PI DASHBOARD SWITCH LOCATIONS”, page 3 • “Overview of Instruments”, page 7 • “Instrument Cluster”, page 8 • “Gauge Layout”, page 9 • “Alarm, Check and Information Symbols”, page 15 • “Warning Indicator Light Panel”, page 17 • “Dash Switches”, page 19 • “Switch Package AUXSW-6B Assignable Body Builder Dash Mounted Rocker Switches”, page 20 • “Lens Kit for Assignable Body…
