Second edition_Changed place. [2.0t Searcher hook addition] 520E-OM2005-01 OPERATION MANUAL Serial No. 9003 and up Unsafe use of this machine may cause serious injury or death. Operators must read this manual before operating this machine. This manual should be kept near the machine for reference and periodically reviewed by all personnel who will come into contact with it. MAEDA has Operation Manuals written in some other languages. If a foreign language manual is necessary, contact your local distributor for availability. M AE DA Crawler Crane 2.2 SAFETY LABEL LOCATIONS [SEARCHER HOOK LABEL LOCATIONS] 5/2020 CC1908S-1 2-13

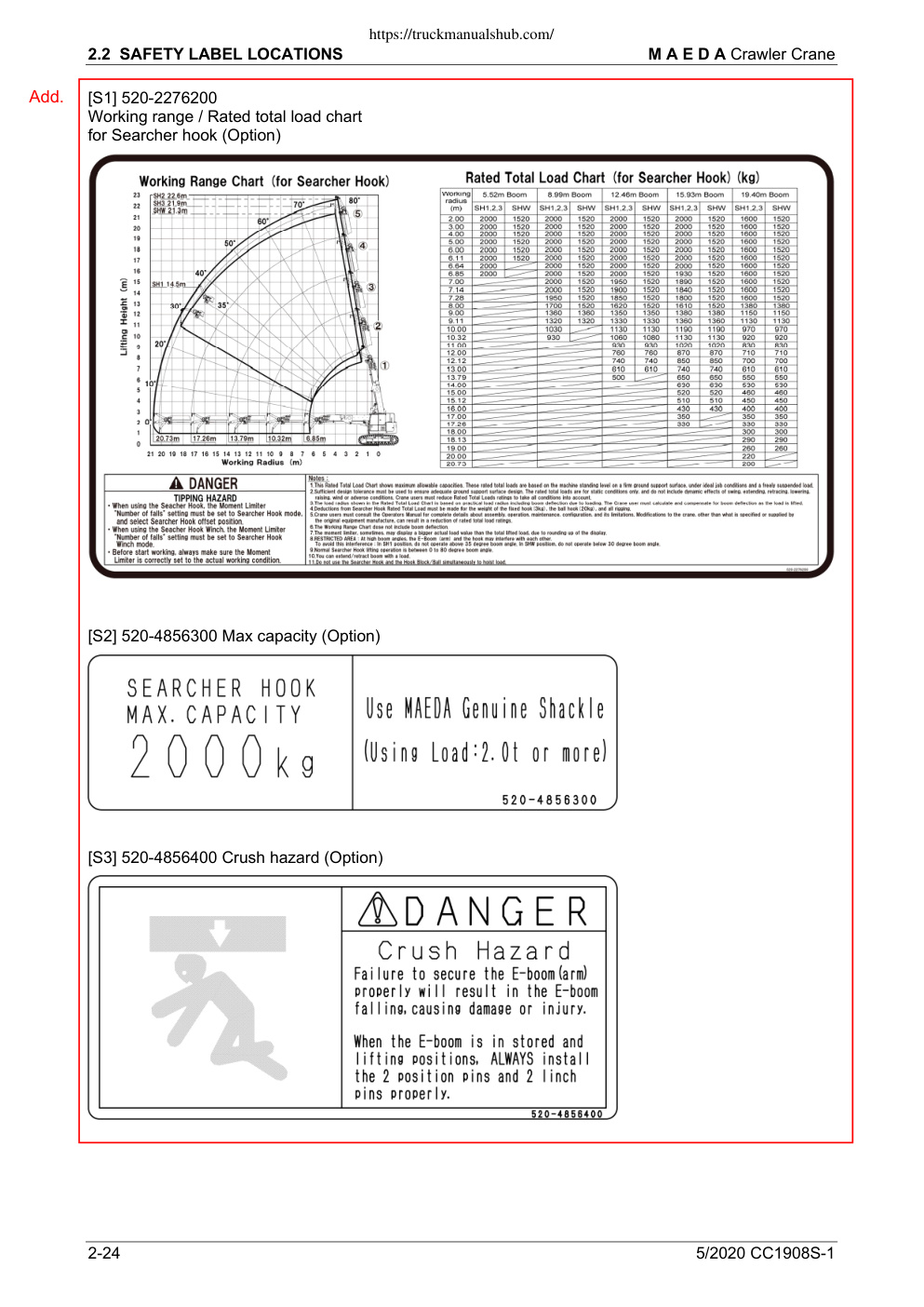

Second edition_Changed place.https://truckmanualshub.com/ [2.0t Searcher hook addition] 520E-OM2005-01 OPERATION MANUAL CRAWLER CRANE Serial No. 9003 and up WARNING Unsafe use of this machine may cause serious injury or death. Operators must read this manual before operating this machine. This manual should be kept near the machine for reference and periodically reviewed by all personnel who will come into contact with it. NOTICE MAEDA has Operation Manuals written in some other languages. If a foreign language manual is necessary, contact your local distributor for availability. https://truckmanualshub.com/ M A E D A Crawler Crane 2.2 SAFETY LABEL LOCATIONS Add. [SEARCHER HOOK LABEL LOCATIONS] 5/2020 CC1908S-1 2-13 https://truckmanualshub.com/ 2.2 SAFETY LABEL LOCATIONS M A E D A Crawler Crane Add. [S1] 520-2276200 Working range / Rated total load chart for Searcher hook (Option) [S2] 520-4856300 Max capacity (Option) [S3] 520-4856400 Crush hazard (Option) 2-24 5/2020 CC1908S-1 https://truckmanualshub.com/ M A E D A Crawler Crane 2.2 SAFETY LABEL LOCATIONS Add. [S4] 520-4856500 Hook CE plate (Option) [S5] 585-3558400 Serial plate (Option) [S6] 103-4589600 Pin hole (Option) [S7]…
