CRAWLER CRANE

Nom du fichier : Maeda CC423S-1 Load Chart.pdf

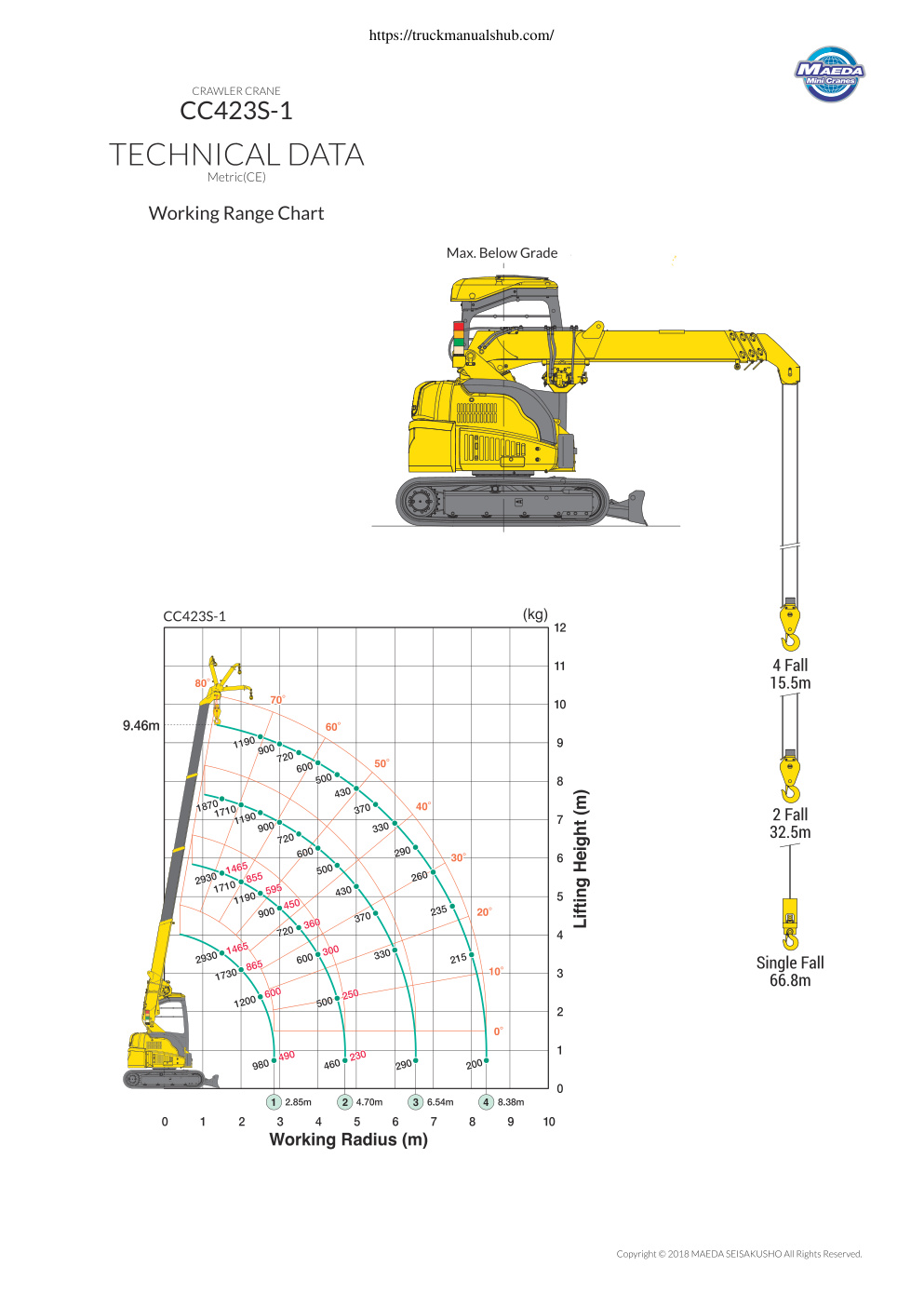

Crane Capacity 2.93tx 1.5m Max. Working Radius 8.38m x 0.20t Height 946m Max. Reach Below Ground -15.5m (4 falls) Pick & Carry Capacity 1,465kg Travel Speed 0-4.6km/h Travel Ground Pressure 43.5kpa [0.44kgf/cm’] Engine YANMAR 3TNV88F-EPMBA / Diesel Engine Rated Output 17.5kw/2,400rpm Dimensions 4,020mm (L) x 1,740mm (W) x 2,495mm (H) Tail swing 980mm Machine Weight 4,400kg (Rubber Pads: +90kg) Working Range Chart Max. Below Grade 1) 2.85m @ 470m @ 654m 4) 8.38m 0 1 2 3 4 5 6 7 8 9 10 Working Radius (m) Lifting Height (m)
