OPERATION MANUAL Serial No. 11001 and up Unsafe use of this machine may cause serious injury or death. Operators must read this manual before operating this machine. This manual should be kept near the machine for reference and periodically reviewed by all personnel who will come into contact with it. MAEDA has Operation Manual written in some other languages. If a foreign language manual is necessary, contact your local distributor for availability.

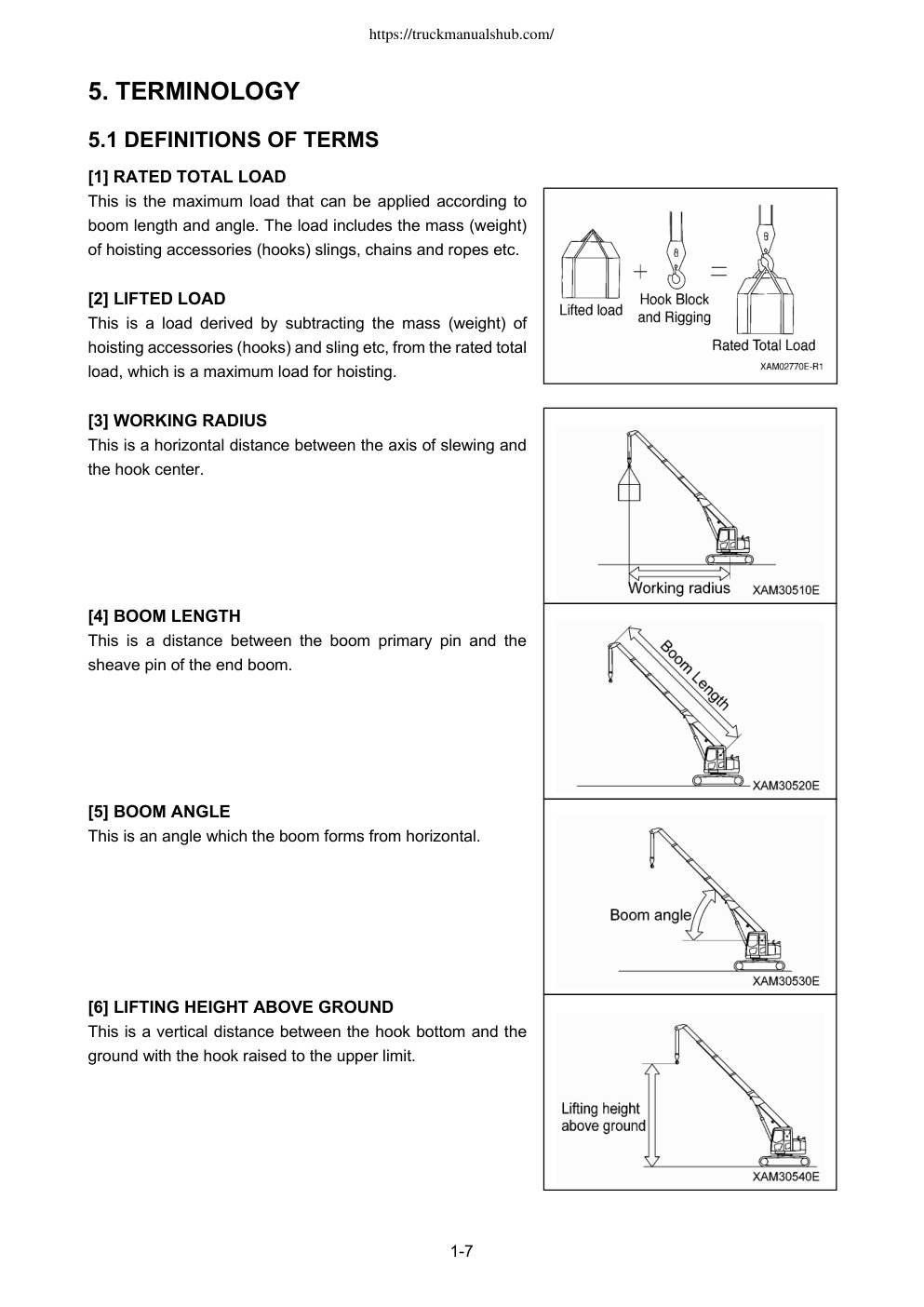

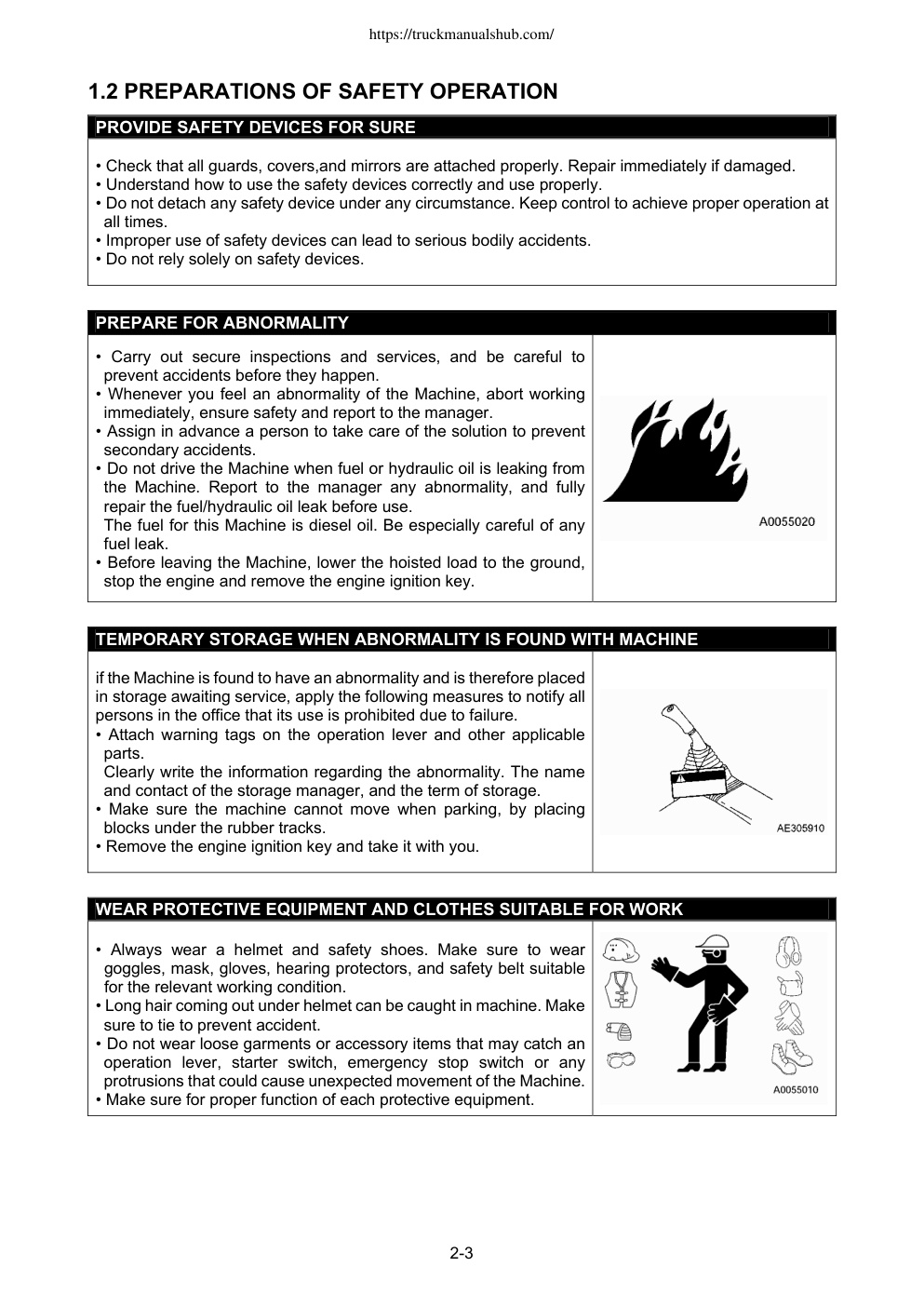

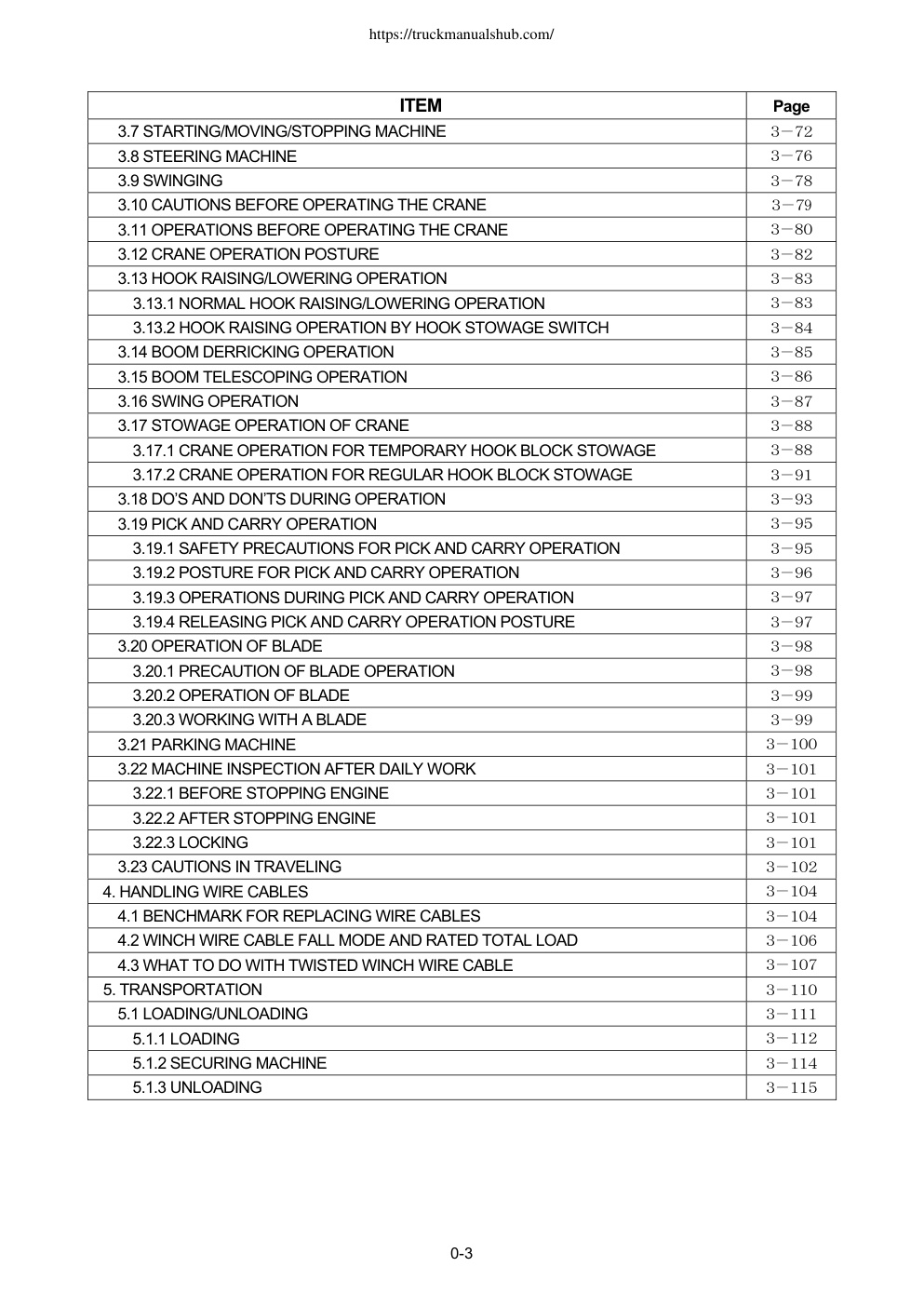

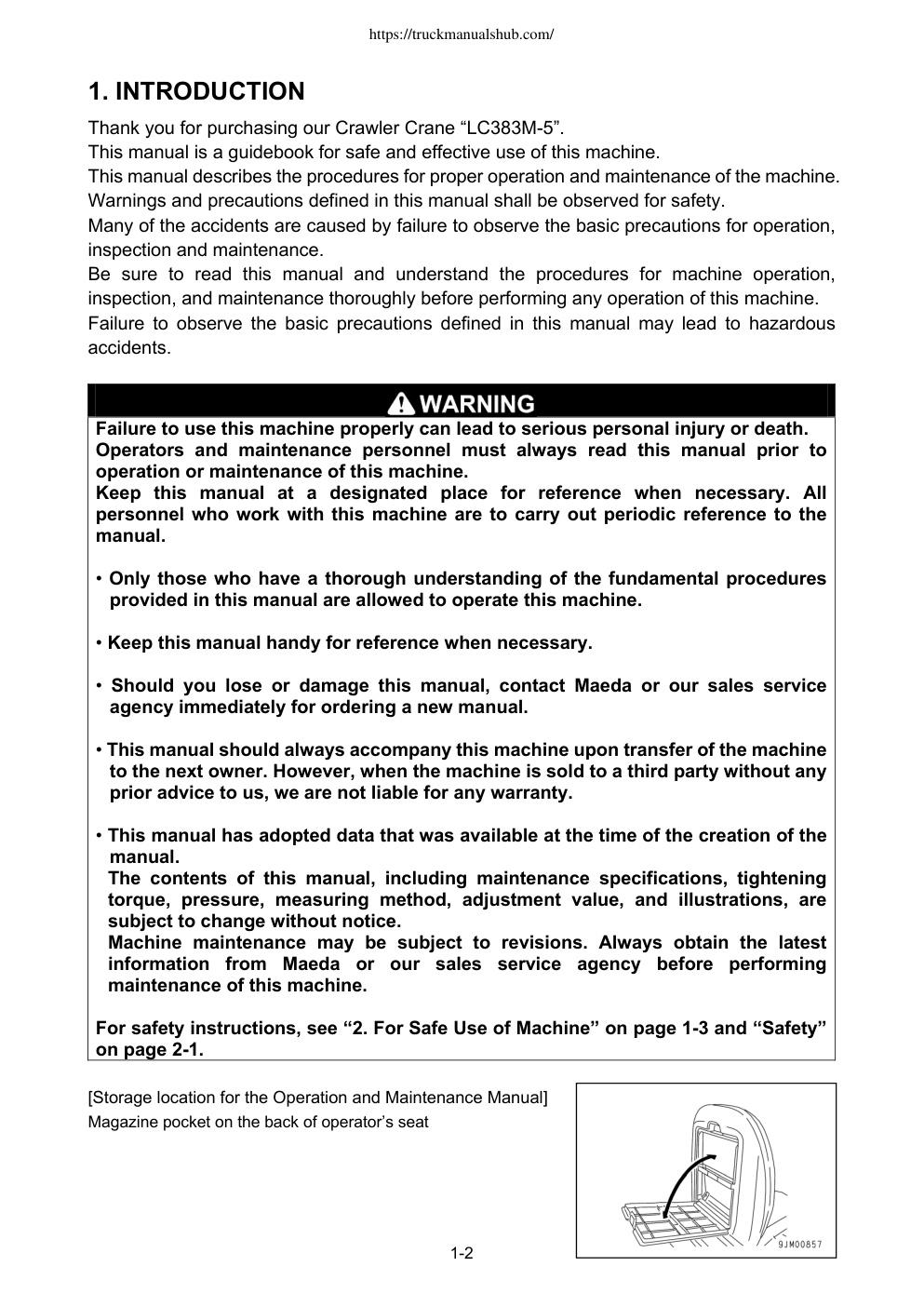

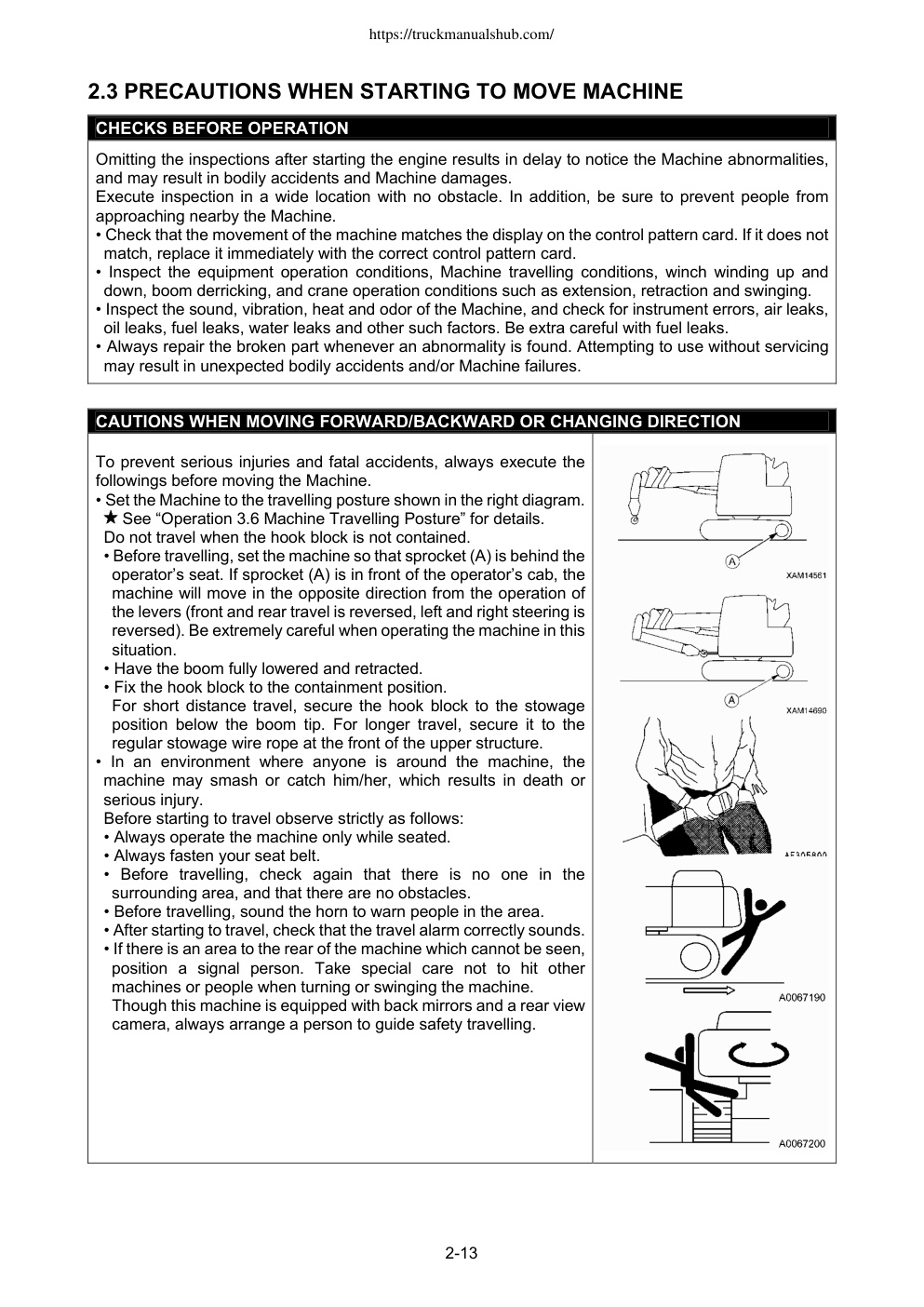

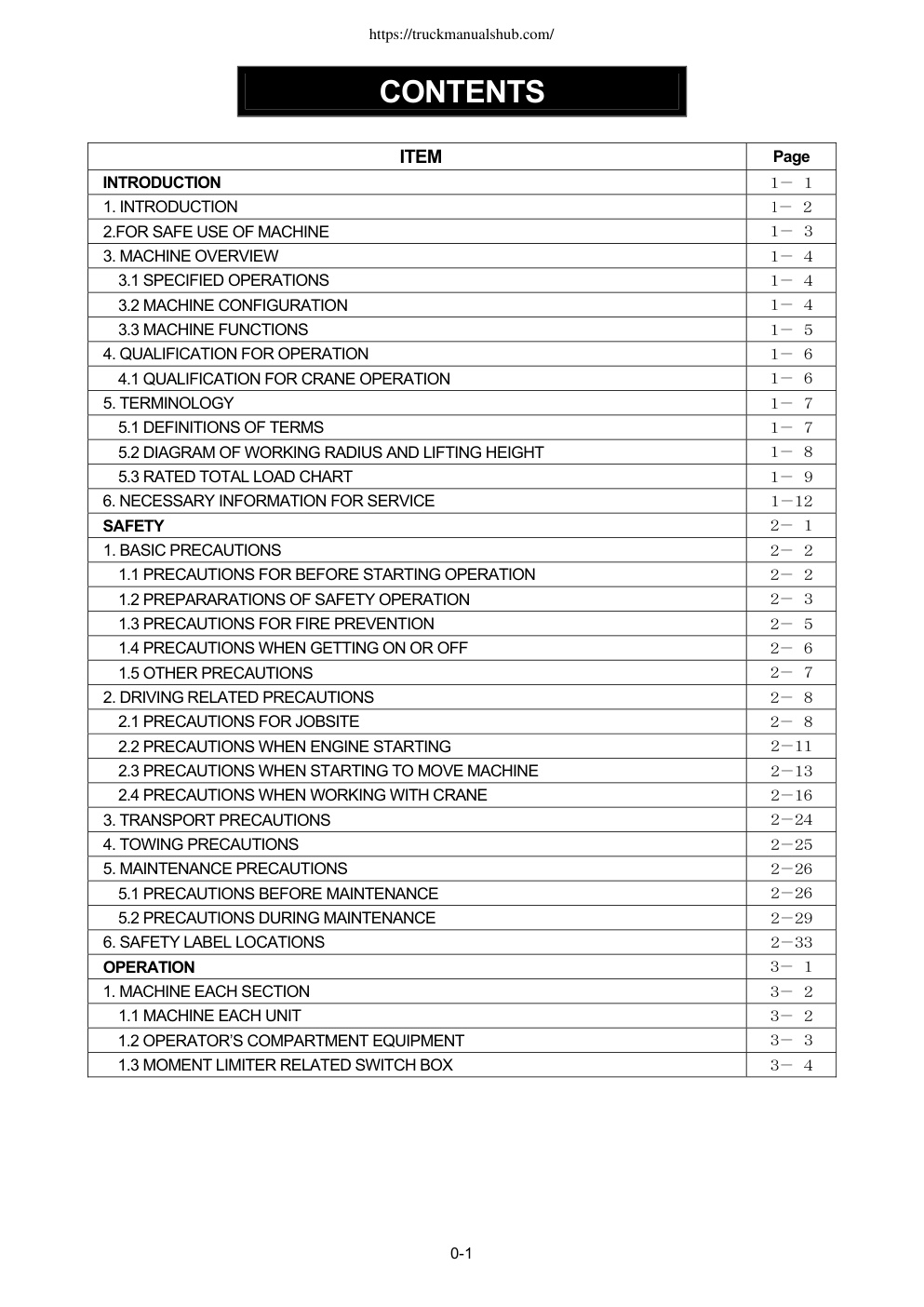

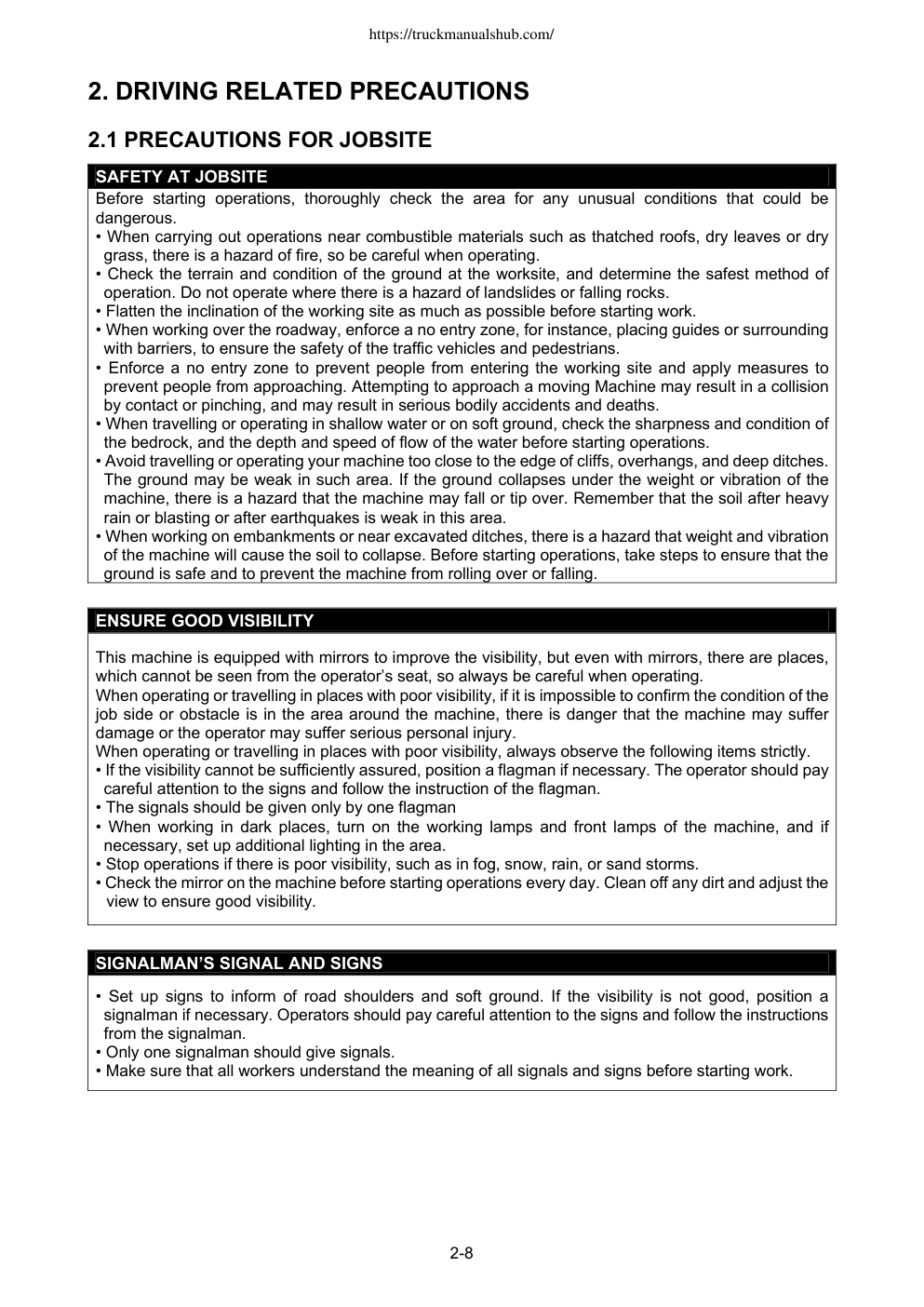

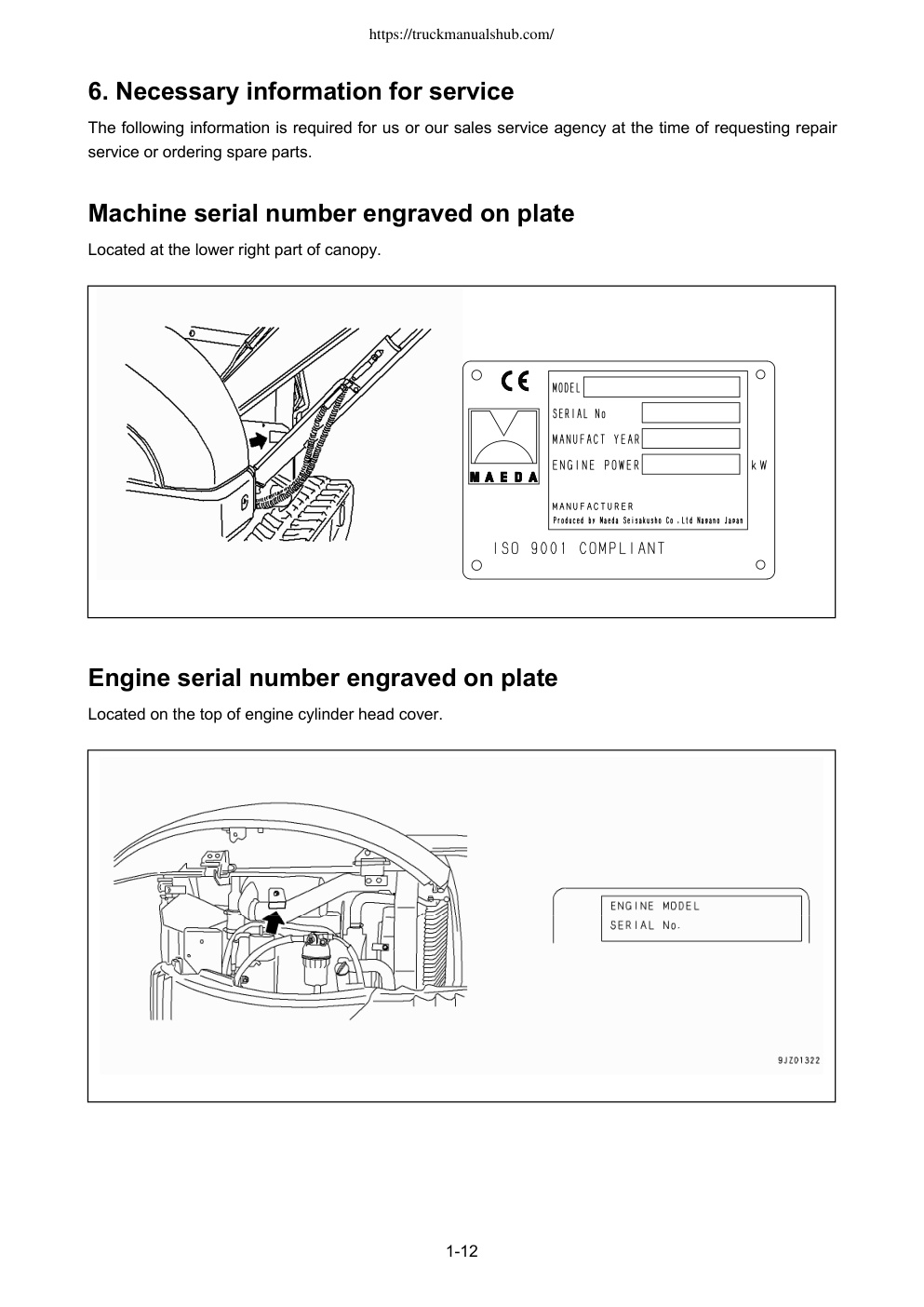

https://truckmanualshub.com/ 541E-OM1010-00 OPERATION MANUAL CRAWLER CRANE Serial No. 11001 and up Unsafe use of this machine may cause serious injury or death. Operators must read this manual before operating this machine. This manual should be kept near the machine for reference and periodically reviewed by all personnel who will come into contact with it. NOTICE MAEDA has Operation Manual written in some other languages. If a foreign language manual is necessary, contact your local distributor for availability. https://truckmanualshub.com/ https://truckmanualshub.com/ CONTENTS ITEM Page INTRODUCTION １－ １ 1. INTRODUCTION 1－ ２ 2.FOR SAFE USE OF MACHINE １－ ３ 3. MACHINE OVERVIEW １－ ４ 3.1 SPECIFIED OPERATIONS １－ ４ 3.2 MACHINE CONFIGURATION １－ ４ 3.3 MACHINE FUNCTIONS １－ ５ 4. QUALIFICATION FOR OPERATION １－ ６ 4.1 QUALIFICATION FOR CRANE OPERATION １－ ６ 5. TERMINOLOGY １－ ７ 5.1 DEFINITIONS OF TERMS １－ ７ 5.2 DIAGRAM OF WORKING RADIUS AND LIFTING HEIGHT １－ ８ 5.3 RATED TOTAL LOAD CHART １－ ９ 6. NECESSARY INFORMATION FOR SERVICE １－１２ SAFETY ２－ １ 1. BASIC PRECAUTIONS ２－ ２ 1.1 PRECAUTIONS FOR BEFORE STARTING OPERATION ２－ ２ 1.2 PREPARARATIONS OF SAFETY OPERATION ２－ ３ 1.3 PRECAUTIONS FOR FIRE…
