SPIDER CRANE

Max. lifting height (on the ground) Max. working radius Max. lifting height (underground) Electric Motor Power Multi Angle Position Outriggers Crane capacity 0.995t x 1.1m Max. working radius 5.1m x 0.20t Max. lifting height (on the ground) 5.5m Max. lifting height (underground) -7.8m (4 falls) / -16.0m (2 falls) / -32.0m (single fall) Hook speed 3.2m/min (3 layers, 4 falls) Max. Below Grade Hoist wire rope IWRC 6×Fi(29) Ø6×39m Boom type Fully automatic 4-section pentagonal telescopic boom Telescopic system Boom length 1.85~5.30m 3300mm (MIN: 1985) Boom telescoping stroke / time 3.45m/20sec Boom hoist system Hoist angle / time 0~75deg/11.0sec Swing system Swing angle / time 360deg/1.3rpm 1st stage with flexible stay damper, 2nd stage manual pullout Type hydraulic cylinder direct acting type 60˚ 60˚ Outrigger system width (Lateral)3,400mm× (Front)3,300mm× (Rear)2,785mm Typ

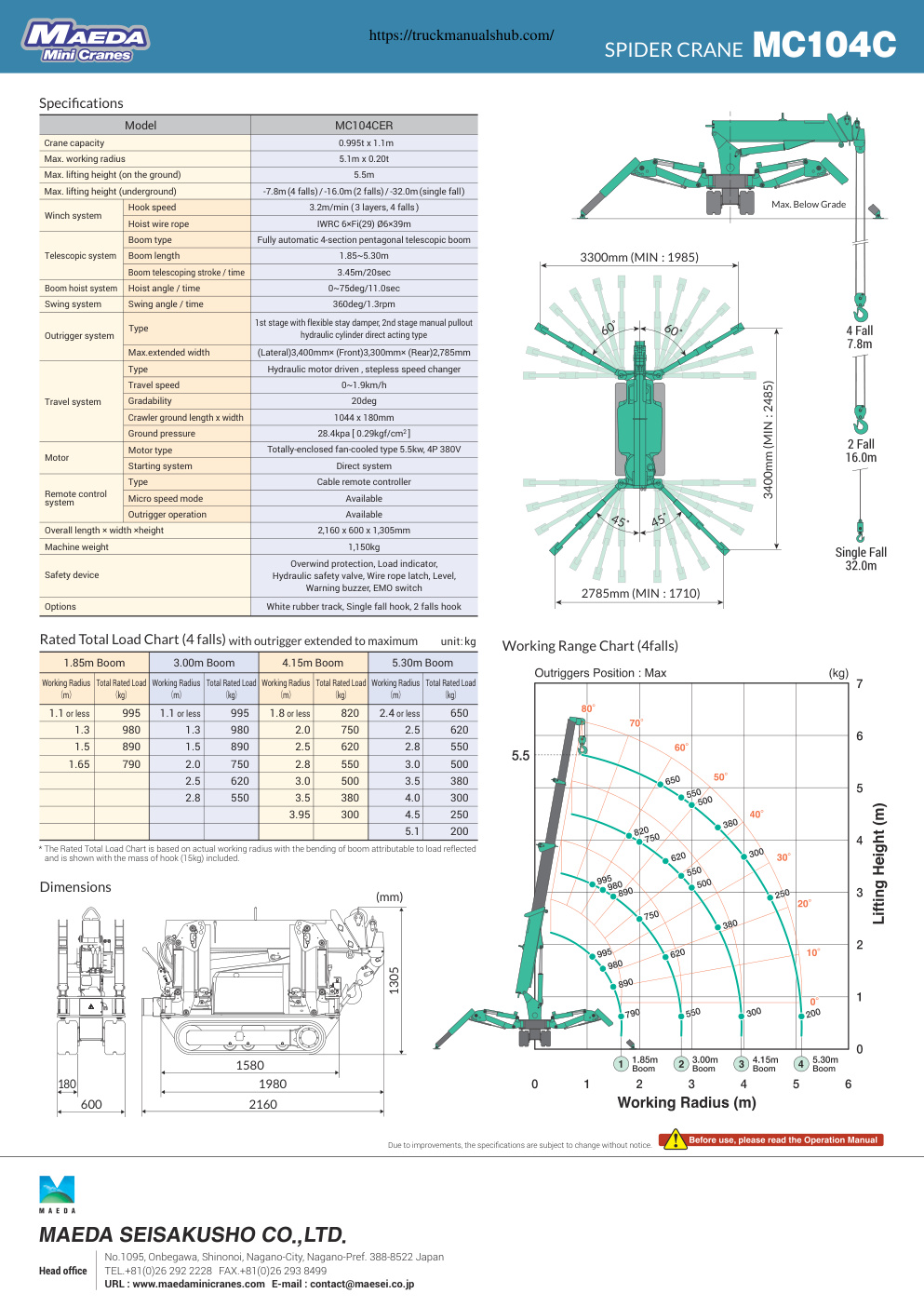

https://truckmanualshub.com/ SPIDER CRANE Crane Capacity 0.995t ×1.1m Max. lifting height (on the ground) 5.5m Max. working radius 5.1m × 0.20t Max. lifting height (underground) (4falls) -7.8m Electric Motor Power Multi Angle Position Outriggers https://truckmanualshub.com/ SPIDER CRANE MC104C Specifications Model MC104CER Crane capacity 0.995t x 1.1m Max. working radius 5.1m x 0.20t Max. lifting height (on the ground) 5.5m Max. lifting height (underground) -7.8m (4 falls) / -16.0m (2 falls) / -32.0m (single fall) Hook speed 3.2m/min ( 3 layers, 4 falls ) Max. Below Grade Winch system Hoist wire rope IWRC 6×Fi(29) Ø6×39m Boom type Fully automatic 4-section pentagonal telescopic boom Telescopic system Boom length 1.85~5.30m 3300mm (MIN : 1985) Boom telescoping stroke / time 3.45m/20sec Boom hoist system Hoist angle / time 0~75deg/11.0sec Swing system Swing angle / time 360deg/1.3rpm 1st stage with flexible stay damper, 2nd stage manual pullout Type hydraulic cylinder direct acting type 60˚ 60˚ Outrigger system Max.extended width (Lateral)3,400mm× (Front)3,300mm× (Rear)2,785mm Type Hydraulic motor driven , stepless speed changer Travel speed 0~1.9km/h Travel system Gradability 20deg…
