SPIDER CRANE

Nom du fichier : Maeda MC285C-3 Load Chart.pdf

Crane Capacity 2.82t x 1.4m Max. Working Radius 8.205m x0.15t Height 8.7m Max. Reach Below Ground -10.1m (4 falls) Max. Reach Below Ground (Aux Winch) -100m (single fall) Outrigger Width (Lateral) 4,782mm x (Front) 4,718mm x (Rear) 3,990mm Travel Ground Pressure (MC285CWM-3) 50.0kpa (0.510kgf/cm’) Travel Ground Pressure (MC285CWME-3) 54.3kpa (0.554kgf/cm’) Engine YANMAR 2TNV70-NMBA / Diesel Engine Rated Output 7.4kw/2,500rpm Engine (*MC285CGRM-2) Briggs & Stratton 3564 / Petrol Engine Rated Output (*MC285CGRM-2) 10.8kw/2,600rpm Dimensions (MC285CWM-3) 2,800mm (L) x 750mm (W) x 1,470mm (H) Dimensions (MC285CWME-3) 3,285mm (L) x 750mm (W) x 1,470mm (H) Machine Weight (MC285CWM-3) 1,990kg Machine Weight (MC285CWME-3) 2,160kg *Gasoline engine model is only available as MC285CGRM-2. 2800: Standard 3285: with electric motor TEC H N | CAL DATA Max. Below Grade Working

https://truckmanualshub.com/ https://truckmanualshub.com/ https://truckmanualshub.com/

3 pages 2,71 Mo PDF créé le 26/12/2018

Mots-clés

max engine fall ground crane working travel mc285cwm-3 mc285cwme-3 mc285cgrm-2 dimensions spider mc285c-3 below single 8.205m radius maeda

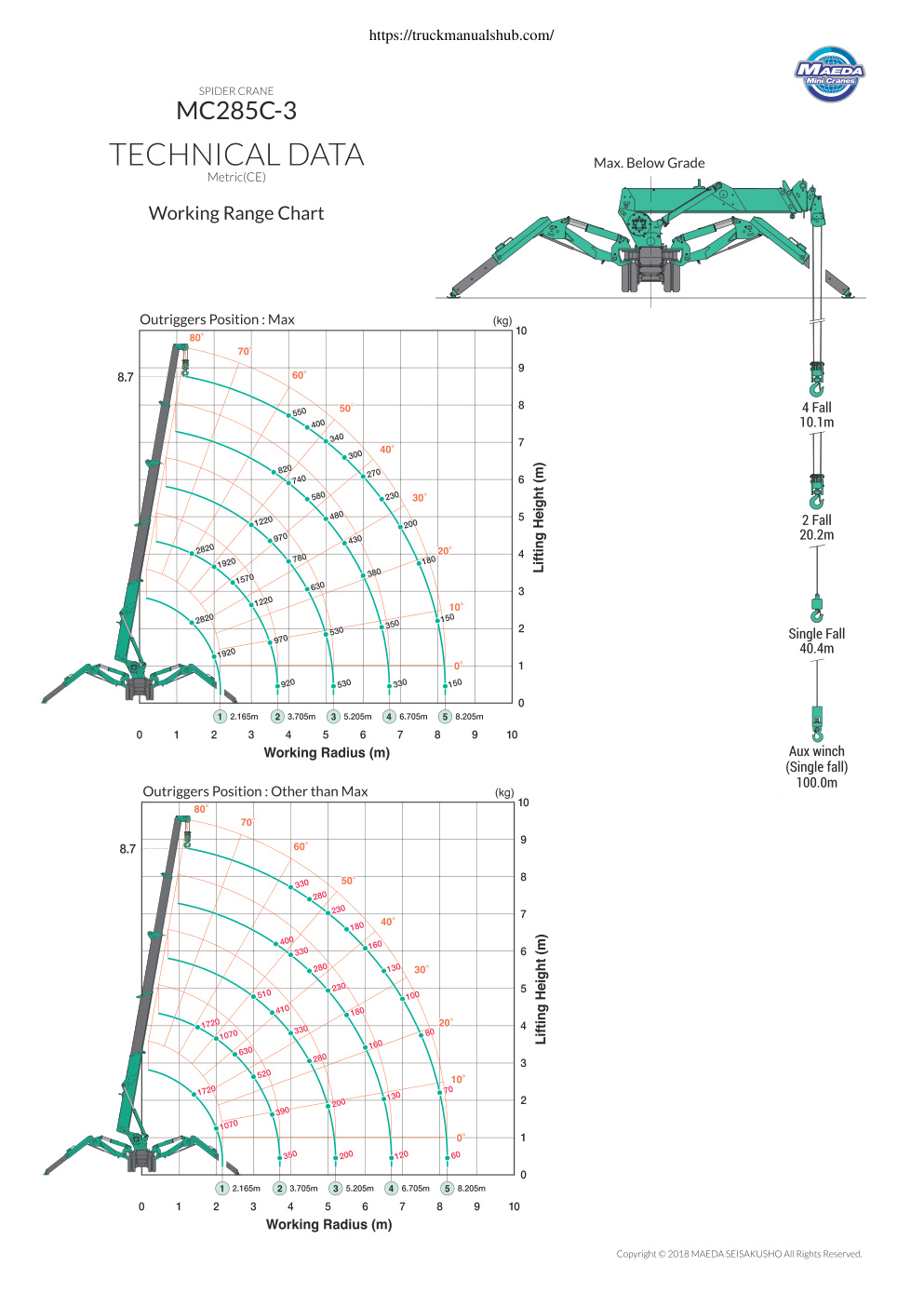

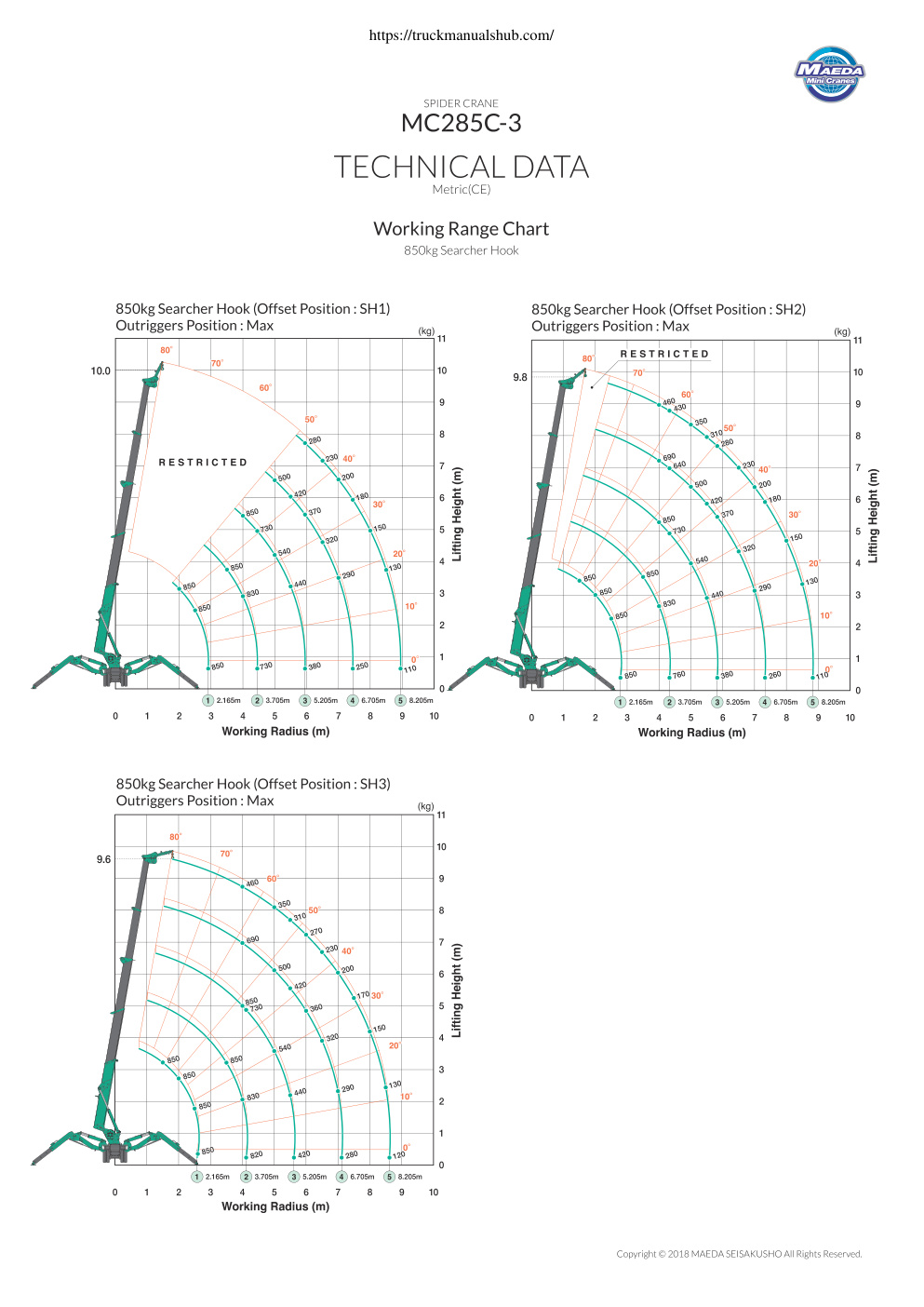

Aperçu du document
