SPIDER CRANE

Nom du fichier : Maeda MC815C Load Chart.pdf

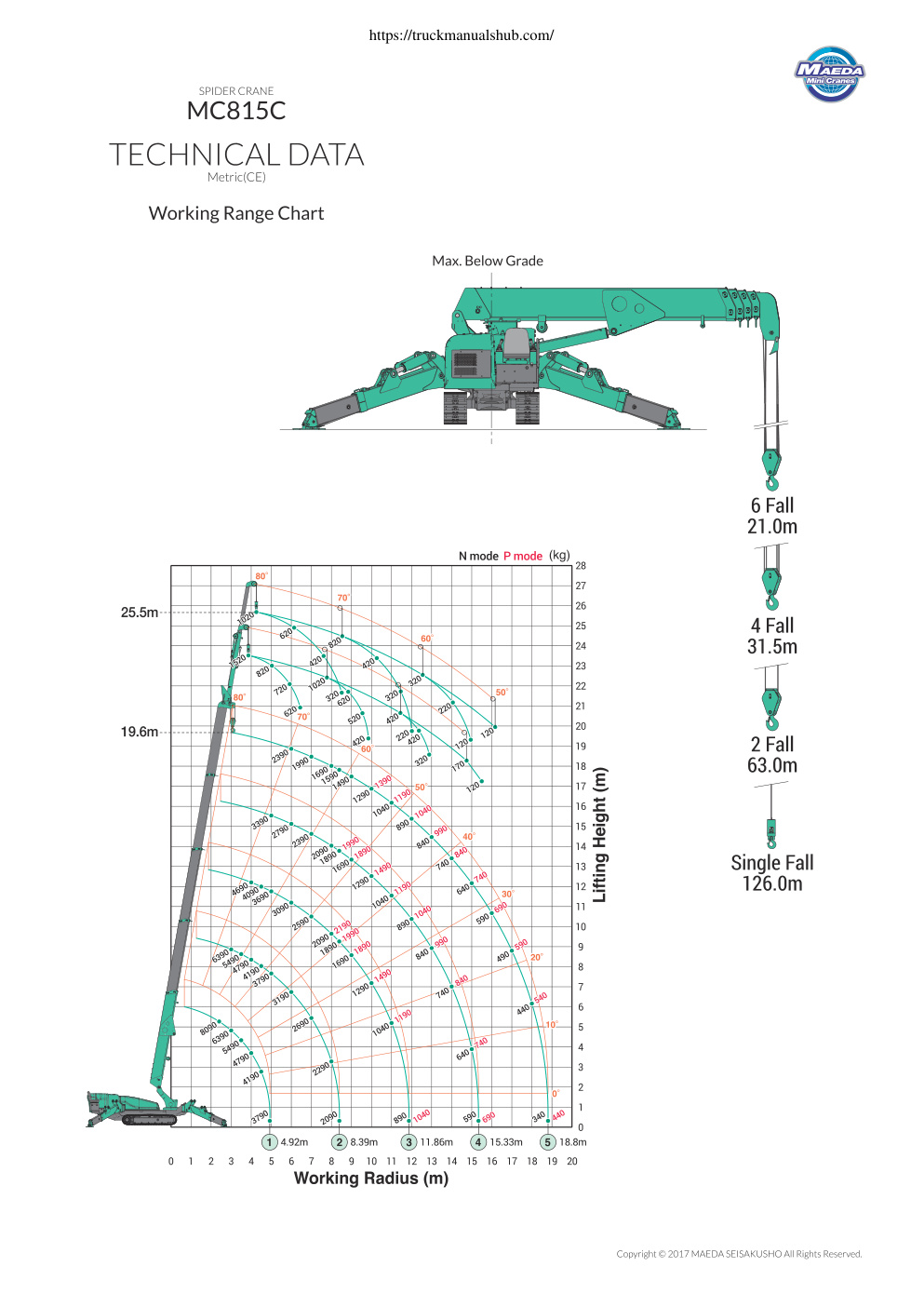

Max. Working Radius 18.8m x 0.34t (0.44t at P-Mode) Height 19.6m (25.5m with fly jib) Max. Reach Below Ground -21.0m (6 falls) / -126.0m (single fall) Outrigger Width (Lateral) 6,770mm x (Front) 6,300mm x (Rear) 6,520mm Pick & Carry Capacity Travel Ground Pressure (MC815CRM) 52.0kpa [0.53kgf/cm?] Travel Ground Pressure (MC815CRME) 53.0kpa [0.54kgf/cm?] YANMAR 4TNV88C-NMB / Diesel Engine Rated Output 30.5kw/2,500rpm 5,900mm (L) x 1,670mm (W) x 2,490mm (H) 9,460kg (9,700kg with electric motor) (0S6+: NIN ‘0925: GIN) (O16: NIW ‘095: GIN) (MID: 6270, MIN: 5740) Working Range Chart Max. Below Grade Nmode P mode (kg) 28 " PFN SS y 25 4 Fall ™ i = st ‘ 19 2 Fall = aN x ne Single Fall rs I 12 € 126.0m LL Sse! MINS wa a oe Sal Prof ° CD 492m 83m @) 11.86m @1533m 18.8m 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 Working Radius (m)
