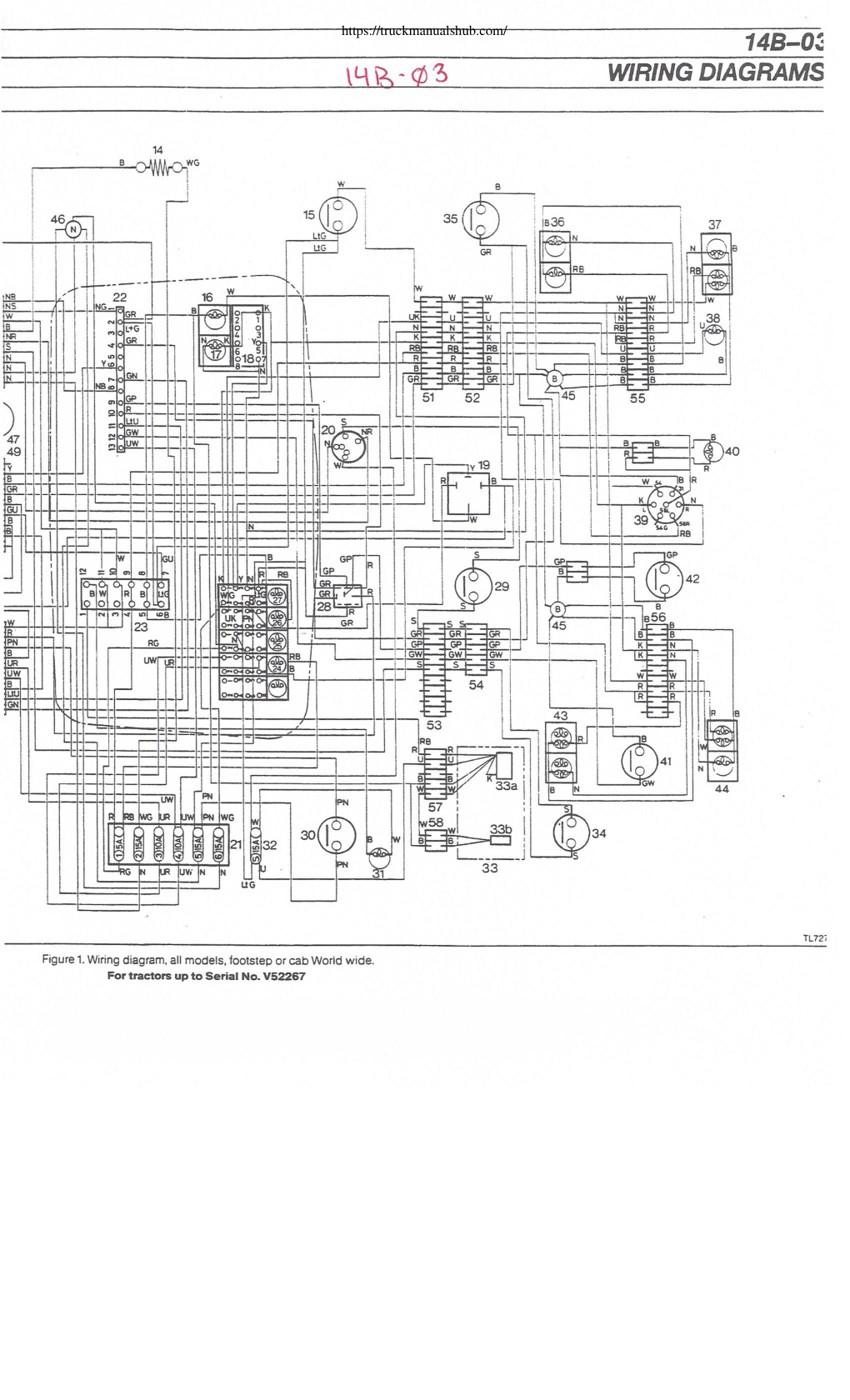

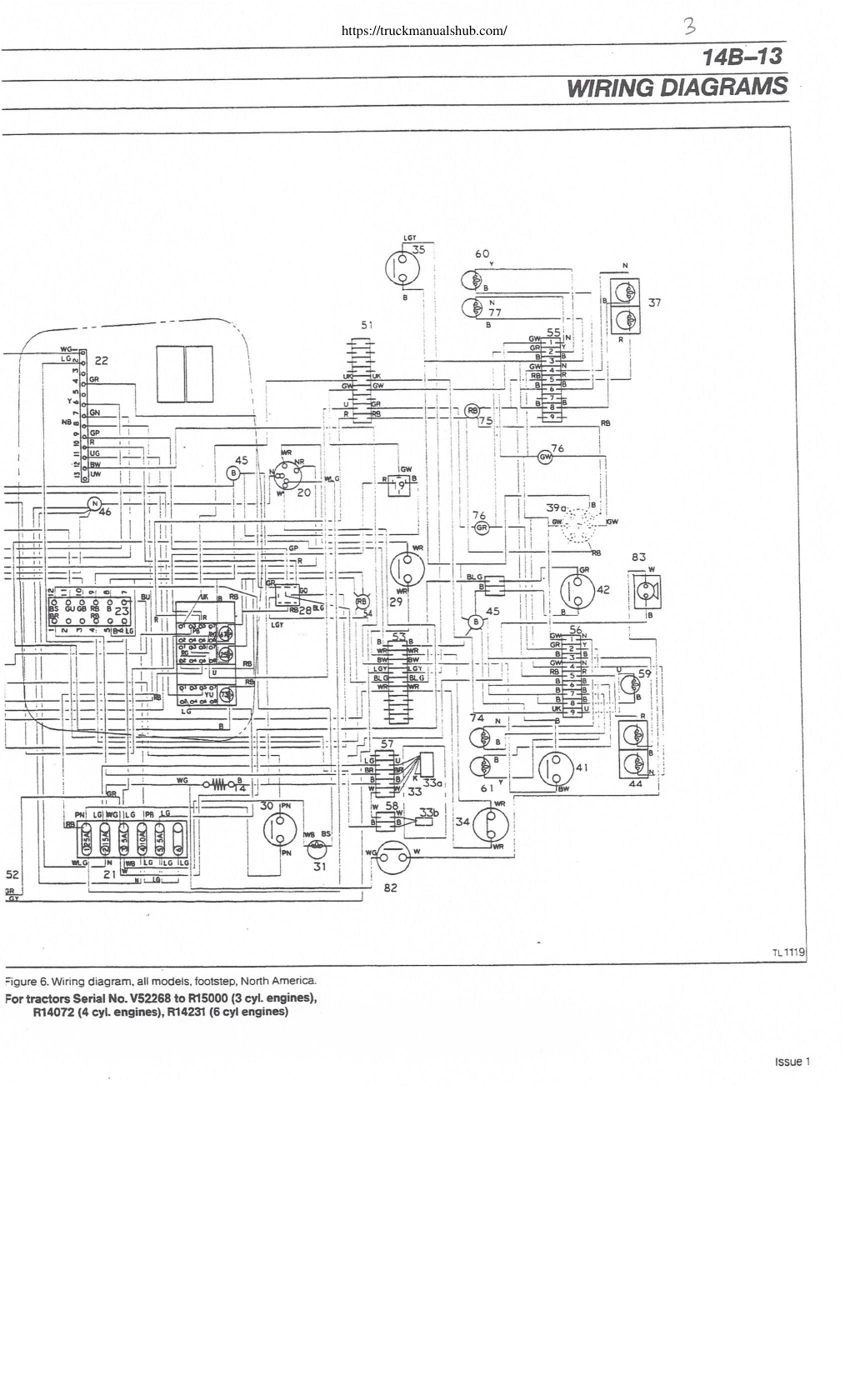

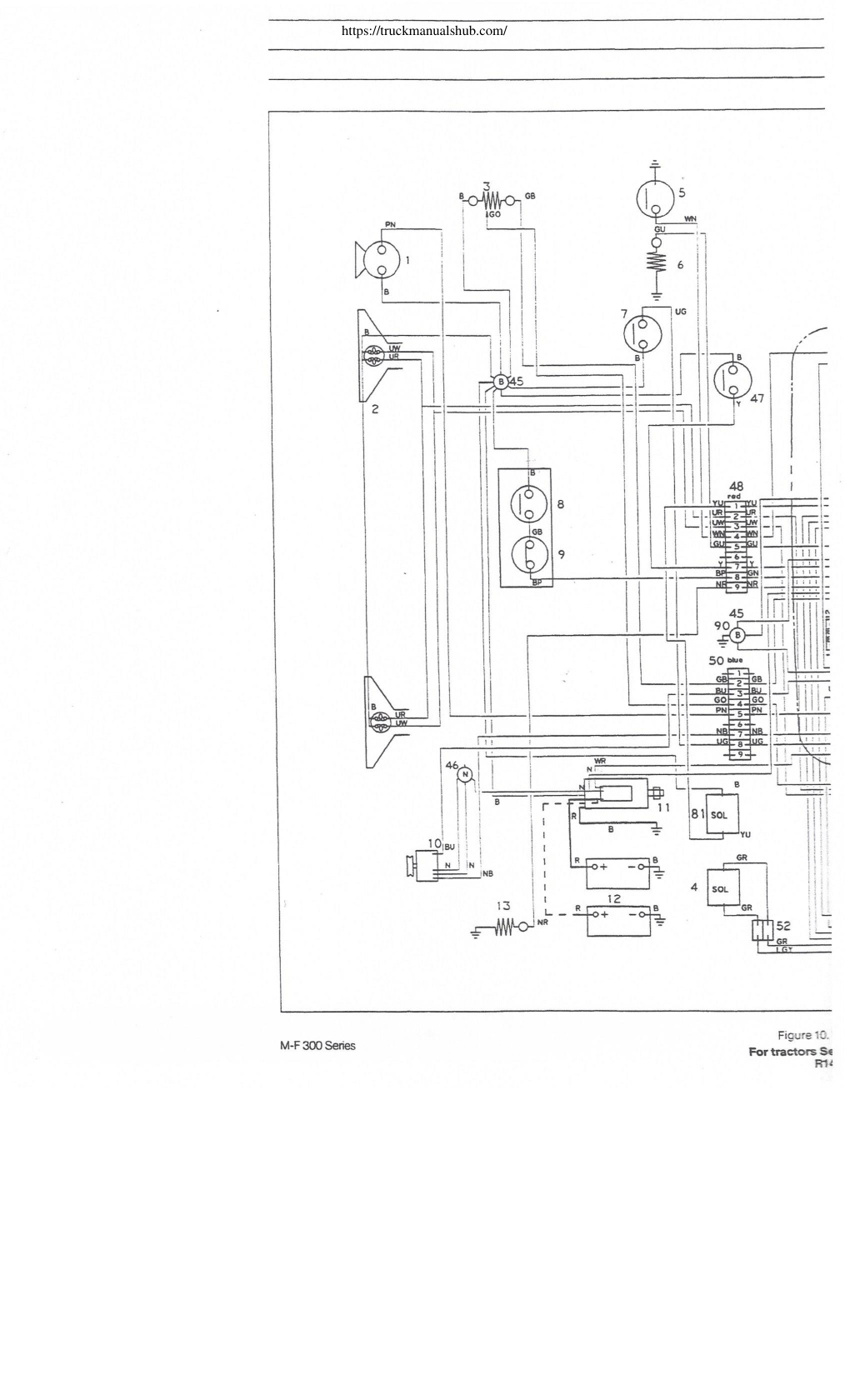

WIRING DIAGRAM FIGURE 1

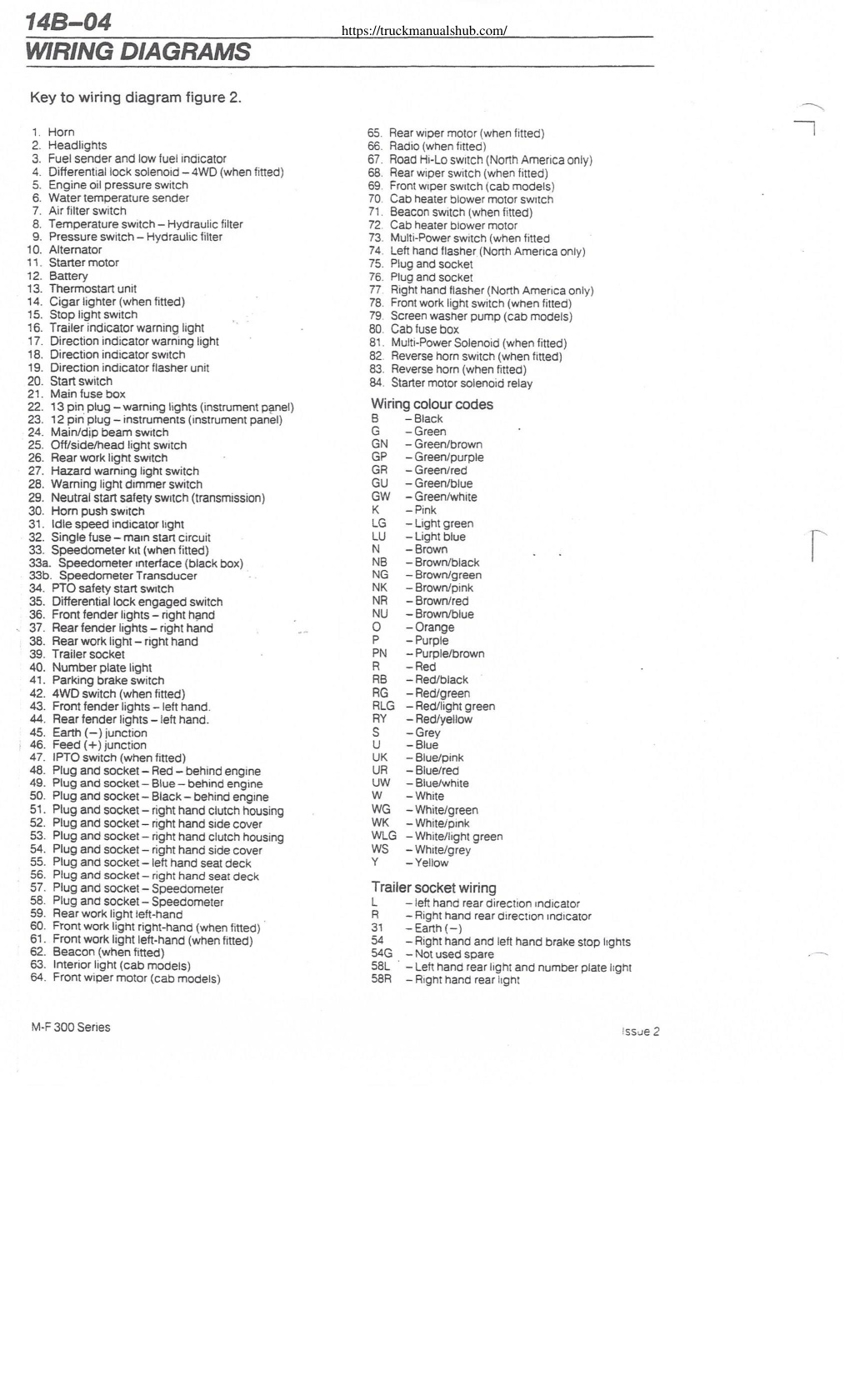

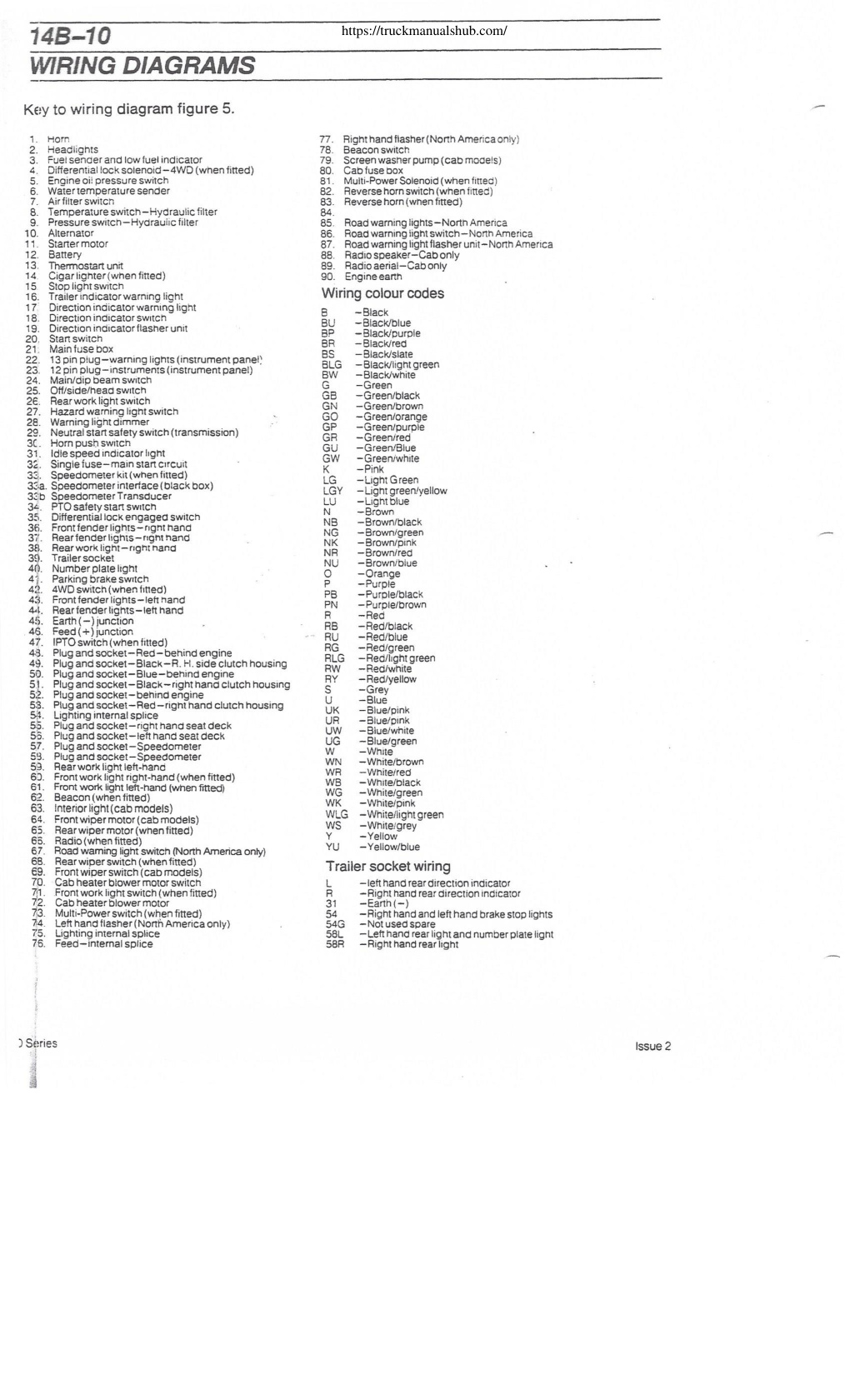

All models, footstep or cab, Worid wide For tractors up to Serial No. V52267 WIRING DIAGRAMS Key to wiring diagram figure 2. 3. Fuel sender and low fuel indicator 4. Differential lock solenoid — 4WD (when fitted) 5. Engine oil pressure switch 6. Water temperature sender 7. Air filter switch 8. Temperature switch — Hydraulic filter 9. Pressure switch — Hydraulic filter 11. Starter motor. Thermostart unit. Cigar lighter (when fitted). Stop light switch. Trailer indicator warning light. Direction indicator warning light. Direction indicator switch. Direction indicator flasher unit. Main fuse box. 13 pin plug — warning lights (instrument panel). 12 pin plug — instruments (instrument panel). Main/dip beam switch |. Off/side/head light switch. Rear work light switch. Hazard warning light switch. Warning light dimmer switch. Neutral start safety switch (transmission) |. Horn push
