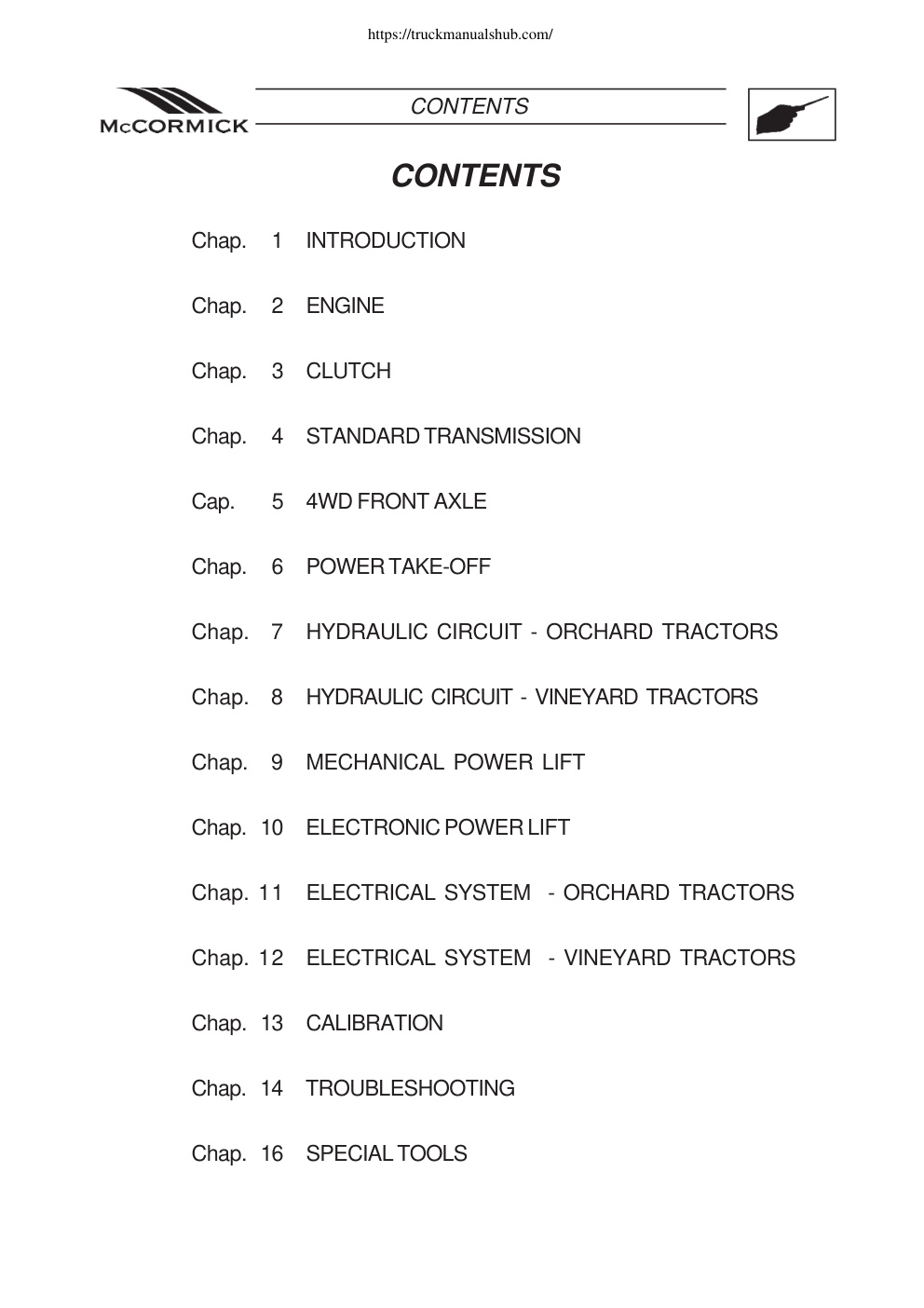

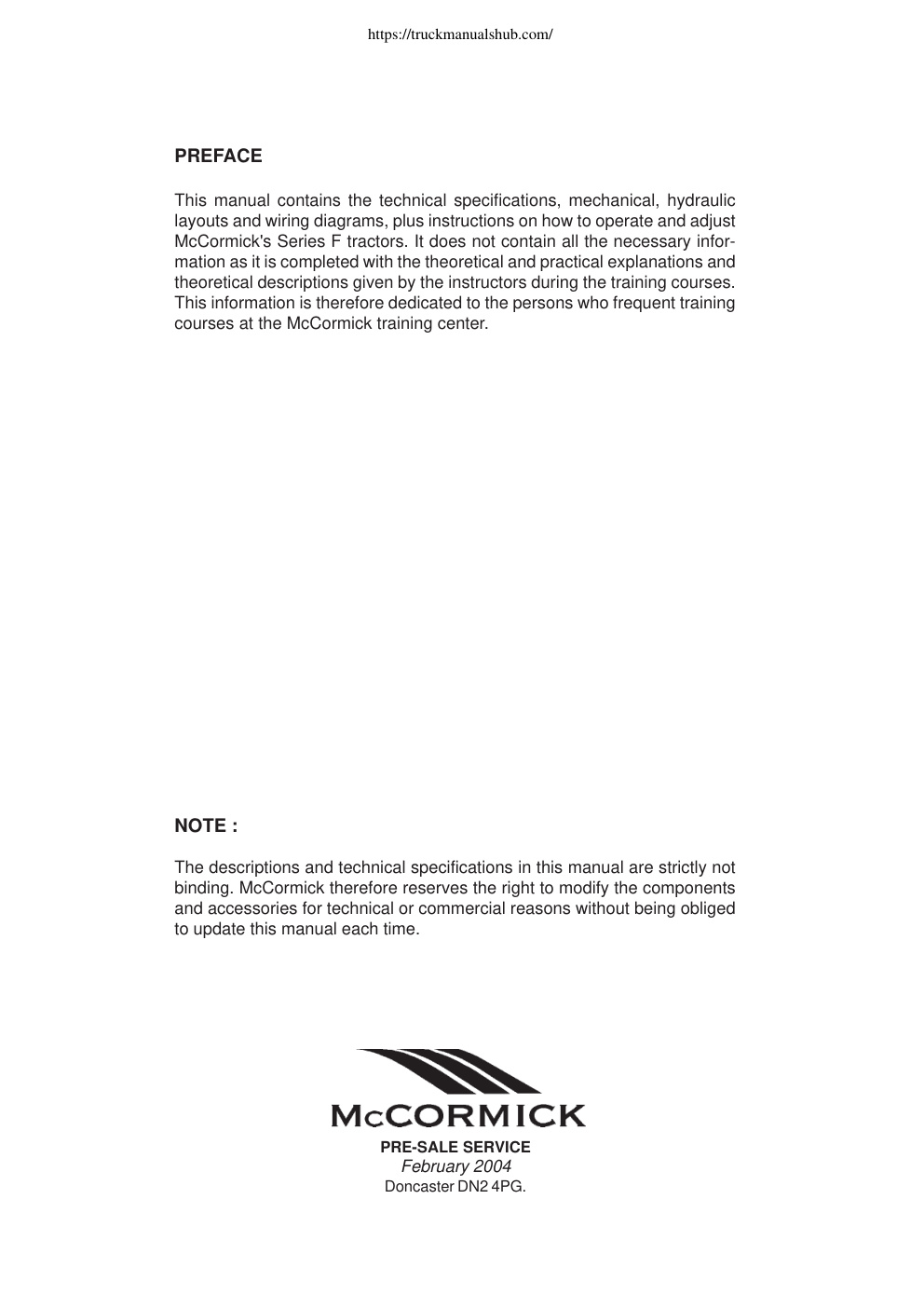

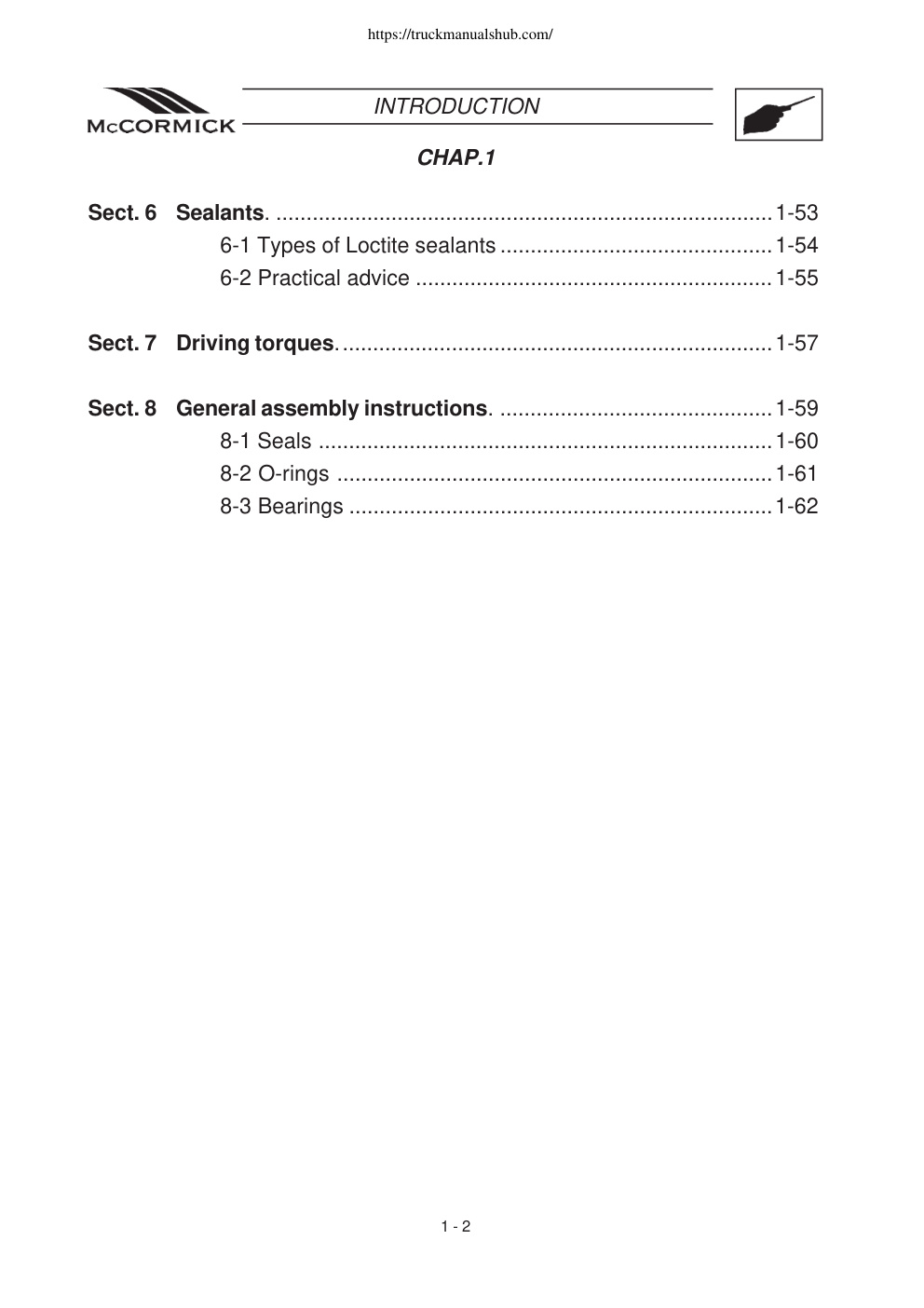

https://truckmanualshub.com/ Series F F 60-70-80 F 75-85-95-105 GE-XL Training Manual P/N° 3676090M1 https://truckmanualshub.com/ PREFACE This manual contains the technical specifications, mechanical, hydraulic layouts and wiring diagrams, plus instructions on how to operate and adjust McCormick's Series F tractors. It does not contain all the necessary infor- mation as it is completed with the theoretical and practical explanations and theoretical descriptions given by the instructors during the training courses. This information is therefore dedicated to the persons who frequent training courses at the McCormick training center. NOTE : The descriptions and technical specifications in this manual are strictly not binding. McCormick therefore reserves the right to modify the components and accessories for technical or commercial reasons without being obliged to update this manual each time. PRE-SALE SERVICE February 2004 Doncaster DN2 4PG. https://truckmanualshub.com/ CONTENTS CONTENTS Chap. 1 INTRODUCTION Chap. 2 ENGINE Chap. 3 CLUTCH Chap. 4 STANDARD TRANSMISSION Cap. 5 4WD FRONT AXLE Chap. 6 POWER TAKE-OFF Chap. 7 HYDRAULIC CIRCUIT - ORCHARD TRACTORS Chap. 8 HYDRAULIC CIRCUIT -…
