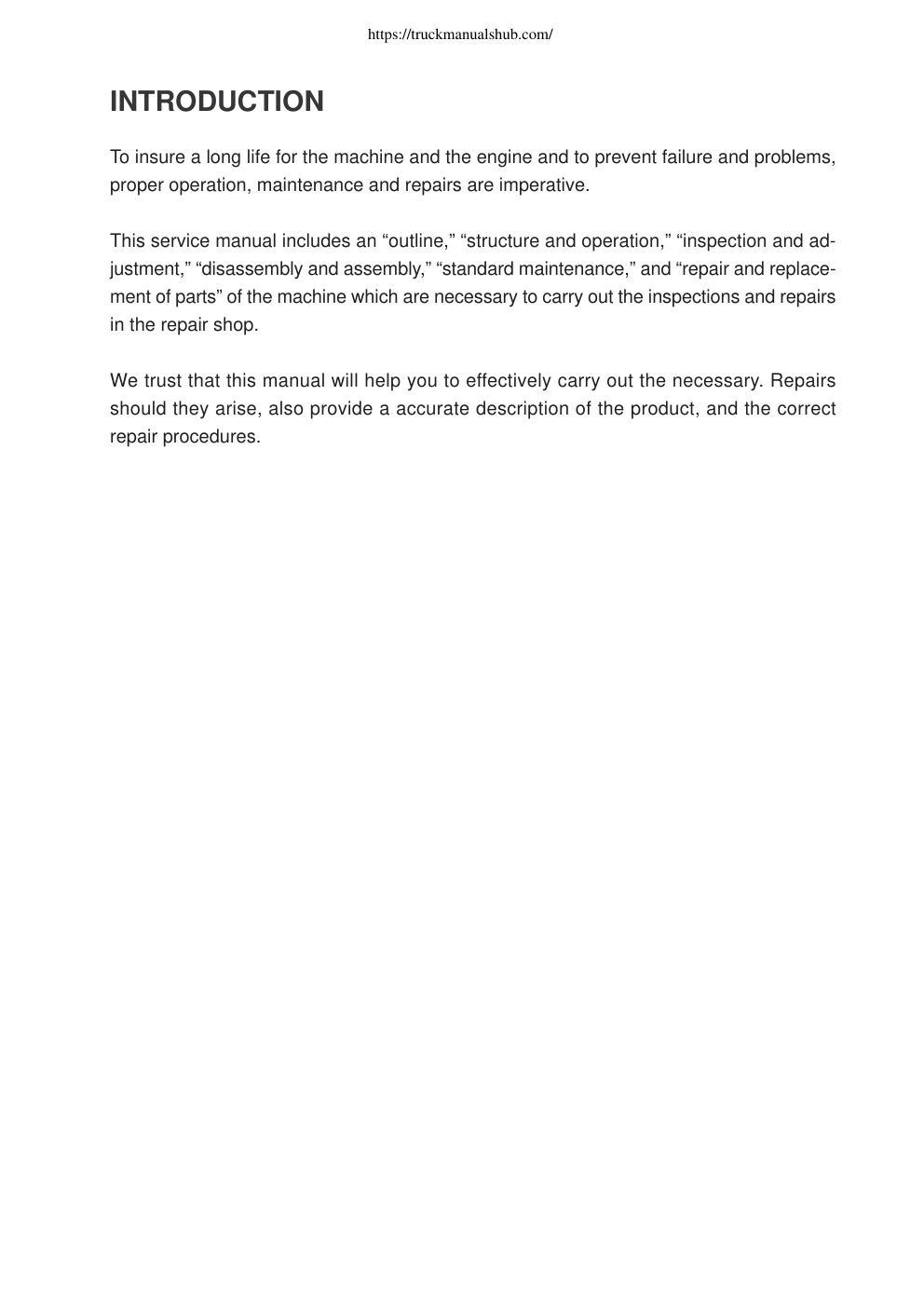

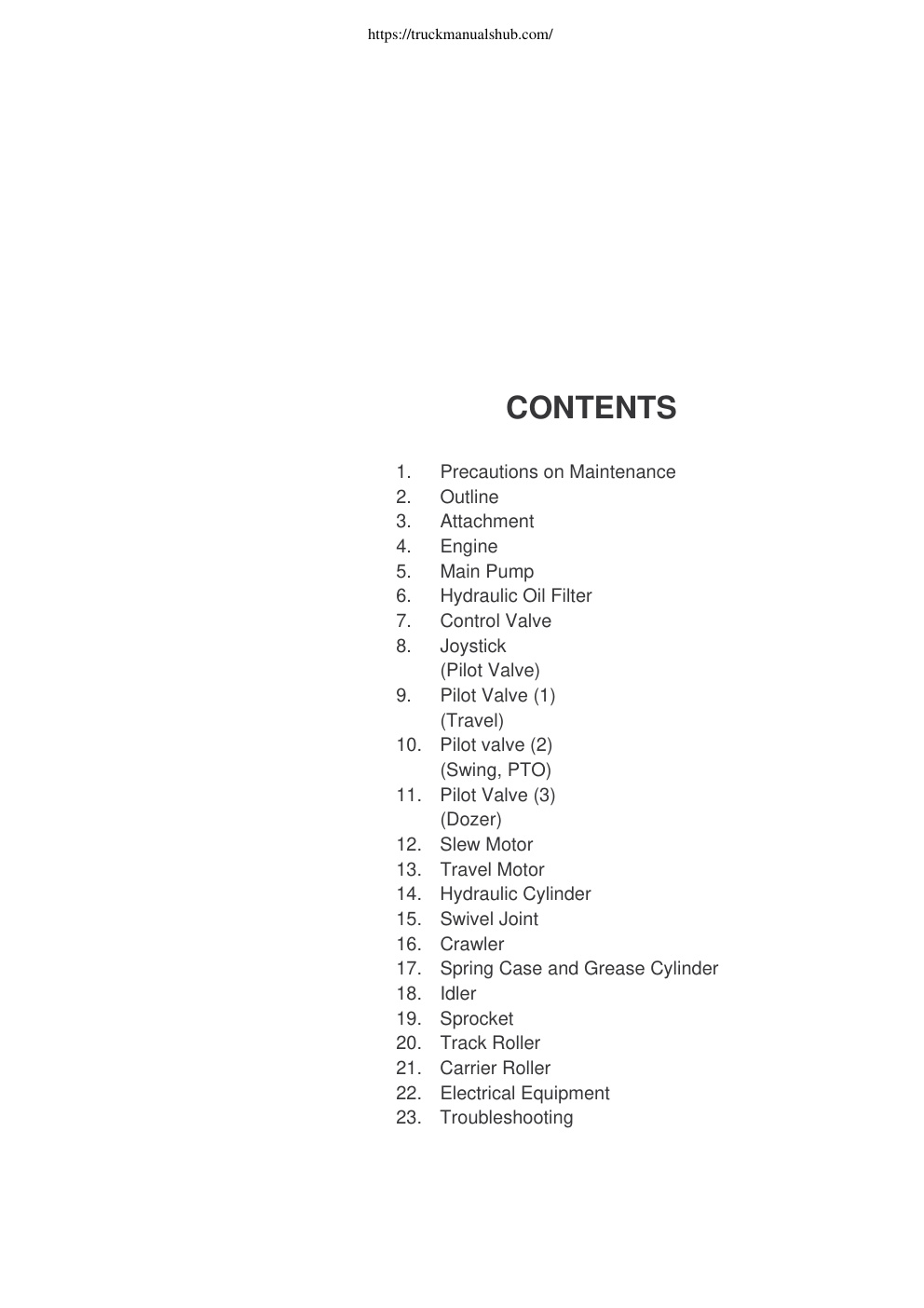

https://truckmanualshub.com/ SERVICE MANUAL SER. NO. HY2870001~ https://truckmanualshub.com/ https://truckmanualshub.com/ INTRODUCTION To insure a long life for the machine and the engine and to prevent failure and problems, proper operation, maintenance and repairs are imperative. This service manual includes an “outline,” “structure and operation,” “inspection and ad- justment,” “disassembly and assembly,” “standard maintenance,” and “repair and replace- ment of parts” of the machine which are necessary to carry out the inspections and repairs in the repair shop. We trust that this manual will help you to effectively carry out the necessary. Repairs should they arise, also provide a accurate description of the product, and the correct repair procedures. https://truckmanualshub.com/ https://truckmanualshub.com/ CONTENTS 1. Precautions on Maintenance 2. Outline 3. Attachment 4. Engine 5. Main Pump 6. Hydraulic Oil Filter 7. Control Valve 8. Joystick (Pilot Valve) 9. Pilot Valve (1) (Travel) 10. Pilot valve (2) (Swing, PTO) 11. Pilot Valve (3) (Dozer) 12. Slew Motor 13. Travel Motor 14. Hydraulic Cylinder 15. Swivel Joint 16. Crawler 17. Spring Case and Grease Cylinder 18. Idler…
