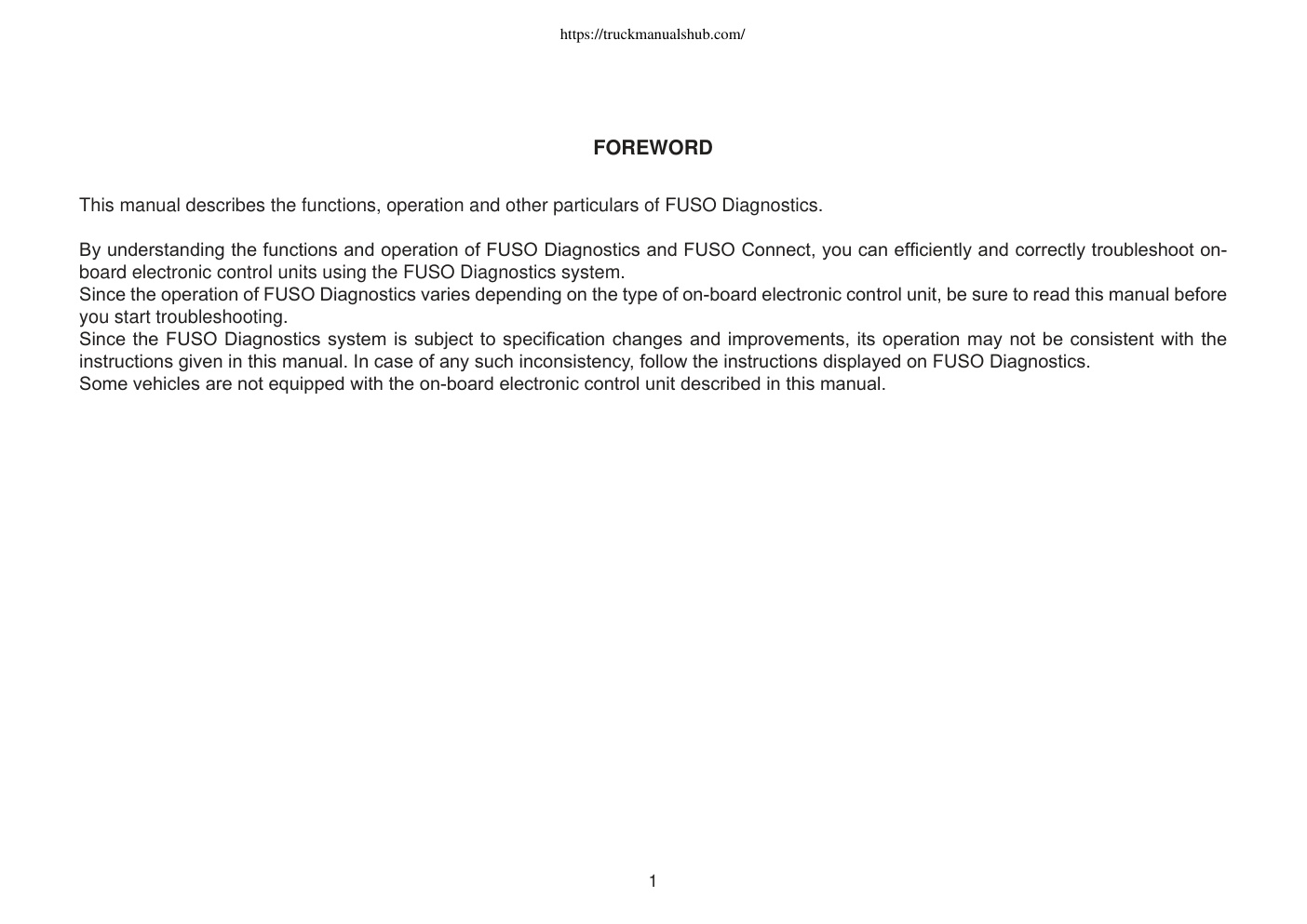

90EXX0002 April, 2016 This manual describes the functions, operation and other particulars of FUSO Diagnostics. By understanding the functions and operation of FUSO Diagnostics and FUSO Connect, you can efficiently and correctly troubleshoot on- board electronic control units using the FUSO Diagnostics system. Since the operation of FUSO Diagnostics varies depending on the type of on-board electronic control unit, be sure to read this manual before you start troubleshooting. Since the FUSO Diagnostics system is subject to specification changes and improvements, its operation may not be consistent with the instructions given in this manual. In case of any such inconsistency, follow the instructions displayed on FUSO Diagnostics. Some vehicles are not equipped with the on-board electronic control unit described in this manual.

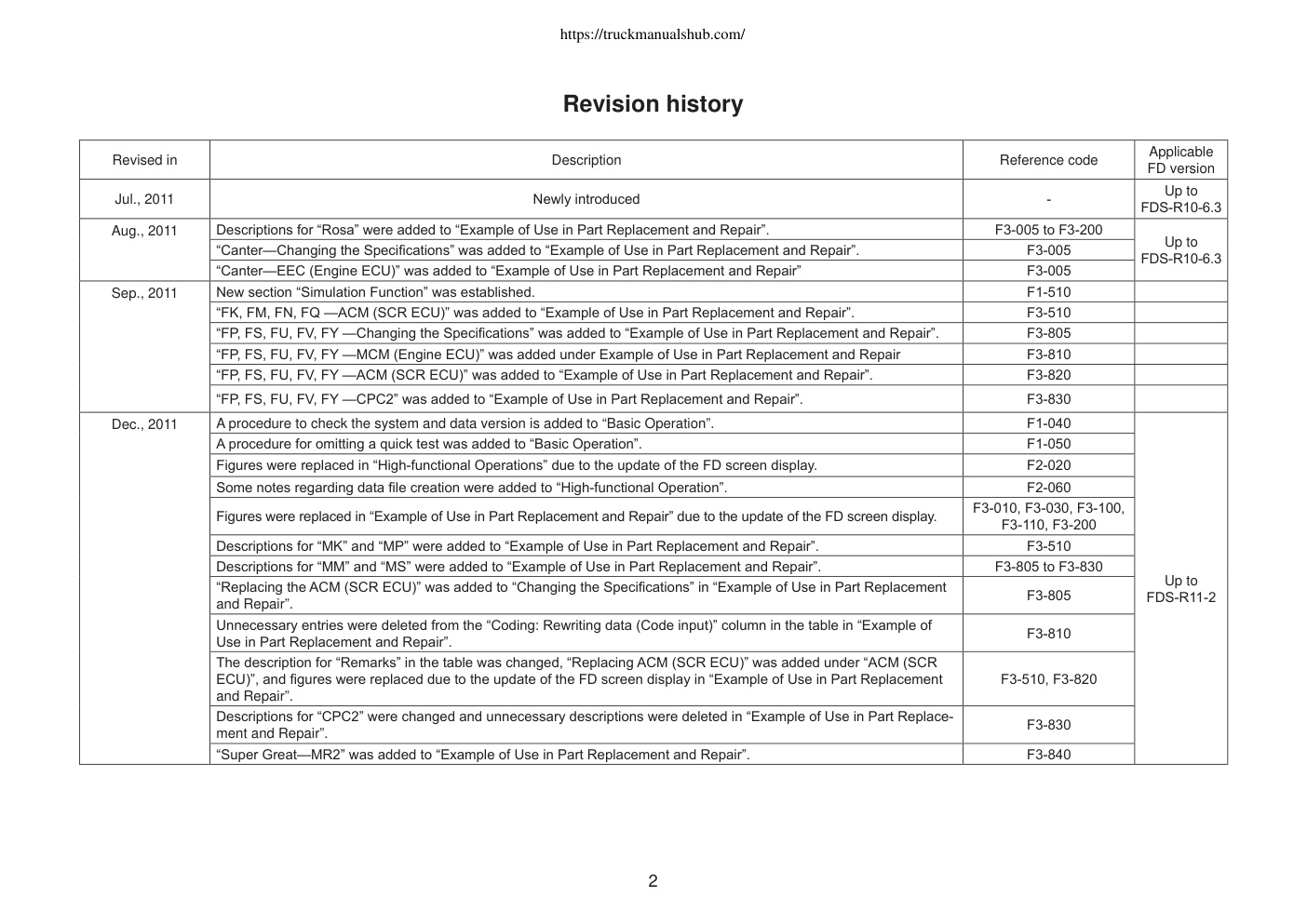

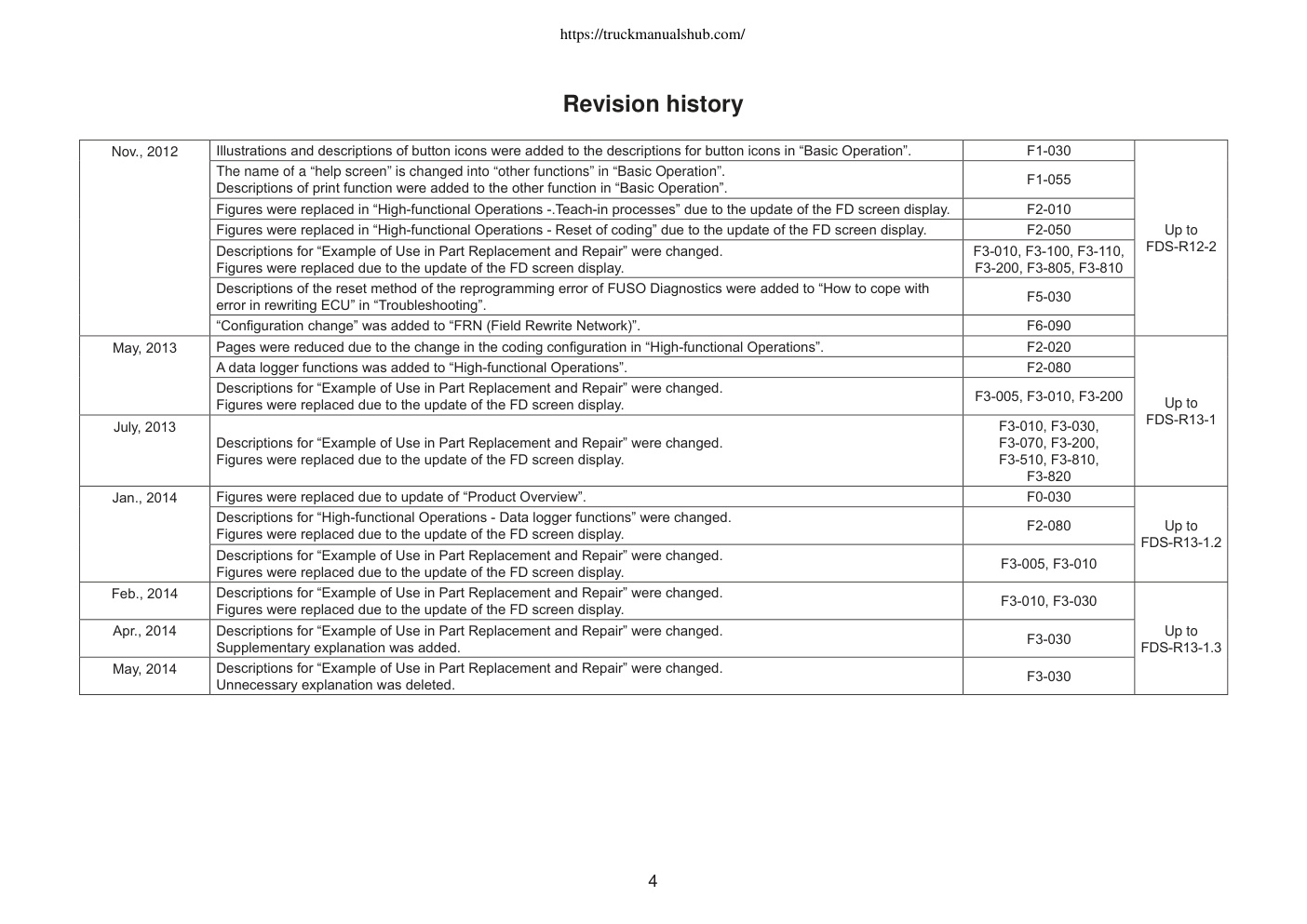

https://truckmanualshub.com/ Operation Manual 90EXX0002 April, 2016 https://truckmanualshub.com/ FOREWORD This manual describes the functions, operation and other particulars of FUSO Diagnostics. By understanding the functions and operation of FUSO Diagnostics and FUSO Connect, you can efficiently and correctly troubleshoot on- board electronic control units using the FUSO Diagnostics system. Since the operation of FUSO Diagnostics varies depending on the type of on-board electronic control unit, be sure to read this manual before you start troubleshooting. Since the FUSO Diagnostics system is subject to specification changes and improvements, its operation may not be consistent with the instructions given in this manual. In case of any such inconsistency, follow the instructions displayed on FUSO Diagnostics. Some vehicles are not equipped with the on-board electronic control unit described in this manual. 1 https://truckmanualshub.com/ Revision history ApplicableRevised in Description Reference code FD version Up to Jul., 2011 Newly introduced - FDS-R10-6.3 Aug., 2011 Descriptions for “Rosa” were added to “Example of Use in Part Replacement and Repair”. F3-005 to F3-200 Up to…
