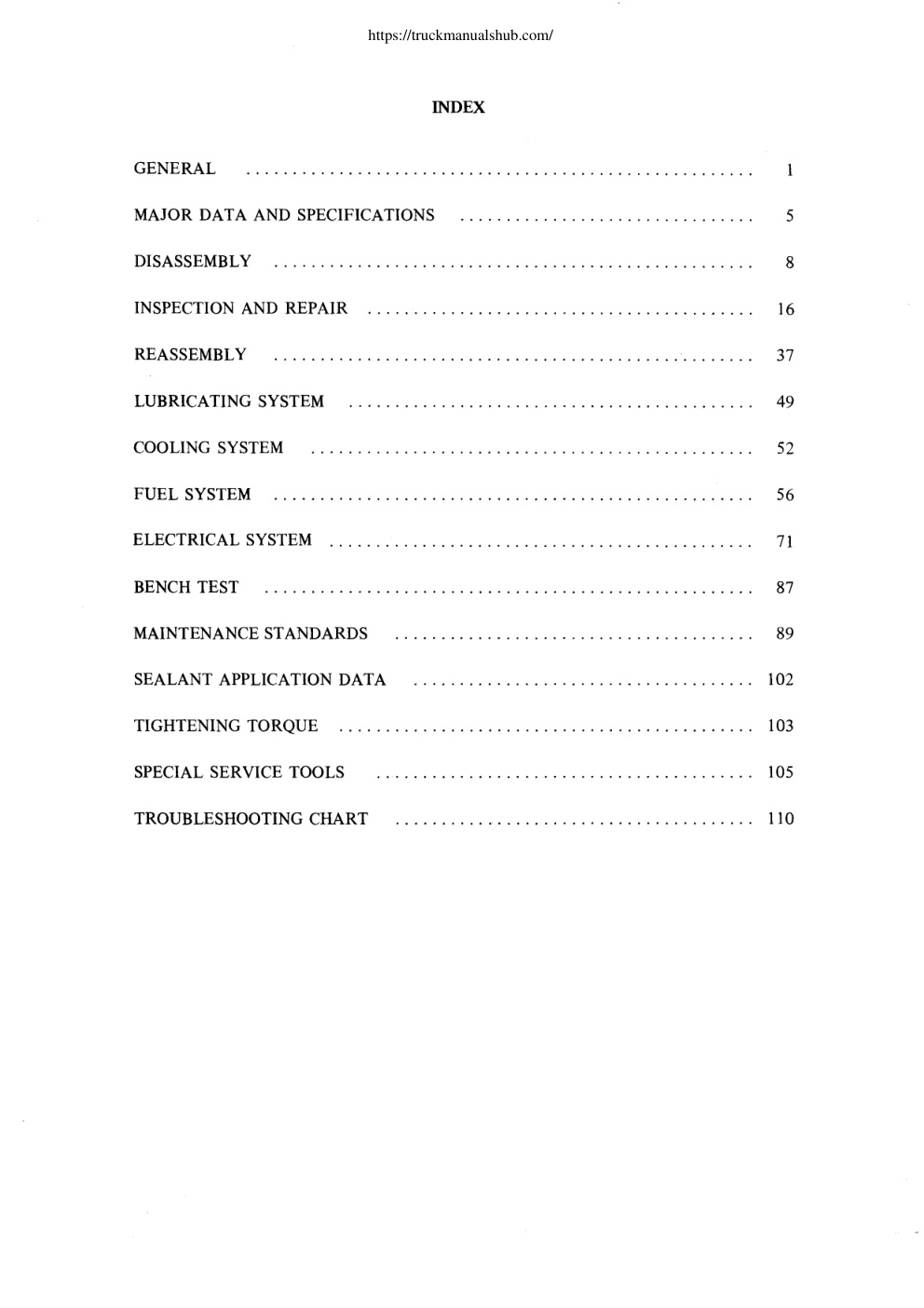

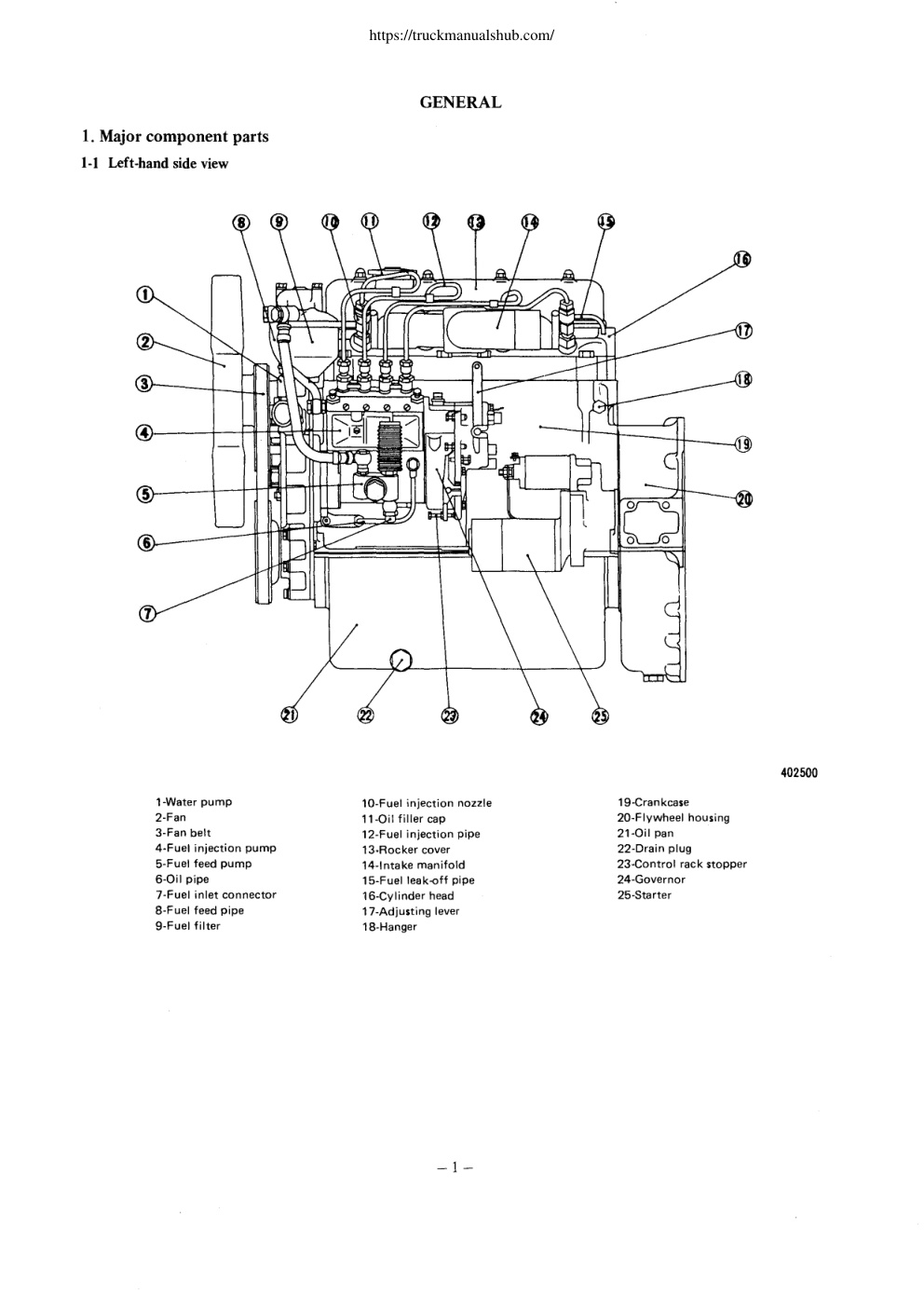

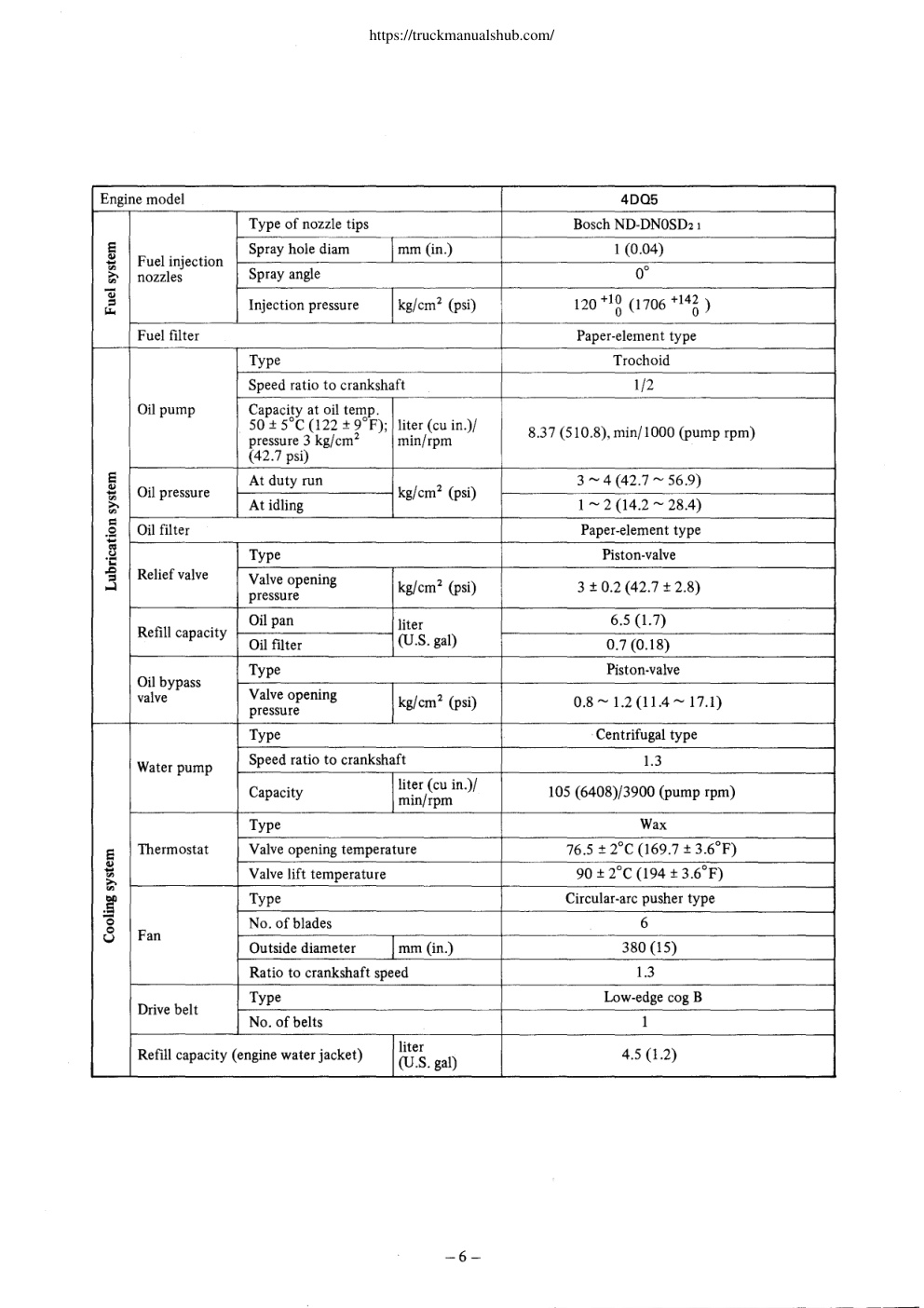

https://truckmanualshub.com/ SERVICE MANUAL MITSUBISHI DIESEL ENGINE 4 5 https://truckmanualshub.com/ https://truckmanualshub.com/ INDEX GENERAL MAJOR DATA AND SPECIFICATIONS 5 DISASSEMBLY 8 INSPECTION AND REPAIR .......................................... 16 REASSEMBLY 37 LUBRICATING SYSTEM 49 COOLING SYSTEM 52 FUEL SYSTEM 56 ELECTRICAL SYSTEM .............................................. 71 BENCH TEST 87 MAINTENANCE STANDARDS 89 SEALANT APPLICATION DATA 102 TIGHTENING TORQUE ............................................. 103 SPECIAL SERVICE TOOLS 105 TROUBLESHOOTING CHART 110 https://truckmanualshub.com/ https://truckmanualshub.com/ GENERAL 1. Major component parts 1-1 Left-hand side view 402500 1-Water pump 10-Fuel injection nozzle 19-Cran kcase 2-Fan 11-0il filler cap 20-Flywheel housing 3-Fan belt 12-Fuel injection pipe 21-0il pan 4-Fuel injection pump 13.Rocker cover 22-Drain plug 5-Fuel feed pump 14-lntake manifold 23-Control rack stopper 6-0il pipe 15-Fuel leak-off pipe 24-Governor 7-Fuel inlet connector 16-Cylinder head 25-Starter 8-Fuel feed pipe 17-Adjusting lever 9-Fuel filter 18-Hanger -1- https://truckmanualshub.com/ 1-2 Right-hand side view 402501 l-Cylinder head…
