TABLE, TRUNNIONS, AND GUIDE PARTS

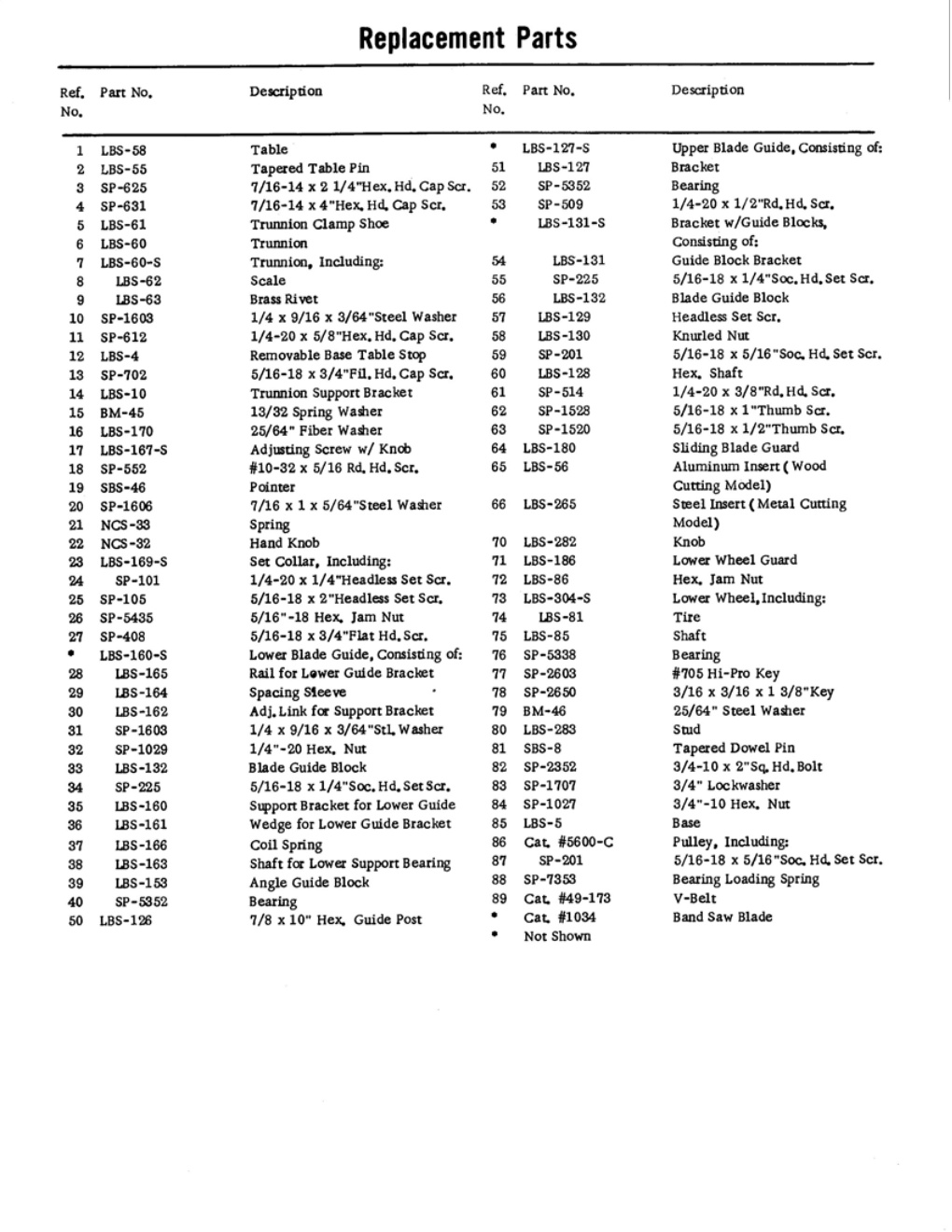

Rockwell International 14” WOOD AND METAL-WOOD CA Power Tool Division 28—200, 28—300, 28—290, 28—380 BS—24 CUTTING BAND SAWS WOOD CUTTING BASE PARTS NOTE: THIS PARTS LIST IS FOR 14” METAL AND WOOD CUTTING BANDSAWS STARTING WITH SER. Ne. BU-8780 AND HIGHER. FOR LOWER SER. Ne. METAL AND WOOD CUTTING BANDSAWS, REFER TO PM-ISI7 REVISED 8-10-59. Replacement Parts Ref, Part No, Description Ref, Part No. Description 1 LBS-58 Table * LBS-127-S Upper Blade Guide, Consisting of: 2 LBS-55 Tapered Table Pin 51 LBS-127 Bracket 3 SP-625 1/16-14 x 2 1/4"Hex, Hd, CapScr. 52 SP-5352 Bearing 4 SP-631 7/16-14 x 4"Hex, Hd, Cap Scr, 53 SP-509 1/4-20 x 1/2"Rd. Hd, Scr, 5 LBS-61 Trunnion Clamp Shoe bd LBS-131-S Bracket w/Guide Blocks, 6 LBS-60 Trunnion Consisting of: 7 LBS-60-S Trunnion, Including: 54 LBS-131 Guide Block Bracket 8 LBS-62 Scale 55 SP-225 5/16-18 x 1/4"Soc, Hd, Set Scr, 9 LBS-63 Brass Rivet 56 L

Rockwell International 14” WOOD AND METAL-WOOD CA Power Tool Division 28—200, 28—300, 28—290, 28—380 BS—24 CUTTING BAND SAWS TABLE, TRUNNIONS, AND GUIDE PARTS M CN WOOD CUTTING BASE PARTS NOTE: THIS PARTS LIST IS FOR 14” METAL AND WOOD CUTTING BANDSAWS STARTING WITH SER. Ne. BU-8780 AND HIGHER. FOR LOWER SER. Ne. METAL AND WOOD CUTTING BANDSAWS, REFER TO PM-ISI7 REVISED 8-10-59. Replacement Parts Ref, Part No, Description Ref, Part No. Description No, No. 1 LBS-58 Table * LBS-127-S Upper Blade Guide, Consisting of: 2 LBS-55 Tapered Table Pin 51 LBS-127 Bracket 3 SP-625 1/16-14 x 2 1/4"Hex, Hd, CapScr. 52 SP-5352 Bearing 4 SP-631 7/16-14 x 4"Hex, Hd, Cap Scr, 53 SP-509 1/4-20 x 1/2"Rd. Hd, Scr, 5 LBS-61 Trunnion Clamp Shoe bd LBS-131-S Bracket w/Guide Blocks, 6 LBS-60 Trunnion Consisting of: 7 LBS-60-S Trunnion, Including: 54 LBS-131 Guide Block Bracket 8 LBS-62 Scale 55 SP-225 5/16-18 x 1/4"Soc, Hd, Set Scr, 9 LBS-63 Brass Rivet 56 LBS-132 Blade Guide Block 10 SP-1603 1/4 x 9/16 x 3/64"Steel Washer 57 LBS-129 Headless Set Scr, 11 SP-612 1/4-20 x 5/8"Hex, Hd, Cap Scr, 58 LBS -130 Knurled Nut 12 LBS-4 Removable Base Table Stop 59 SP-201 5/16-18 x 5/16"Soc, Hd, Set Scr, 13 SP-702…
