SERVICE MANUAL

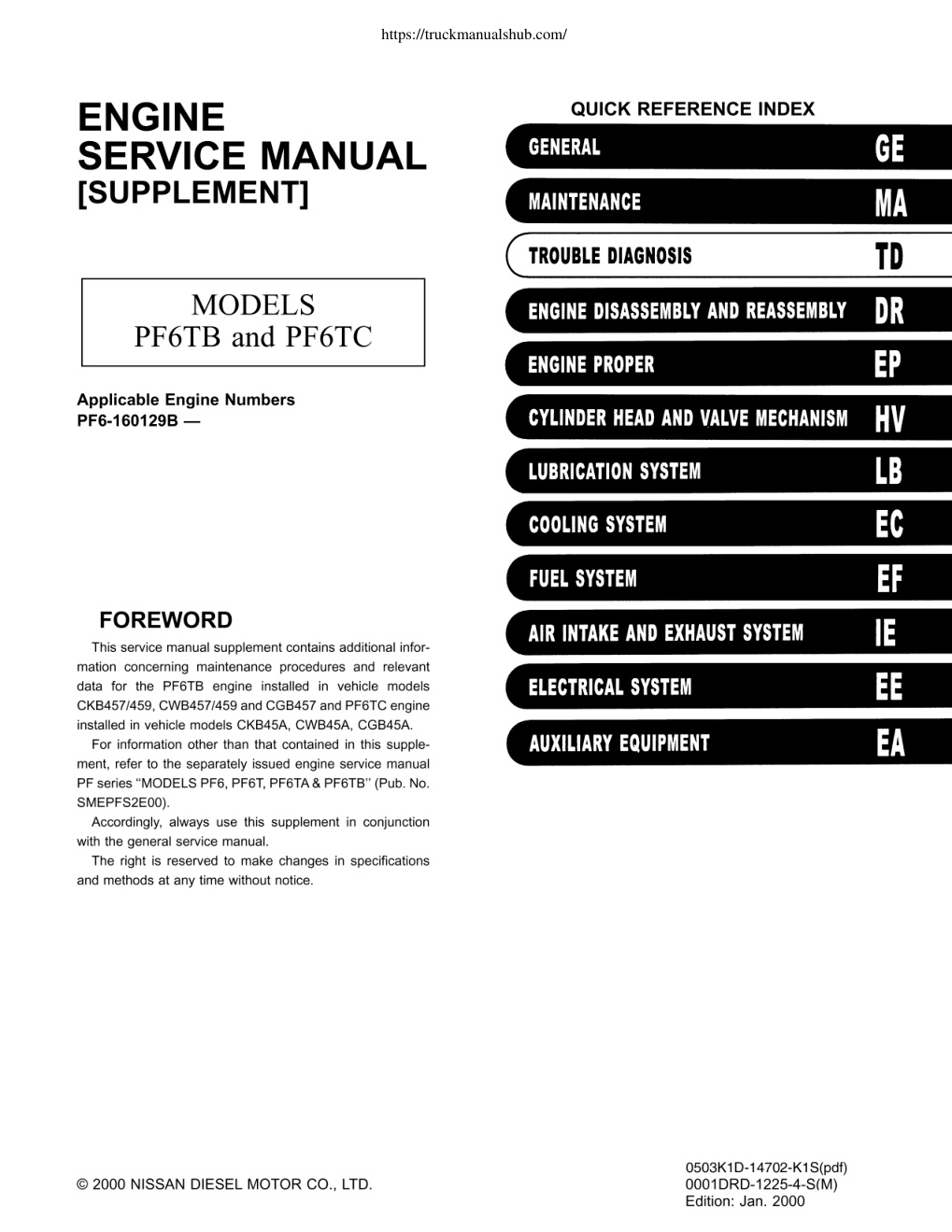

PF6TB AND PF6TC @NISSANDIESEeL sn ENGINE QUICK REFERENCE INDEX [SUPPLEMENT] MAINTENANCE MA TROUBLE DIAGNOSIS TD MODELS ENGINE DISASSEMBLY AND REASSEMBLY DR PF6TB and PF6TC ENGINE PROPER EP Applicable Engine Numbers PF6-160129B — CYLINDER HEAD AND VALVE MECHANISM HV LUBRICATION SYSTEM LB COOLING SYSTEM E FOREWORD ee AIR INTAKE AND EXHAUST EM E This service manual supplement contains additional infor- mation concerning maintenance procedures and relevant data for the PF6TB engine installed in vehicle models ELECTRICAL TEM EE CKB457/459, CWB457/459 and CGB457 and PF6TC engine installed in vehicle models CKB45A, CWB45A, CGB45A. For information other than that contained in this supple- AUXILIARY EQUIPMENT EA ment, refer to the separately issued engine service manual PF series “MODELS PF6, PF6T, PF6TA & PF6TB” (Pub. No. Accordingly, always use this supplement in conjunction with the general se

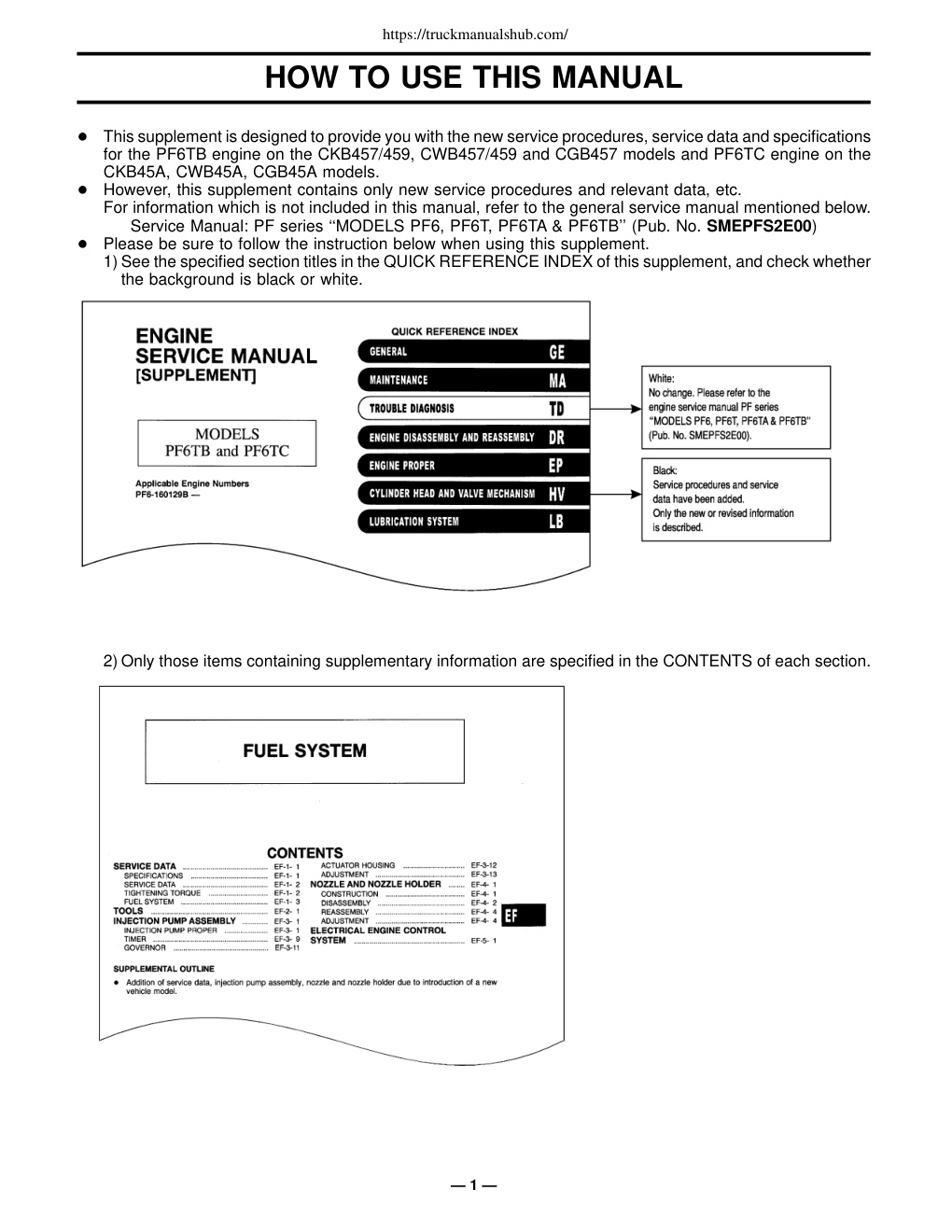

https://truckmanualshub.com/ ENGINE [SUPPLEMENT] PF series PF6TB AND PF6TC Pub.No. SSM615PFE2 https://truckmanualshub.com/ https://truckmanualshub.com/ HOW TO USE THIS MANUAL + This supplement is designed to provide you with the new service procedures, service data and specifications for the PF6TB engine on the CKB457/459, CWB457/459 and CGB457 models and PF6TC engine on the CKB45A, CWB45A, CGB45A models. + However, this supplement contains only new service procedures and relevant data, etc. For information which is not included in this manual, refer to the general service manual mentioned below. Service Manual: PF series ‘‘MODELS PF6, PF6T, PF6TA & PF6TB’’ (Pub. No. SMEPFS2E00) + Please be sure to follow the instruction below when using this supplement. 1) See the specified section titles in the QUICK REFERENCE INDEX of this supplement, and check whether the background is black or white. 2) Only those items containing supplementary information are specified in the CONTENTS of each section. — 1 — https://truckmanualshub.com/ 6n053for 0001DRD-1225-4-S(M) 6n053for White: No change. Please refer to the engine service manual PF series ‘‘MODELS PF6, PF6T, PF6TA & PF6TB’’ (Pub. No.…
