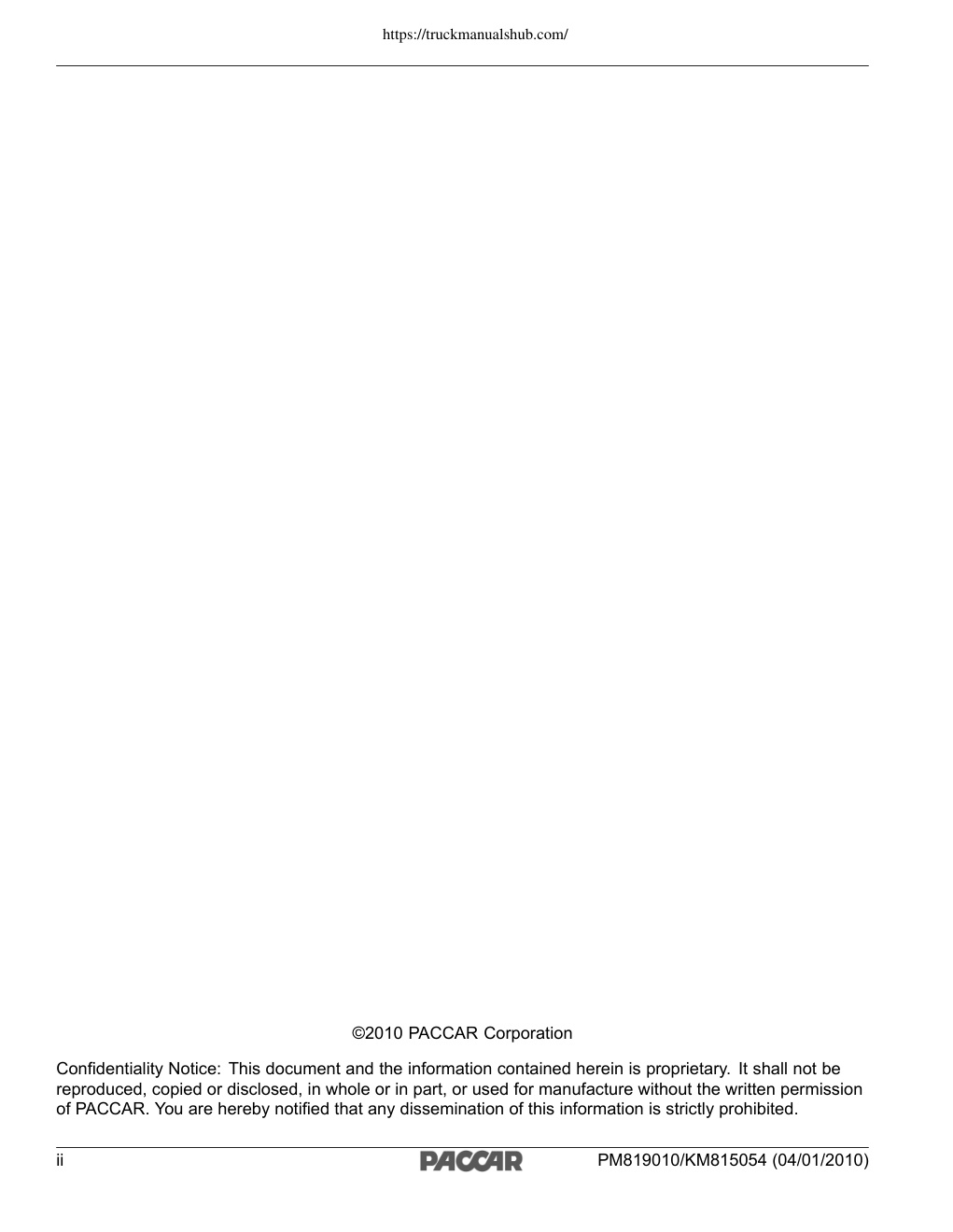

Electrical System Service Number PM819010/KM815054 Date 04/01/2010 2005 - 2010 MULTIPLEXED ELECTRICAL ©2010 PACCAR Corporation Confidentiality Notice: This document and the information contained herein is proprietary. It shall not be reproduced, copied or disclosed, in whole or in part, or used for manufacture without the written permission of PACCAR. You are hereby notified that any dissemination of this information is strictly prohibited. ii PM819010/KM815054 (04/01/2010)

https://truckmanualshub.com/ Electrical System Service Section Manual Number PM819010/KM815054 Date 04/01/2010 2005 - 2010 MULTIPLEXED ELECTRICAL SYSTEM SERVICE MANUAL https://truckmanualshub.com/ ©2010 PACCAR Corporation Confidentiality Notice: This document and the information contained herein is proprietary. It shall not be reproduced, copied or disclosed, in whole or in part, or used for manufacture without the written permission of PACCAR. You are hereby notified that any dissemination of this information is strictly prohibited. ii PM819010/KM815054 (04/01/2010) https://truckmanualshub.com/Electrical System Service Manual Table of Contents Safety . . . . . . . . . . . . . 1 Applies To . . . . . . . . . . . 2 Exploded View . . . . . . . . . 3 What's New . . . . . . . . . . 4 General Information . . . . . . 5 Special Tools. . . . . . . . . . 6 Specifications . . . . . . . . . 7 How It Works . . . . . . . . . . 8 Maintenance . . . . . . . . . . 9 Disassembly / Assembly . . . . 10 Inspection . . . . . . . . . . . 11 Troubleshooting . . . . . . . . 12 Glossary . . . . . . . . . . . . 13 Index . . . . . . . . . . . . . 14 PM819010/KM815054 (04/01/2010) iii…
