J 1400 000000 000 252

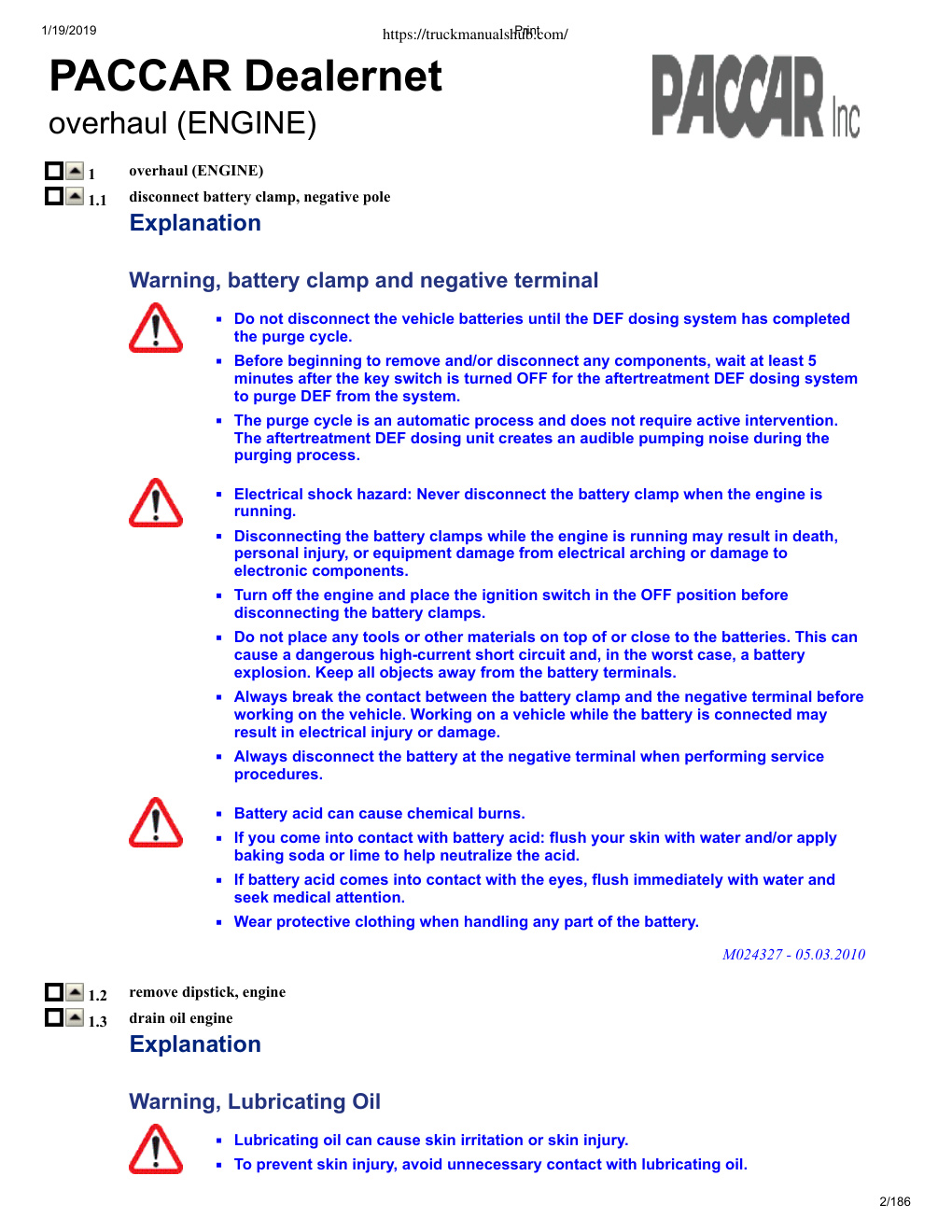

1/19/2019 PACCAR Dealernet Chassis No: FJ398348 Vehicle type: MX_EPA13-MX-13 USA overhaul (ENGINE) 1/19/2019 PACCAR Dealernet overhaul (ENGINE) 1 overhaul (ENGINE) 1.1 disconnect battery clamp, negative pole Warning, battery clamp and negative terminal Do not disconnect the vehicle batteries until the DEF dosing system has completed the purge cycle. Before beginning to remove and/or disconnect any components, wait at least 5 minutes after the key switch is turned OFF for the aftertreatment DEF dosing system to purge DEF from the system. The purge cycle is an automatic process and does not require active intervention. The aftertreatment DEF dosing unit creates an audible pumping noise during the purging process. Electrical shock hazard: Never disconnect the battery clamp when the engine is Disconnecting the battery clamps

1/19/2019 https://truckmanualshub.com/Print PACCAR Dealernet Chassis No: FJ398348 Vehicle type: MX_EPA13-MX-13 USA J 1400 000000 000 252 overhaul (ENGINE) 1/186 1/19/2019 https://truckmanualshub.com/Print PACCAR Dealernet overhaul (ENGINE) 1 overhaul (ENGINE) 1.1 disconnect battery clamp, negative pole Explanation Warning, battery clamp and negative terminal Do not disconnect the vehicle batteries until the DEF dosing system has completed the purge cycle. Before beginning to remove and/or disconnect any components, wait at least 5 minutes after the key switch is turned OFF for the aftertreatment DEF dosing system to purge DEF from the system. The purge cycle is an automatic process and does not require active intervention. The aftertreatment DEF dosing unit creates an audible pumping noise during the purging process. Electrical shock hazard: Never disconnect the battery clamp when the engine is running. Disconnecting the battery clamps while the engine is running may result in death, personal injury, or equipment damage from electrical arching or damage to electronic components. Turn off the engine and place the ignition switch in the OFF position before disconnecting the battery…
