Body Builder Manual

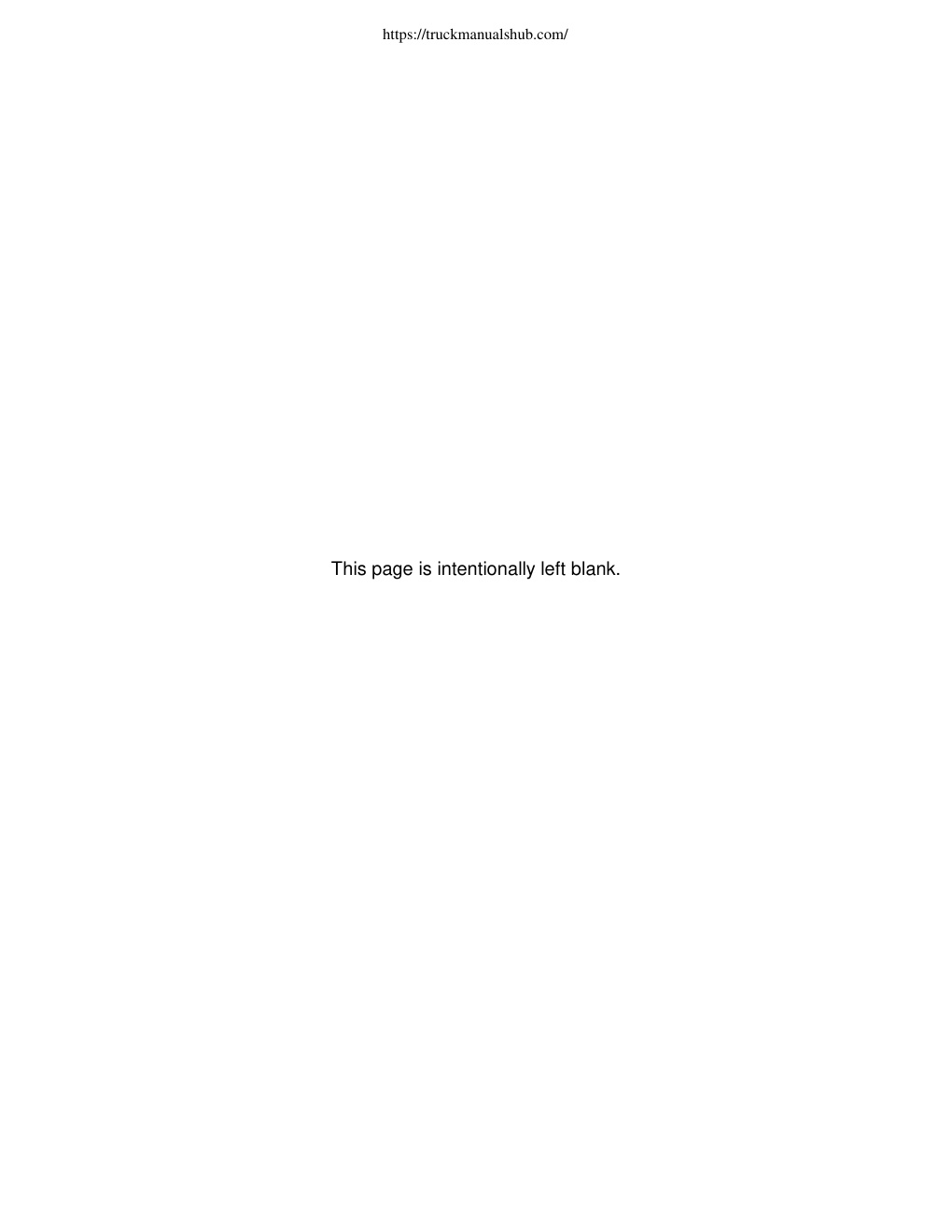

L Peterbilt Heavy Duty This page is intentionally left blank.

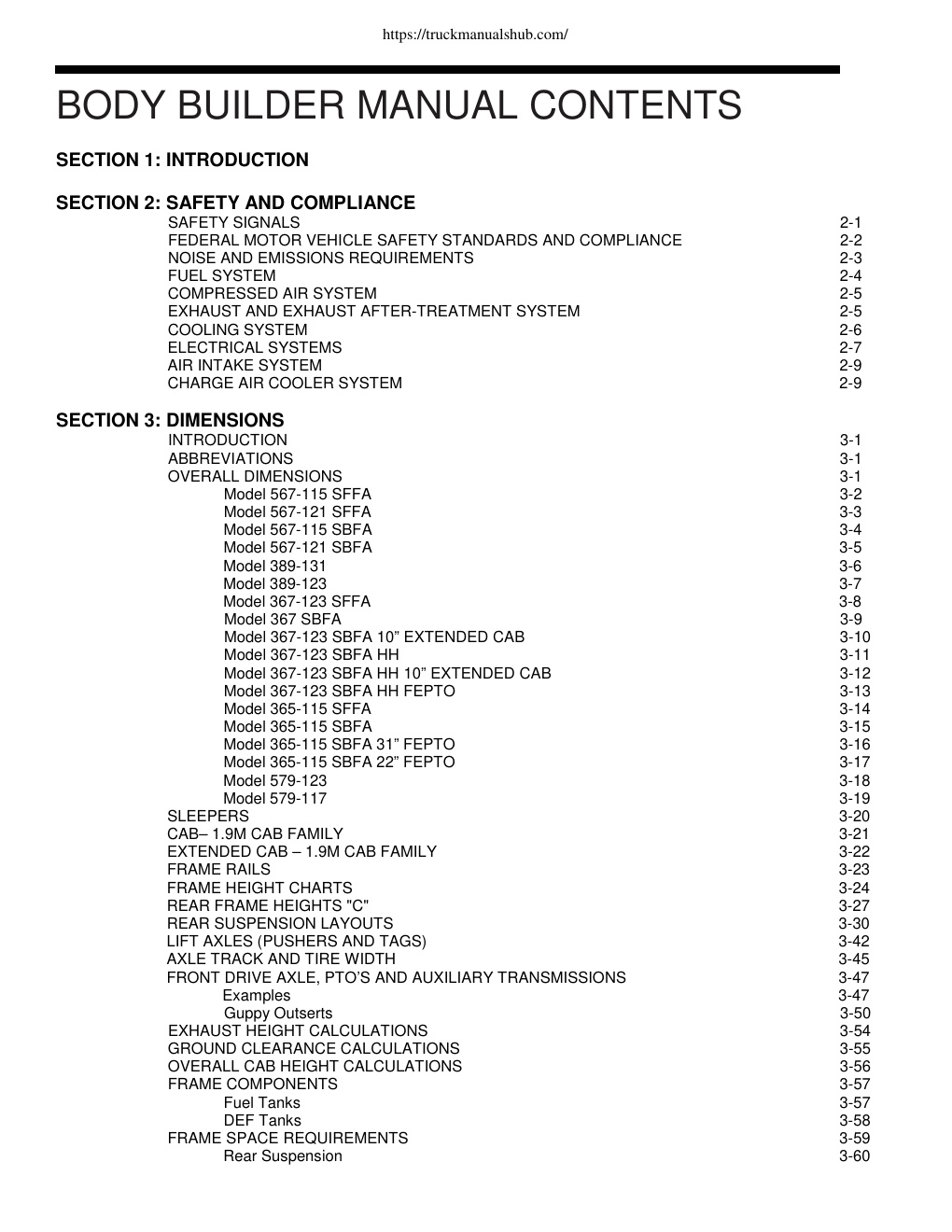

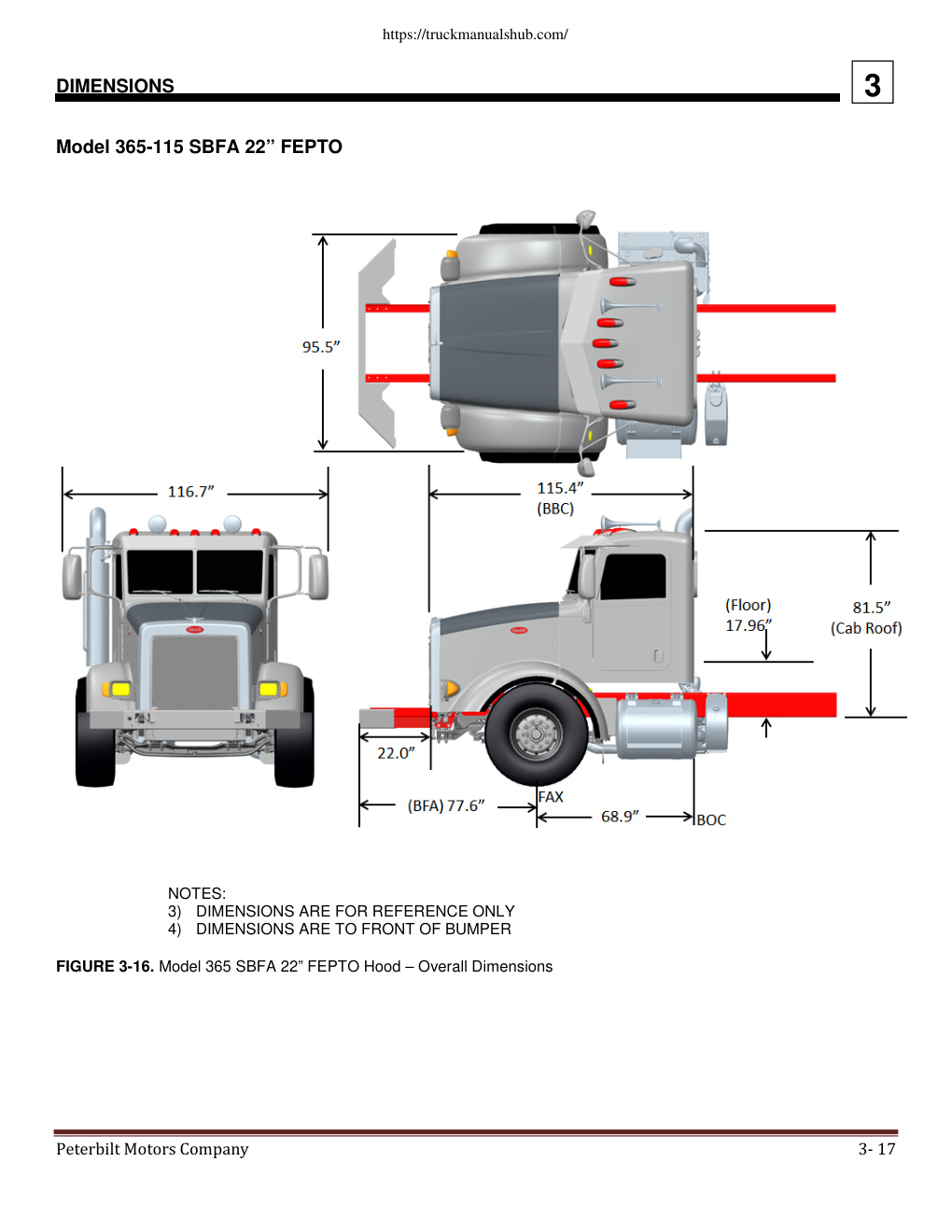

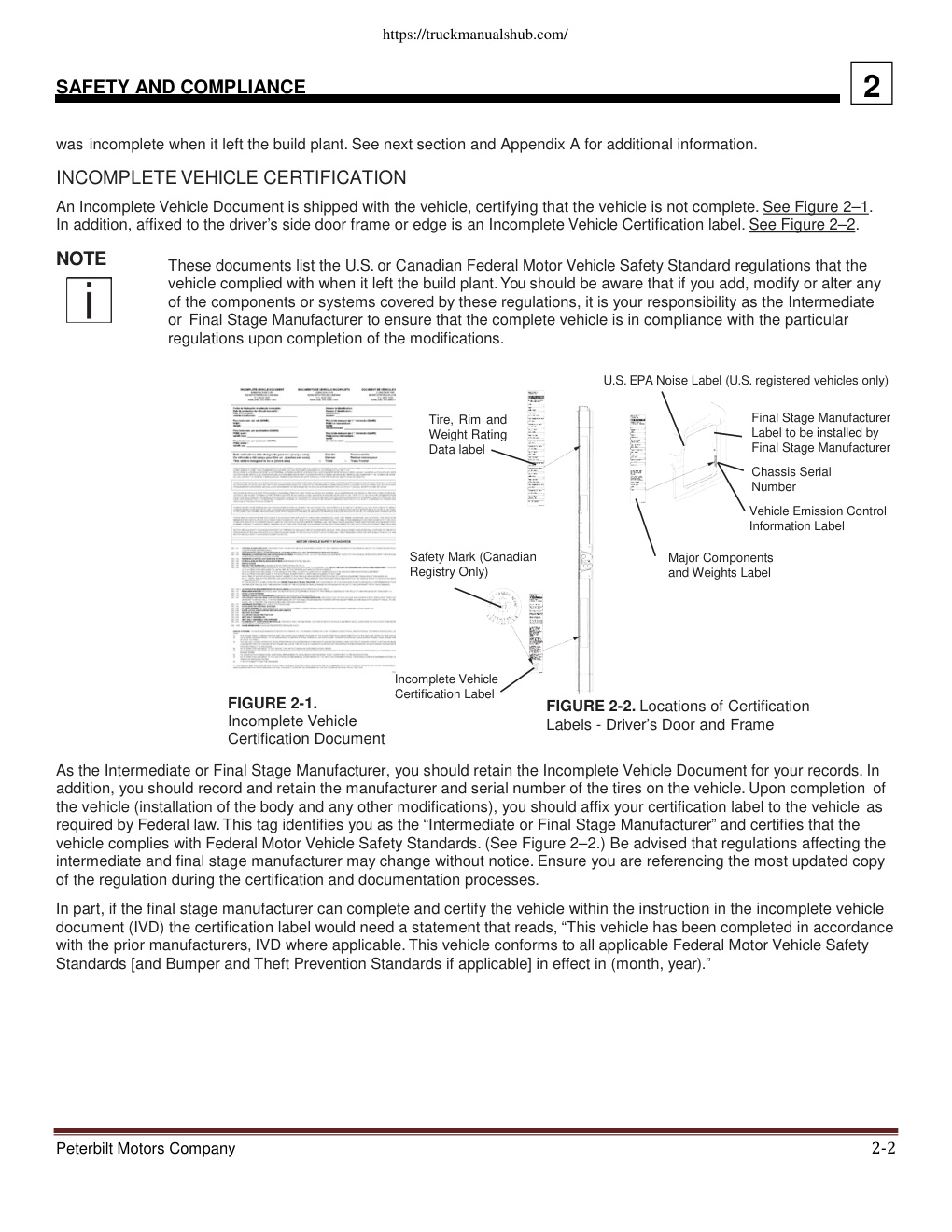

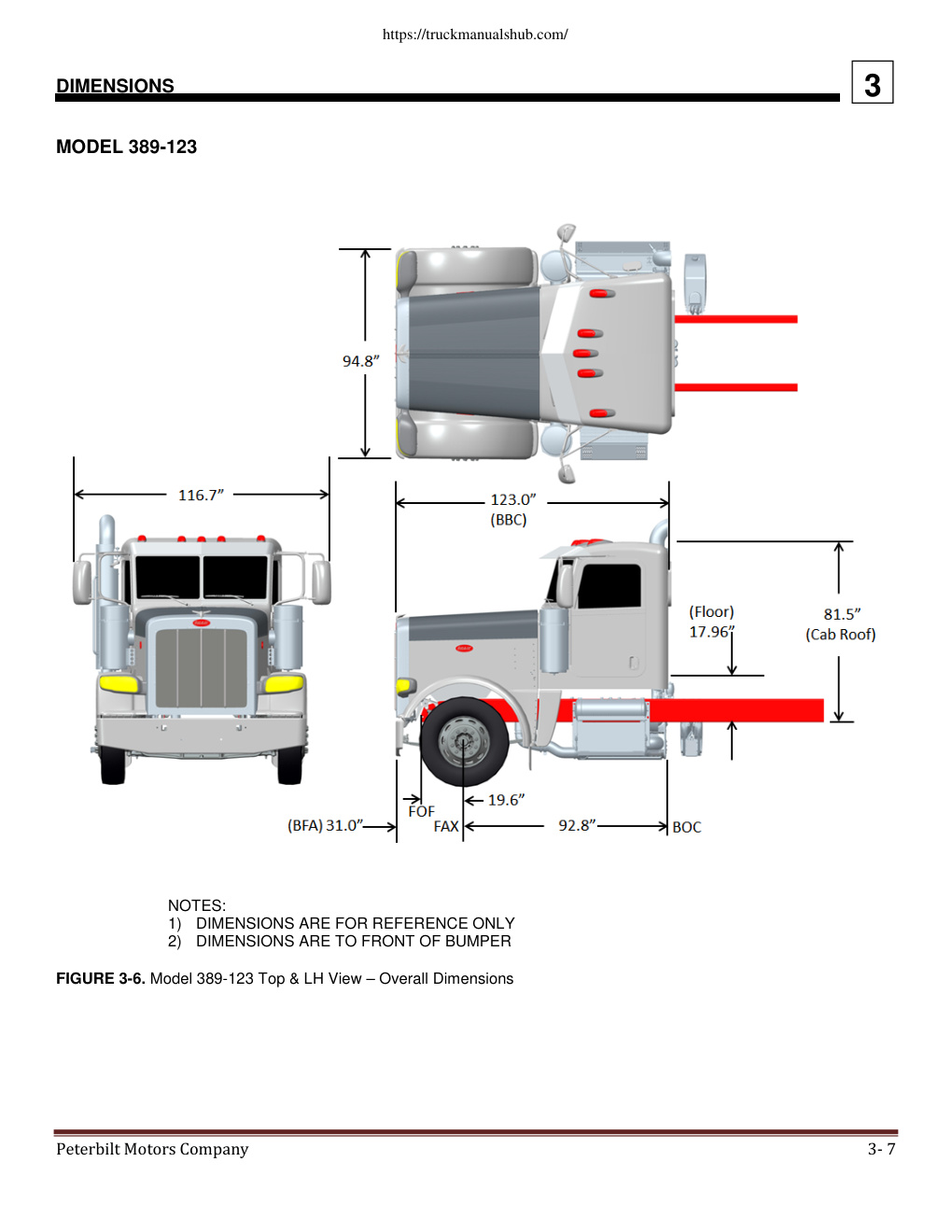

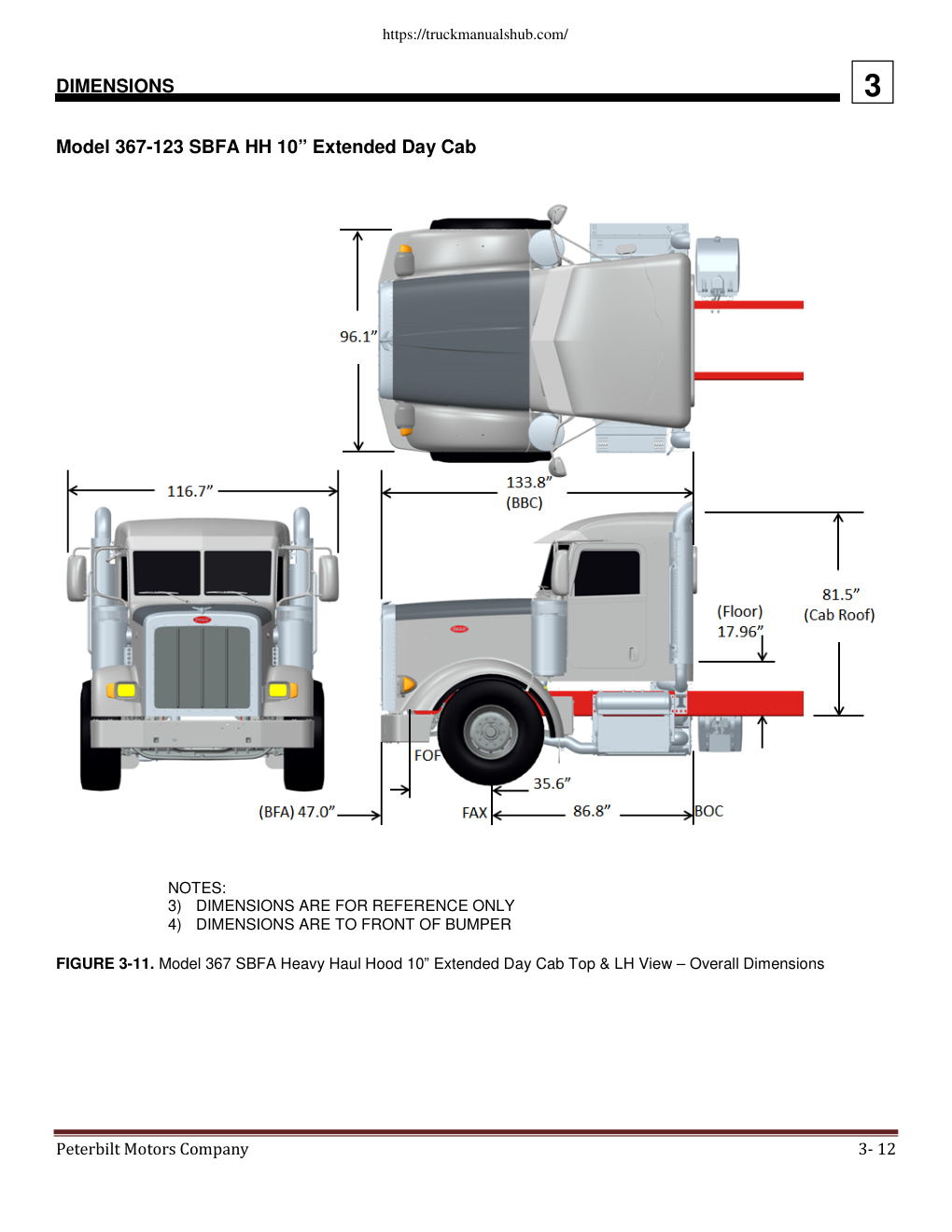

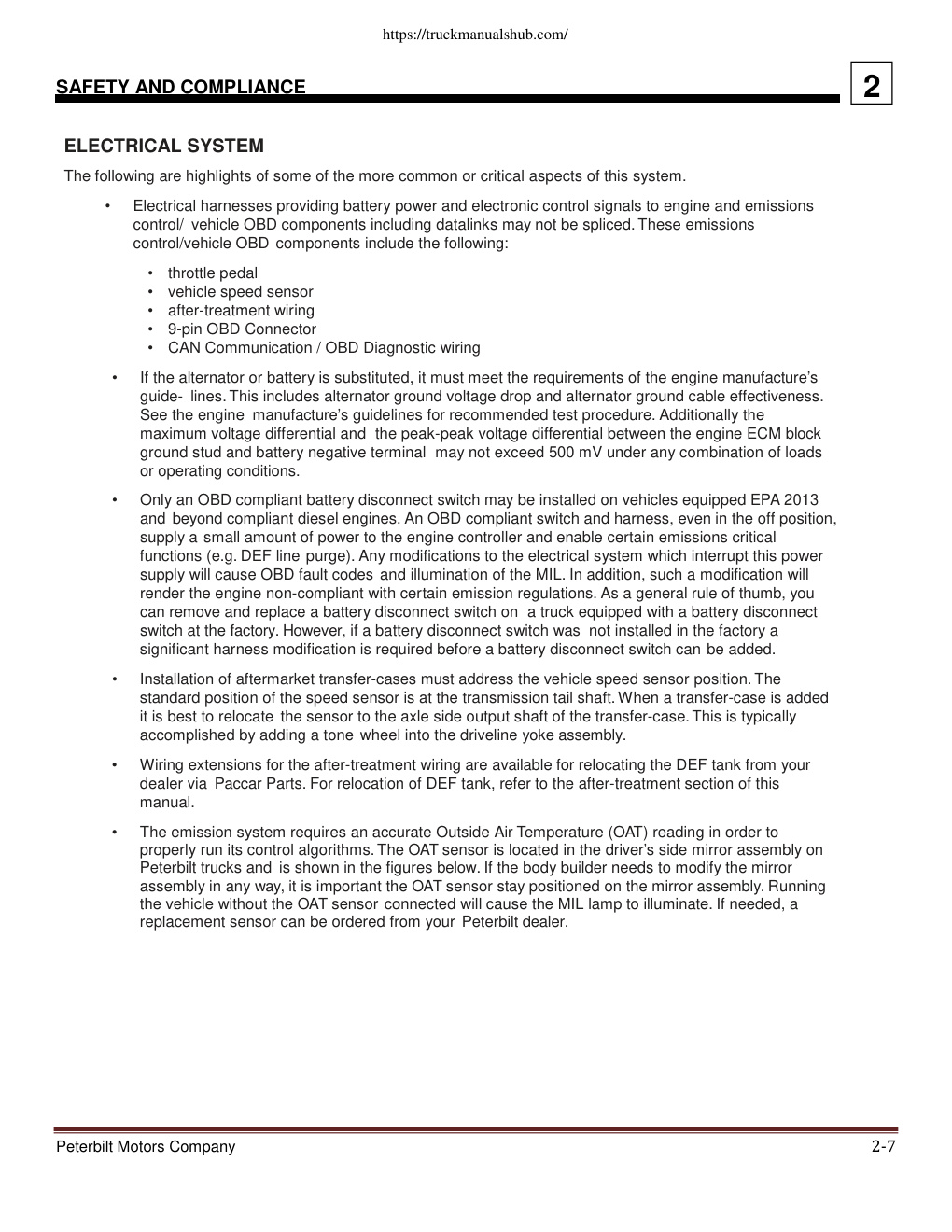

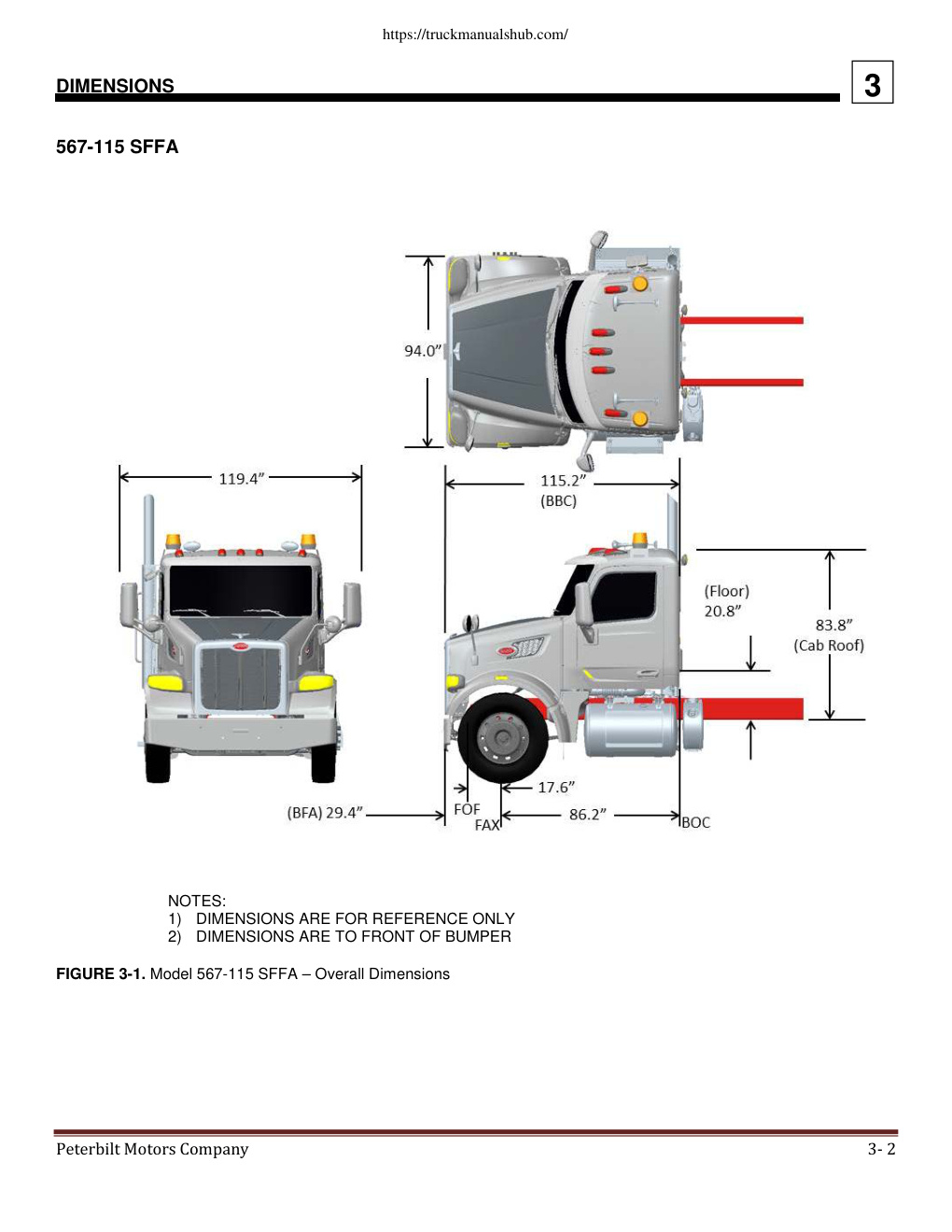

https://truckmanualshub.com/ Release Date 5/26/17 https://truckmanualshub.com/ This page is intentionally left blank. https://truckmanualshub.com/ BODY BUILDER MANUAL CONTENTS SECTION 1: INTRODUCTION SECTION 2: SAFETY AND COMPLIANCE SAFETY SIGNALS 2-1 FEDERAL MOTOR VEHICLE SAFETY STANDARDS AND COMPLIANCE 2-2 NOISE AND EMISSIONS REQUIREMENTS 2-3 FUEL SYSTEM 2-4 COMPRESSED AIR SYSTEM 2-5 EXHAUST AND EXHAUST AFTER-TREATMENT SYSTEM 2-5 COOLING SYSTEM 2-6 ELECTRICAL SYSTEMS 2-7 AIR INTAKE SYSTEM 2-9 CHARGE AIR COOLER SYSTEM 2-9 SECTION 3: DIMENSIONS INTRODUCTION 3-1 ABBREVIATIONS 3-1 OVERALL DIMENSIONS 3-1 Model 567-115 SFFA 3-2 Model 567-121 SFFA 3-3 Model 567-115 SBFA 3-4 Model 567-121 SBFA 3-5 Model 389-131 3-6 Model 389-123 3-7 Model 367-123 SFFA 3-8 Model 367 SBFA 3-9 Model 367-123 SBFA 10” EXTENDED CAB 3-10 Model 367-123 SBFA HH 3-11 Model 367-123 SBFA HH 10” EXTENDED CAB 3-12 Model 367-123 SBFA HH FEPTO 3-13 Model 365-115 SFFA 3-14 Model 365-115 SBFA 3-15 Model 365-115 SBFA 31” FEPTO 3-16 Model 365-115 SBFA 22” FEPTO 3-17 Model 579-123 3-18 Model 579-117 3-19 SLEEPERS 3-20 CAB– 1.9M CAB FAMILY 3-21 EXTENDED CAB – 1.9M CAB FAMILY 3-22 FRAME RAILS 3-23 FRAME HEIGHT CHARTS 3-24…
