Peterbilt Outside Air Temp (OAT) Sensor.pdf

This procedure will walk you through the simple steps for replacing the Outside Air Temp. (OAT) Sensor in your mirror. Your mirror may be slightly different from the ones in the pictures, but the steps will be the same. Mirror styles this procedure applies to are: West Coast and Moto Mirror or Road Scan Tools/parts needed: 3/16 drill bit Electric/cordless drill Rivet gun (needs to fit 1/8 rivet shank) Parts Kit SK-1525 Disconnect all power to the mirror. Remove the mirror from the mounting brackets as you would Place the mirror on a table where there will be ample room to work. If needed remove mirror and harness from truck. NEVER try performing this procedure on a platform or West Coast Mirror Remove 1 screw from the top, and one screw from the bottom. The side brackets will come off and the mirror parts can be disassembled. Bottom View of Mirror Moto Mirror or Road Scan Drill (3/16 dri

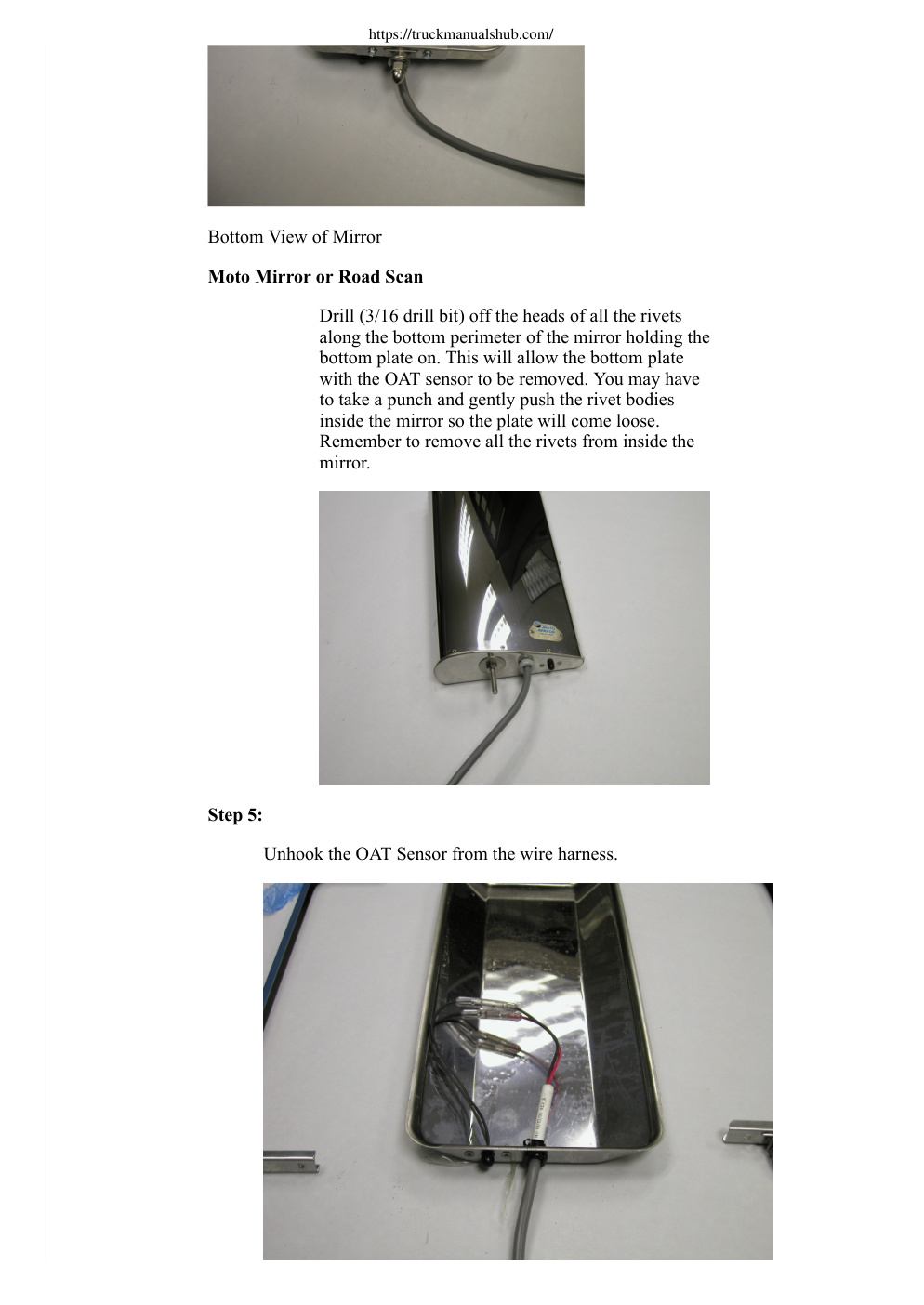

https://truckmanualshub.com/ Description: This procedure will walk you through the simple steps for replacing the Outside Air Temp. (OAT) Sensor in your mirror. Your mirror may be slightly different from the ones in the pictures, but the steps will be the same. Mirror styles this procedure applies to are: West Coast and Moto Mirror or Road Scan Tools/parts needed: 3/16 drill bit Electric/cordless drill Pliers Rivet gun (needs to fit 1/8 rivet shank) Parts Kit SK-1525 Step 1: Disconnect all power to the mirror. Step 2: Remove the mirror from the mounting brackets as you would normally do. Step 3: Place the mirror on a table where there will be ample room to work. If needed remove mirror and harness from truck. NEVER try performing this procedure on a platform or Ladder. Step 4: West Coast Mirror Remove 1 screw from the top, and one screw from the bottom. The side brackets will come off and the mirror parts can be disassembled. https://truckmanualshub.com/ Bottom View of Mirror Moto Mirror or Road Scan Drill (3/16 drill bit) off the heads of all the rivets along the bottom perimeter of the mirror holding the bottom plate on. This will allow the bottom plate with the OAT sensor to be…
