Outstanding Operator Comfort

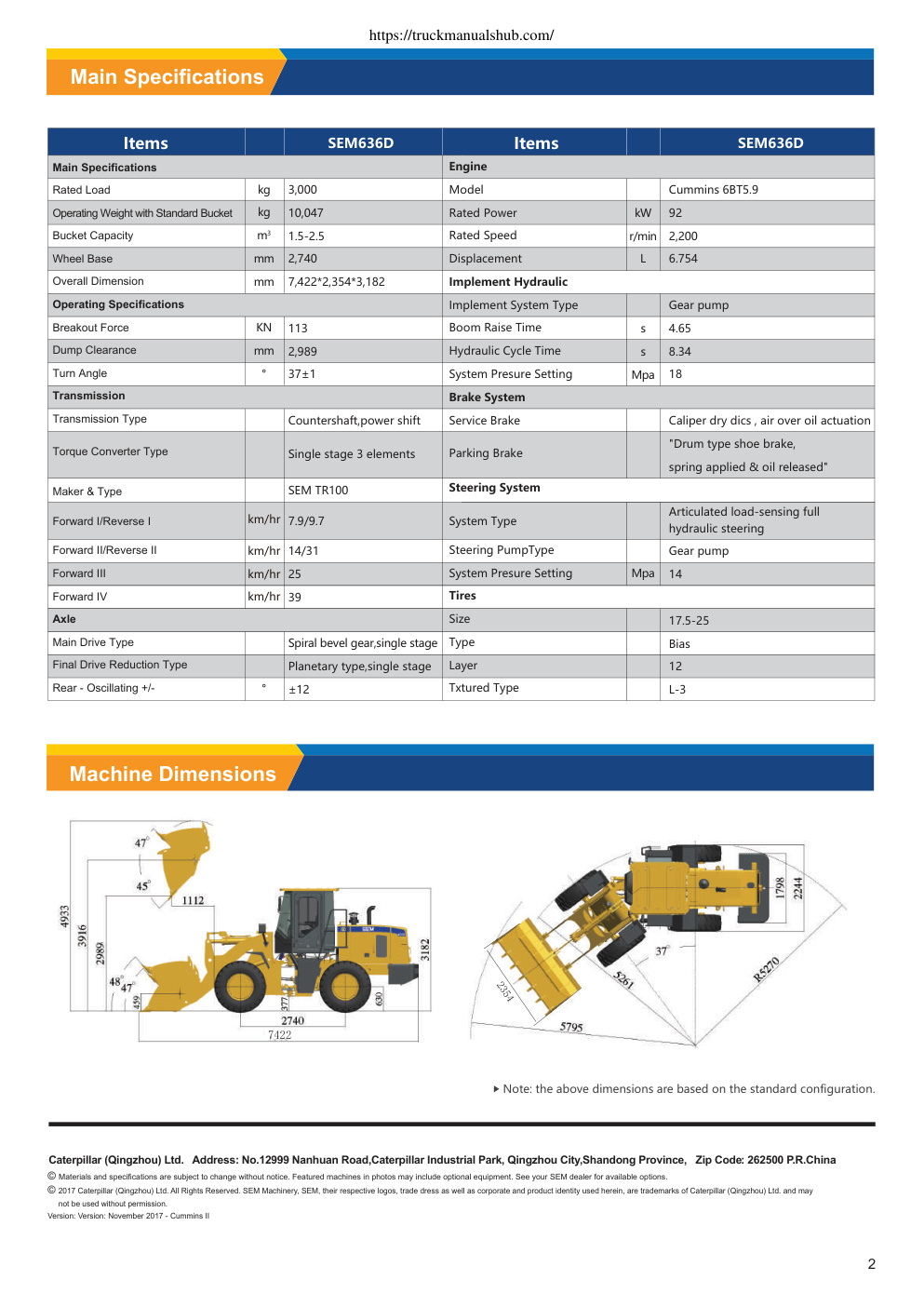

InstalledInstalled withwith CumminsCummins EngineEngine Product Advantages High ProductivitySEM636D Best-in-class Reliability and Durability Main Specifications Items SEM636D Items SEM636D Main Specifications Engine Rated Load kg 3,000 Model Cummins 6BT5.9 Operating Weight with Standard Bucket kg 10,047 Rated Power kW 92 Bucket Capacity m3 1.5-2.5 Rated Speed r/min 2,200 Wheel Base mm 2,740 Displacement L 6.754 Overall Dimension mm 7,422*2,354*3,182 Implement Hydraulic Operating Specifications Implement System Type Gear pump Breakout Force KN 113 Boom Raise Time s 4.65 Dump Clearance mm 2,989 Hydraulic Cycle Time s 8.34 Turn Angle ° 37±1 System Presure Setting Mpa 18 Transmission Brake System Transmission Type Countershaft,power shift Service Brake Caliper dry dics, air over oil actuation "Drum type shoe brake, Torque Converter Type Single stage 3 elements Parking Brake spring applied &

https://truckmanualshub.com/ SEM636D Wheel Loader InstalledInstalled withwith CumminsCummins EngineEngine Product Advantages High ProductivitySEM636D Best-in-class Reliability and Durability Outstanding Operator Comfort Website https://truckmanualshub.com/ Main Specifications Items SEM636D Items SEM636D Main Specifications Engine Rated Load kg 3,000 Model Cummins 6BT5.9 Operating Weight with Standard Bucket kg 10,047 Rated Power kW 92 Bucket Capacity m3 1.5-2.5 Rated Speed r/min 2,200 Wheel Base mm 2,740 Displacement L 6.754 Overall Dimension mm 7,422*2,354*3,182 Implement Hydraulic Operating Specifications Implement System Type Gear pump Breakout Force KN 113 Boom Raise Time s 4.65 Dump Clearance mm 2,989 Hydraulic Cycle Time s 8.34 Turn Angle ° 37±1 System Presure Setting Mpa 18 Transmission Brake System Transmission Type Countershaft,power shift Service Brake Caliper dry dics , air over oil actuation "Drum type shoe brake, Torque Converter Type Single stage 3 elements Parking Brake spring applied & oil released" Maker & Type SEM TR100 Steering System Articulated load-sensing full Forward I/Reverse I km/hr 7.9/9.7 System Type hydraulic steering Forward II/Reverse II km/hr 14/31…
