COMMANDOCOMMANDO 603603

• EURO I WATER COOLED ENGINE •12 FWD + 3 REV SYNCHRONISED GEARBOX (30 KPH) • FRONT AND REAR DIFFERENTIAL LOCK • HYDROSTATIC BRAKES • HYDROSTATIC STEERING WITH INDEPENDENT PUMP T R A D I T I O N A L L Y I N N O V A T I V E Version 2WD 4WD ENGINE SAME 1000.3 W Cylinders/Displacement n°/cm3 3 / 3000 Aspiration natural Homologated net power HP/kW 55 / 40,5 Nominal engine speed rpm 2350 Max. torque Nm 234 Cooling liquid-oil Engine control mechanical Air cleaner dry type air filter with pre-cleaner Silencer underhood with vertical exhaust pipe Fuel tank capacity litres 56 DIMENSIONS AND WEIGHTS (with rear tyres) 14.9 R28 Version 2WD 2WD 4WD Max. length without link arms mm 3202 Min. - max. width mm 1685/2125 Max. height at engine hood mm 1355 Max. height at steering wheel mm 1505 Ground clearance mm 390 335 Wheelbase mm 2045 Front track - max. mm 1530 1740 Rear track - max mm 1800 Minimum stee

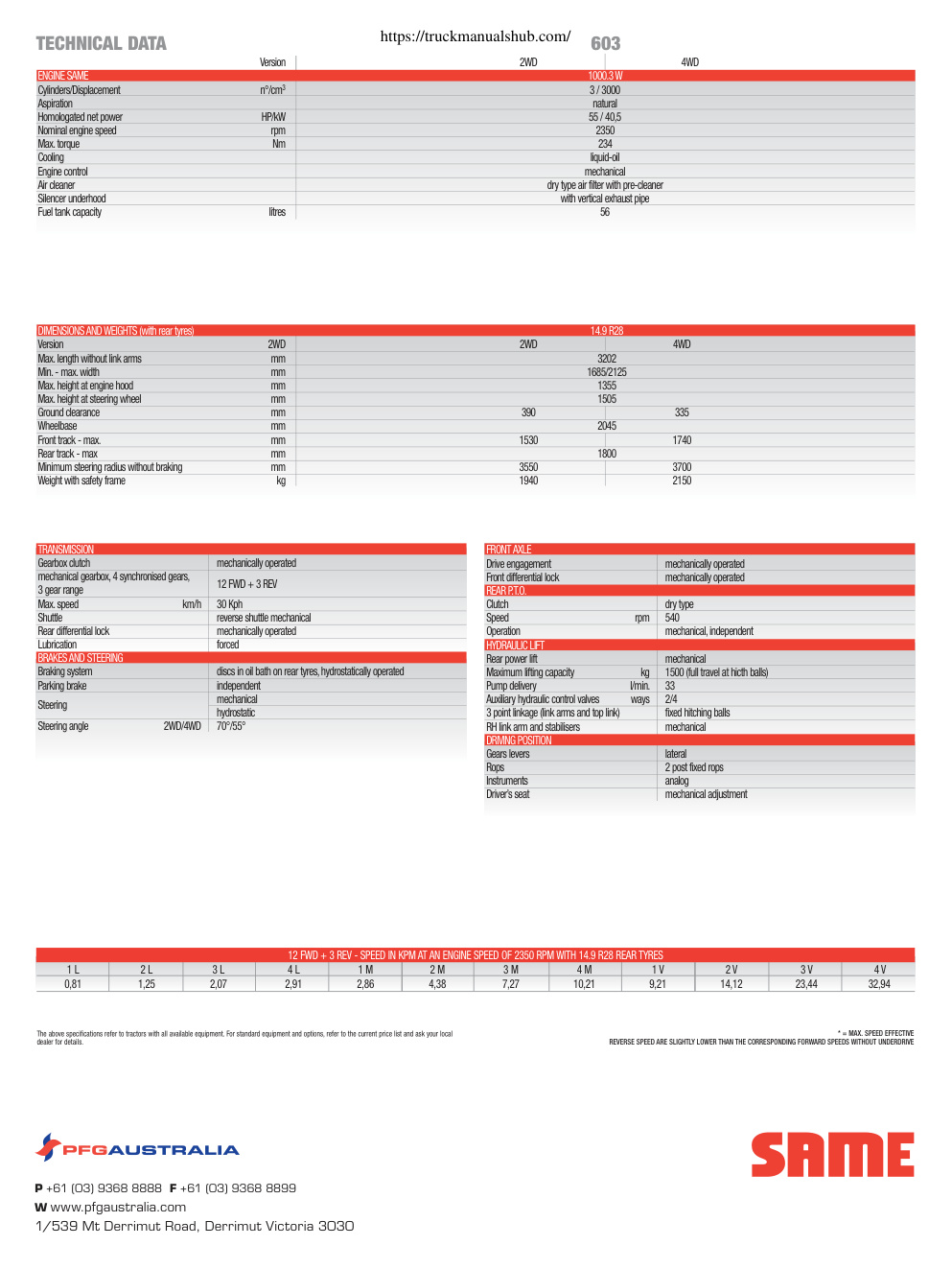

https://truckmanualshub.com/ COMMANDOCOMMANDO 603603 • EURO I WATER COOLED ENGINE •12 FWD + 3 REV SYNCHRONISED GEARBOX (30 KPH) • FRONT AND REAR DIFFERENTIAL LOCK • HYDROSTATIC BRAKES • HYDROSTATIC STEERING WITH INDEPENDENT PUMP T R A D I T I O N A L L Y I N N O V A T I V E https://truckmanualshub.com/TECHNICAL DATA 603 Version 2WD 4WD ENGINE SAME 1000.3 W Cylinders/Displacement n°/cm3 3 / 3000 Aspiration natural Homologated net power HP/kW 55 / 40,5 Nominal engine speed rpm 2350 Max. torque Nm 234 Cooling liquid-oil Engine control mechanical Air cleaner dry type air filter with pre-cleaner Silencer underhood with vertical exhaust pipe Fuel tank capacity litres 56 DIMENSIONS AND WEIGHTS (with rear tyres) 14.9 R28 Version 2WD 2WD 4WD Max. length without link arms mm 3202 Min. - max. width mm 1685/2125 Max. height at engine hood mm 1355 Max. height at steering wheel mm 1505 Ground clearance mm 390 335 Wheelbase mm 2045 Front track - max. mm 1530 1740 Rear track - max mm 1800 Minimum steering radius without braking mm 3550 3700 Weight with safety frame kg 1940 2150 TRANSMISSION FRONT AXLE Gearbox clutch mechanically operated Drive engagement mechanically operated mechanical gearbox,…
