Sampo Rosenlew FR68 forwarder Technical Specification.pdf

FR68ENGINE AGCO Power 74 AWF Max. power 210 kW @ 1 900 rpm Torque 1 100 Nm @ 1 500 rpm Fuel tank 360 l TRACTIVE FORCE 180 kN Gear 1 0 - 8 km/h Gear 2 0 - 20 km/h Front axle (balanced bogies) 26.5 in. Rear axle (balanced bogies) 26.5 in. STEERING Proportional Turning angle +/-43,5 deg. Pump capacity 165 cm³ Flow 165 l/min @ 1 000 rpm Operating pressure 24 MPa Hydraulic tank 145 l ELECTRIC SYSTEM Batteries 2 x 180 Ah Alternator 2 x 100 A BOOM Mesera 92F Max. reach 10 m Gross lifting torque 130 kNm Slewing torque 39 kNm Slewing angle 360 deg. GRAPPLE 0,36 m² Rotating angle 350 deg Length (A) 10 005 / 10 605 mm Bogie centre - middle joint (B) 2 036 mm Middle joint - bogie centre (C) 3 407 / 4 007 mm Wheelbase (B+C) 5 443 / 6 043 mm Width - 710 tyres (D) 2 890 mm Outer turning radius - 710 tyres 8 662 / 9 524 mm Transport height (E) 3 975 mm Ground clearance (F) 625 mm Min. machine weight 18

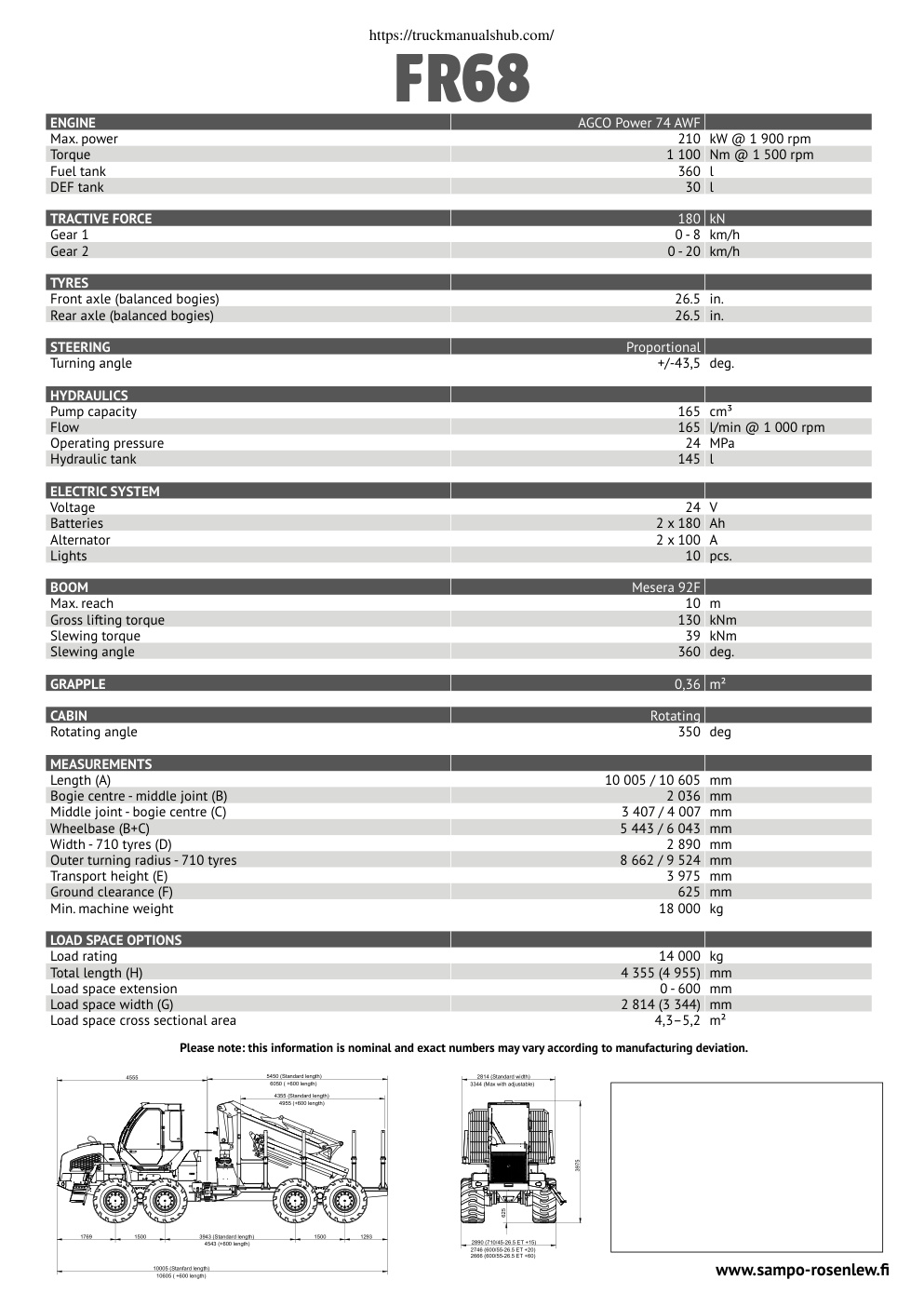

https://truckmanualshub.com/ FR68FR68 https://truckmanualshub.com/ FR68ENGINE AGCO Power 74 AWF Max. power 210 kW @ 1 900 rpm Torque 1 100 Nm @ 1 500 rpm Fuel tank 360 l DEF tank 30 l TRACTIVE FORCE 180 kN Gear 1 0 - 8 km/h Gear 2 0 - 20 km/h TYRES Front axle (balanced bogies) 26.5 in. Rear axle (balanced bogies) 26.5 in. STEERING Proportional Turning angle +/-43,5 deg. HYDRAULICS Pump capacity 165 cm³ Flow 165 l/min @ 1 000 rpm Operating pressure 24 MPa Hydraulic tank 145 l ELECTRIC SYSTEM Voltage 24 V Batteries 2 x 180 Ah Alternator 2 x 100 A Lights 10 pcs. BOOM Mesera 92F Max. reach 10 m Gross lifting torque 130 kNm Slewing torque 39 kNm Slewing angle 360 deg. GRAPPLE 0,36 m² CABIN Rotating Rotating angle 350 deg MEASUREMENTS Length (A) 10 005 / 10 605 mm Bogie centre - middle joint (B) 2 036 mm Middle joint - bogie centre (C) 3 407 / 4 007 mm Wheelbase (B+C) 5 443 / 6 043 mm Width - 710 tyres (D) 2 890 mm Outer turning radius - 710 tyres 8 662 / 9 524 mm Transport height (E) 3 975 mm Ground clearance (F) 625 mm Min. machine weight 18 000 kg LOAD SPACE OPTIONS Load rating 14 000 kg Total length (H) 4 355 (4 955) mm Load space extension 0 - 600 mm Load space width (G) 2 814 (3…
