SD22推土机零件目录.doc

Lies RHONE AT FRANS] SHANTUI CONSTRUCTION MACHINERY CO.,LTD THE PEOPLE'S REPUBLIC OF CHINA 本零件目录对SD22、SD22E、SD22S、SD22D 四种型号推土机 零件号栏内标有（ ）的部件，为销售总成号。 发动机所属零件，详见发动机零件目录。 因产品改进所增减的零件，恕不另行通知，以后再版时修订， In this Parts Book are listed parts of bulldozers in 4 models SD22， SD22E，SD22S, SD22D as common part and special. When a part with () is and assembly part, it is only supplied as par of an assembly. With regard to parts of engine see ”Parts Book of Engine.” Due to continuous research and improvement. Some parts may be changed without notice. Please consult your SHANTUI distributor for items you may require.

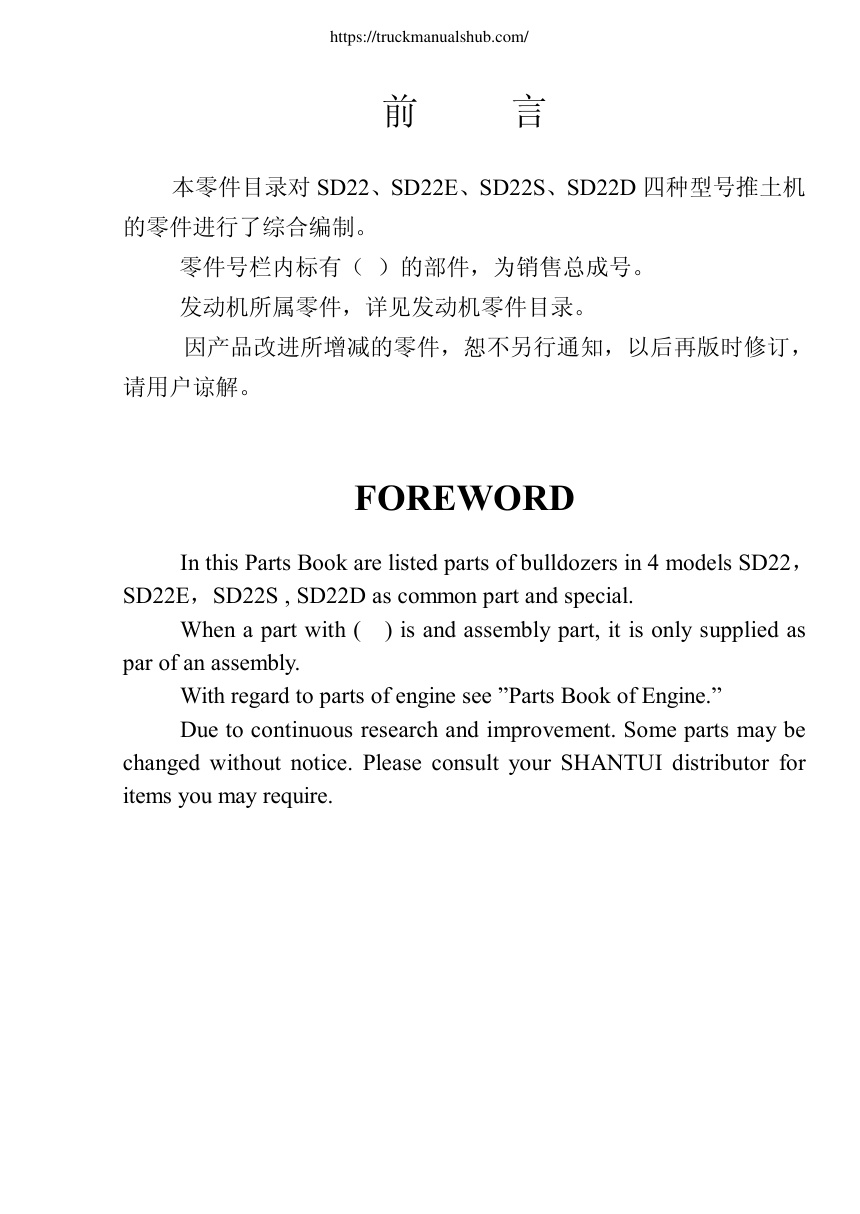

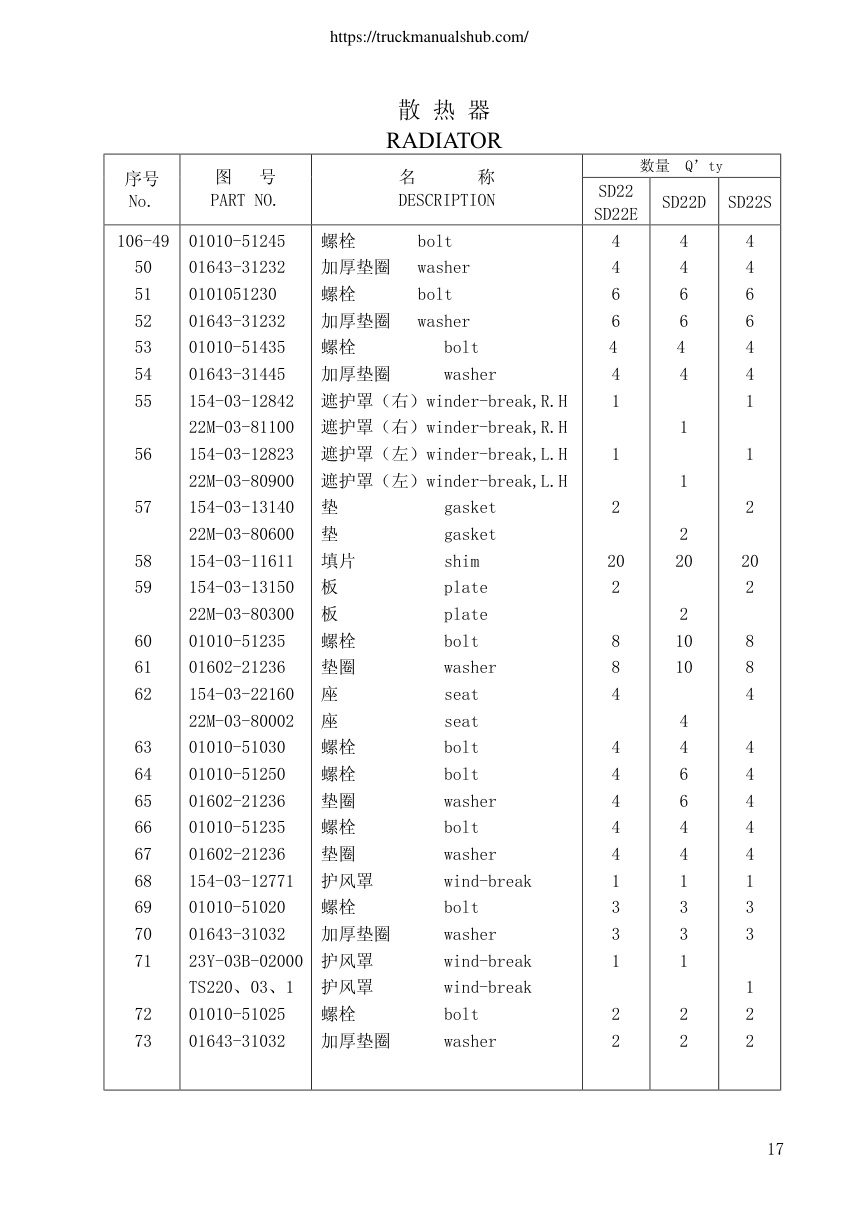

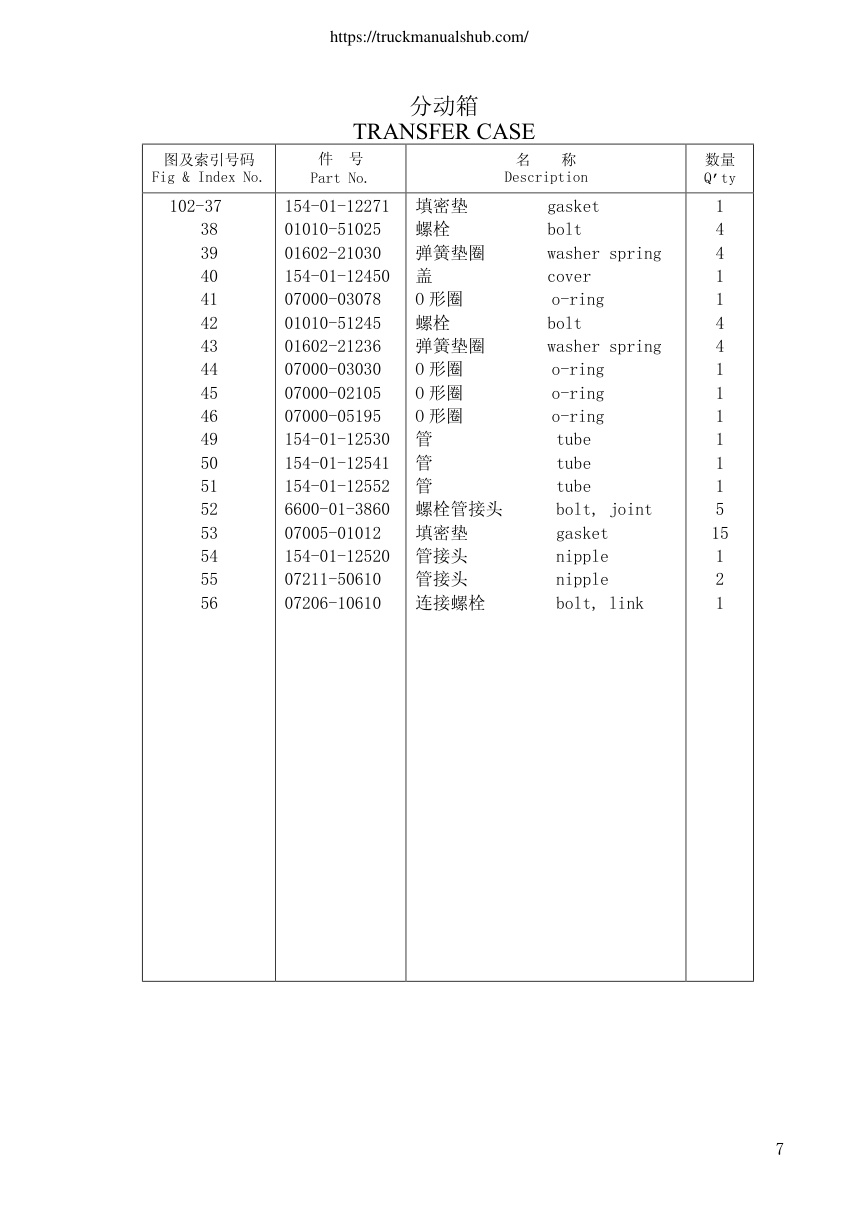

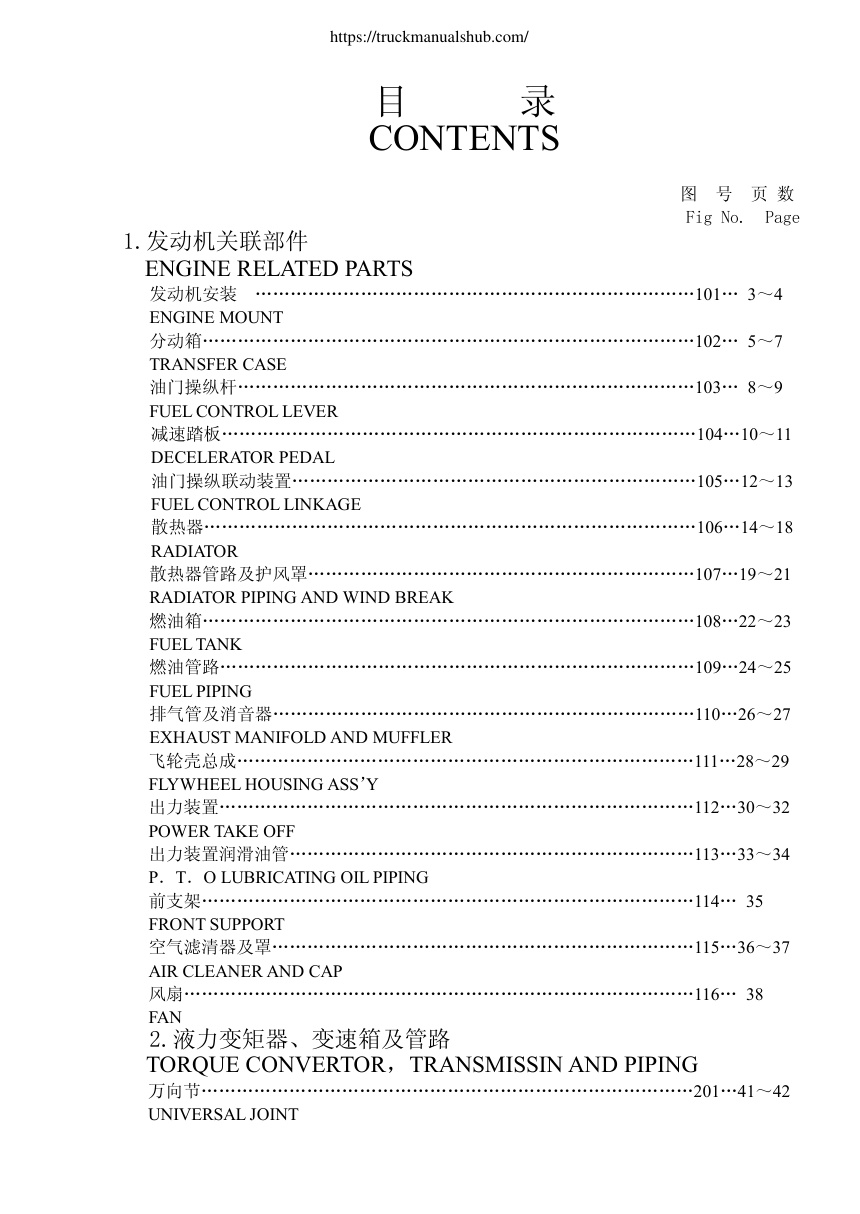

https://truckmanualshub.com/ https://truckmanualshub.com/ 前 言 本零件目录对SD22、SD22E、SD22S、SD22D 四种型号推土机 的零件进行了综合编制。 零件号栏内标有（ ）的部件，为销售总成号。 发动机所属零件，详见发动机零件目录。 因产品改进所增减的零件，恕不另行通知，以后再版时修订， 请用户谅解。 FOREWORD In this Parts Book are listed parts of bulldozers in 4 models SD22， SD22E，SD22S , SD22D as common part and special. When a part with ( ) is and assembly part, it is only supplied as par of an assembly. With regard to parts of engine see ”Parts Book of Engine.” Due to continuous research and improvement. Some parts may be changed without notice. Please consult your SHANTUI distributor for items you may require. https://truckmanualshub.com/ 目 录 CONTENTS 图 号 页 数 Fig No. Page 1.发动机关联部件 ENGINE RELATED PARTS 发动机安装 …………………………………………………………………101… 3～4 ENGINE MOUNT 分动箱…………………………………………………………………………102… 5～7 TRANSFER CASE 油门操纵杆……………………………………………………………………103… 8～9 FUEL CONTROL LEVER 减速踏板………………………………………………………………………104…10～11 DECELERATOR PEDAL 油门操纵联动装置……………………………………………………………105…12～13 FUEL CONTROL LINKAGE 散热器…………………………………………………………………………106…14～18 RADIATOR 散热器管路及护风罩…………………………………………………………107…19～21 RADIATOR PIPING AND WIND BREAK 燃油箱…………………………………………………………………………108…22～23 FUEL TANK…
