SD23推土机零件目录

SHANTUI CONSTRUCTION MACHINERY CO.,LTD THE PEOPLE'S REPUBLIC OF CHINA 本零件目录对SD23 标准型、SD23E 加长履带型、SD23D 沙漠型、 SD23S 湿地型、SD23R 环保型五种型号推土机的通用件或专用件进行 零件表的数量栏内，未标注产品型号的件数量为五种机型的通用 数量；专用件或件数不同者，均在数量栏上方标有其机型号。 发动机所属零件，详见发动机零件目录。 随着产品的改进和技术的不断进步，书中内容可能与您的车辆不 尽一致, 不同之处修订后再版时说明，恕不另行通知,请用户谅解。 In this Parts Book are listed parts of bulldozers in 5 models SD23 Standard type, SD23E Extra type, SD23D Desert type, SD23S Swamp SD23R Rubbish type as common part and special. The quantity of common part per 5 machine models is indicated in the “Q’ty” column without any mark; for the special part and different quantity per machine are marked model above its quantity column. With regard to parts of engine see ”Parts Book of Engine.” Due to continuous technology advanced and products improvement. The content in this book may be different to your machine and the difference will be emendated next time without not

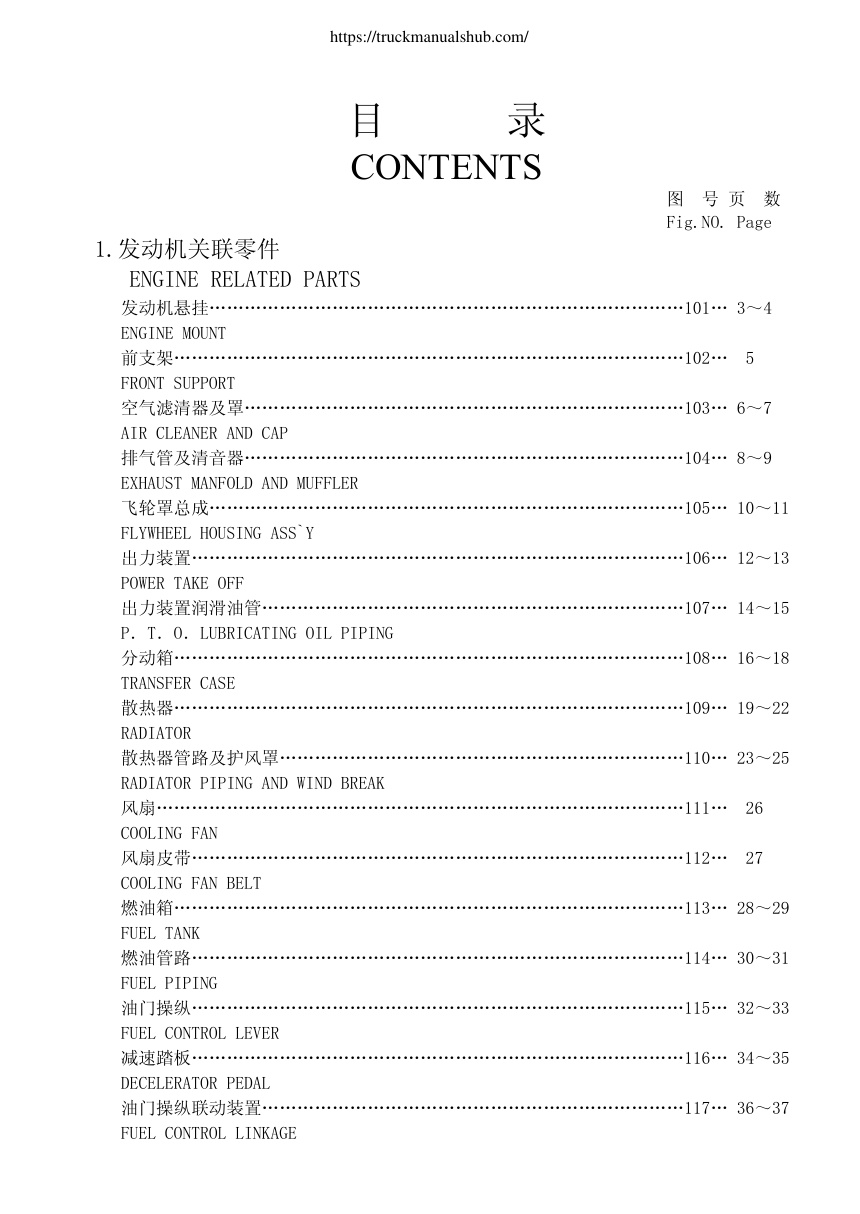

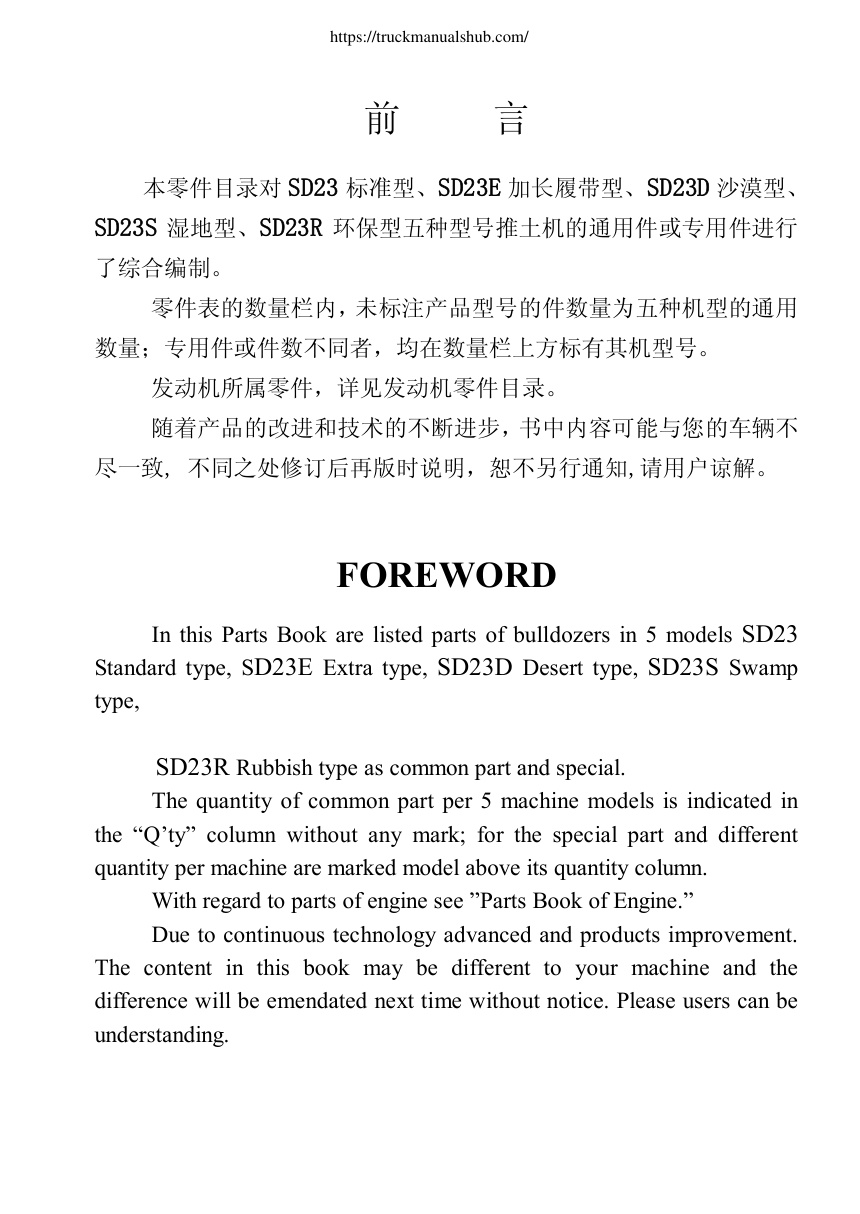

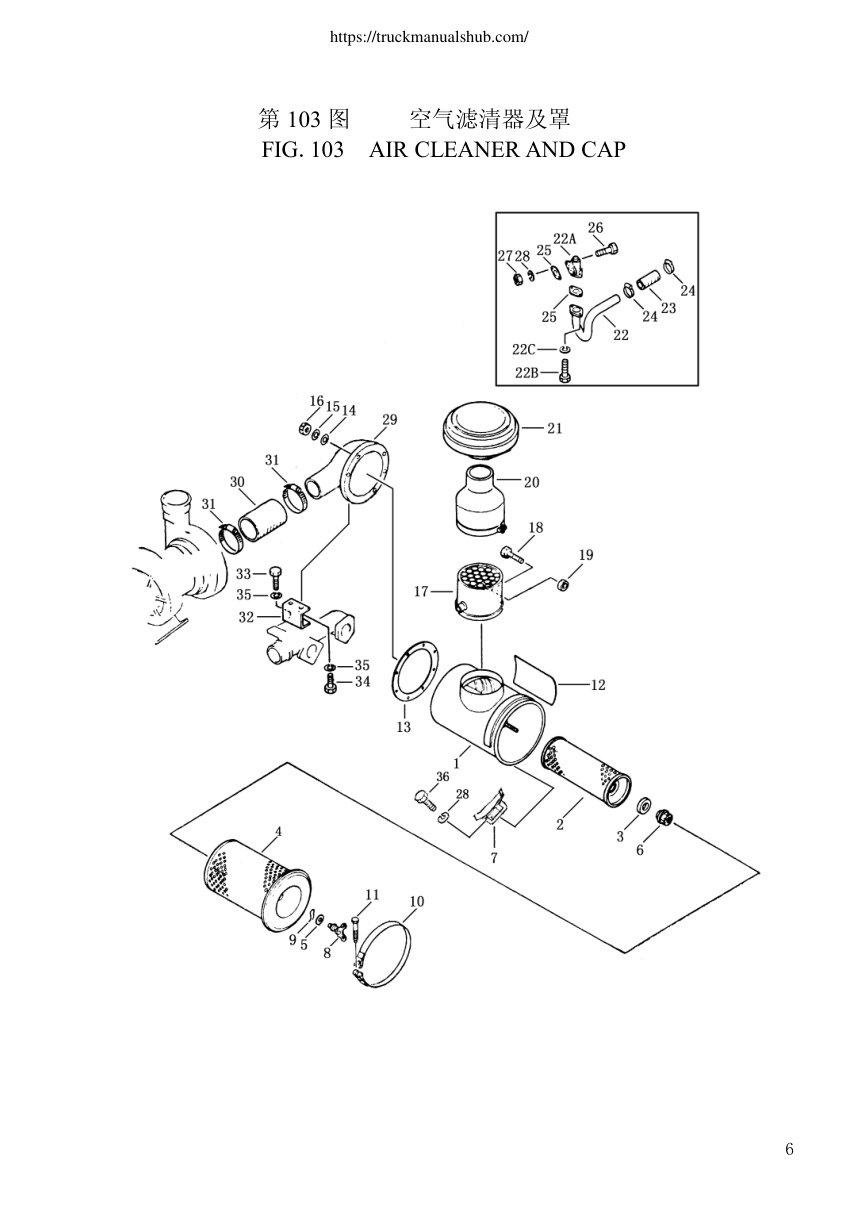

https://truckmanualshub.com/ https://truckmanualshub.com/ 前 言 本零件目录对SD23 标准型、SD23E 加长履带型、SD23D 沙漠型、 SD23S 湿地型、SD23R 环保型五种型号推土机的通用件或专用件进行 了综合编制。 零件表的数量栏内，未标注产品型号的件数量为五种机型的通用 数量；专用件或件数不同者，均在数量栏上方标有其机型号。 发动机所属零件，详见发动机零件目录。 随着产品的改进和技术的不断进步，书中内容可能与您的车辆不 尽一致, 不同之处修订后再版时说明，恕不另行通知,请用户谅解。 FOREWORD In this Parts Book are listed parts of bulldozers in 5 models SD23 Standard type, SD23E Extra type, SD23D Desert type, SD23S Swamp type, SD23R Rubbish type as common part and special. The quantity of common part per 5 machine models is indicated in the “Q’ty” column without any mark; for the special part and different quantity per machine are marked model above its quantity column. With regard to parts of engine see ”Parts Book of Engine.” Due to continuous technology advanced and products improvement. The content in this book may be different to your machine and the difference will be emendated next time without notice. Please users can be understanding. https://truckmanualshub.com/ 目 录 CONTENTS 图 号 页 数 Fig.NO. Page 1.发动机关联零件 ENGINE RELATED PARTS 发动机悬挂………………………………………………………………………101… 3～4 ENGINE MOUNT 前支架……………………………………………………………………………102… 5 FRONT SUPPORT 空气滤清器及罩…………………………………………………………………103… 6～7 AIR…
