NOTE: REFER TO PARTS MANUAL #06084 FOR ACCESSORIES.

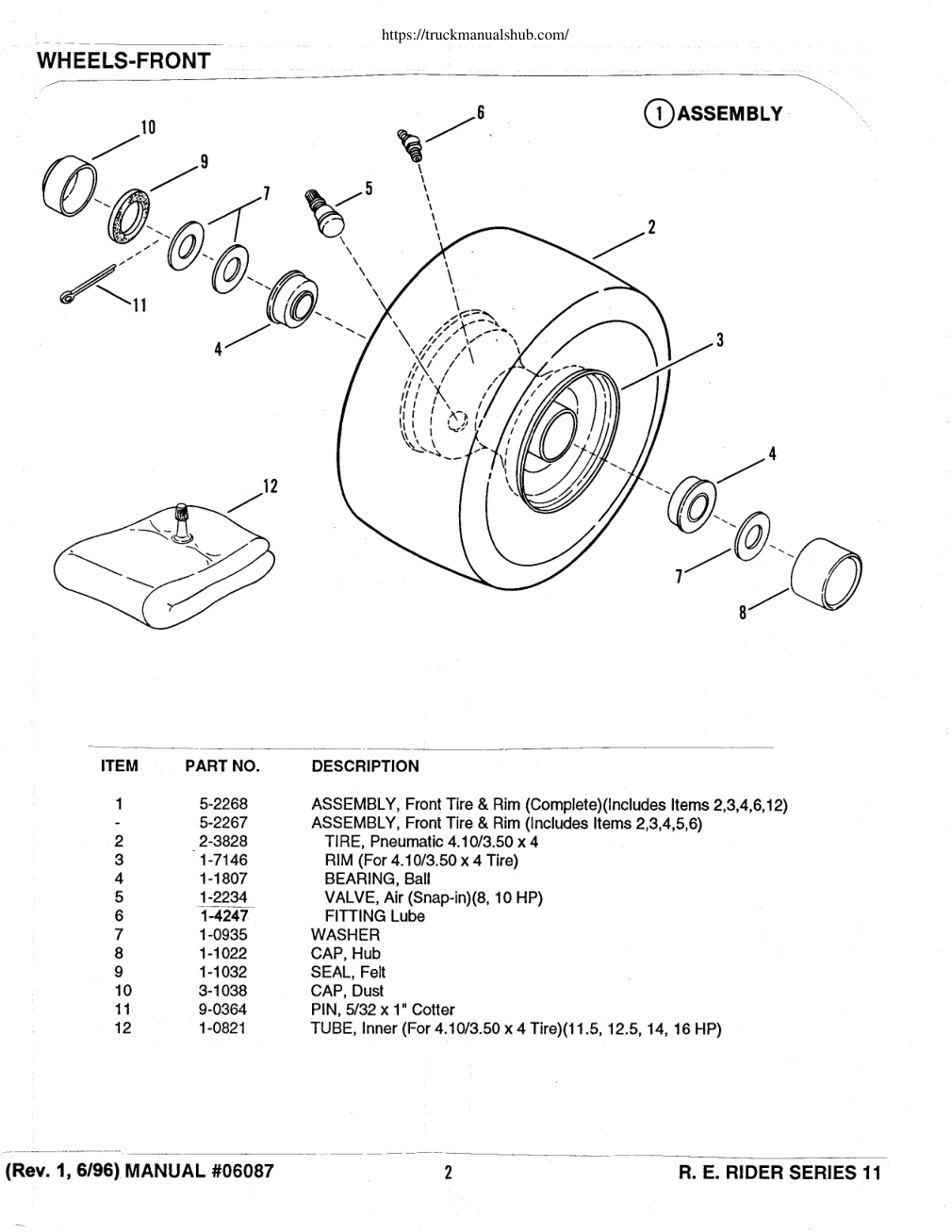

REAR ENGINE RIDER NOTE: The Series number is the last numeral in the model number.: SNAP. P| ERR sscconouch, GA., 30253 U.S.A. (Rev. 1, 6/96) MANUAL #06087 ITEM PART NO. DESCRIPTION 1 5-2268 ASSEMBLY, Front Tire & Rim (Complete)(Includes Items 2,3,4,6,12) - 5-2267 ASSEMBLY, Front Tire & Rim (Includes Items 2,3,4,5,6) 2 _2-3828 TIRE, Pneumatic 4.10/3.50 x 4 3 1-7146 RIM (For 4.10/3.50 x 4 Tire) 4 1-1807 BEARING, Ball 5 1-2234 VALVE, Air (Snap-in)(8, 10 HP) 6 1-4247 FITTING Lube 7 1-0935 WASHER 8 1-1022 CAP, Hub 9 1-1032 SEAL, Felt 10 3-1038 CAP, Dust 11 9-0364 PIN, 5/32 x 1" Cotter 12 1-0821 TUBE, Inner (For 4.10/3.50 x 4 Tire)(11.5, 12.5, 14, 16 HP) (Rev. 1, 6/96) MANUAL #06087 2 | R. E. RIDER SERIES 11
