TECHNICHE SERIZOVAEL

! | Please send any corrections to velvetrevolution@seznam.cz Prosim, poSlete opravy velvetrevolution@seznam.cz 1)

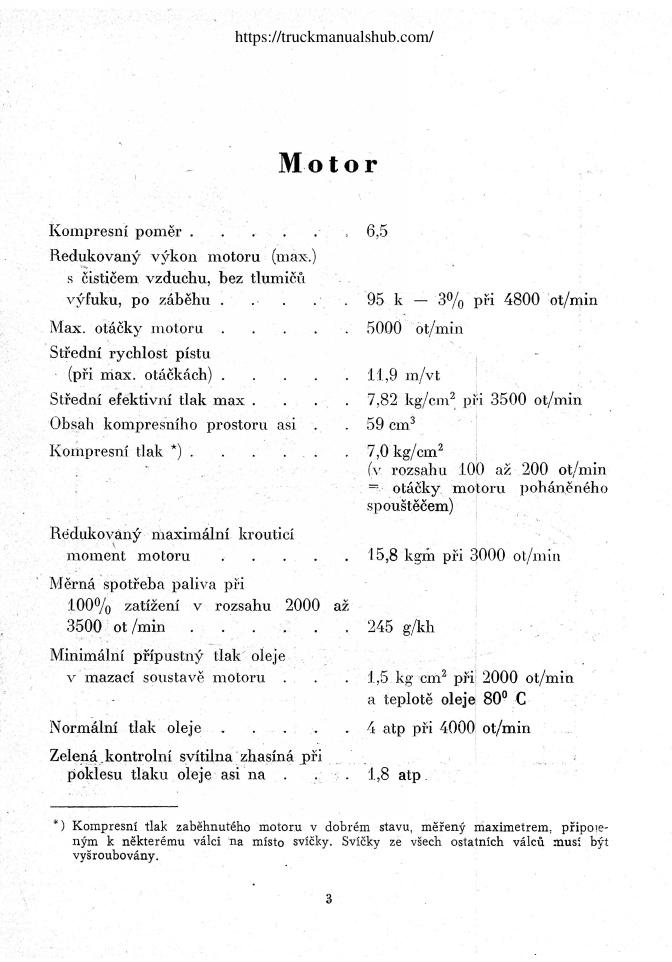

https://truckmanualshub.com/ Please send any corrections to velvetrevolution@seznam.cz Prosím, pošlete opravy velvetrevolution@seznam.cz https://truckmanualshub.com/ https://truckmanualshub.com/ https://truckmanualshub.com/ https://truckmanualshub.com/ https://truckmanualshub.com/ Motor Compression ratio 6.5:1 Engine power (max) with air filter without an exhaust silencer after running in. 95HP - 3% at 4800 rpm Max engine speed of 5000 rev / min Mean piston speed at max speed 11.9 m/sec Mean Effective Pressure max 7.82 kg / cm2 at 3500 rev / min Capacity of combustion chamber approx 59 cm ^ 3 * Compression pressure. - 7.0 kg / cm ^ 2 (in the range of 100 to 200 rev / min = revolutions powered by engine starter motor) Maximum torque 15.8kgm at 3000 rev / min (=115 lb') Specific fuel consumption at 100% load approx 2000 to 3500 rev / min 245 g/kh UNITS!? Minimum permissible oil pressure in the engine lubricating system 1.5 kg / cm ^ 2 at 2000 rev / min and an oil temperature of 80c Normal oil pressure, 4bar at 4000 rev / min Green indicator light goes out when the oil pressure drops to about 1.8, bar. * Compression pressure of run in engine in good condition, pressure gauge…
