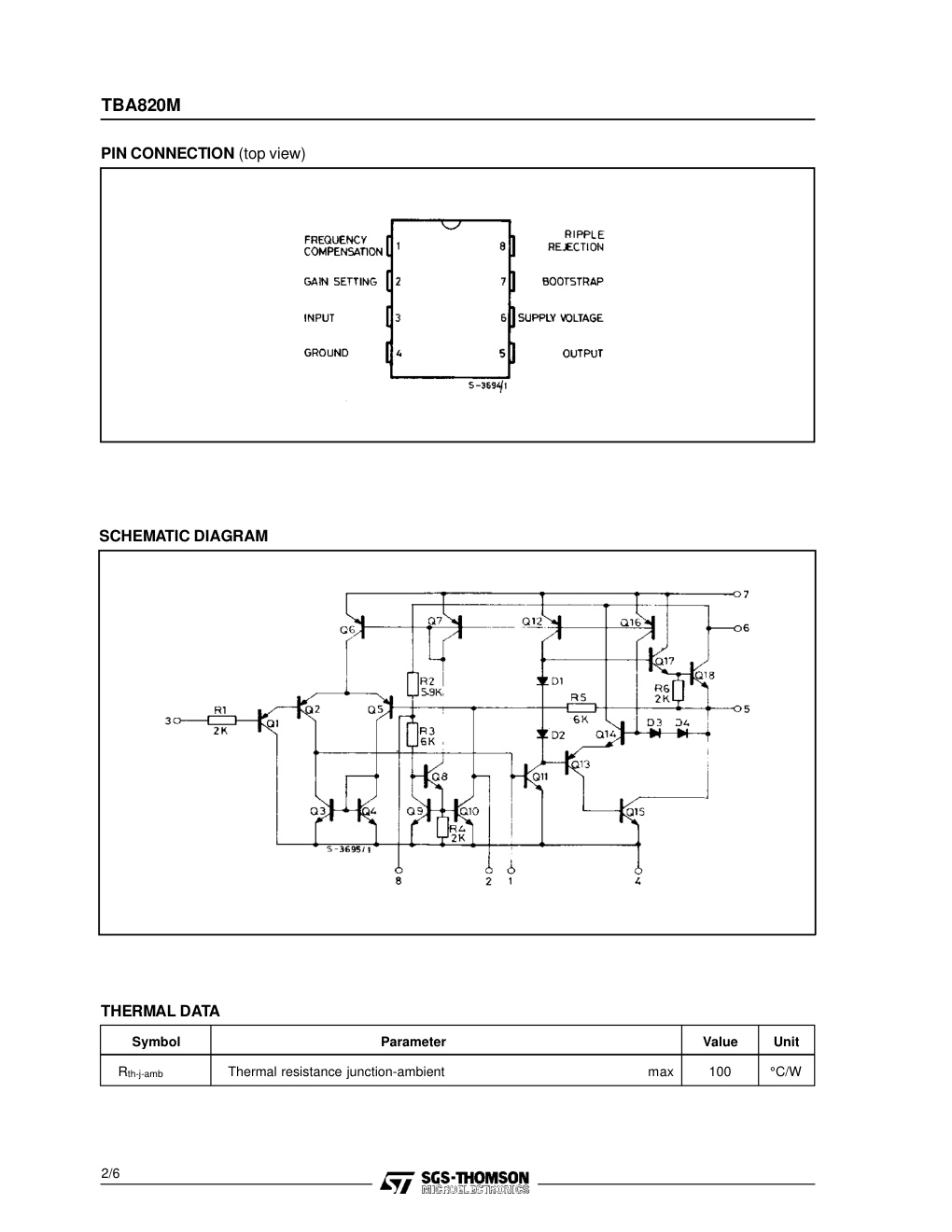

TBA820M 1.2W AUDIO AMPLIFIER DESCRIPTION The TBA820M is a monolithic integrated audio amplifier in a 8 lead dual in-line plastic package. It is intended for use as low frequencyclass B power amplifier with wide range of supply voltage: 3 to 16V, in portable radios, cassette recorders and players etc. Main features are: minimum working supply voltage of 3V, low quiescent current, low Minidip number of external components, good ripple rejec- tion, no cross-over distortion, low power dissipa- tion. ORDERING NUMBER: TBA820M Output power: Po = 2W at 12V/8Ω, 1.6W at 9V/4Ω and 1.2W at 9V/8Ω. ABSOLUTE MAXIMUM RATINGS Symbol Parameter Value Unit Vs Supply voltage 16 V Io Output peak current 1.5 A Ptot Power dissipation at Tamb = 50°C 1 W Tstg, Tj Storage and junction temperature -40 to 150 °C TEST AND APPLICATION CIRCUITS Figure 1. Circuitdiagramwithload connectedto the Figure 2. Circuit diagramwith load connected supply voltage to ground * Capacitor C6 must be used when high rip- ple rejection is requested. June 1988 1/6 TBA820M PIN CONNECTION (top view) SCHEMATIC DIAGRAM THERMAL DATA Symbol Parameter Value Unit Rth-j-amb Thermal resistance junction-ambient max 100 °C/W 2/6 TBA820M…
