IC-7000 SERVICE MANUAL

HF/VHF/UHF ALL MODE TRANSCEIVER

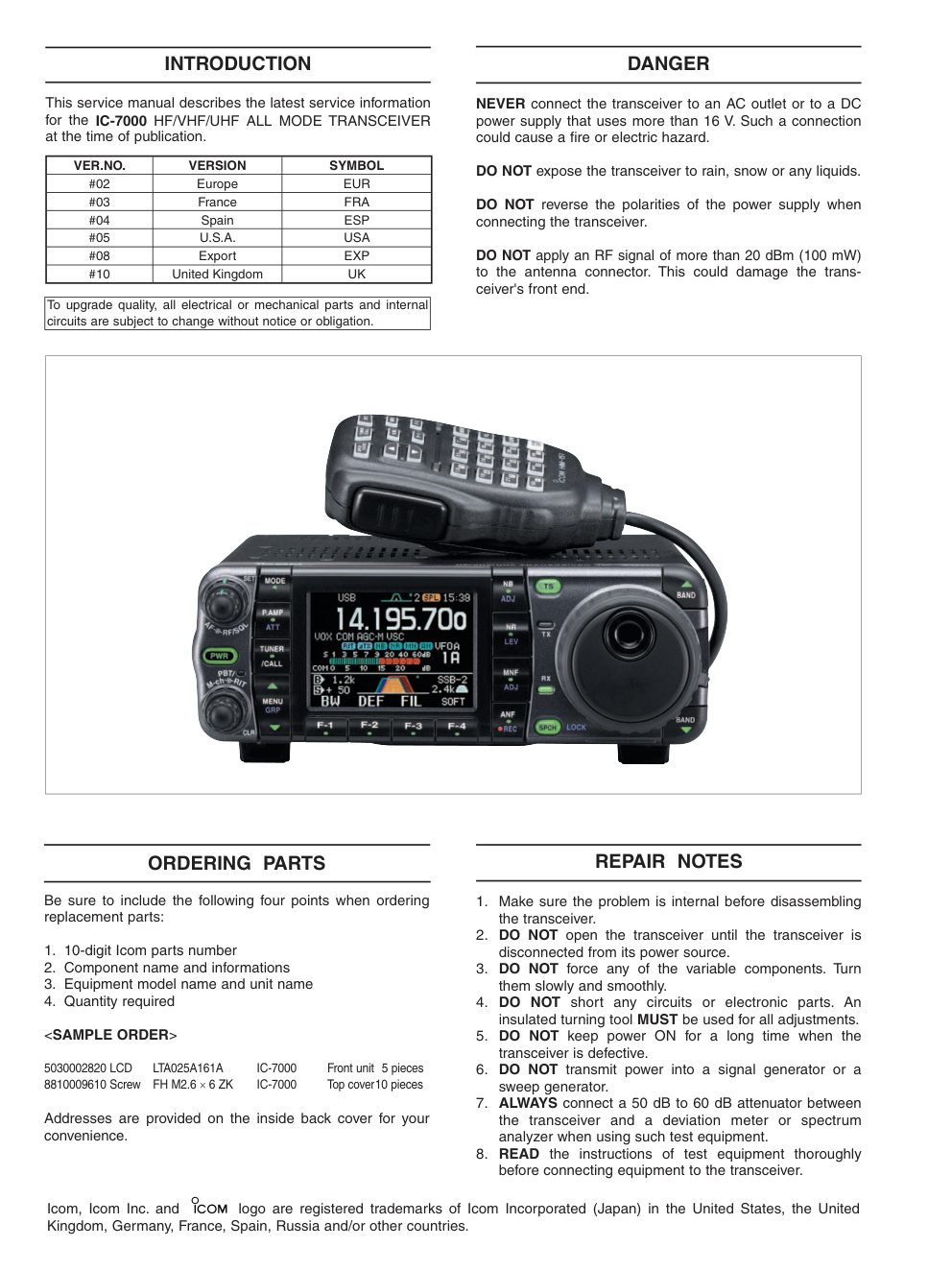

SERVICE MANUAL HF/VHF/UHF ALL MODE TRANSCEIVER S-14214HZ-C1 Dec. 2005 INTRODUCTION DANGER This service manual describes the latest service information NEVER connect the transceiver to an AC outlet or to a DC for the IC-7000 HF/VHF/UHF ALL MODE TRANSCEIVER power supply that uses more than 16 V. Such a connection at the time of publication. could cause a fire or electric hazard. VER.NO. VERSION SYMBOL DO NOT expose the transceiver to rain, snow or any liquids. #02 Europe EUR #03 France FRA DO NOT reverse the polarities of the power supply when #04 Spain ESP connecting the transceiver. #05 U.S.A. USA #08 Export EXP DO NOT apply an RF signal of more than 20 dBm (100 mW) #10 United Kingdom UK to the antenna connector. This could damage the trans- ceiver's front end. To upgrade quality, all electrical or mechanical parts and internal circuits are subject to change without notice or obligation. ORDERING PARTS REPAIR NOTES Be sure to include the following four points when ordering 1. Make sure the problem is internal before disassembling replacement parts: the transceiver. 2. DO NOT open the transceiver until the transceiver is 1. 10-digit Icom parts number disconnected from its power…
