Power Anywhere & Anytime

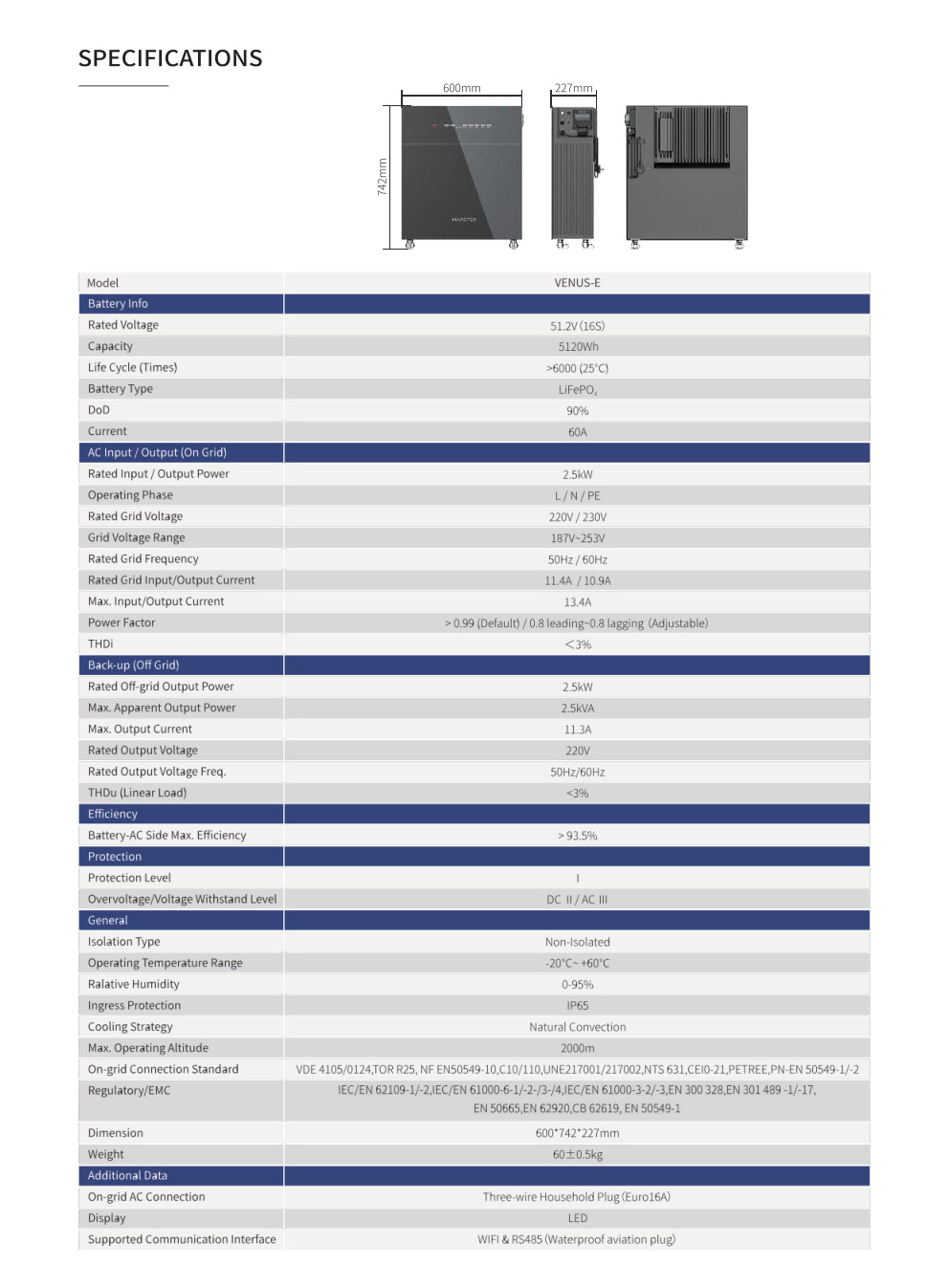

Power Anywhere & Anytime e 2.5kW Multi On-grid, Plug & Play e 5.12kWh Battery Capacity e@ 2.5kW Back-up & Off-grid e Anti Feed-in,100% Self-consumption (By CT) e RS485 EMS, Peak Shaving and Valley Filling e IP65 Waterproof Smart Backup Box (Optional) UPS: 20ms automatically switching while grid off. 100 % Self-consumption Guaranteed Marstek Nederland Tel: 085 401 6430 Email: info@marstek.nl Web: | 600mm, 227mm, Rated Voltage 51.2V (16S) Capacity 5120Wh Life Cycle (Times) >6000 (25°C) Battery Type LiFePO, Rated Input / Output Power 2.5kW Operating Phase L/N/PE Rated Grid Voltage 220V / 230V Grid Voltage Range 187V-253V Rated Grid Frequency 50Hz / 60Hz Rated Grid Input/Output Current 114A /10.9A Max. Input/Output Current 13.4A Power Factor > 0.99 (Default) / 0.8 leading-0.8 lagging (Adjustable) Rated Off-grid Output Power 2.5kW Max. Apparent Output Power 2.5kVA Max. Output

Marstek Nederland Tel: 085 401 6430 Email: info@marstek.nl Web: www.marstek.nl
