FORD FULL-SIZE

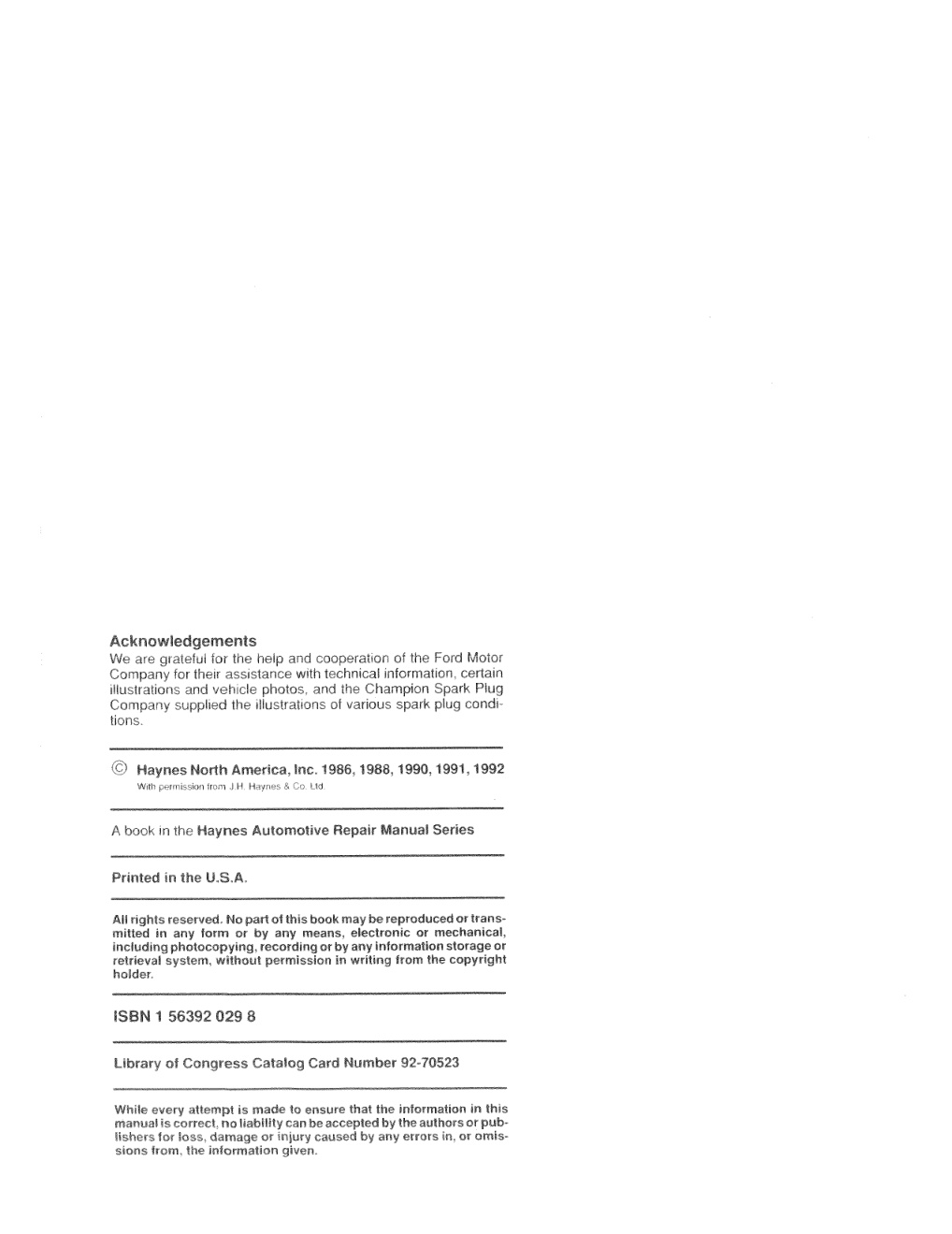

Six-cylinder inline & V8 gasoline engines | All full-size © E-100 thru E-350 Acknowledgements We are graieful for the help and cooperation of the Ford Motor Company for their assistance with technical information, certain illustrations and vehicle photos, and the Champion Spark Plug Company supplied the illustrations of various spark plug condi- © Haynes North America, Inc. 1986, 1988, 1990, 1991, 1992 With permission from J.H, Haynes & Co. Ltd. A book in the Haynes Automotive Repair Manual Series Printed in the U.S.A. All rights reserved. No part of this book may be reproduced or trans- mitted in any form or by any means, electronic or mechanical, including photocopying, recording or by any information storage or retrieval system, without permission in writing from the copyright ISBN 1 56392 029 8 Library of Congress Catalog Card Number 92-70523 While every attempt is made to ensure tha

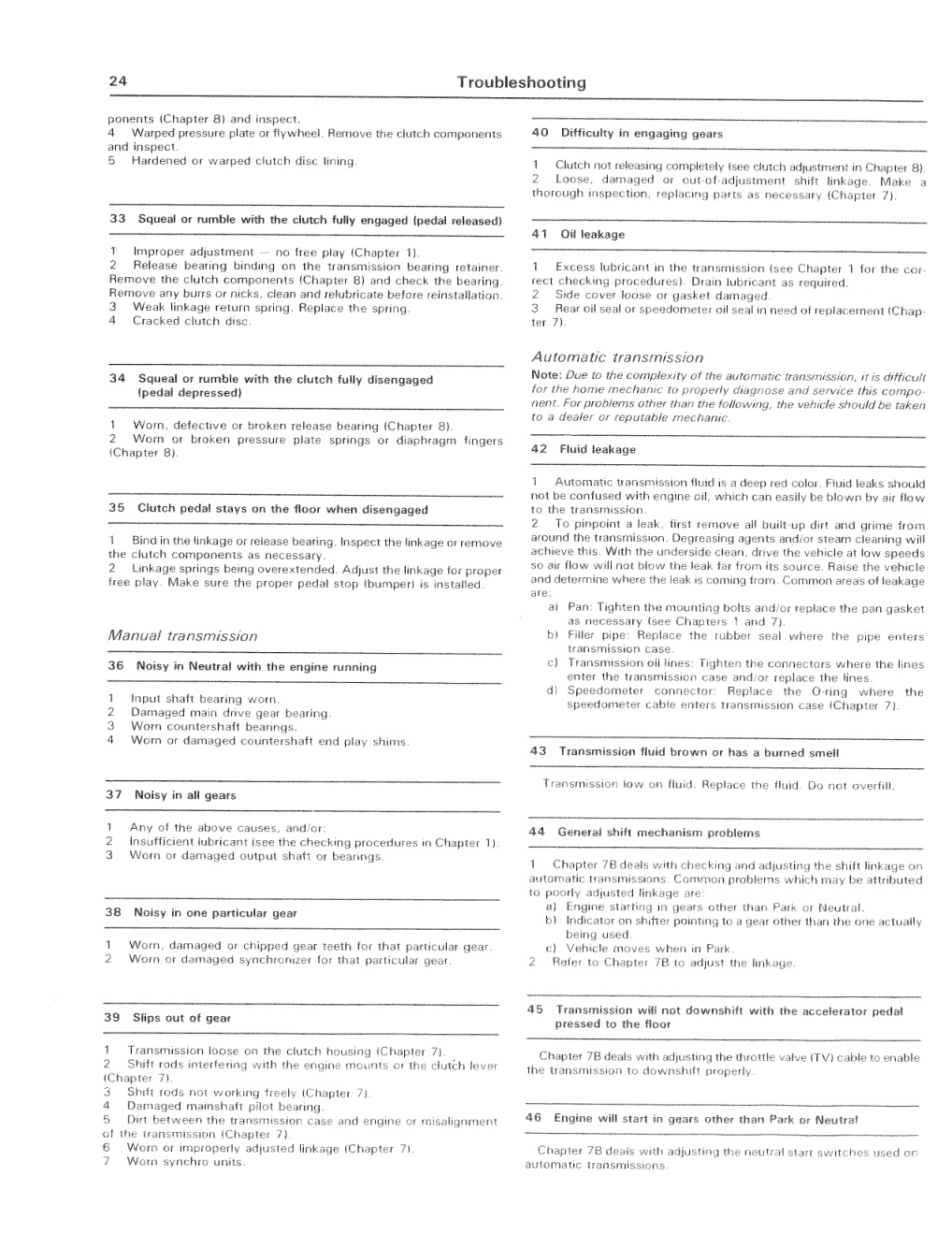

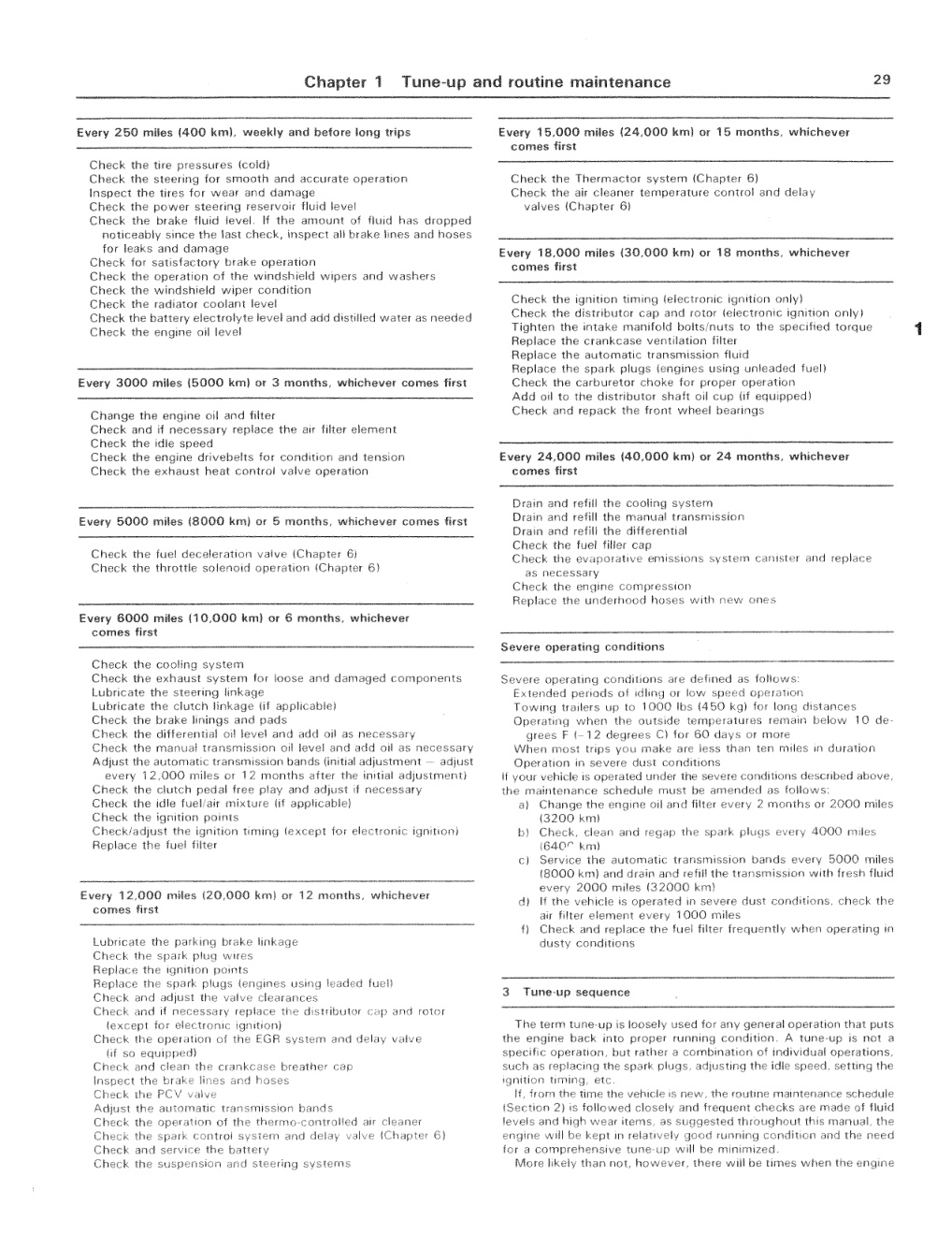

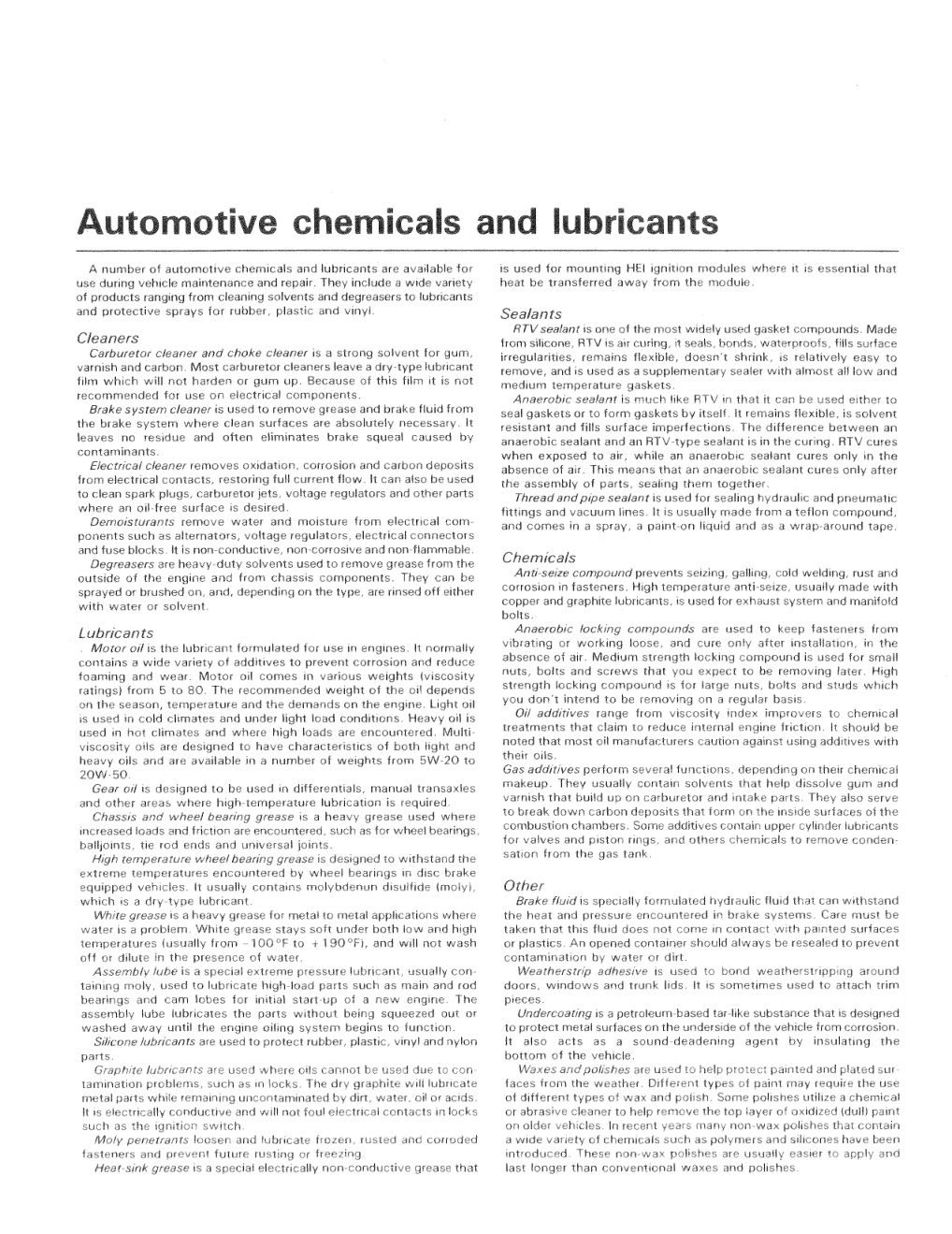

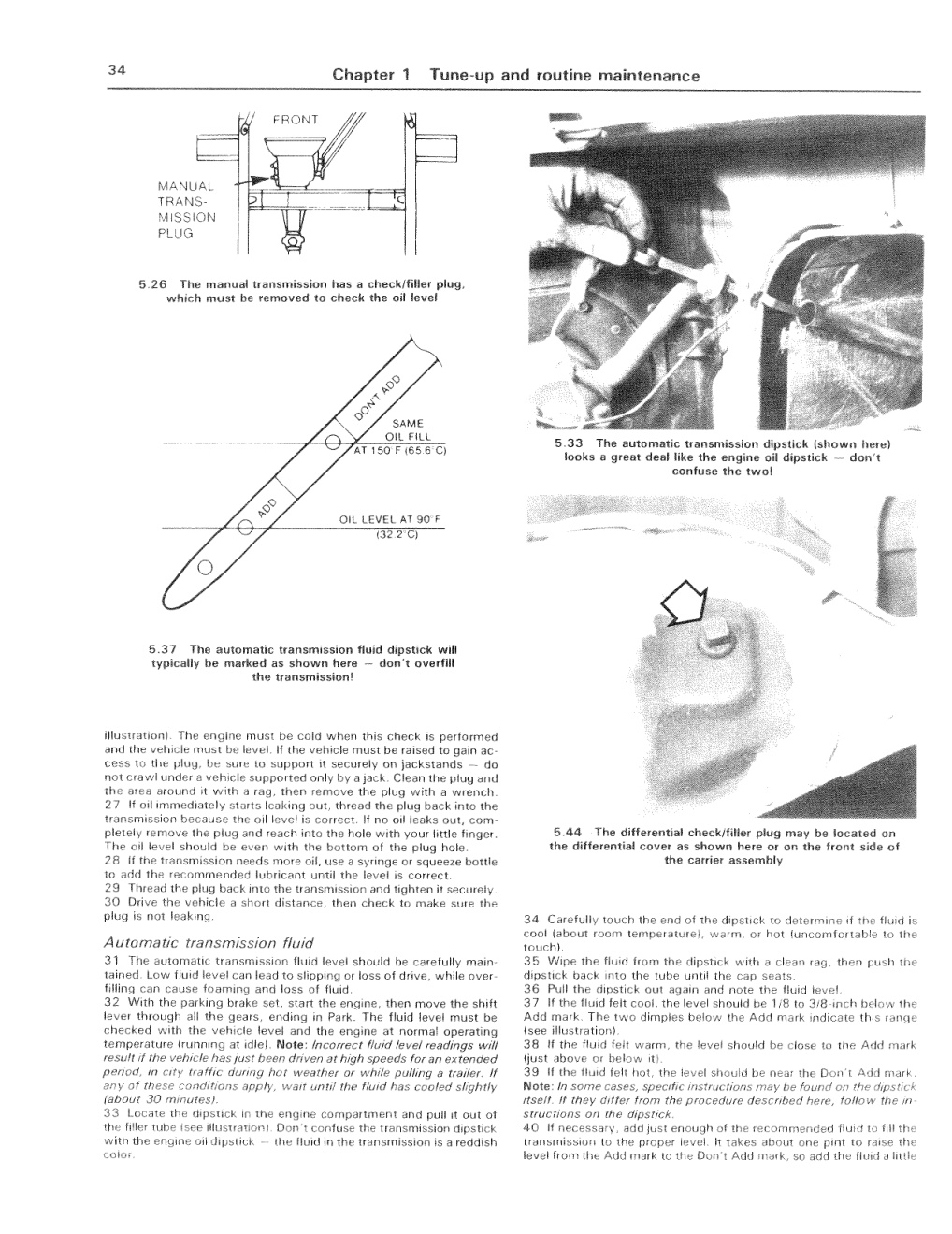

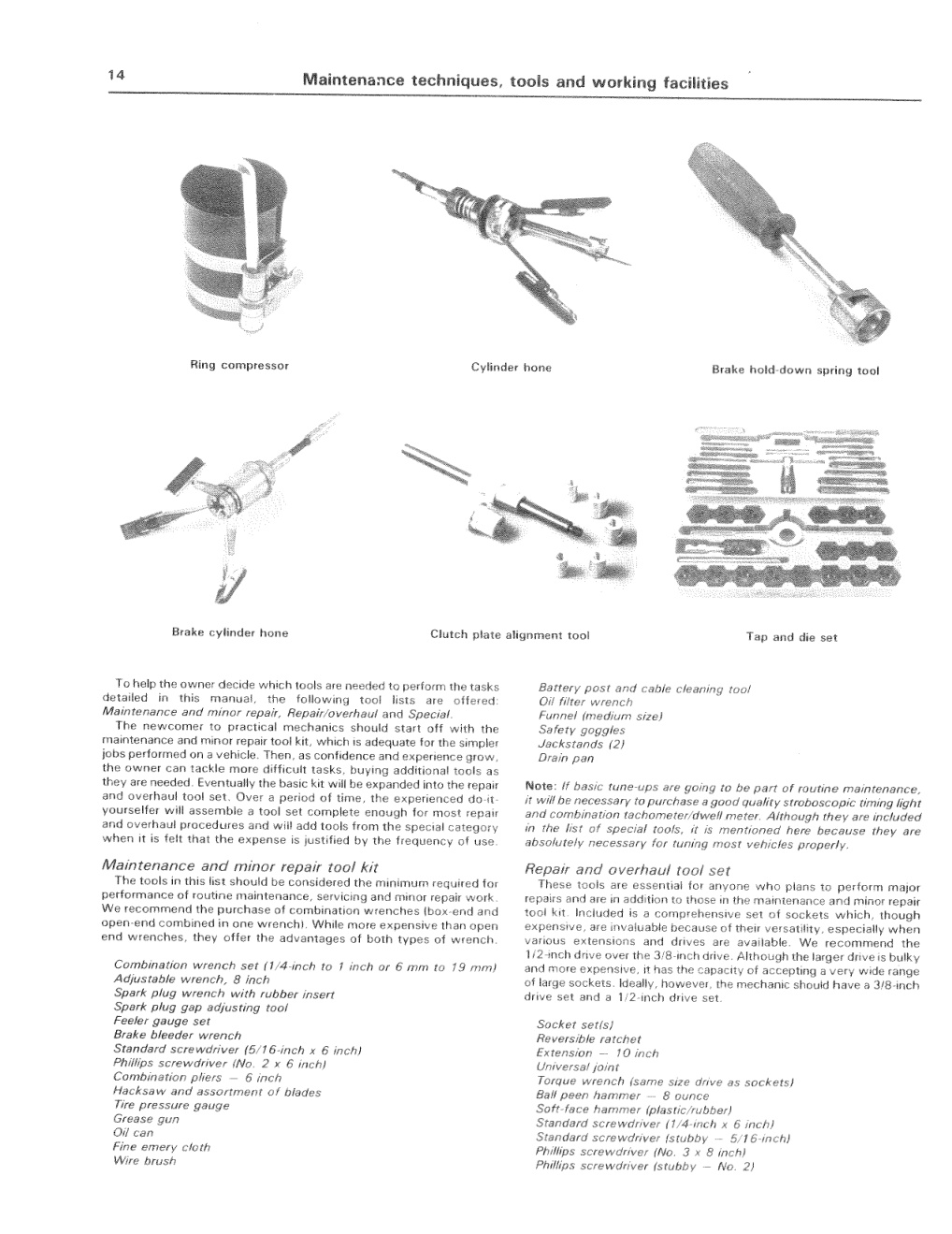

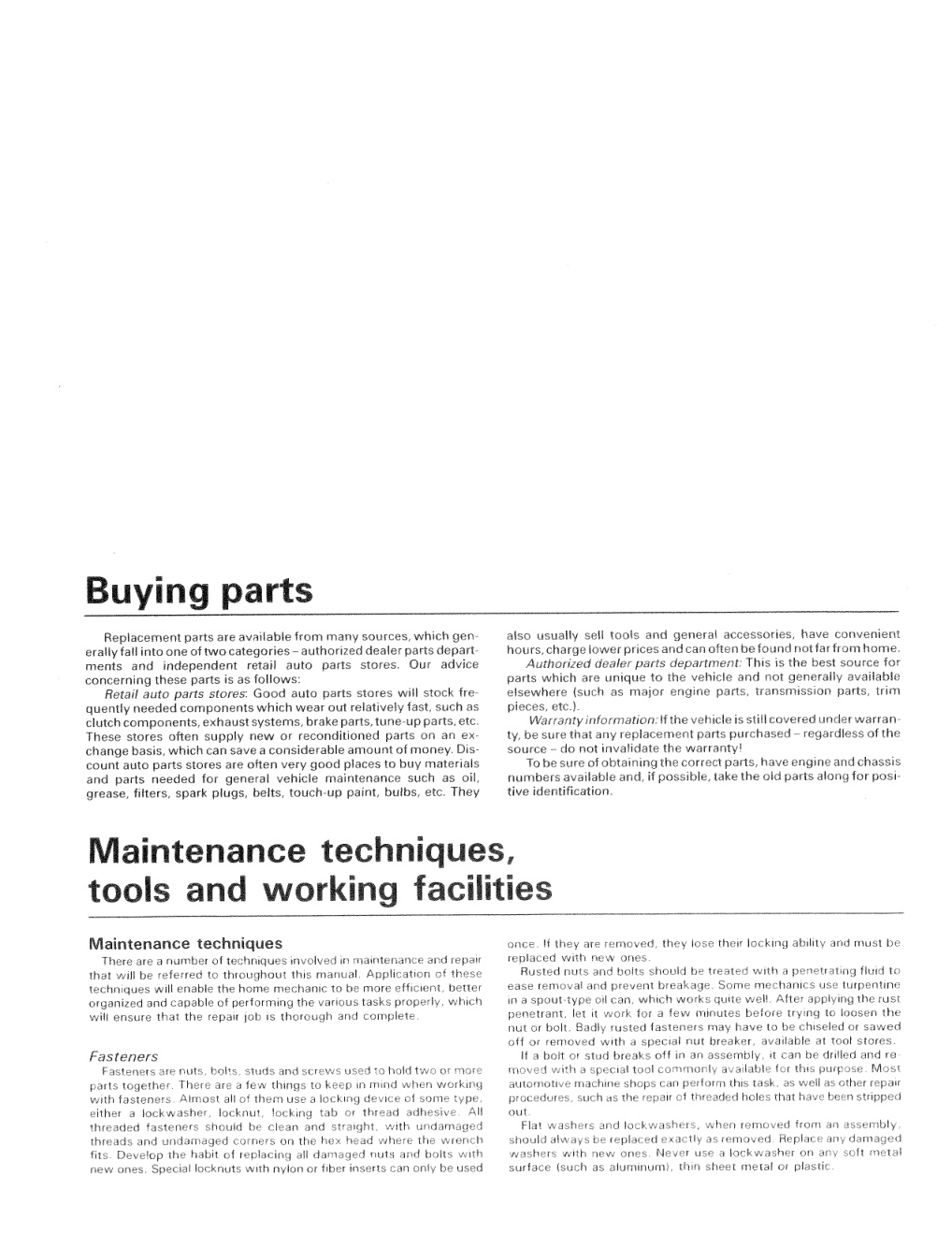

--- TABLE DES MATIERES / CONTENTS --- Contents Introductory pages About this manual 5 Introduction to the Ford full-size vans 5 Vehicle identification numbers 7 Buying parts 9 Maintenance techniques, tools and working facilities 9 Booster battery (jump) starting 16 Jacking and towing 16 Conversion factors 17 Safety first! 18 Automotive chemicals and lubricants 19 Troubleshooting 20 Chapter 1 Tune-up and routine maintenance 27 Chapter 2 Part A Six cylinder inline engines 63 Chapter 2 Part B V8 engines 75 Chapter 2 Part C General engine overhaul procedures 91 Chapter 3 Cooling, heating and air conditioning systems 119 Chapter 4 Fuel and exhaust systems 127 Chapter 5 Engine electrical systems 150 Chapter 6 Emissions control systems 165 Chapter 7 Part A Manual transmission 180 Chapter 7 Part B Automatic transmission 192 Chapter 8 Clutch and driveline 200 Chapter 9 Brakes 214 Chapter 10 Steering and suspension systems 231 Chapter 11 Body 242 Chapter 12 Chassis electrical system 262 Wiring diagrams 275 Chapter 13 Supplement: Revisions and information on 1987 and later models 296 Index 314 2B 2C 7A 7B 10 11 12 13 UOBEM qnig euyjouccgz | 861
