Fig. 1 Vehicle side overview.

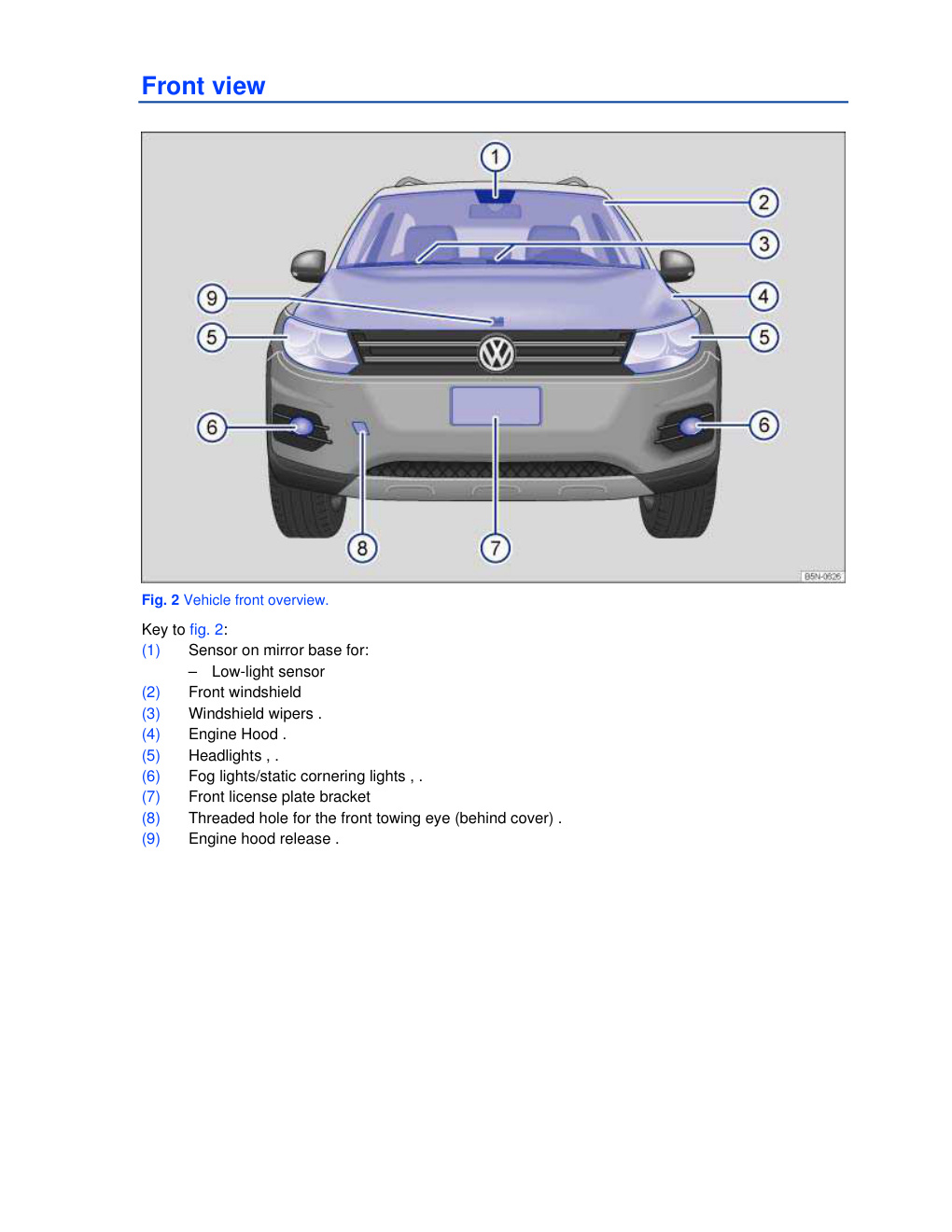

(1) Fuel filler flap (2) Side window with integrated antenna (3) Roof antenna for: (5) Outside door handle (6) Outside mirror – Additional turn signal light (7) Lift points for the jack, (8) Trailer receiver Fig. 2 Vehicle front overview. (1) Sensor on mirror base for: – Low-light sensor (2) Front windshield (3) Windshield wipers. (4) Engine Hood. (5) Headlights,. (6) Fog lights/static cornering lights,. (7) Front license plate bracket (8) Threaded hole for the front towing eye (behind cover). (9) Engine hood release.

Side view Fig. 1 Vehicle side overview. Key to fig. 1: (1) Fuel filler flap (2) Side window with integrated antenna (3) Roof antenna for: – Cell phone – Navigation (4) Roof rack (5) Outside door handle (6) Outside mirror – Additional turn signal light (7) Lift points for the jack , (8) Trailer receiver Front view Fig. 2 Vehicle front overview. Key to fig. 2: (1) Sensor on mirror base for: – Low-light sensor (2) Front windshield (3) Windshield wipers . (4) Engine Hood . (5) Headlights , . (6) Fog lights/static cornering lights , . (7) Front license plate bracket (8) Threaded hole for the front towing eye (behind cover) . (9) Engine hood release . Rear view Fig. 3 Vehicle rear overview. Key to fig. 3: (1) Roof antenna – Cell phone – Navigation (2) High-mounted brake light (3) Rear window – Rear window defroster (4) Rear window wiper (5) Taillights , (6) Rear hatch release and camera of the Rear Assist (7) Rear license plate bracket (8) Backup lights and rear reflectors (9) Sensors for the rear Park Distance Control (10) Threaded hole for the rear towing eye (behind cover) (11) Receiver for the trailer hitch (12) License plate lighting Passenger compartment Driver door overview Fig.…
