TO CHARGE PISTOL

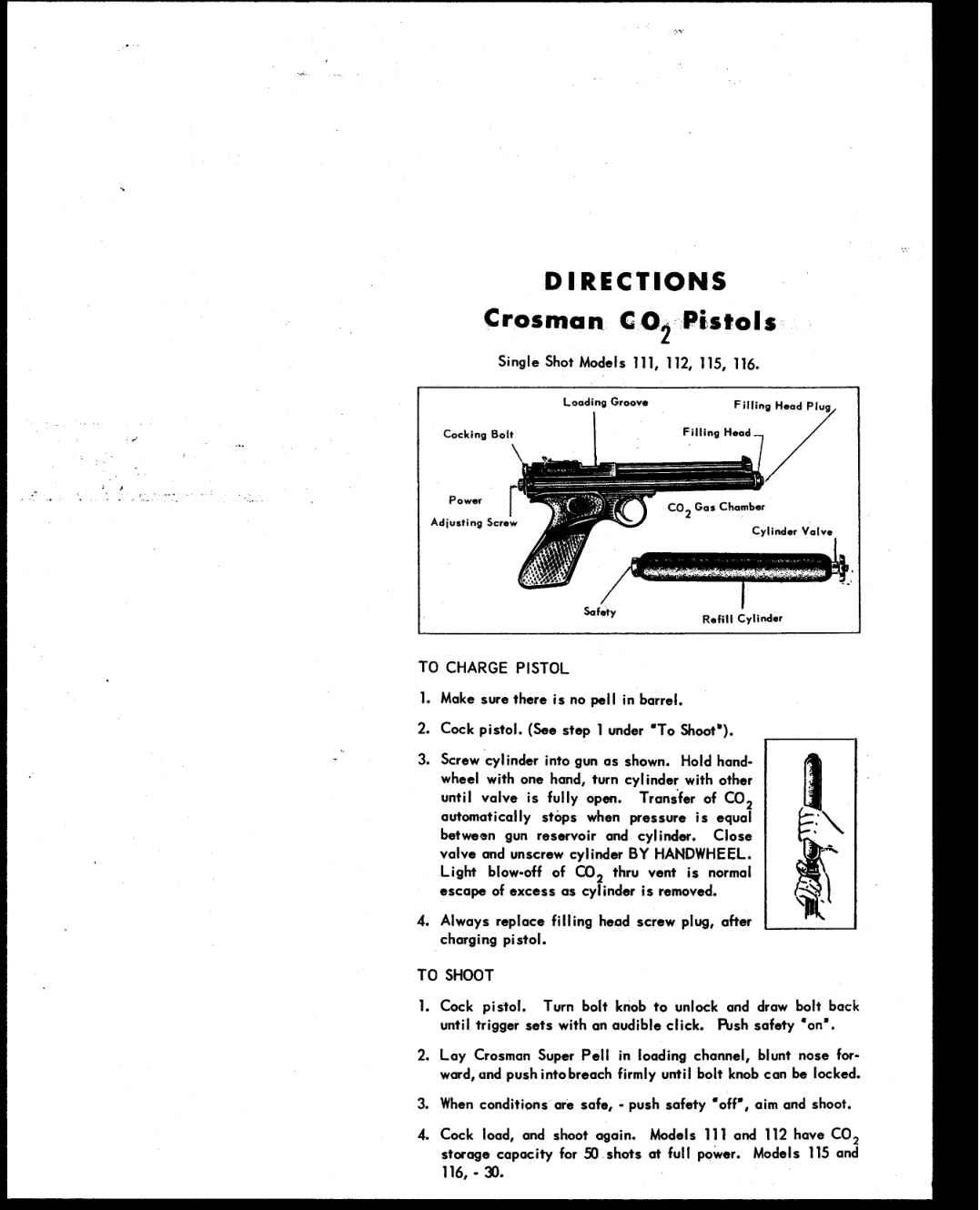

Crosman C 0, Pistols Single Shot Models 111, 112, 115, 116. Loading Groove Filling Head Plug Cocking Bolt Filling Head CO, Gas Chamber Adjusting Screw Cylinder Valve Refill Cylinder 1. Make sure there is no pell in barrel. 2. Cock pistol. (See step 1 under “To Shoot”). 3. Screw cylinder into gun as shown. Hold hand- wheel with one hand, turn cylinder with other until valve is fully open. Transfer of co, automatically stops when pressure is equal between gun reservoir and. cylinder. Close valve and unscrew cylinder BY HANDWHEEL. Light blow-off of CO, thru vent is normal escape of excess as cylinder is removed.. Always replace filling head screw plug, after charging pistol. 1. Cock pistol. Turn bolt knob to unlock and draw bolt back until trigger sets with an audible click. Push safety “on”.. Lay Crosman Super Pell in loading channel, blunt nose for- ward, and push intobreach firmly unti

VISIT… --- TABLE DES MATIERES / CONTENTS --- CROSMAN CO, PISTOL FEATURES « Precision rifling . Adjustable rear sight . Adjustable power . Positive push type safety . Most accurate range for target shooting, 25 to 30 feet + Effective range for small game, pests, etc. approximately 20 yards (with Crosman Super Pells) + Muzzle velocity, approximately 500 feet per second 8. Inexpensive to shoot, - Crosman 10 oz. cylinder provides at least 800 shots at a refill cost of $1.00 . No recoil, or “jump” . Rugged long life valves CROSMAN CO, CYLINDER The Crosman CO, cylinder is refillable. Most sporting goods dealers carry extra cylinders for exchange sale. A list of author- ized Refill Stations is packed with each cylinder. In addition, any Fire Extinguisher Service Firm refilling CO, extinguishers, can refill the Crosman cylinder. Refer to your telephone directory classified section for listings. Liquid CO, is necessary for recharging the pistols. A quick way to check the cylinder to determine if it still has liquid content is to hold it, valve end down, and open the valve slightly. If the escaping CO, is in the form of a white snowy vapor, there is still usable liquid. If it is colorless,…
