E FIT M 1517

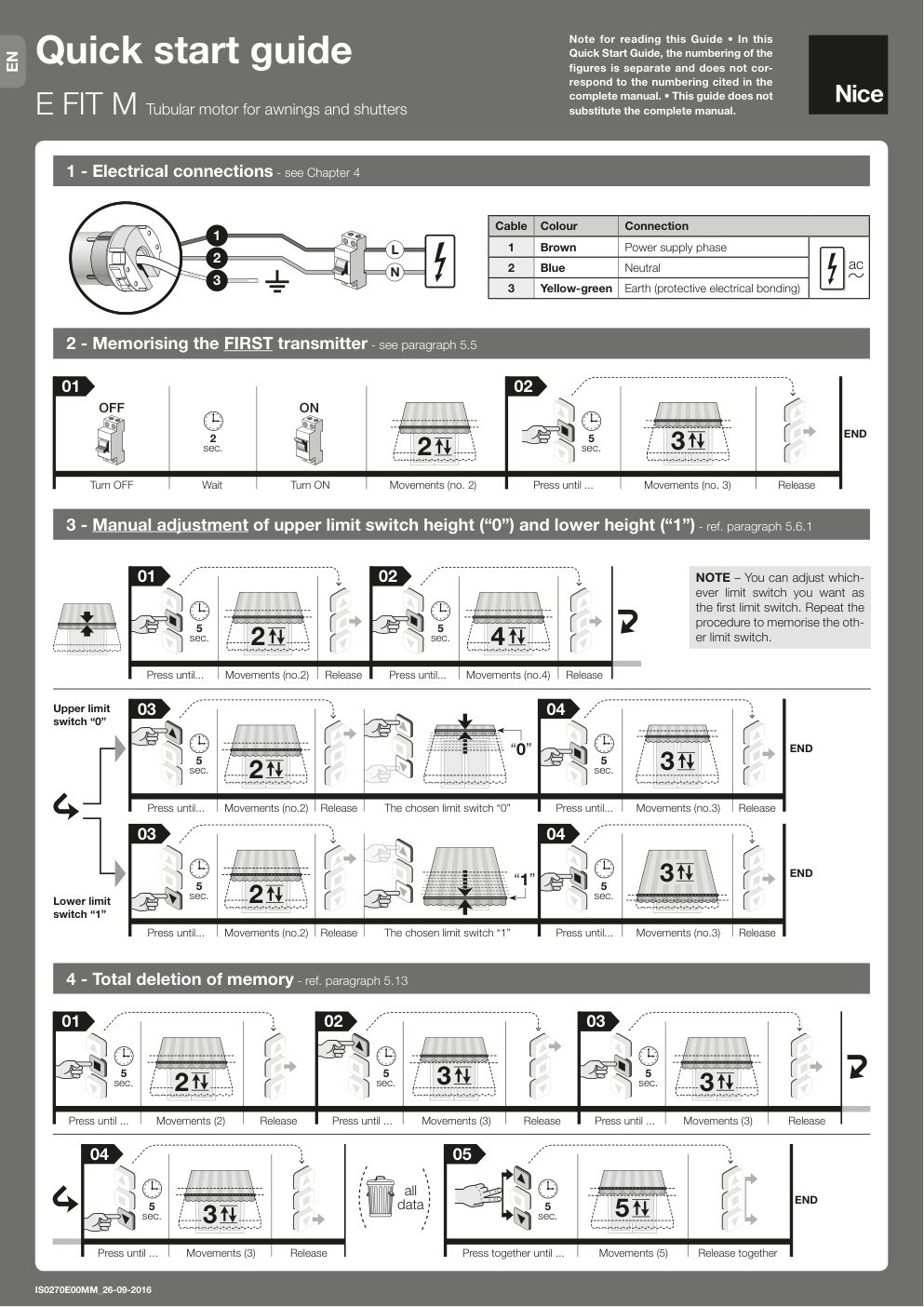

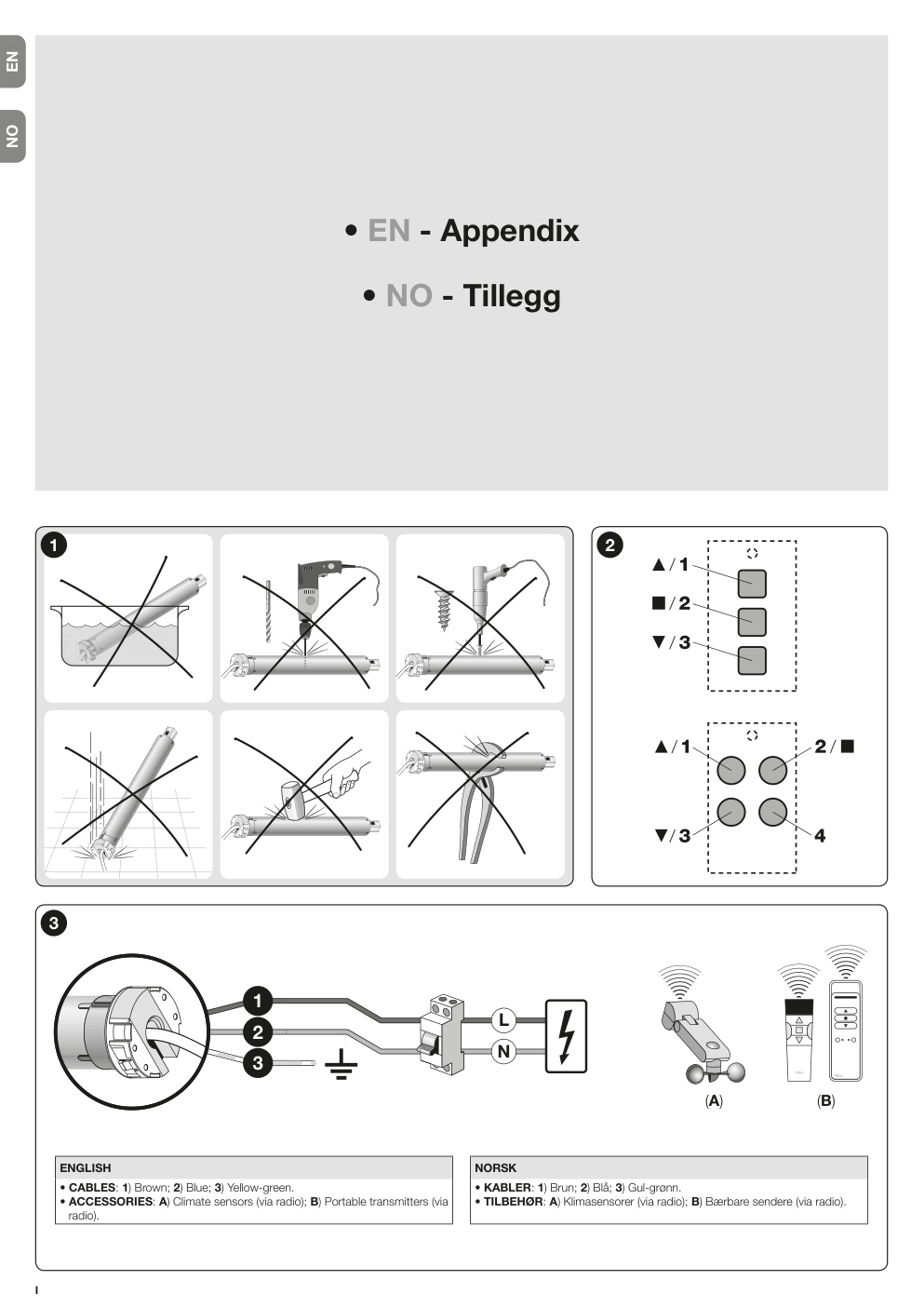

EN - Instructions and warnings for installation and use NO - Anvisninger og advarsler for installering og bruk Note for reading this Guide • In this EN Quick start guide QuickfiguresStartis separateGuide, theandnumberingdoes notofcor-the respond to the numbering cited in the complete manual. • This guide does not E FIT M Tubular motor for awnings and shutters substitute the complete manual. 1 - Electrical connections - see Chapter 4 Cable Colour Connection L 1 Brown Power supply phase 2 2 Blue Neutral ac N 3 3 Yellow-green Earth (protective electrical bonding) 2 - Memorising the FIRST transmitter - see paragraph 5.5 END 2 5 END sec. sec. 3 2 Turn OFF Wait Turn ON Movements (no. 2) Press until... Movements (no. 3) Release 3 - Manual adjustment of upper limit switch height (“0”) and lower height (“1”) - ref. paragraph 5.6.1 01 02 NOTE – You can adjust which- ever limit switch you want as

Nice E FIT M 817 E FIT M 1517 E FIT M 3017 E FIT M 4012 E FIT M 5012 Tubular motor EN - Instructions and warnings for installation and use NO - Anvisninger og advarsler for installering og bruk Note for reading this Guide • In this EN Quick start guide QuickfiguresStartis separateGuide, theandnumberingdoes notofcor-the respond to the numbering cited in the complete manual. • This guide does not E FIT M Tubular motor for awnings and shutters substitute the complete manual. 1 - Electrical connections - see Chapter 4 Cable Colour Connection 1 L 1 Brown Power supply phase 2 2 Blue Neutral ac N 3 3 Yellow-green Earth (protective electrical bonding) 2 - Memorising the FIRST transmitter - see paragraph 5.5 01 02 OFF ON THE END 2 5 END sec. sec. 3 2 Turn OFF Wait Turn ON Movements (no. 2) Press until ... Movements (no. 3) Release 3 - Manual adjustment of upper limit switch height (“0”) and lower height (“1”) - ref. paragraph 5.6.1 01 02 NOTE – You can adjust which- ever limit switch you want as the first limit switch. Repeat the procedure to memorise the oth- 5 5 sec. sec. er limit switch. 2 4 Press until... Movements (no.2) Release Press until... Movements (no.4) Release Upper limit 03…
