E MAT ST 324 E MAT MT 817

E MAT ST 524 E MAT MT 1517 E MAT ST 611 E MAT MT 3017 E MAT ST 1011 E MAT MT 4012 EN - Instructions and warnings for installation and use SV - Anvisningar och säkerhetsföreskrifter för installation och användning

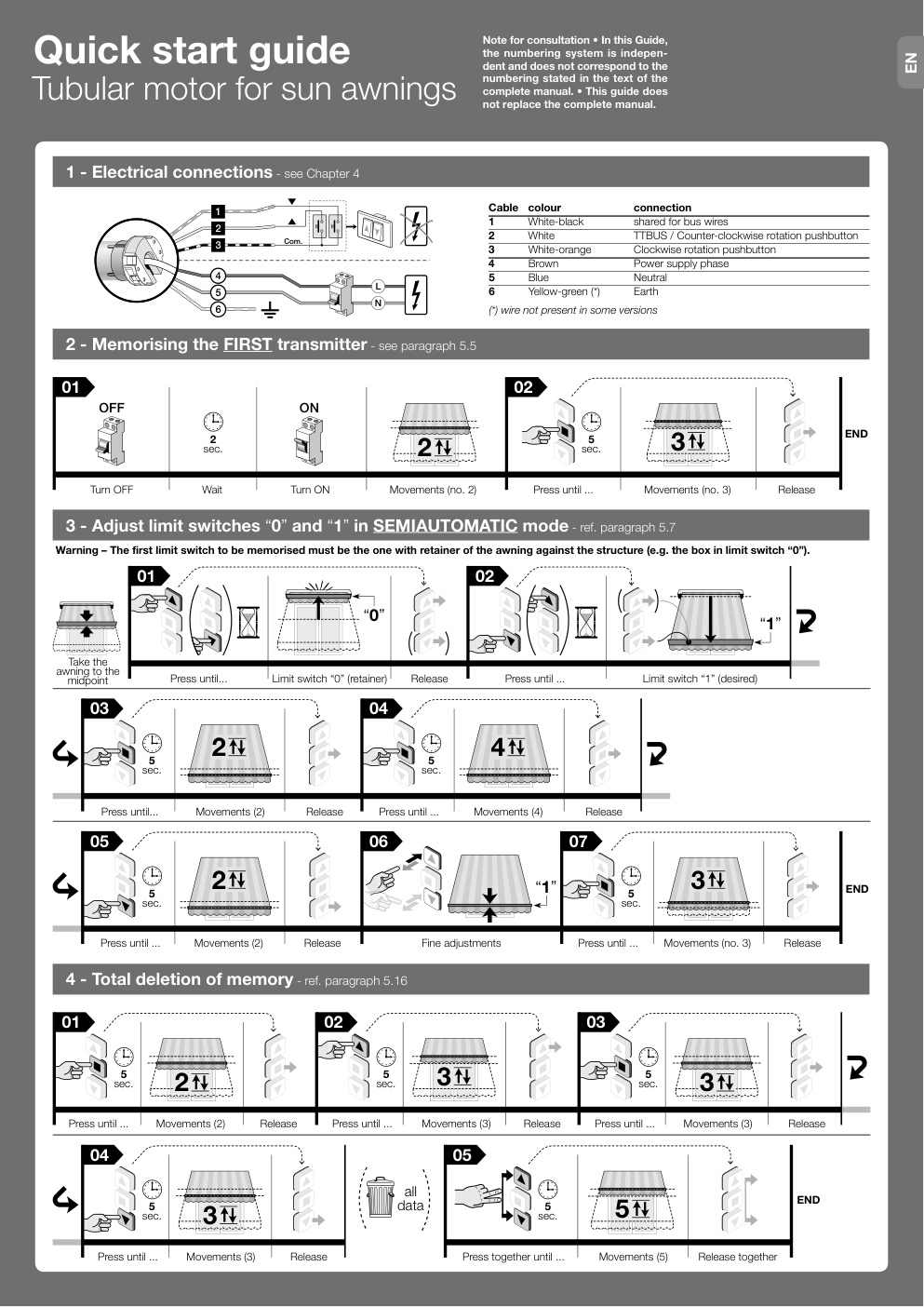

Nice E MAT ST 324 E MAT MT 817 E MAT ST 524 E MAT MT 1517 E MAT ST 611 E MAT MT 3017 E MAT ST 1011 E MAT MT 4012 Tubular motor EN - Instructions and warnings for installation and use SV - Anvisningar och säkerhetsföreskrifter för installation och användning Note for consultation • In this Guide, the numbering system is indepen-Quick start guide dent and does not correspond to the EN numbering stated in the text of the complete manual. • This guide doesTubular motor for sun awnings not replace the complete manual. 1 - Electrical connections - see Chapter 4 1 Cable colour connection 1 White-black shared for bus wires 2 Com. 2 White TTBUS / Counter-clockwise rotation pushbutton 3 3 White-orange Clockwise rotation pushbutton 4 Brown Power supply phase 4 5 Blue Neutral L 6 Yellow-green (*) Earth 5 N 6 (*) wire not present in some versions 2 - Memorising the FIRST transmitter - see paragraph 5.5 01 02 OFF ON THE END 2 5 END sec. sec. 3 2 Turn OFF Wait Turn ON Movements (no. 2) Press until ... Movements (no. 3) Release 3 - Adjust limit switches “0” and “1” in SEMIAUTOMATIC mode - ref. paragraph 5.7 Warning – The first limit switch to be memorised must be the one with retainer of the…
