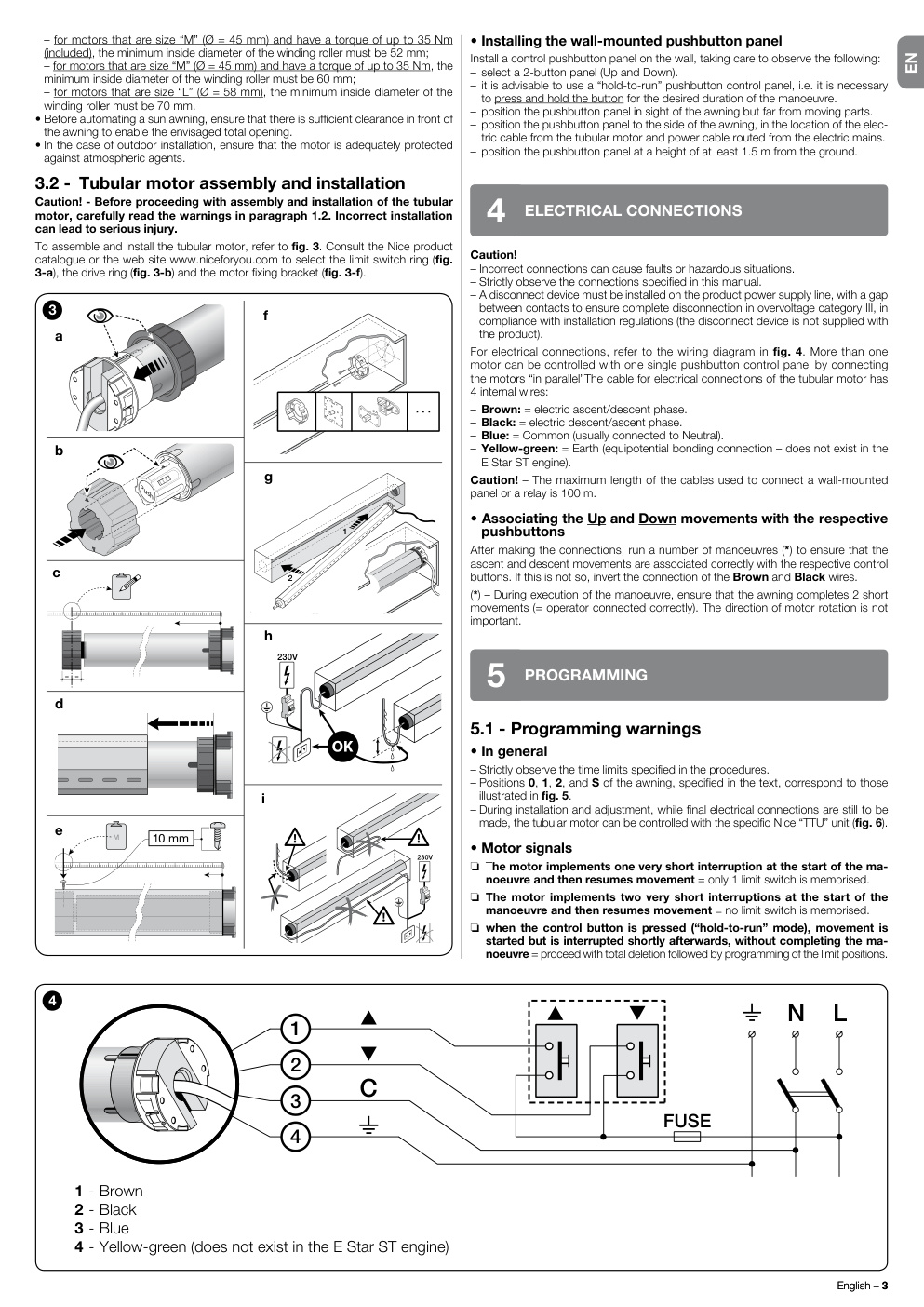

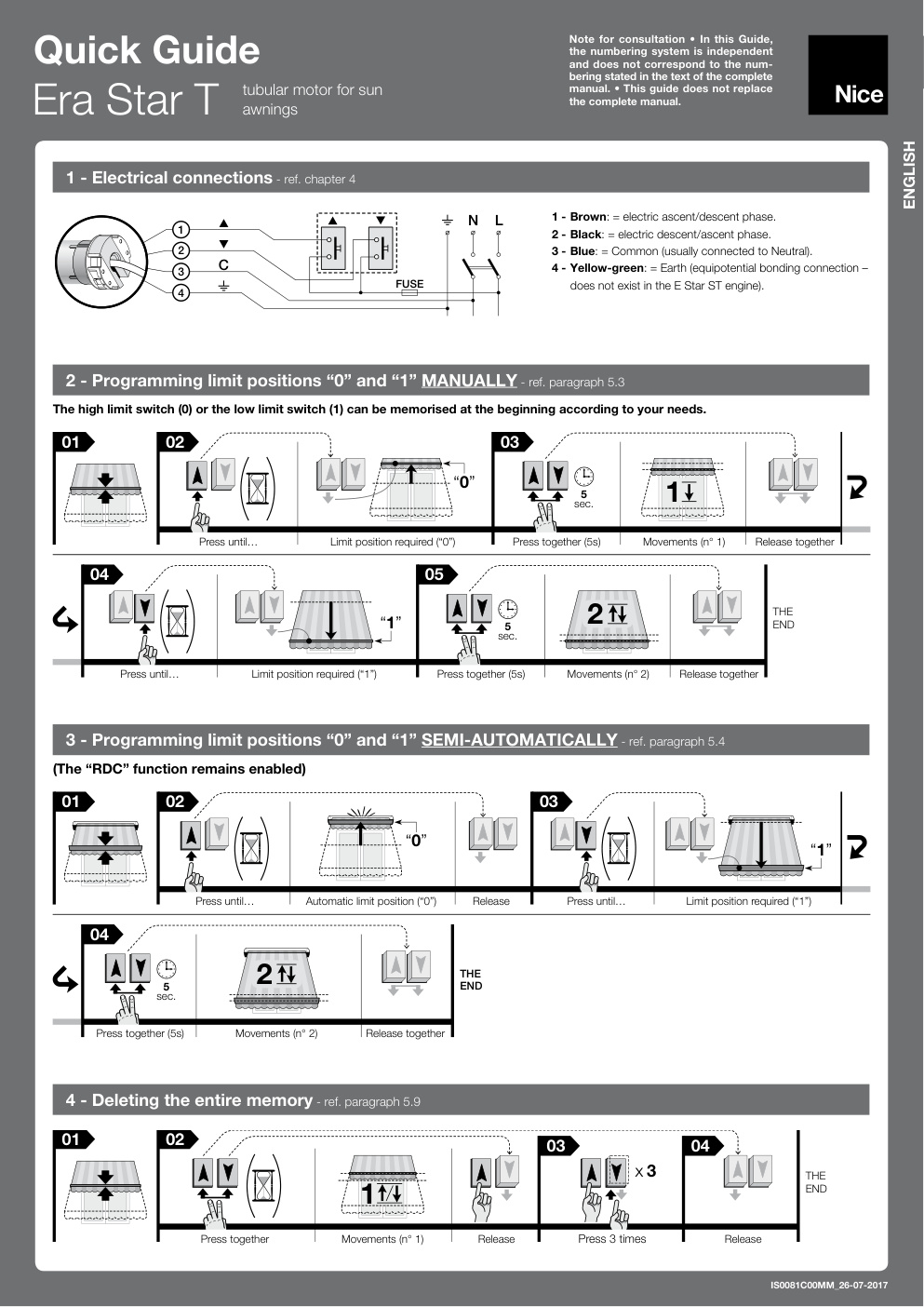

Nice E Star ST E Star MT E Star MKT E Star LT Tubular motor EN - Instructions and warnings for installation and use SV - Anvisningar och varningar för installation och användning Note for consultation • In this Guide, the numbering system is independentQuick Guide and does not correspond to the num- EN bering stated in the text of the complete tubular motor for sun manual. • This guide does not replace the complete manual. awningsEra Star T 1 - Electrical connections - ref. chapter 4 ENGLISH N L 1 - Brown: = electric ascent/descent phase. 1 2 - Black: = electric descent/ascent phase. 2 3 - Blue: = Common (usually connected to Neutral). C 4 - Yellow-green: = Earth (equipotential bonding connection – 3 FUSE does not exist in the E Star ST engine). 4 2 - Programming limit positions “0” and “1” MANUALLY - ref. paragraph 5.3 The high limit switch (0) or the low limit switch (1) can be memorised at the beginning according to your needs. 01 02 03 “0” 5 sec. 1 Press until… Limit position required (“0”) Press together (5s) Movements (n° 1) Release together 04 05 ENDEND “1” 5 2 THETHE sec. Press until… Limit position required (“1”) Press together (5s) Movements (n° 2) Release together 3 -…
