E PLUS MH 1517 E PLUS LH 6517

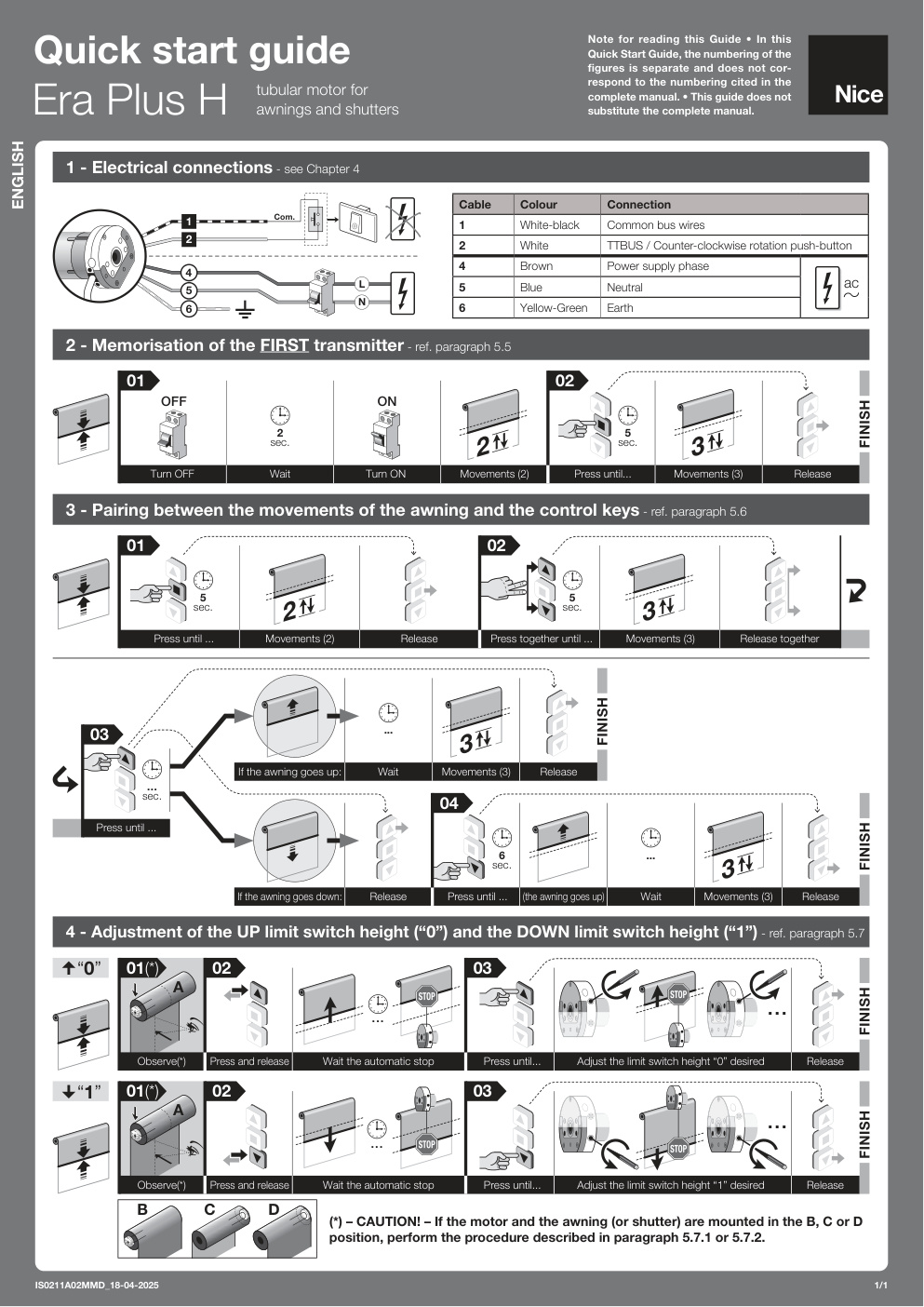

E PLUS MH 3017 E PLUS LH 7517 E PLUS MH 4012 E PLUS LH 8012 E PLUS MH 5012 E PLUS LH 10012 E PLUS LH 12012 EN - Instructions and warnings for installation and use IT - Istruzioni ed avvertenze per l’installazione e l’uso FR - Instructions et avertissements pour l’installation et l’utilisation ES - Instrucciones y advertencias para la instalación y el uso DE - Installierungs-und Gebrauchsanleitungen und Hinweise PL - Instrukcje i ostrzeżenia do instalacji i użytkowania NL - Aanwijzingen en aanbevelingen voor installatie en gebruik Note for reading this Guide • In this Quick Start Guide, the numbering of the Quick start guide figures is separate and does not cor- tubular motor for respond to the numbering cited in the complete manual. • This guide does not awnings and shutters substitute the complete manual. Era Plus H 1 - Electrical connections - see Chapter 4ENGLISH Cable Colour Connecti

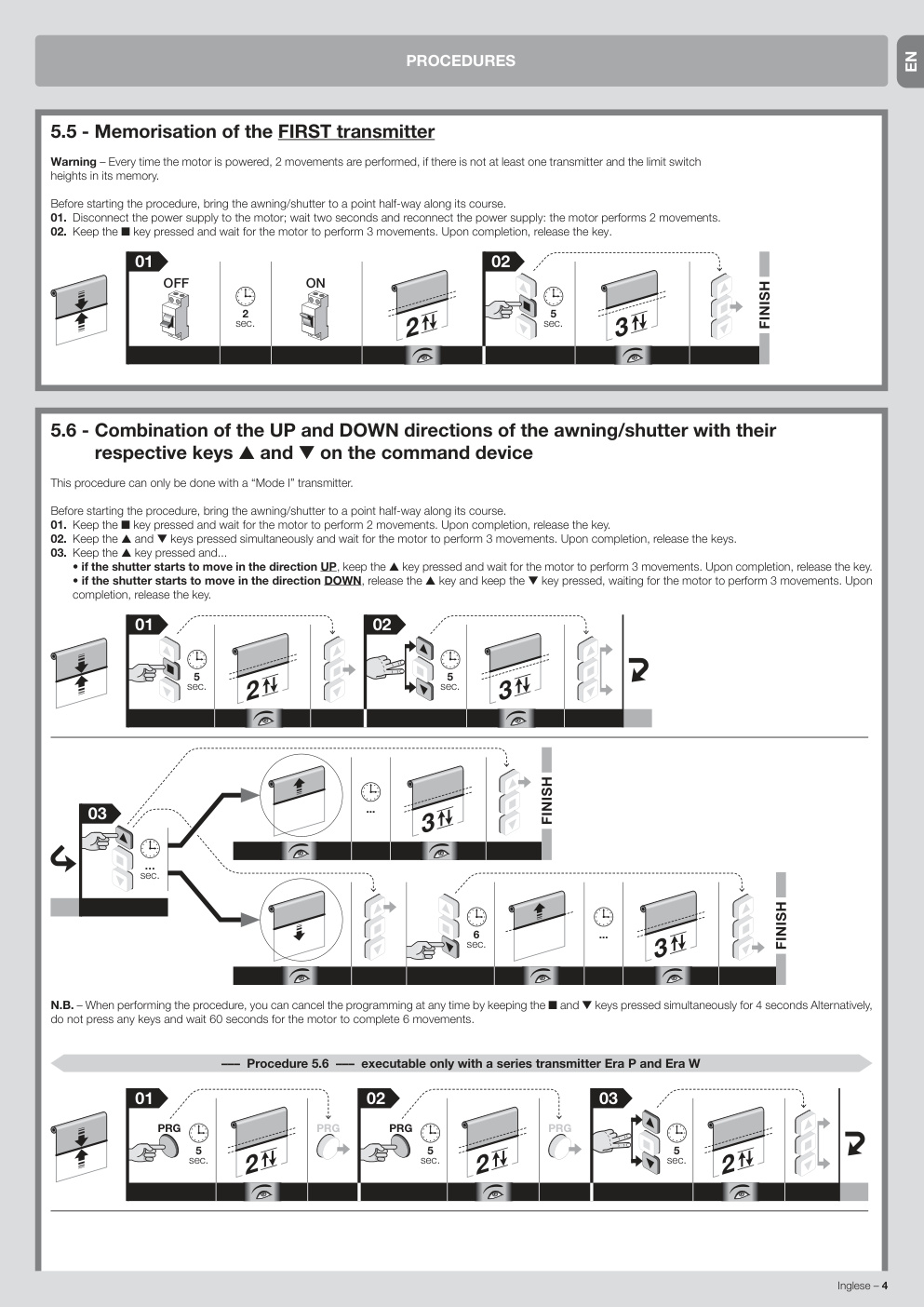

HEra Plus E PLUS MH 1517 E PLUS LH 6517 E PLUS MH 3017 E PLUS LH 7517 E PLUS MH 4012 E PLUS LH 8012 E PLUS MH 5012 E PLUS LH 10012 E PLUS LH 12012 Tubular motor EN - Instructions and warnings for installation and use IT - Istruzioni ed avvertenze per l’installazione e l’uso FR - Instructions et avertissements pour l’installation et l’utilisation ES - Instrucciones y advertencias para la instalación y el uso DE - Installierungs-und Gebrauchsanleitungen und Hinweise PL - Instrukcje i ostrzeżenia do instalacji i użytkowania NL - Aanwijzingen en aanbevelingen voor installatie en gebruik Note for reading this Guide • In this Quick Start Guide, the numbering of the Quick start guide figures is separate and does not cor- tubular motor for respond to the numbering cited in the complete manual. • This guide does not awnings and shutters substitute the complete manual. Era Plus H 1 - Electrical connections - see Chapter 4ENGLISH Cable Colour Connection 1 Com. 1 White-black Common bus wires 2 2 White TTBUS / Counter-clockwise rotation push-button 4 Brown Power supply phase 4 L 5 Blue Neutral ac 5 N 6 6 Yellow-Green Earth 2 - Memorisation of the FIRST transmitter - ref. paragraph 5.5 01 02…
