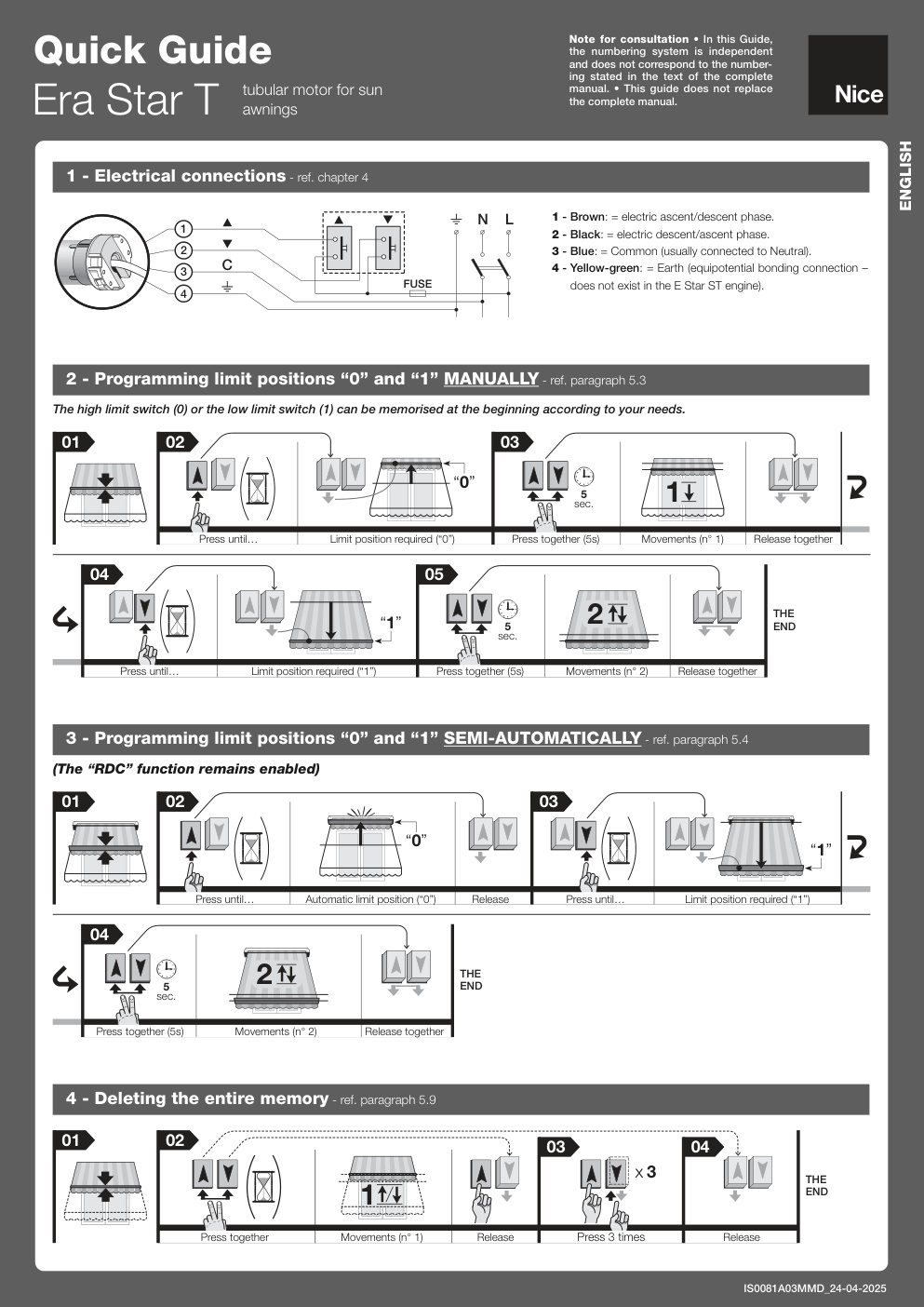

EN - Instructions and warnings for installation and use IT - Istruzioni ed avvertenze per l’installazione e l’uso FR - Instructions et avertissements pour l’installation et l’utilisation ES - Instrucciones y advertencias para la instalación y el uso DE - Installierungs-und Gebrauchsanleitungen und Hinweise PL - Instrukcje i ostrzeżenia do instalacji i użytkowania NL - Aanwijzingen en aanbevelingen voor installatie en gebruik Note for consultation • In this Guide, the numbering system is independentQuick Guide and does not correspond to the number- ing stated in the text of the complete tubular motor for sun manual. • This guide does not replace the complete manual. awningsEra Star T 1 - Electrical connections - ref. chapter 4 ENGLISH N L 1 - Brown: = electric ascent/descent phase. 1 2 - Black: = electric descent/ascent phase. 2 3 - Blue: = Common (usually connected to Neutral). C 4 - Yel

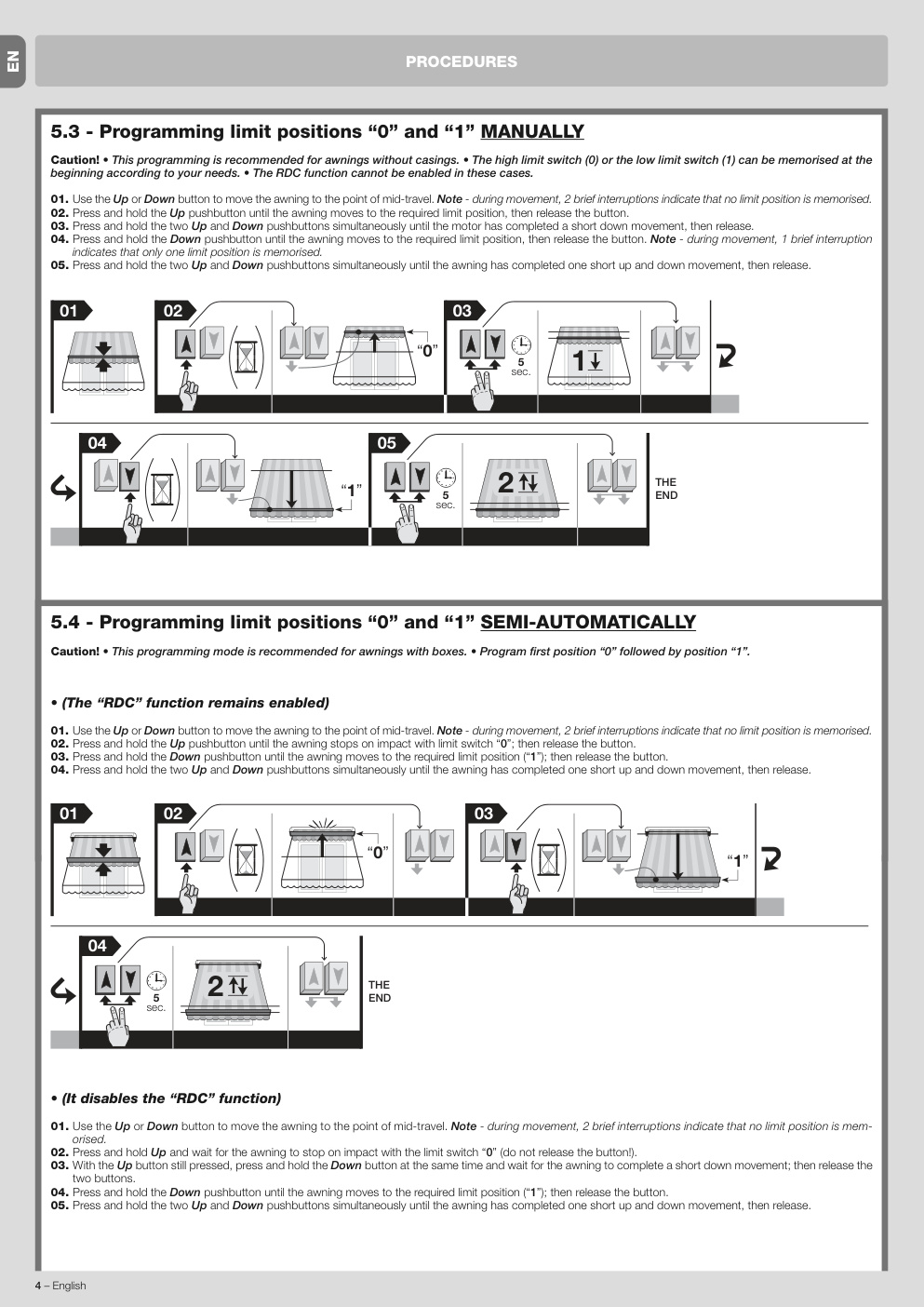

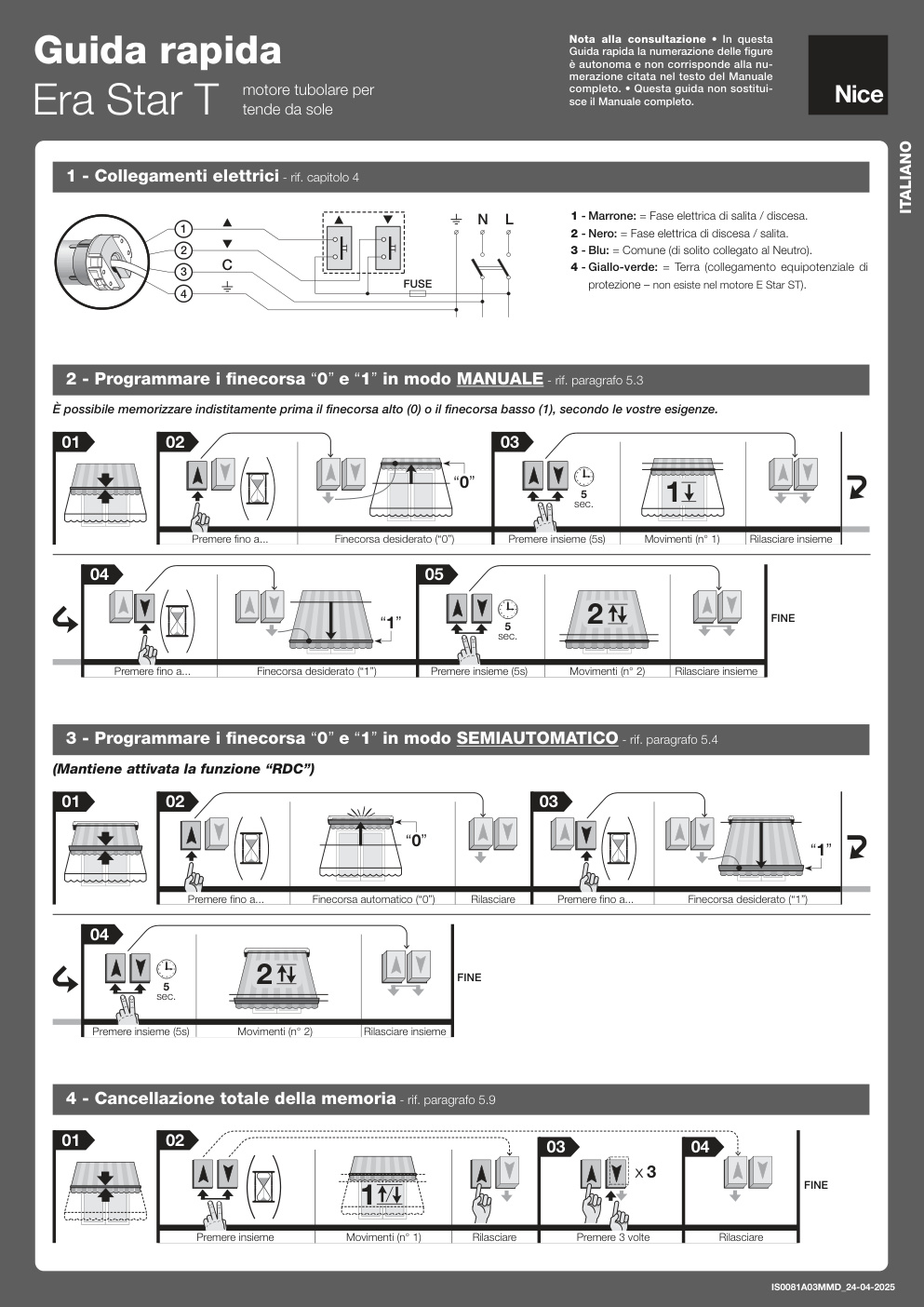

Era Star T E Star ST E Star MT E Star MKT E Star LT Tubular motor EN - Instructions and warnings for installation and use IT - Istruzioni ed avvertenze per l’installazione e l’uso FR - Instructions et avertissements pour l’installation et l’utilisation ES - Instrucciones y advertencias para la instalación y el uso DE - Installierungs-und Gebrauchsanleitungen und Hinweise PL - Instrukcje i ostrzeżenia do instalacji i użytkowania NL - Aanwijzingen en aanbevelingen voor installatie en gebruik Note for consultation • In this Guide, the numbering system is independentQuick Guide and does not correspond to the number- ing stated in the text of the complete tubular motor for sun manual. • This guide does not replace the complete manual. awningsEra Star T 1 - Electrical connections - ref. chapter 4 ENGLISH N L 1 - Brown: = electric ascent/descent phase. 1 2 - Black: = electric descent/ascent phase. 2 3 - Blue: = Common (usually connected to Neutral). C 4 - Yellow-green: = Earth (equipotential bonding connection – 3 FUSE does not exist in the E Star ST engine). 4 2 - Programming limit positions “0” and “1” MANUALLY - ref. paragraph 5.3 The high limit switch (0) or the low limit switch (1)…
