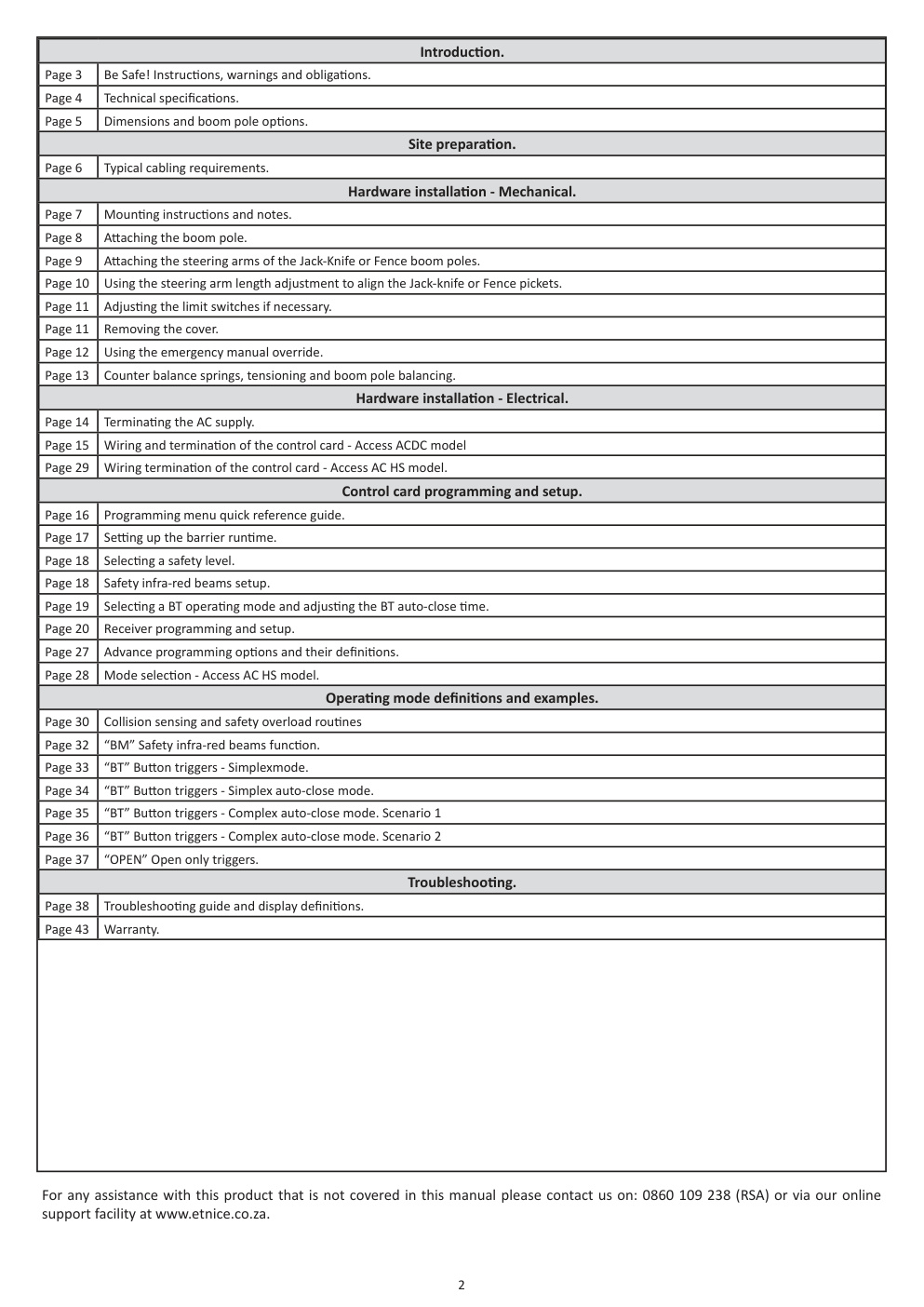

Installer Instructions Battery Back-up Traffic Barrier Hi-Speed AC only Traffic Barrier Page 3 Be Safe! Instructions, warnings and obligations. Page 4 Technical specifications. Page 5 Dimensions and boom pole options. Site preparation. Page 6 Typical cabling requirements. Hardware installation - Mechanical. Page 7 Mounting instructions and notes. Page 8 Attaching the boom pole. Page 9 Attaching the steering arms of the Jack-Knife or Fence boom poles. Page 10 Using the steering arm length adjustment to align the Jack-knife or Fence pickets. Page 11 Adjusting the limit switches if necessary. Page 11 Removing the cover. Page 12 Using the emergency manual override. Page 13 Counter balance springs, tensioning and boom pole balancing. Hardware installation - Electrical. Page 14 Terminating the AC supply. Page 15 Wiring and termination of the control card - Access ACDC model Page 29 Wiring term

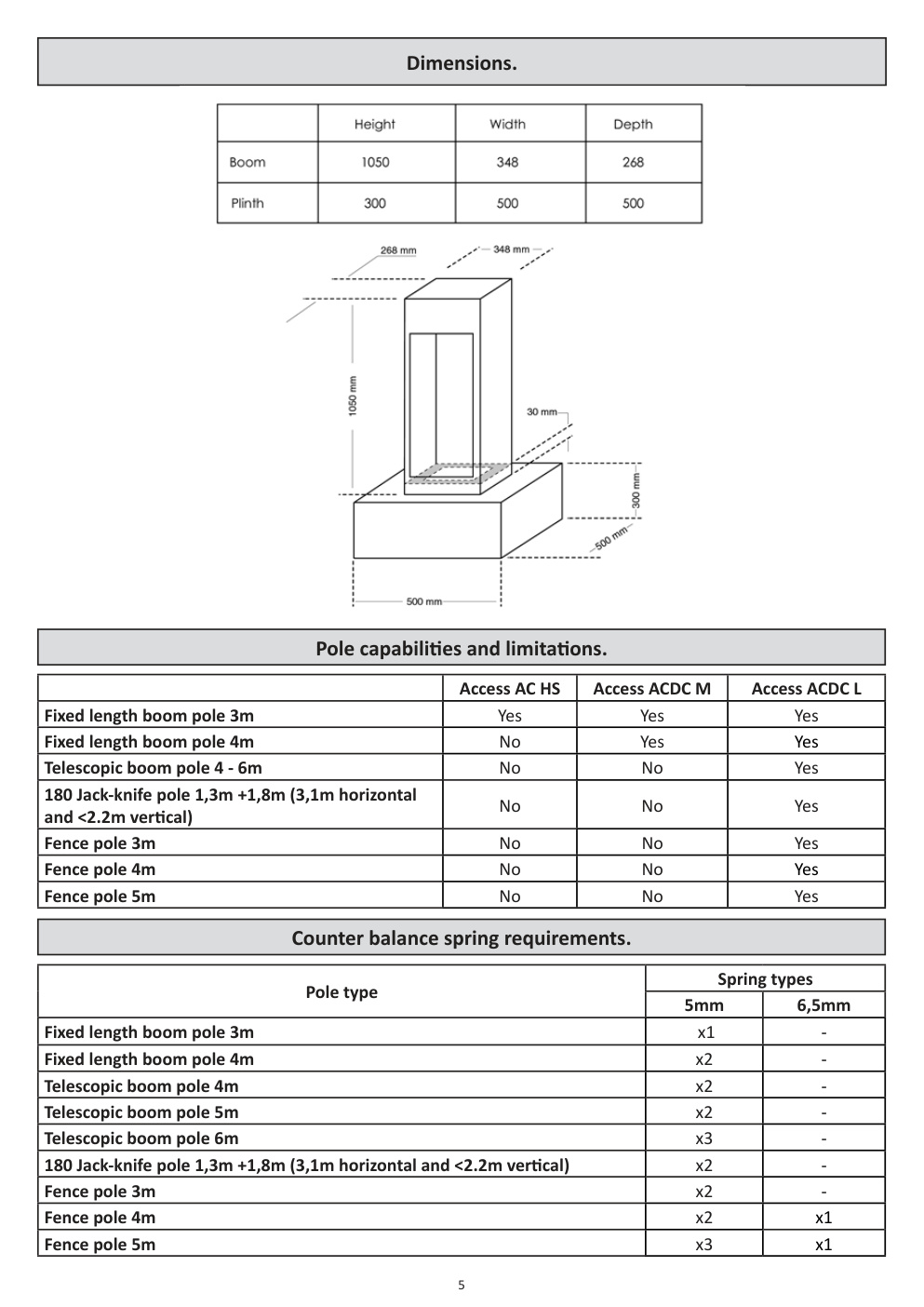

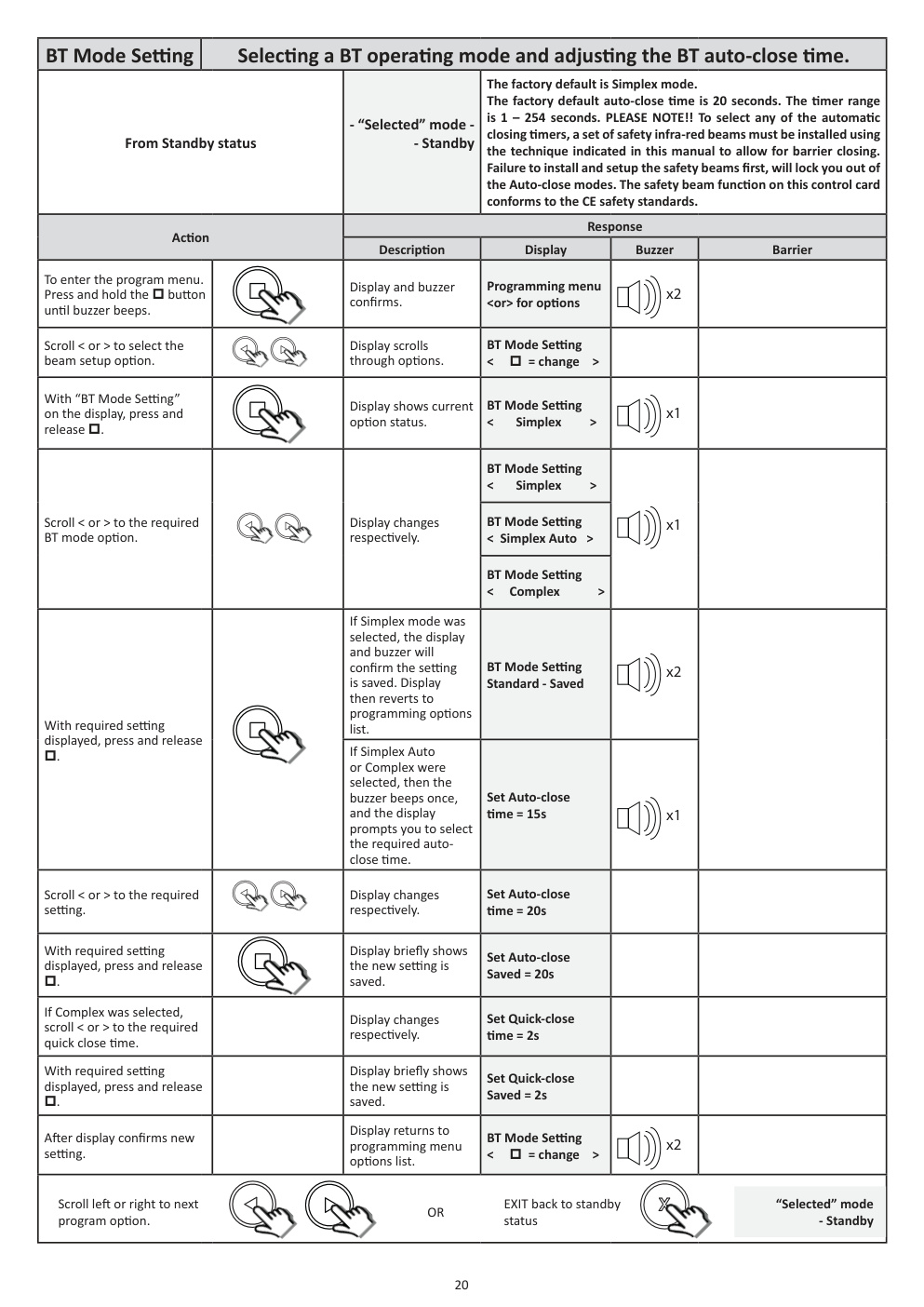

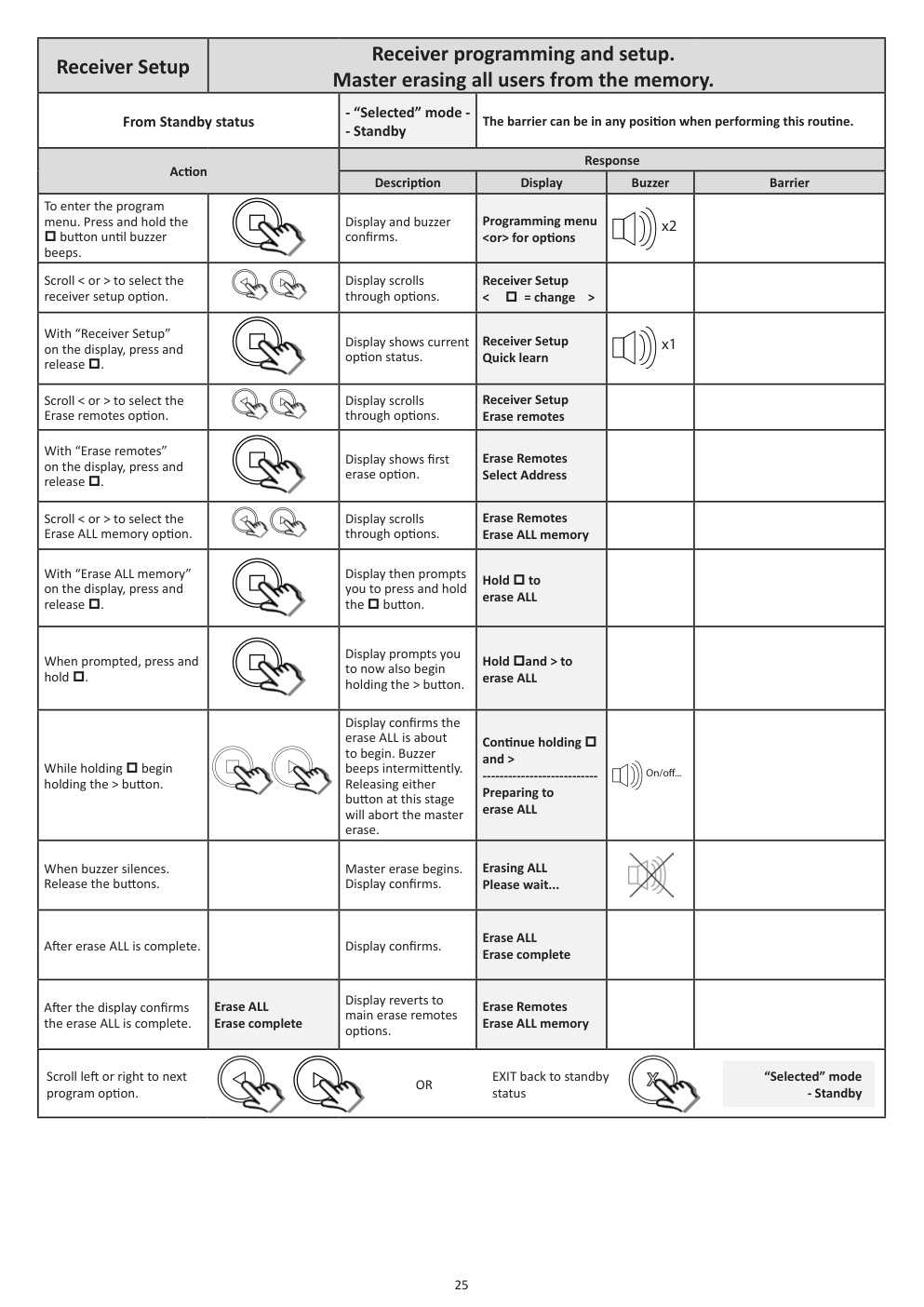

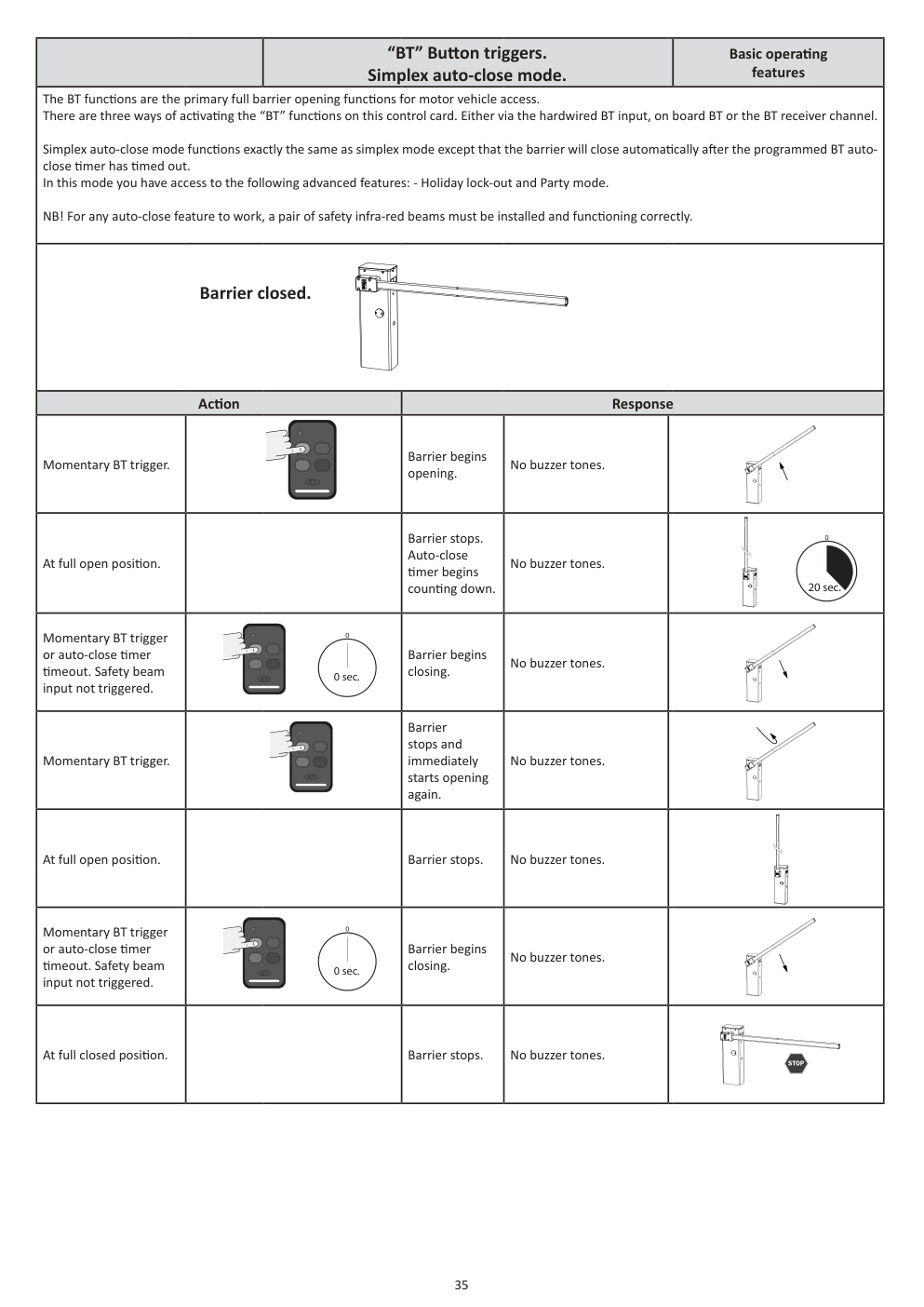

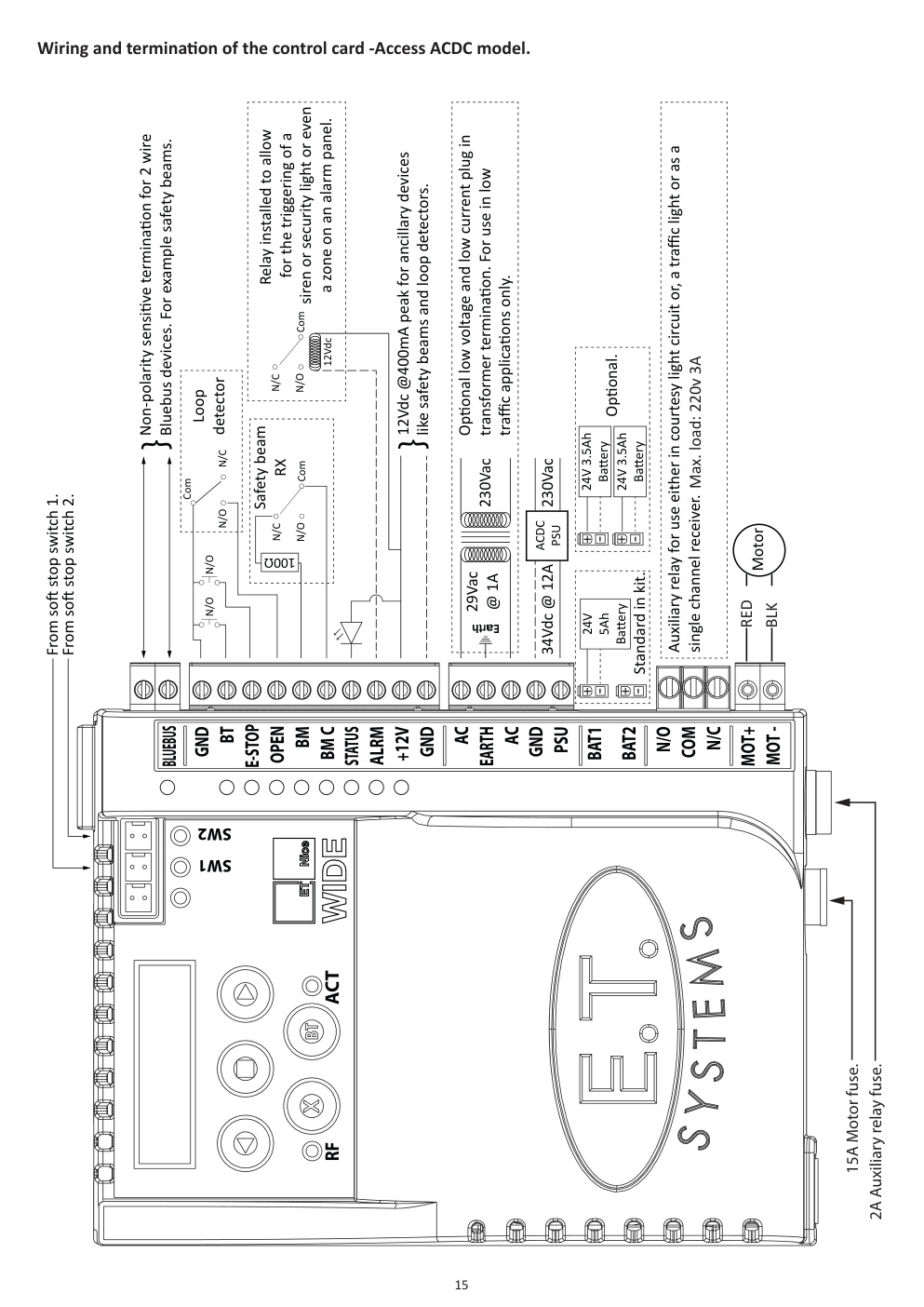

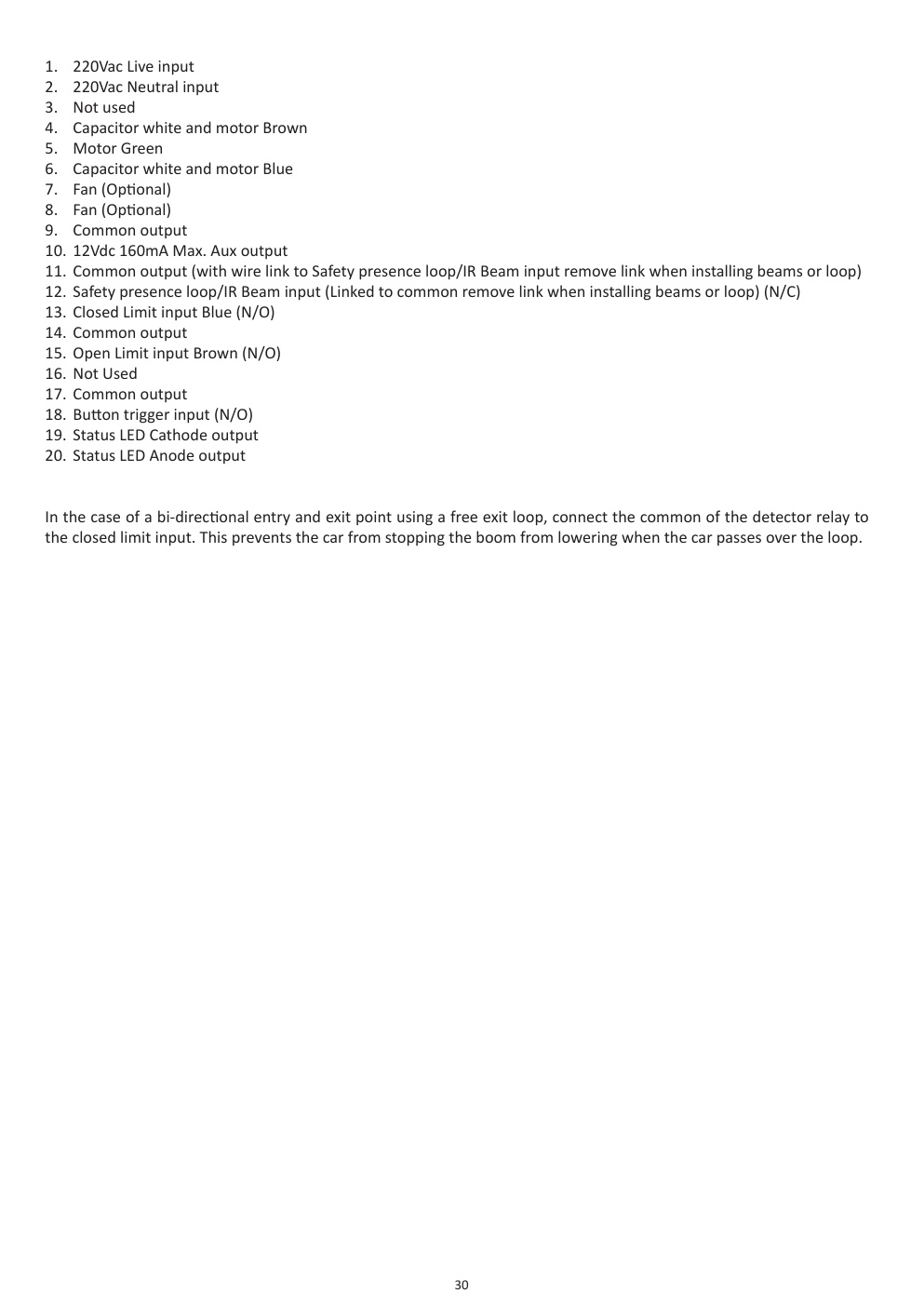

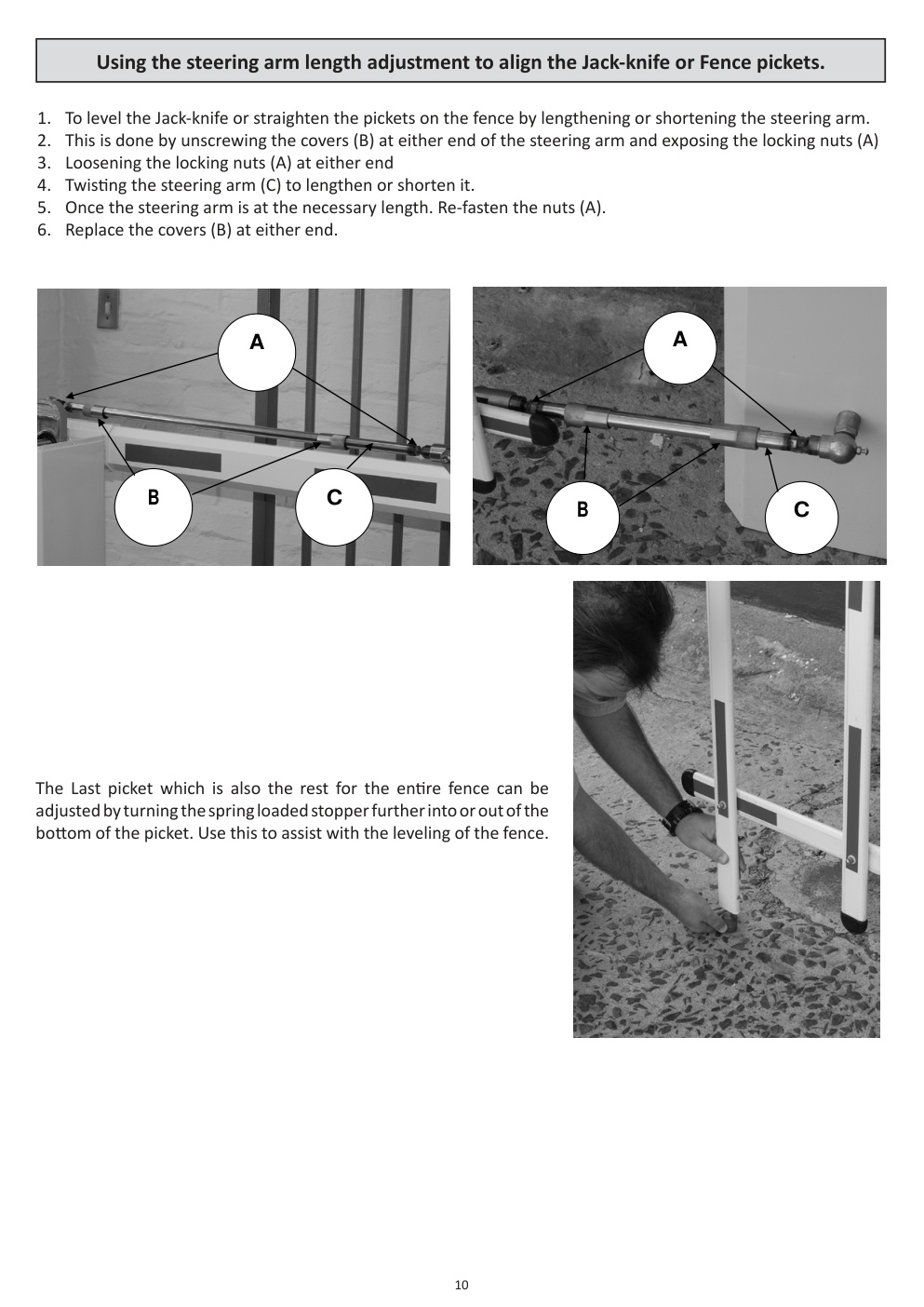

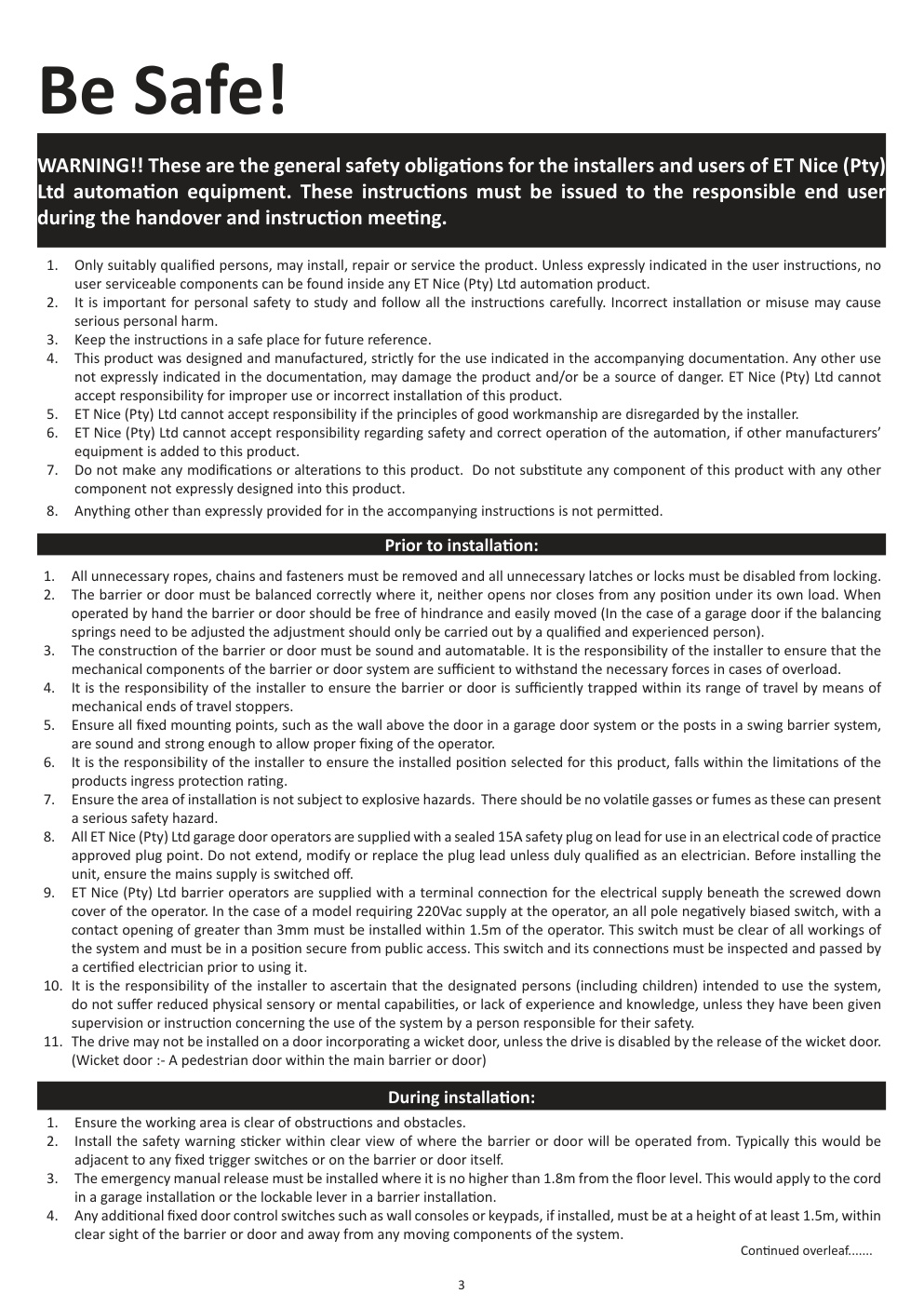

ET NICE Access ACDC and ACHS INSTRUCTIONS 2020.006 Installer Instructions Access ACDC Battery Back-up Traffic Barrier and Access AC HS Hi-Speed AC only Traffic Barrier www.niceforyou.com/za Introduction. Page 3 Be Safe! Instructions, warnings and obligations. Page 4 Technical specifications. Page 5 Dimensions and boom pole options. Site preparation. Page 6 Typical cabling requirements. Hardware installation - Mechanical. Page 7 Mounting instructions and notes. Page 8 Attaching the boom pole. Page 9 Attaching the steering arms of the Jack-Knife or Fence boom poles. Page 10 Using the steering arm length adjustment to align the Jack-knife or Fence pickets. Page 11 Adjusting the limit switches if necessary. Page 11 Removing the cover. Page 12 Using the emergency manual override. Page 13 Counter balance springs, tensioning and boom pole balancing. Hardware installation - Electrical. Page 14 Terminating the AC supply. Page 15 Wiring and termination of the control card - Access ACDC model Page 29 Wiring termination of the control card - Access AC HS model. Control card programming and setup. Page 16 Programming menu quick reference guide. Page 17 Setting up the barrier runtime. Page 18…
