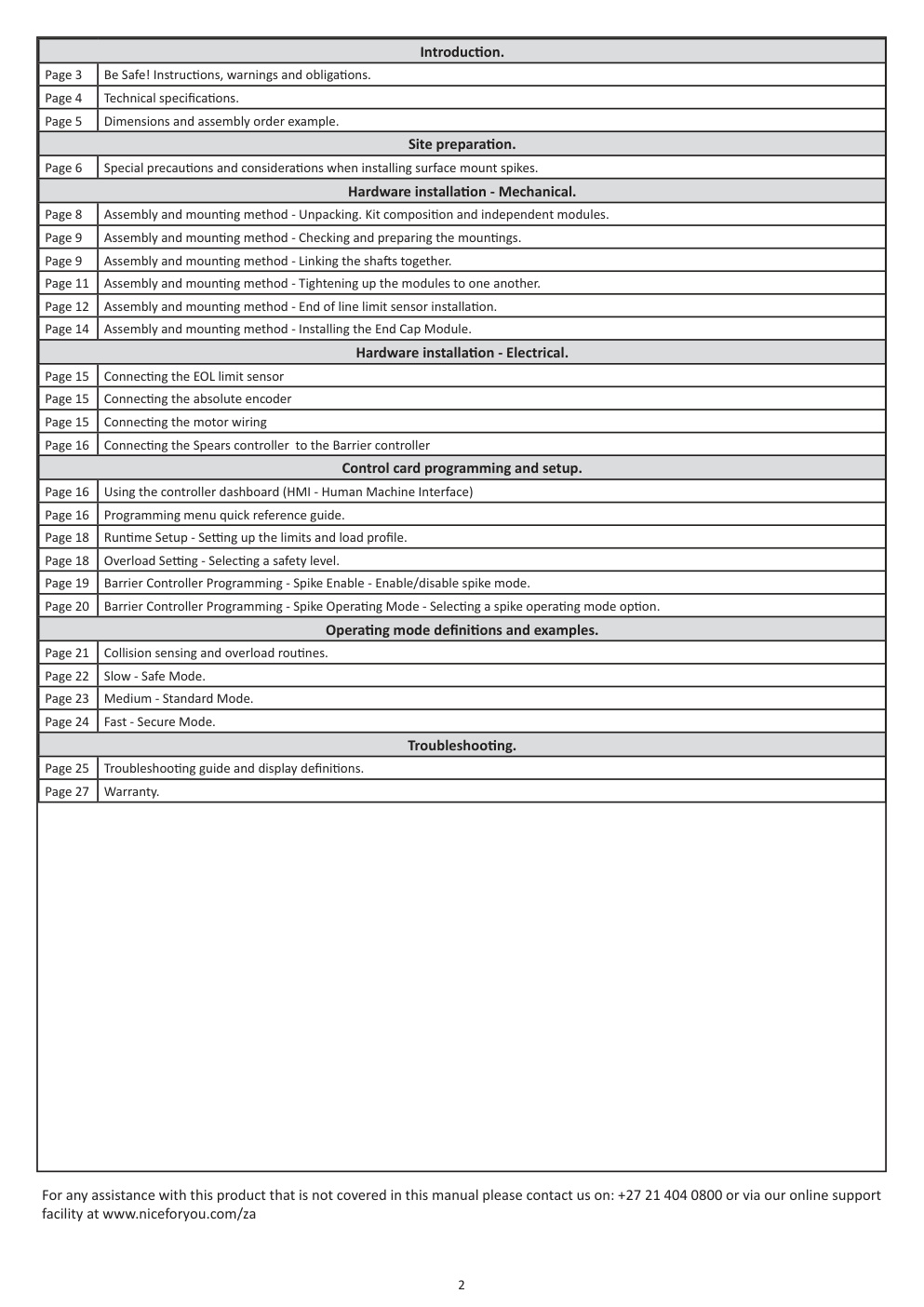

ET NICE SPEARS SM AUTOMATED ROAD SPIKES 2020.001 Automated Road Spikes With True Battery Back-up. Surface Mount Model. Page 3 Be Safe! Instructions, warnings and obligations. Page 4 Technical specifications. Page 5 Dimensions and assembly order example. Site preparation. Page 6 Special precautions and considerations when installing surface mount spikes. Hardware installation - Mechanical. Page 8 Assembly and mounting method - Unpacking. Kit composition and independent modules. Page 9 Assembly and mounting method - Checking and preparing the mountings. Page 9 Assembly and mounting method - Linking the shafts together. Page 11 Assembly and mounting method - Tightening up the modules to one another. Page 12 Assembly and mounting method - End of line limit sensor installation. Page 14 Assembly and mounting method - Installing the End Cap Module. Hardware installation - Electrical. Page 15 Co

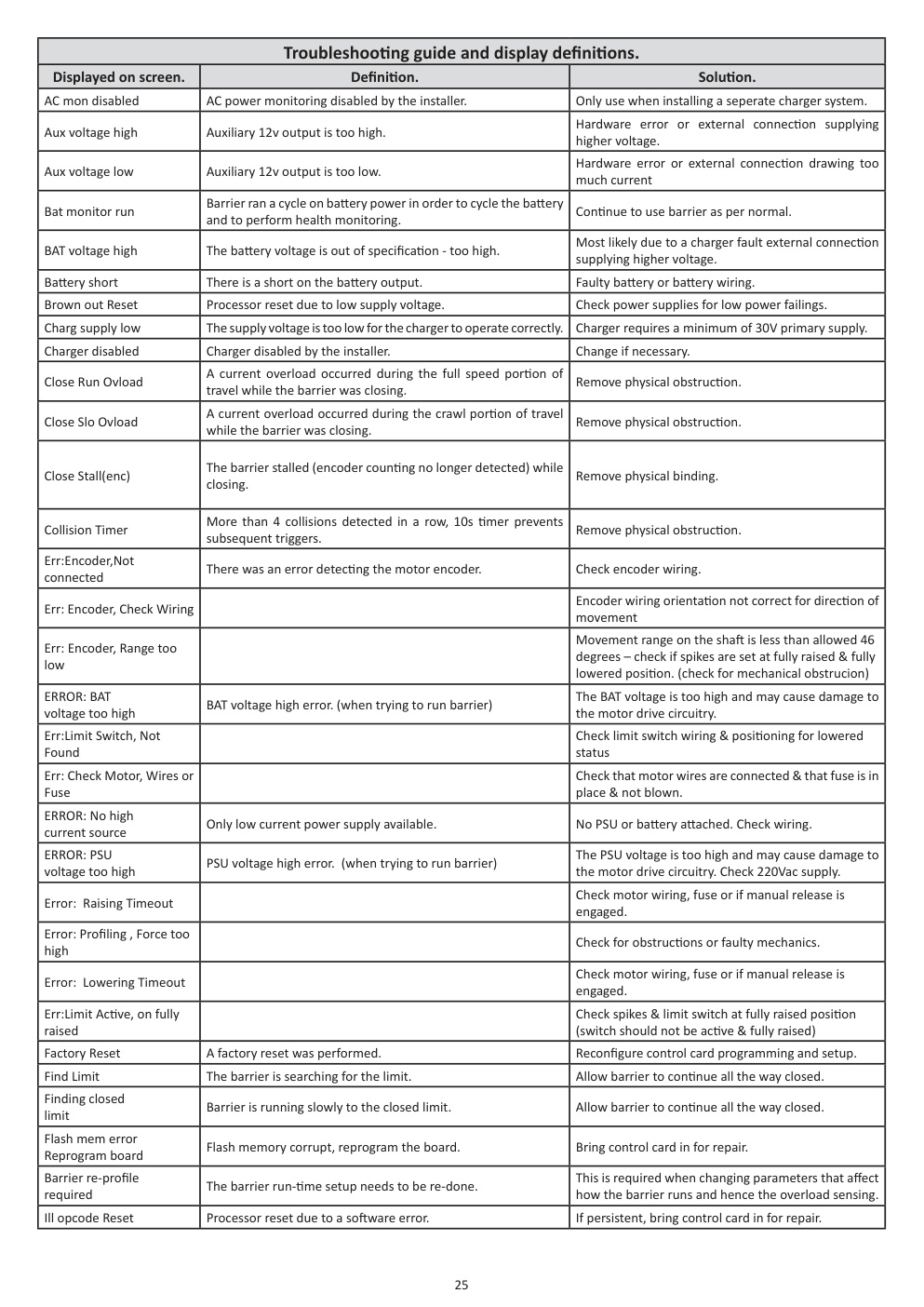

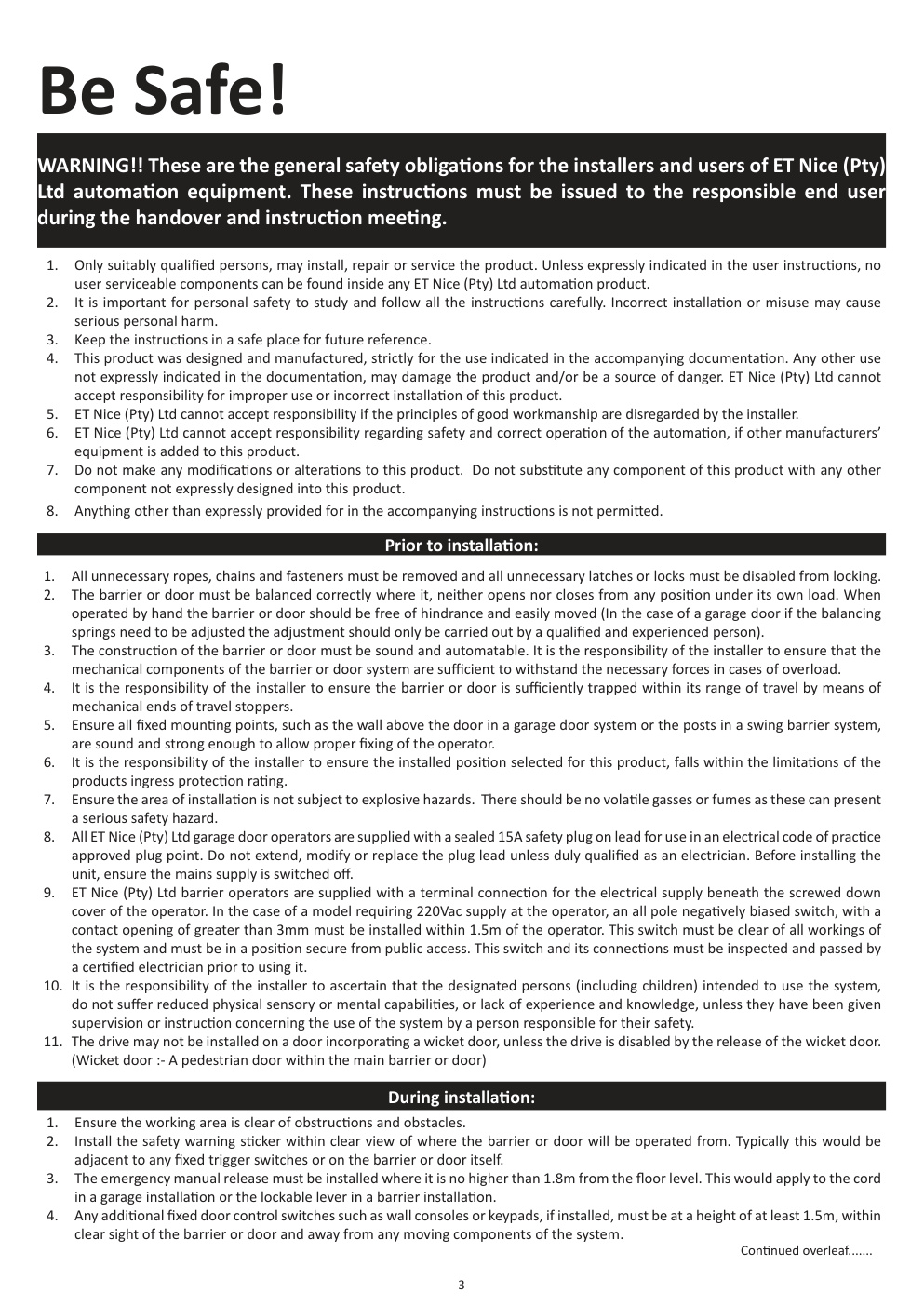

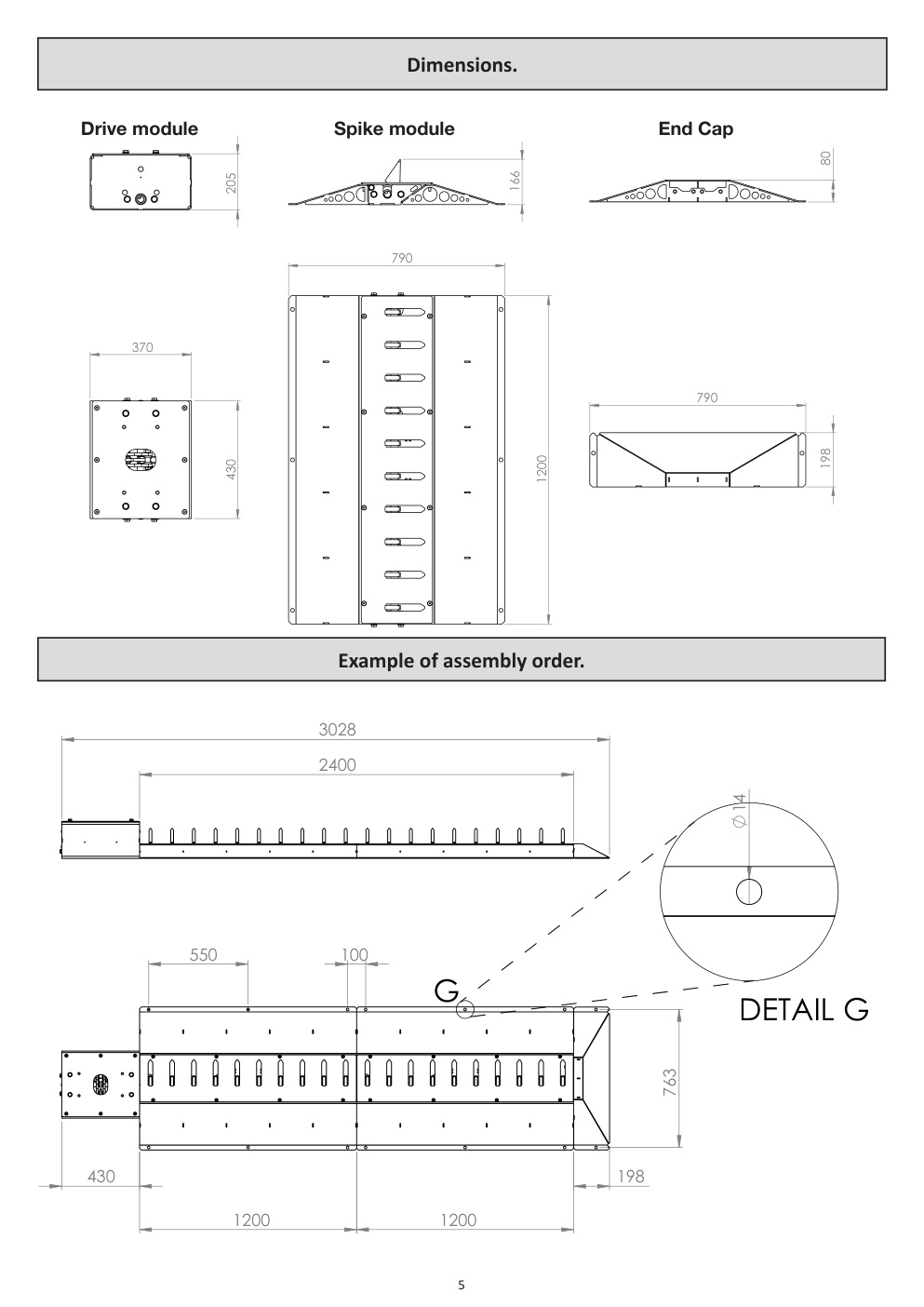

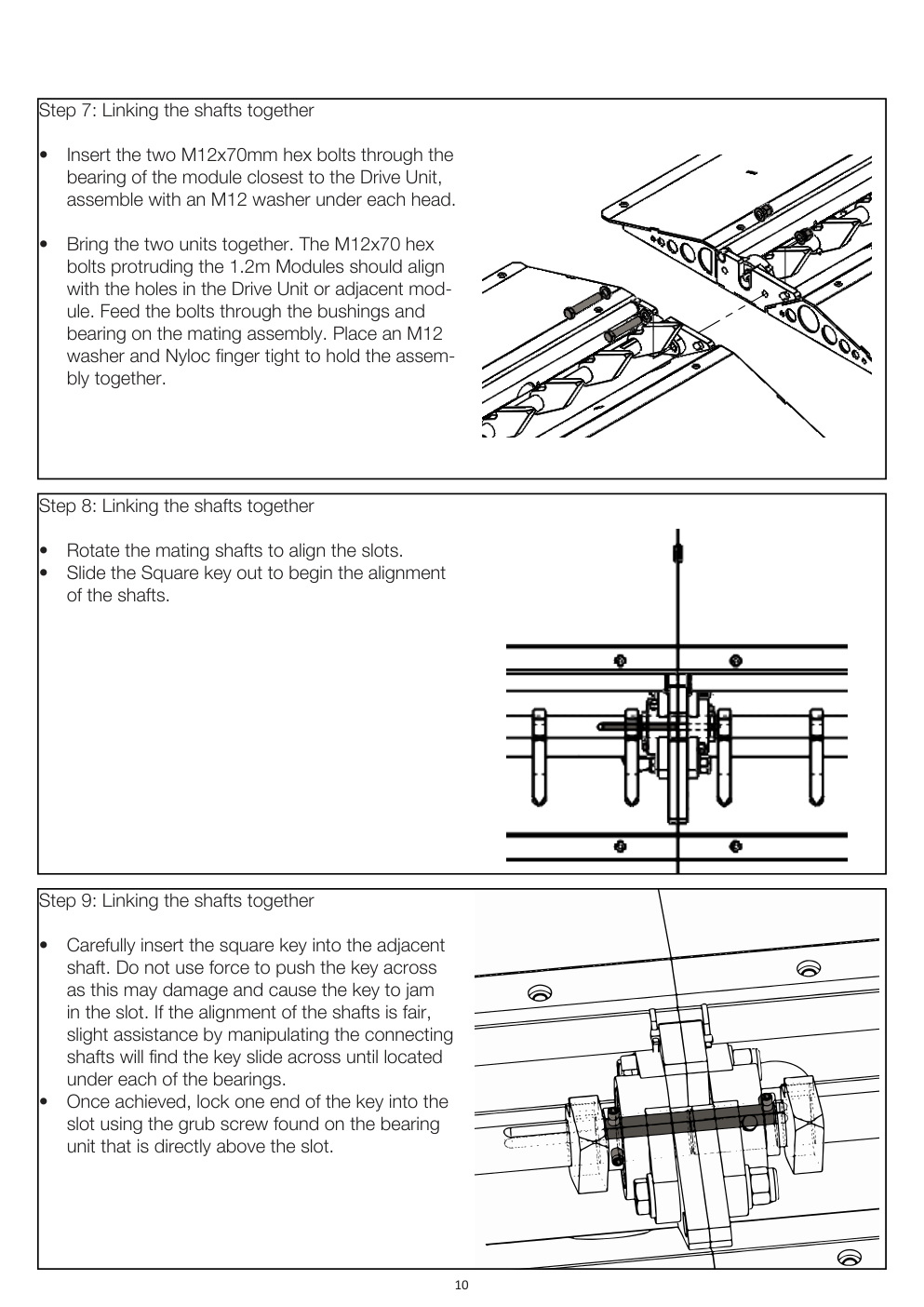

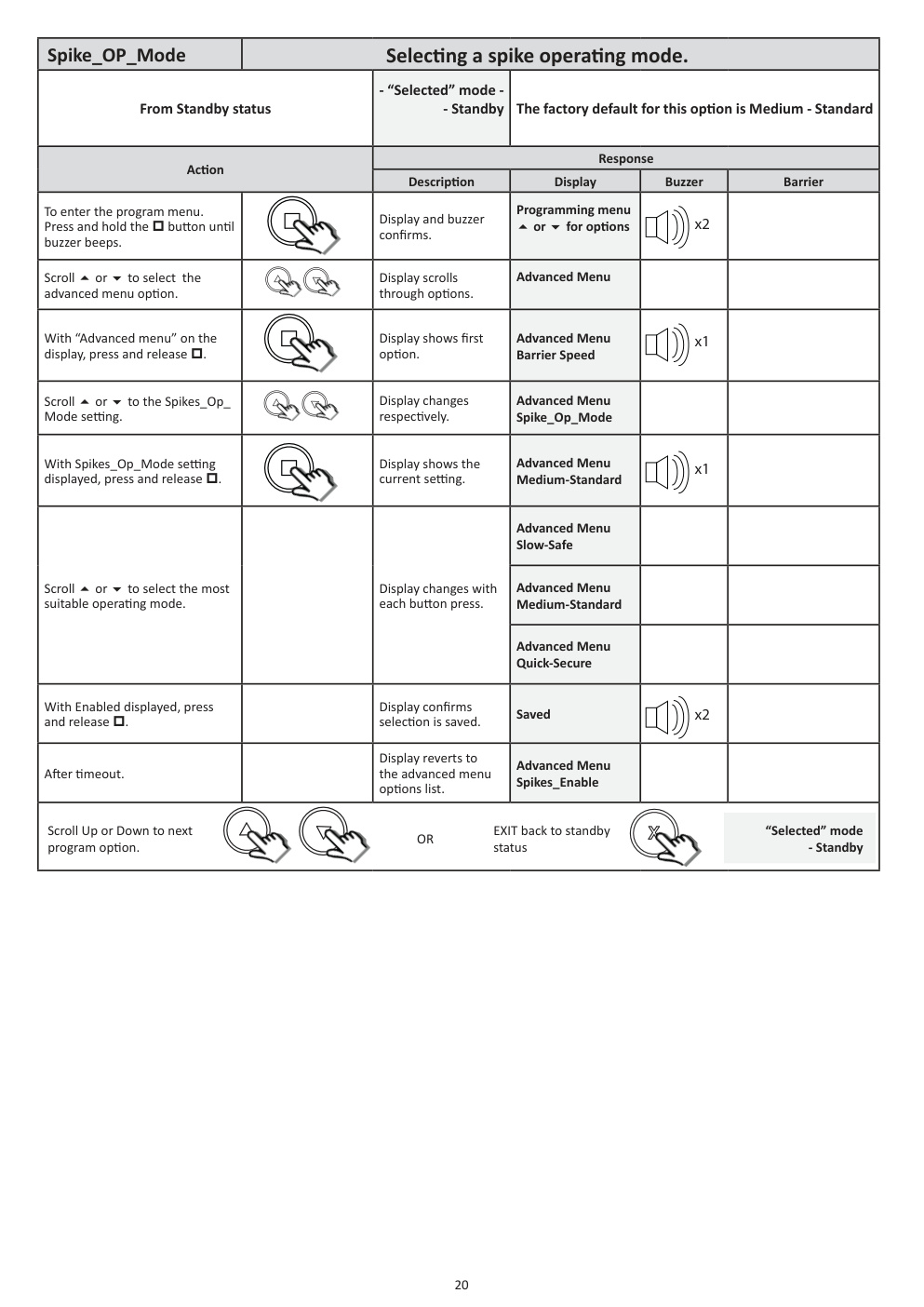

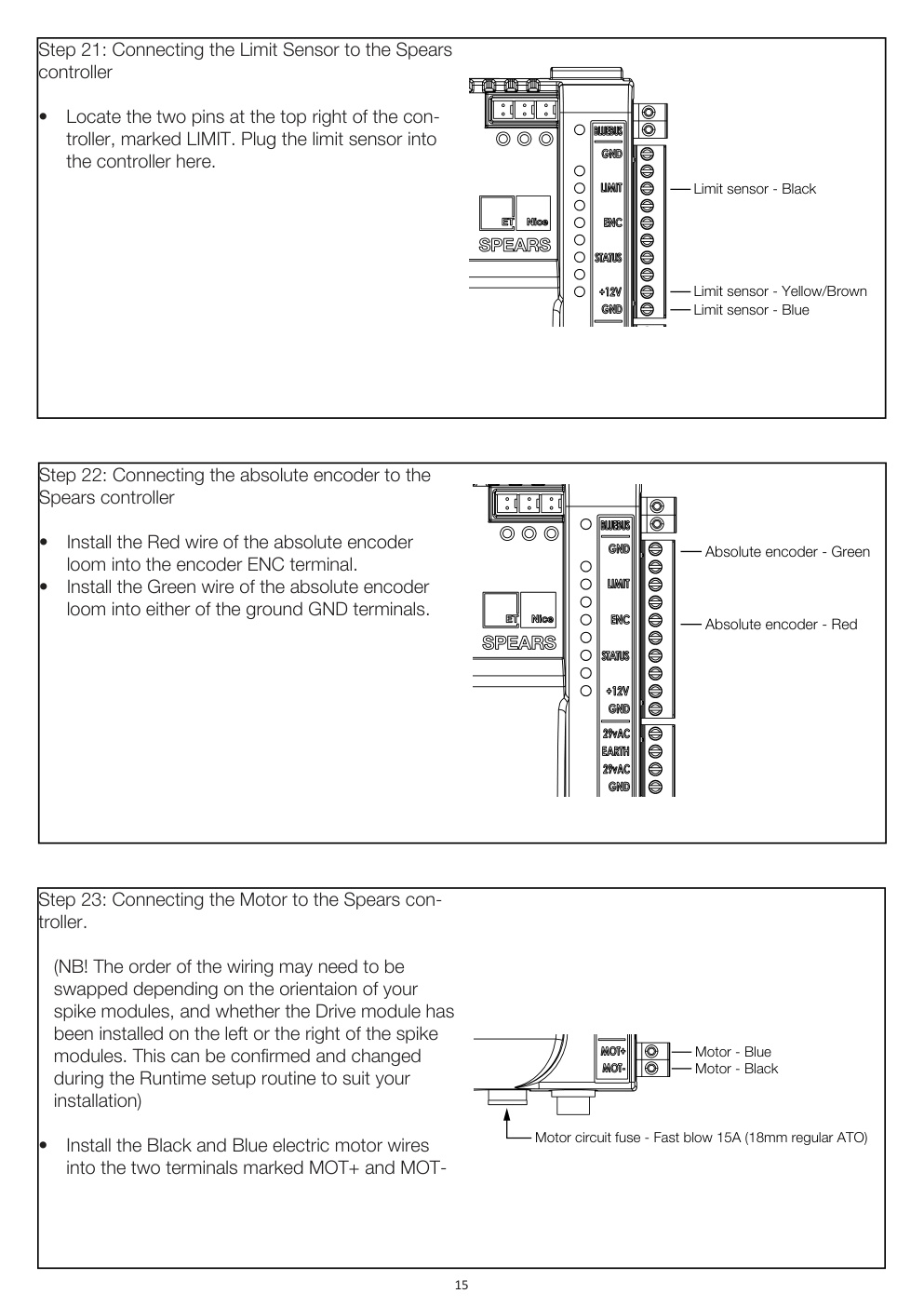

ET NICE SPEARS SM AUTOMATED ROAD SPIKES 2020.001 Installer Instructions SPEARS Automated Road Spikes With True Battery Back-up. Surface Mount Model. www.niceforyou.com/za Introduction. Page 3 Be Safe! Instructions, warnings and obligations. Page 4 Technical specifications. Page 5 Dimensions and assembly order example. Site preparation. Page 6 Special precautions and considerations when installing surface mount spikes. Hardware installation - Mechanical. Page 8 Assembly and mounting method - Unpacking. Kit composition and independent modules. Page 9 Assembly and mounting method - Checking and preparing the mountings. Page 9 Assembly and mounting method - Linking the shafts together. Page 11 Assembly and mounting method - Tightening up the modules to one another. Page 12 Assembly and mounting method - End of line limit sensor installation. Page 14 Assembly and mounting method - Installing the End Cap Module. Hardware installation - Electrical. Page 15 Connecting the EOL limit sensor Page 15 Connecting the absolute encoder Page 15 Connecting the motor wiring Page 16 Connecting the Spears controller to the Barrier controller Control card programming and setup. Page 16 Using the…
