Installer Instructions

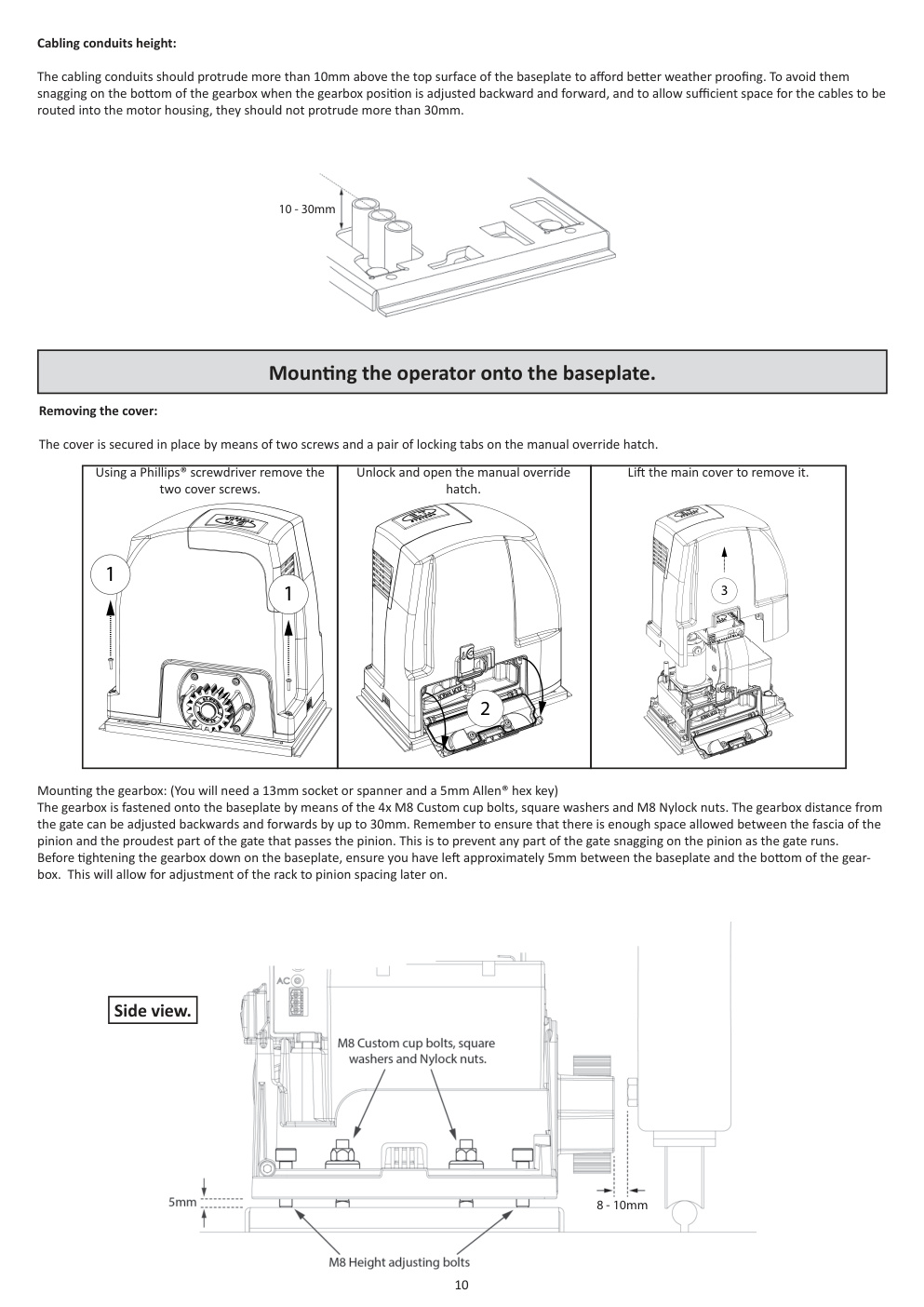

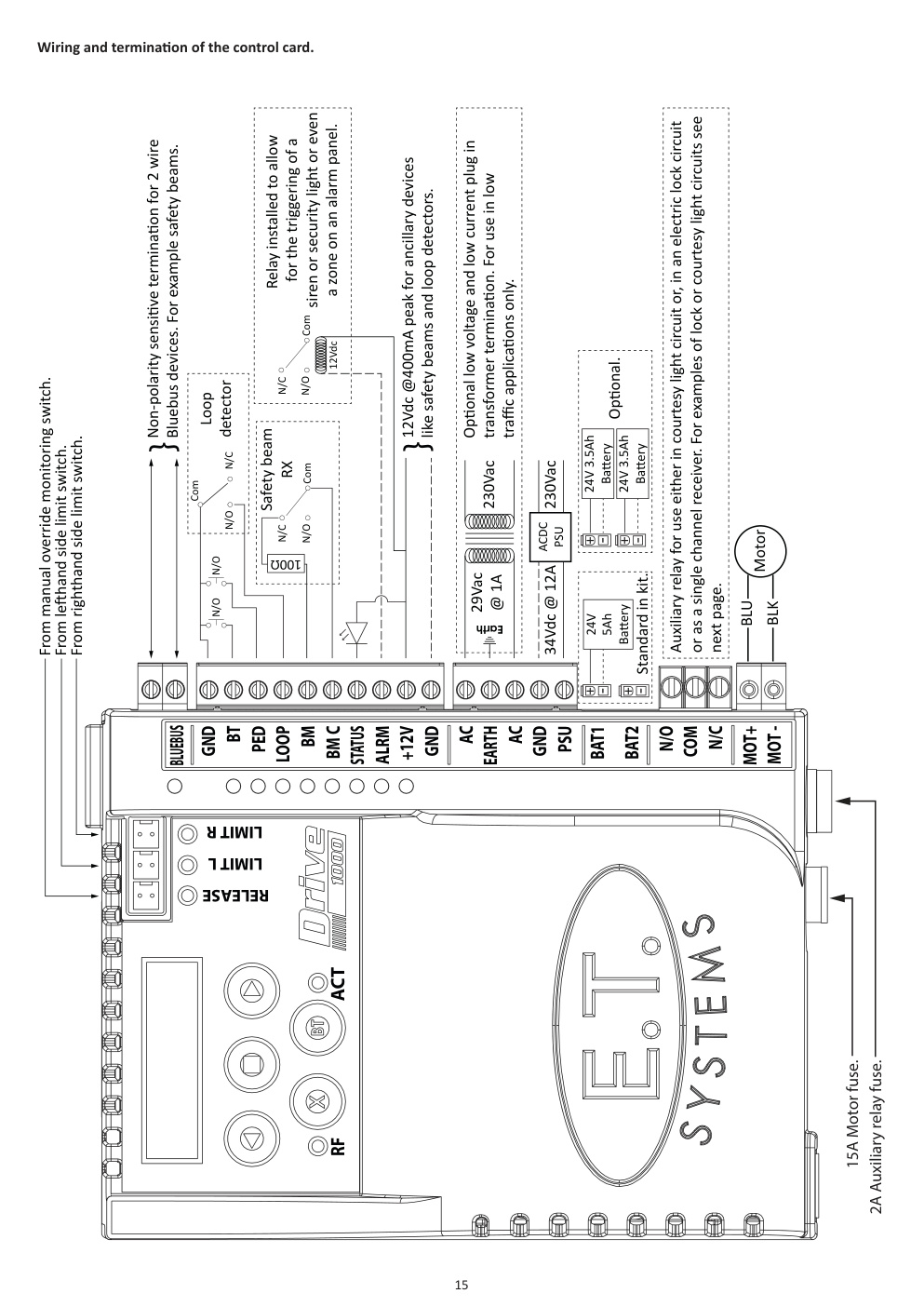

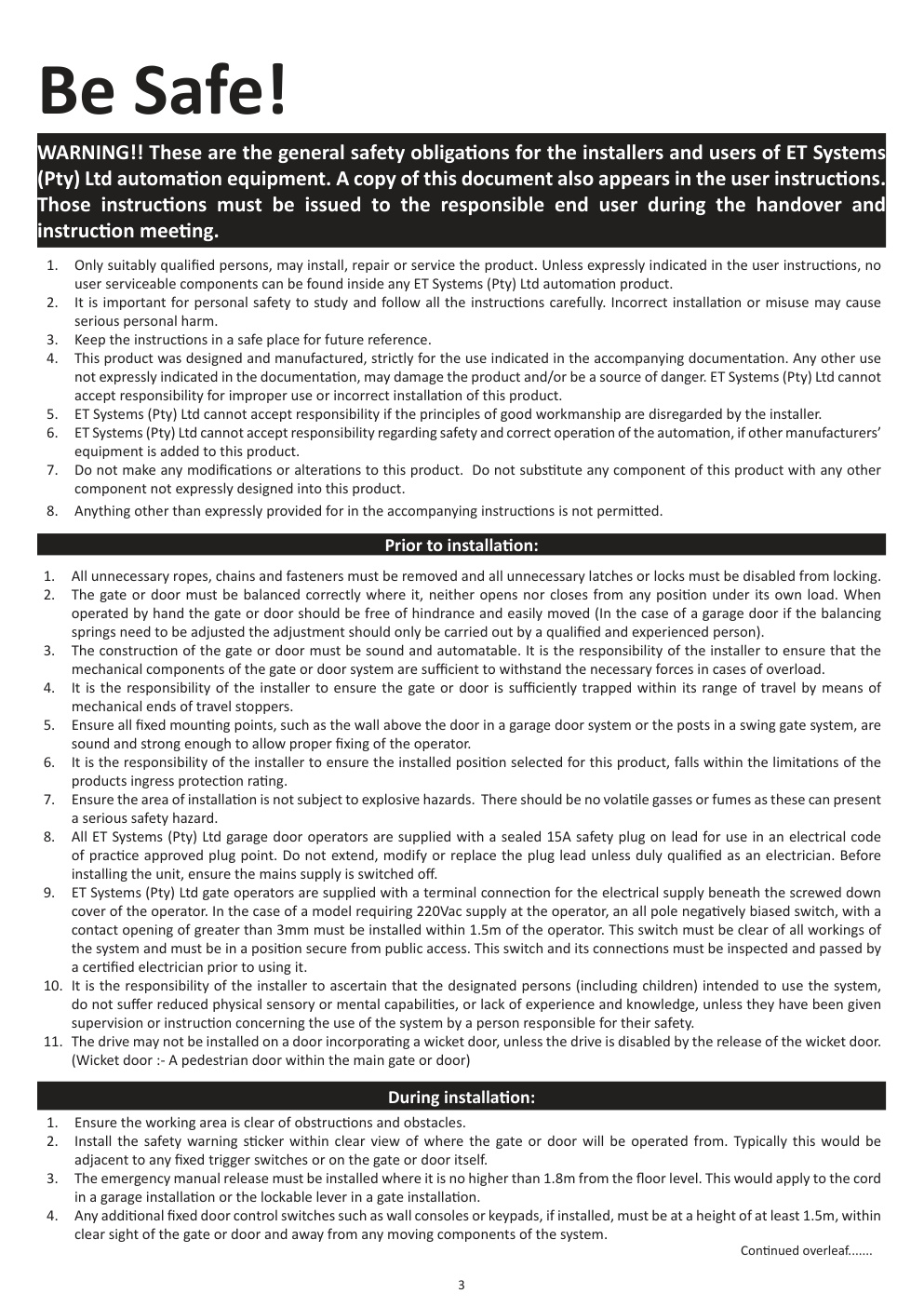

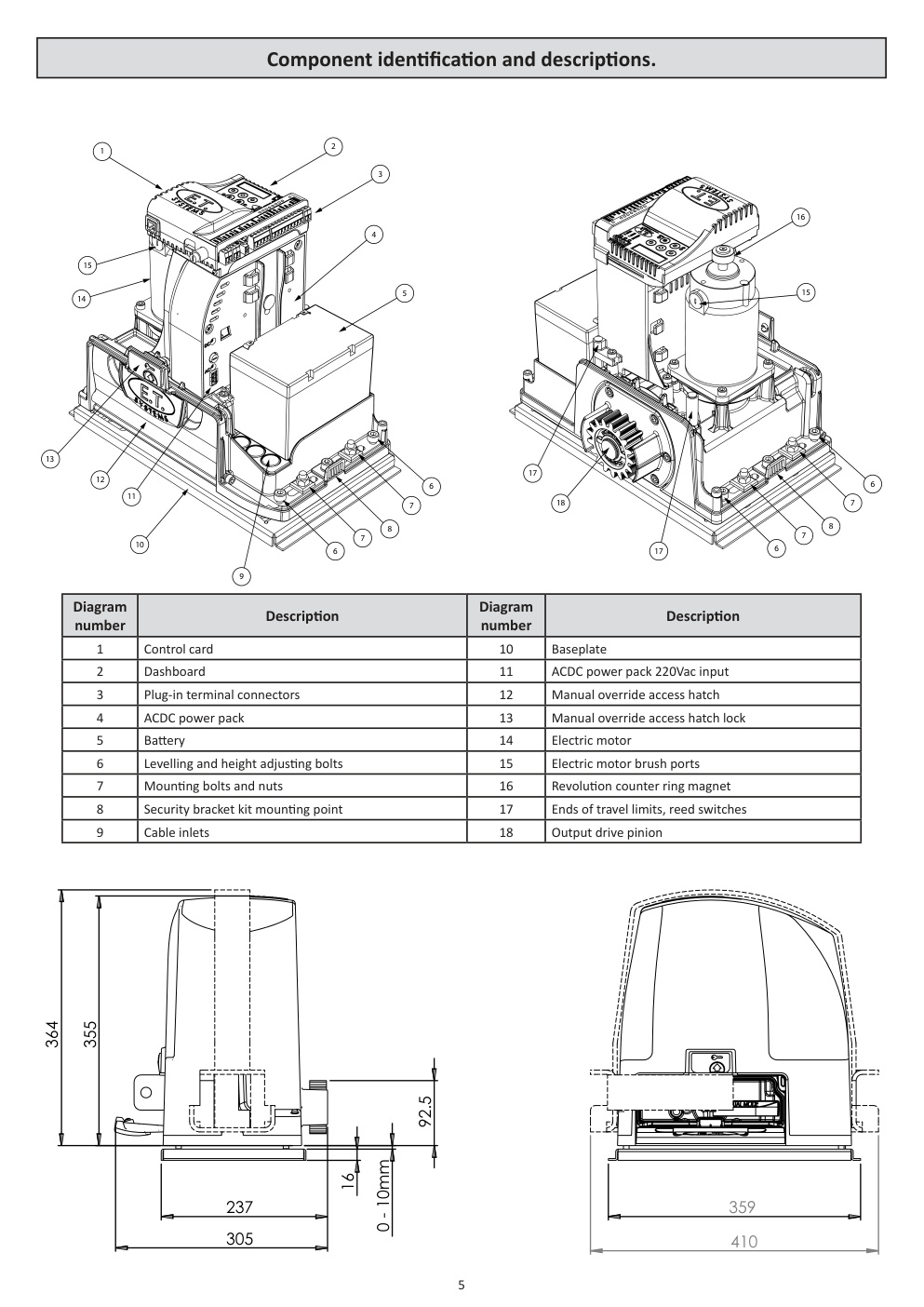

High Traffic 1000kg Slide Gate Operator a company of TheNiceGroup Page 3 Be Safe! Instructions, warnings and obligations. Page 4 Technical specifications. Page 5 Component identification and descriptions. Site preparation. Page 6 Gate mechanics. Page 7 Duty cycle. Page 7 Motor positioning. Page 8 Cabling requirements. Hardware installation - Mechanical. Page 9 Baseplate kit and installing the baseplate. Page 10 Cable conduit height above baseplate. Page 10 Mounting the motor onto the baseplate. Page 11 Decanting the oil into the gearbox. Page 11 How to use the manual override. Page 12 Installing the rack. Hardware installation - Electrical. Page 14 Terminating the AC supply. Page 15 Wiring and termination of the control card. Page 16 Installing the limit actuator. Control card programming and setup. Page 17 Programming menu quick reference guide. Page 18 Setting up the gate runtime. Page

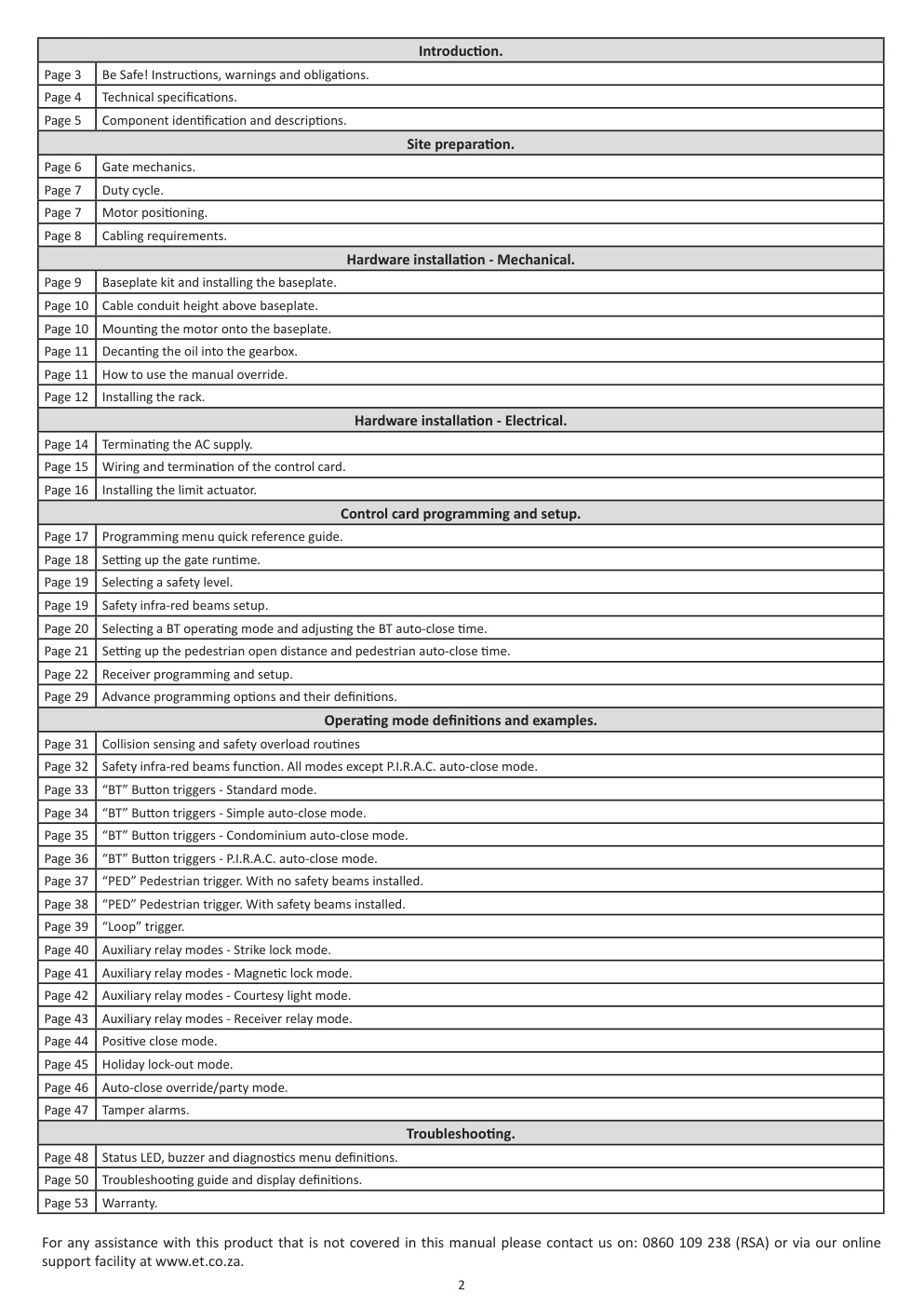

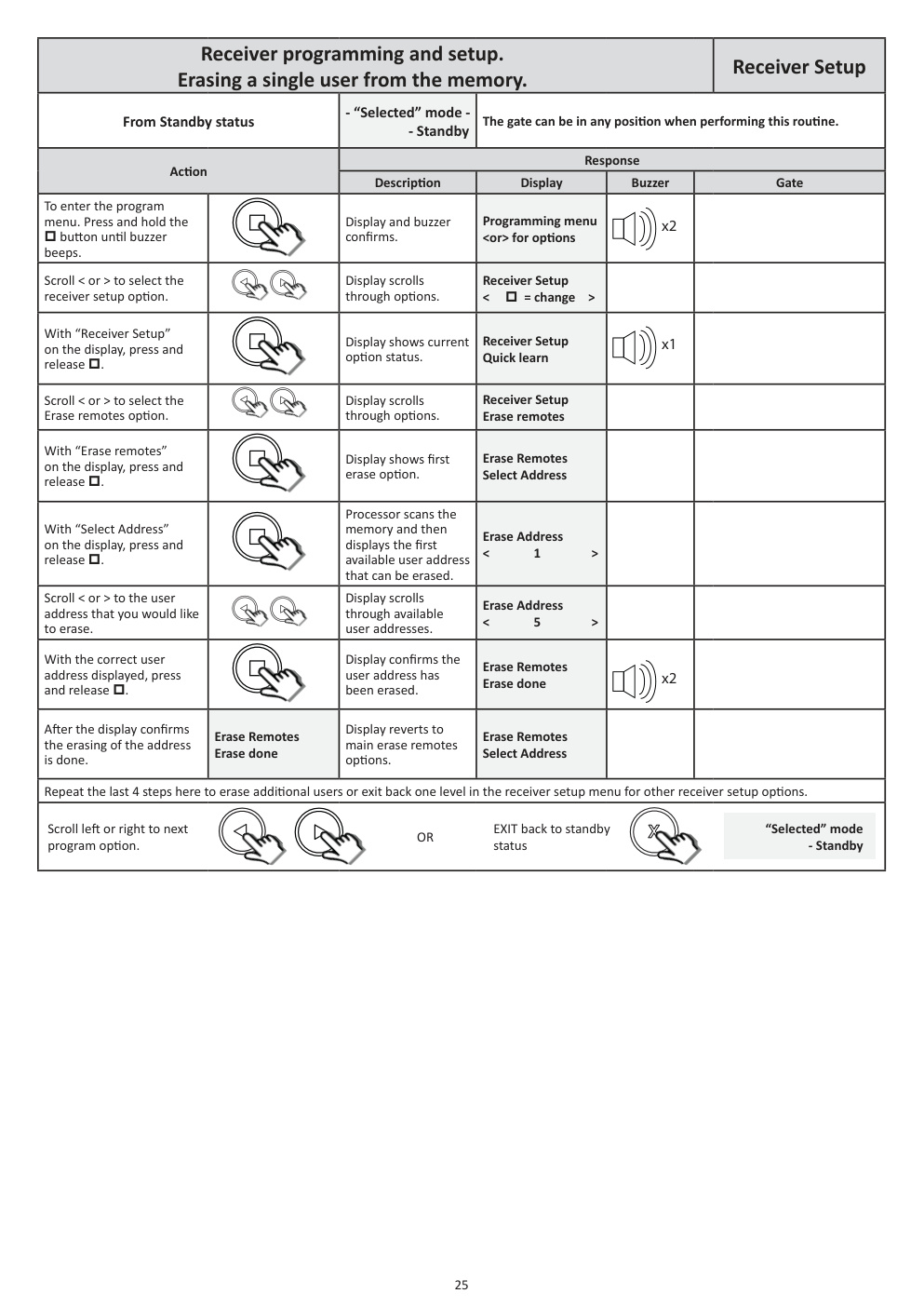

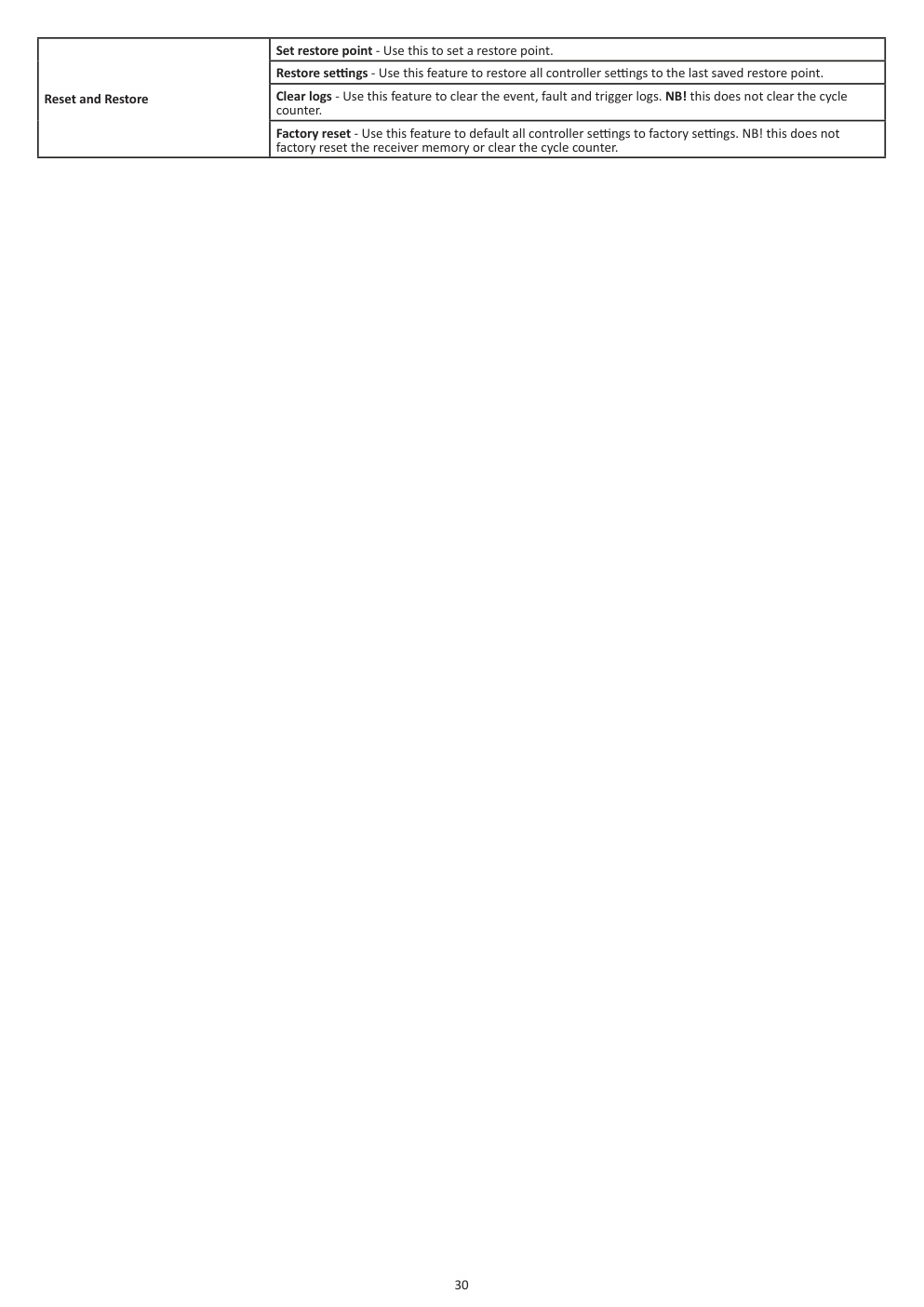

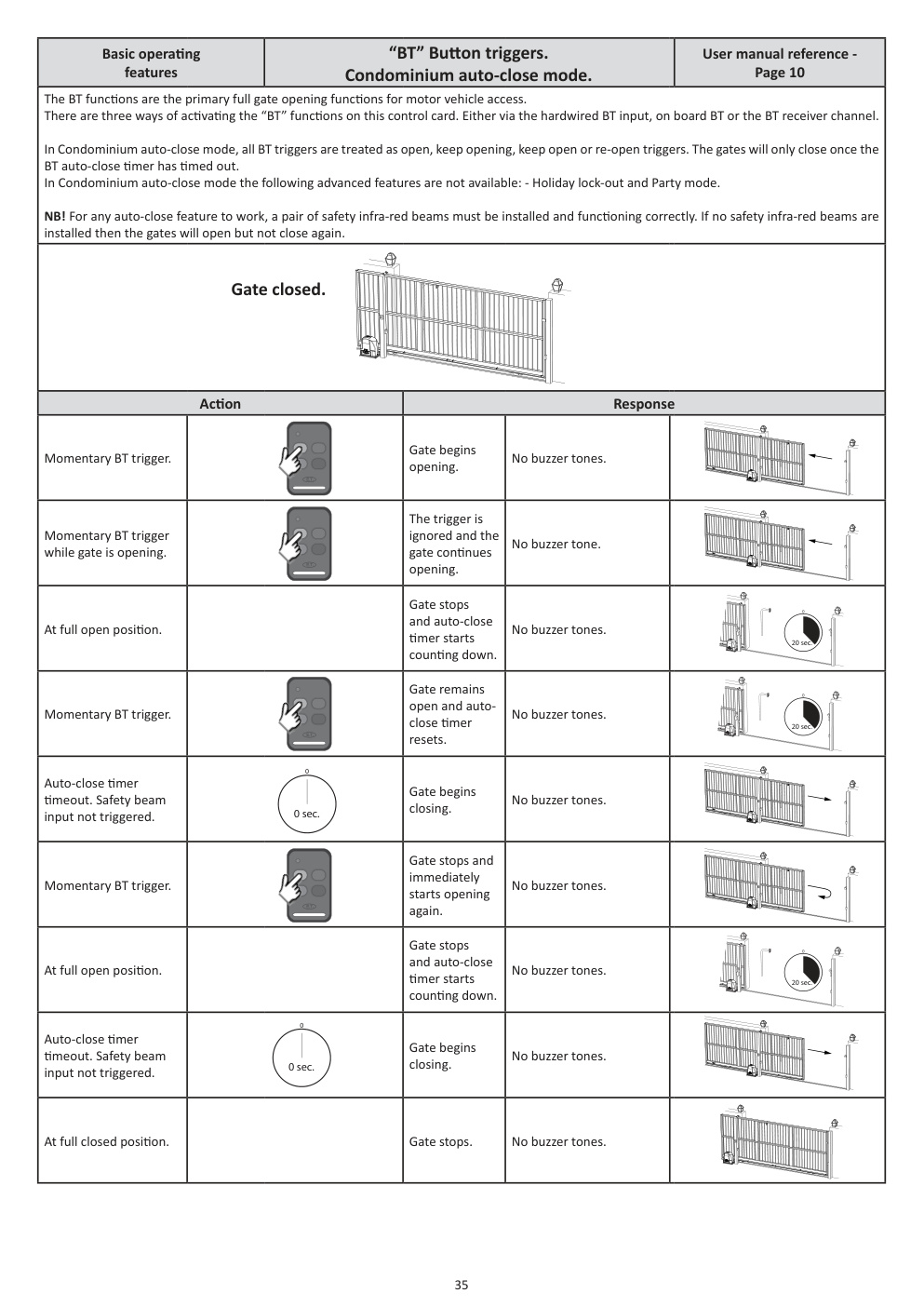

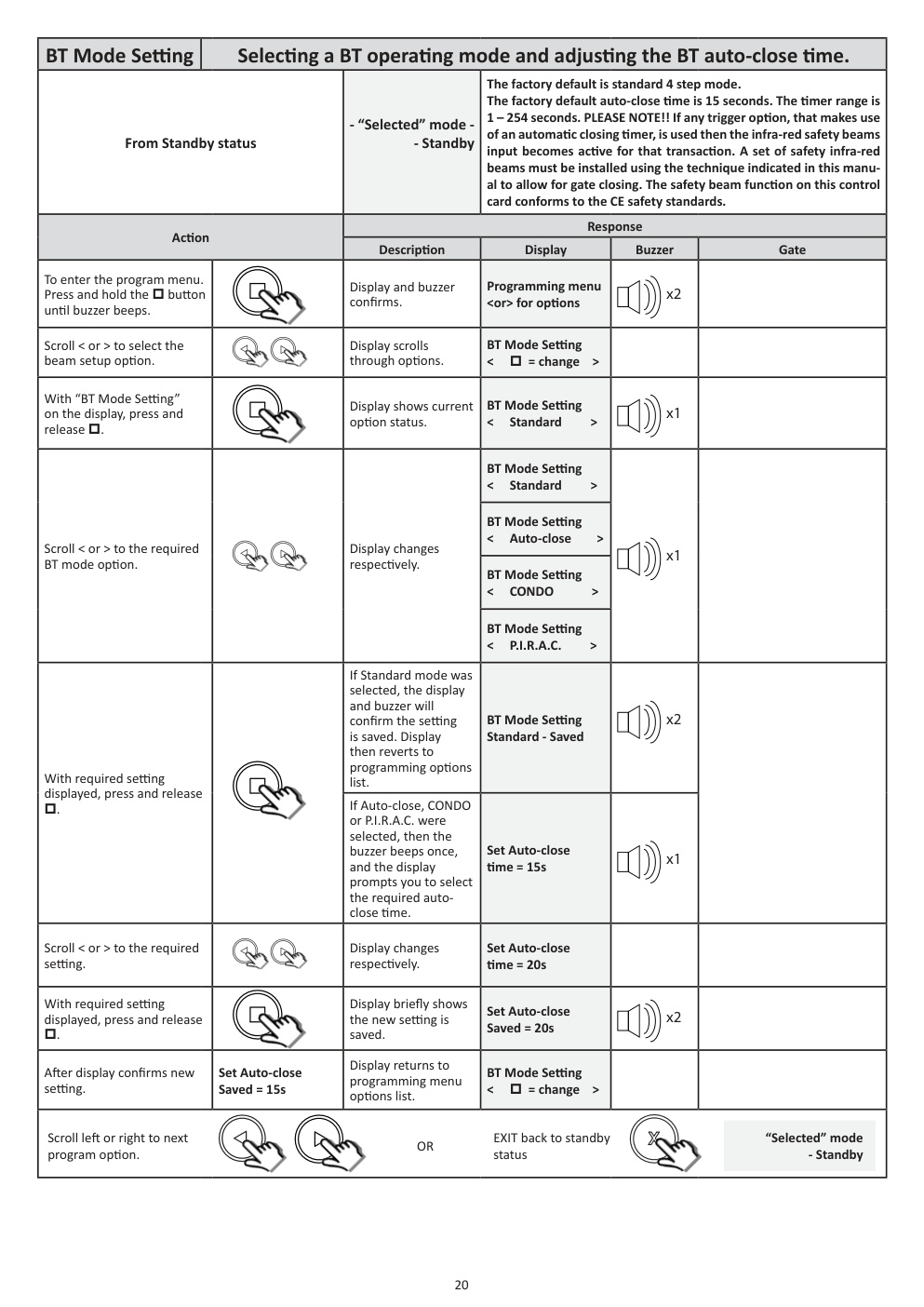

ET DRIVE1000 INSTALLER 2016.001.003 Installer Instructions High Traffic 1000kg Slide Gate Operator www.et.co.za Introduction. Page 3 Be Safe! Instructions, warnings and obligations. Page 4 Technical specifications. Page 5 Component identification and descriptions. Site preparation. Page 6 Gate mechanics. Page 7 Duty cycle. Page 7 Motor positioning. Page 8 Cabling requirements. Hardware installation - Mechanical. Page 9 Baseplate kit and installing the baseplate. Page 10 Cable conduit height above baseplate. Page 10 Mounting the motor onto the baseplate. Page 11 Decanting the oil into the gearbox. Page 11 How to use the manual override. Page 12 Installing the rack. Hardware installation - Electrical. Page 14 Terminating the AC supply. Page 15 Wiring and termination of the control card. Page 16 Installing the limit actuator. Control card programming and setup. Page 17 Programming menu quick reference guide. Page 18 Setting up the gate runtime. Page 19 Selecting a safety level. Page 19 Safety infra-red beams setup. Page 20 Selecting a BT operating mode and adjusting the BT auto-close time. Page 21 Setting up the pedestrian open distance and pedestrian auto-close time. Page 22…
