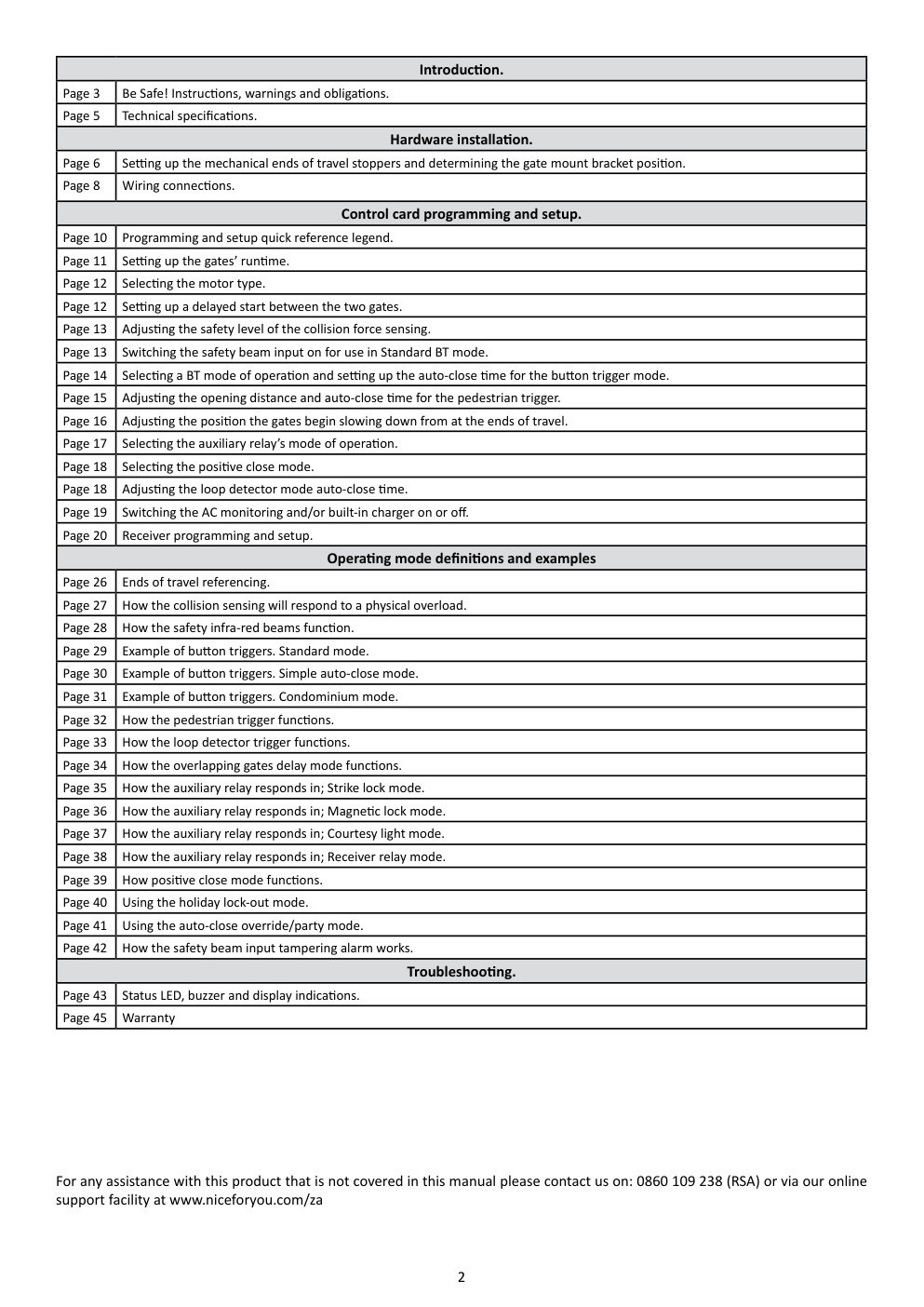

ET NICE SWINGMCU 2019.004.001 ET Nice Swing Controller Page 3 Be Safe! Instructions, warnings and obligations. Page 5 Technical specifications. Hardware installation. Page 6 Setting up the mechanical ends of travel stoppers and determining the gate mount bracket position. Page 8 Wiring connections. Control card programming and setup. Page 10 Programming and setup quick reference legend. Page 11 Setting up the gates’ runtime. Page 12 Selecting the motor type. Page 12 Setting up a delayed start between the two gates. Page 13 Adjusting the safety level of the collision force sensing. Page 13 Switching the safety beam input on for use in Standard BT mode. Page 14 Selecting a BT mode of operation and setting up the auto-close time for the button trigger mode. Page 15 Adjusting the opening distance and auto-close time for the pedestrian trigger. Page 16 Adjusting the position the gates begin s

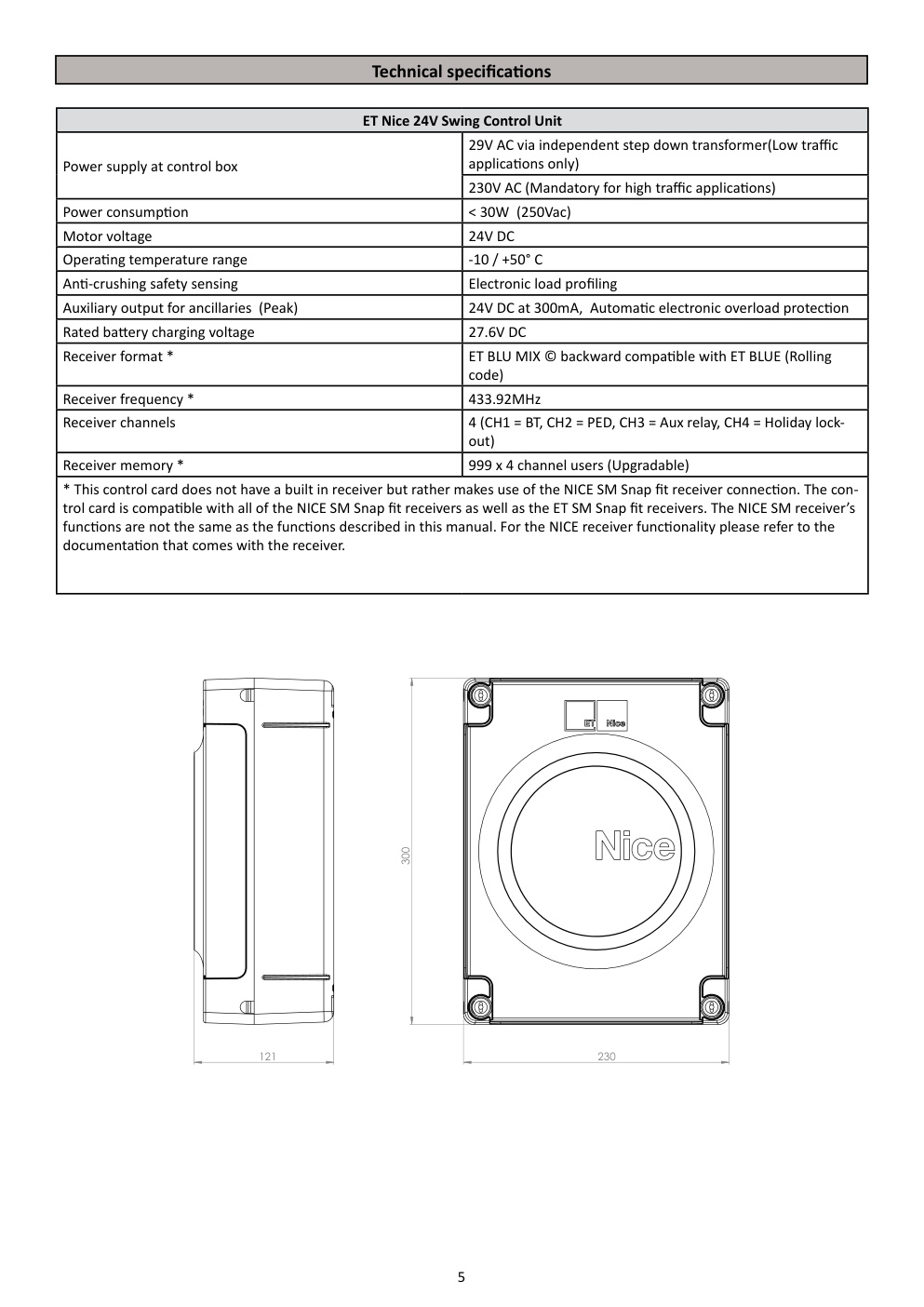

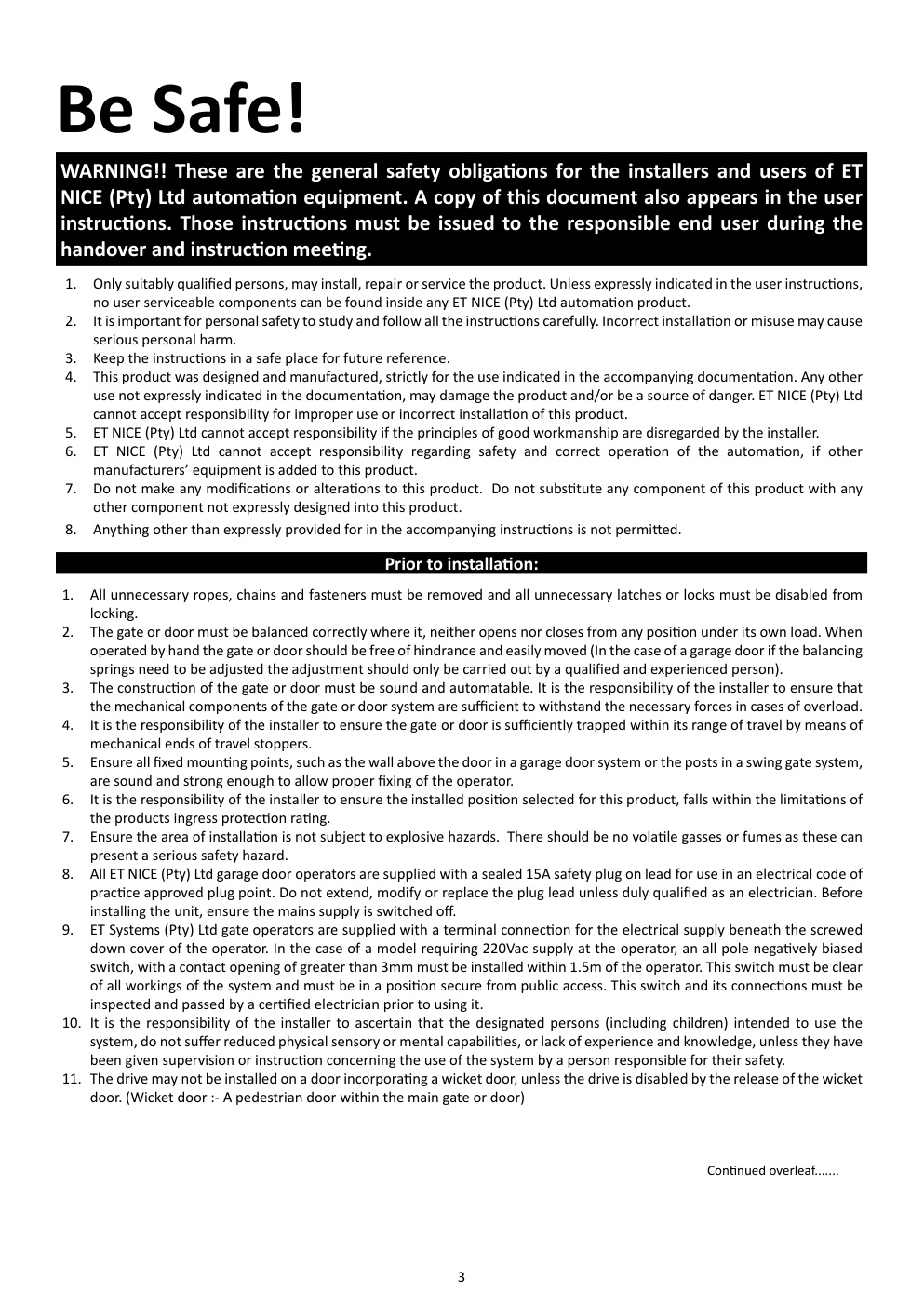

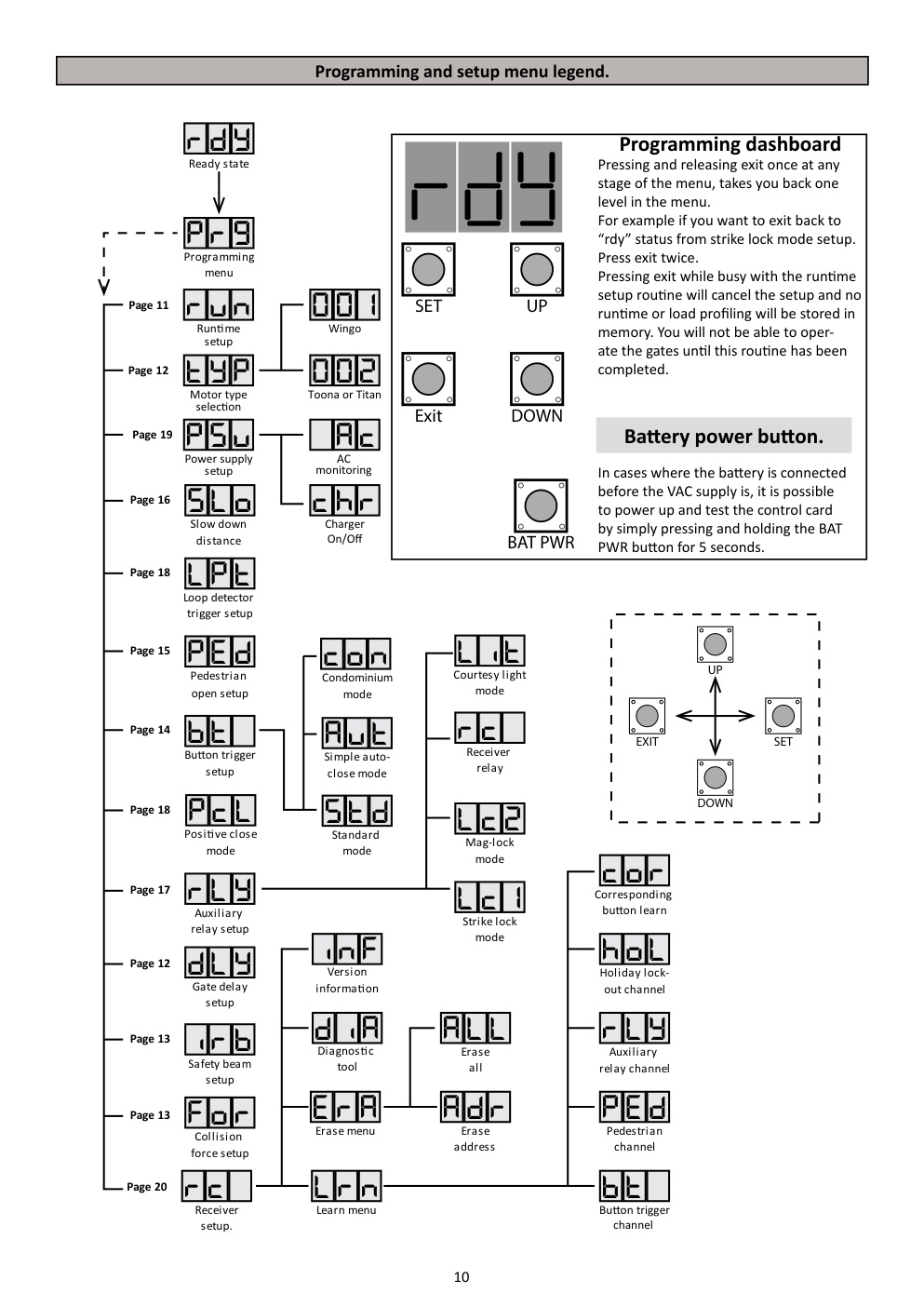

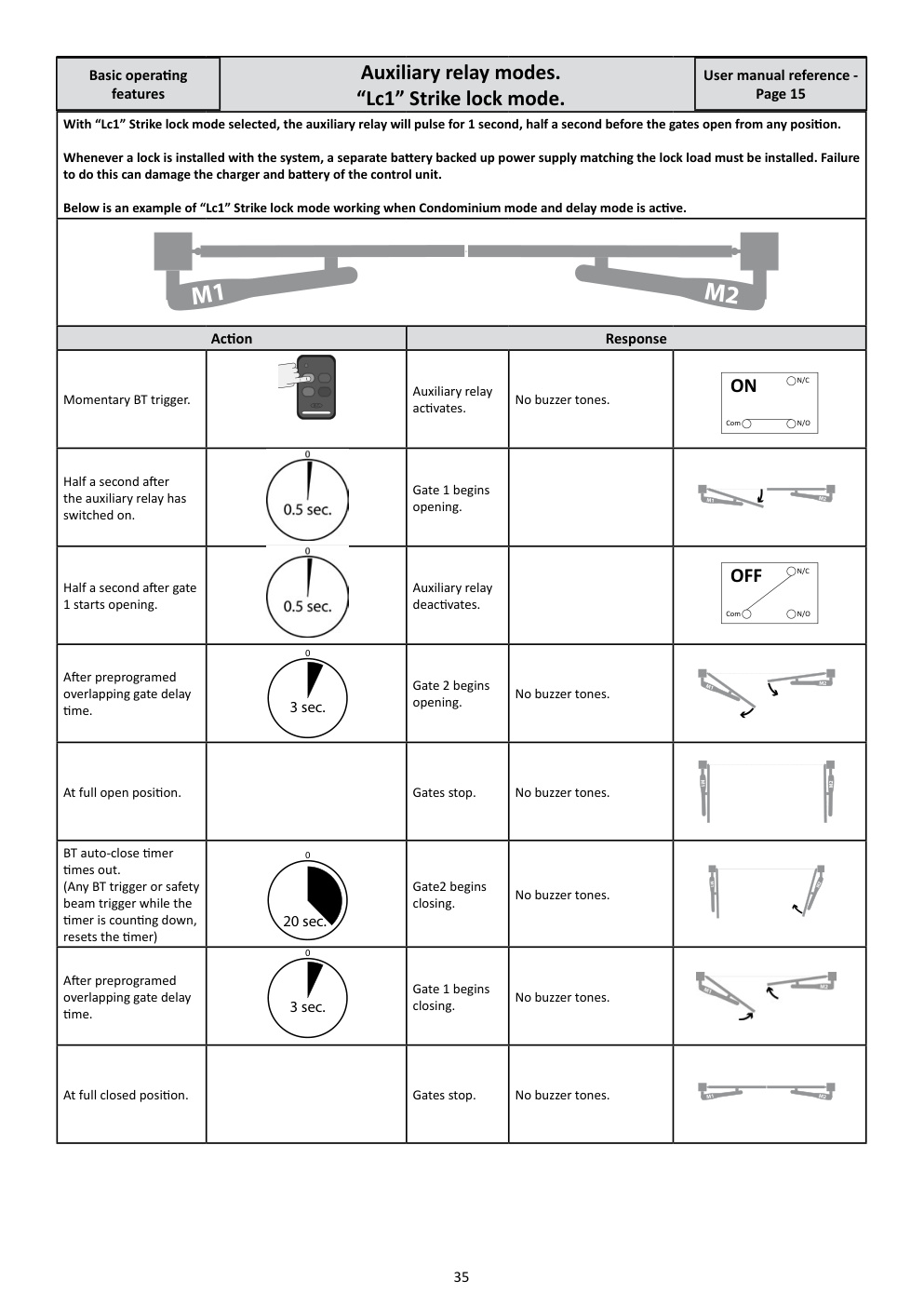

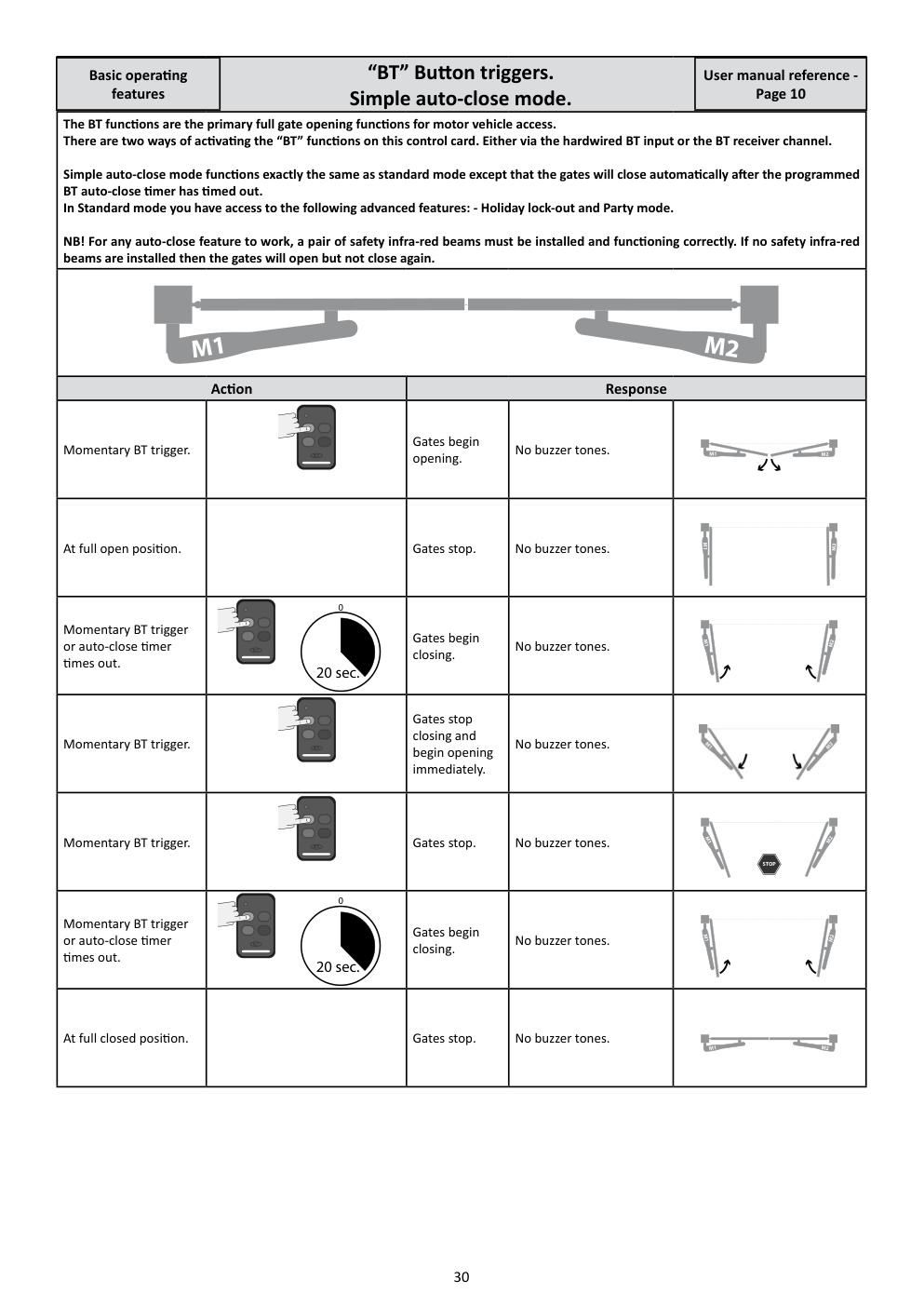

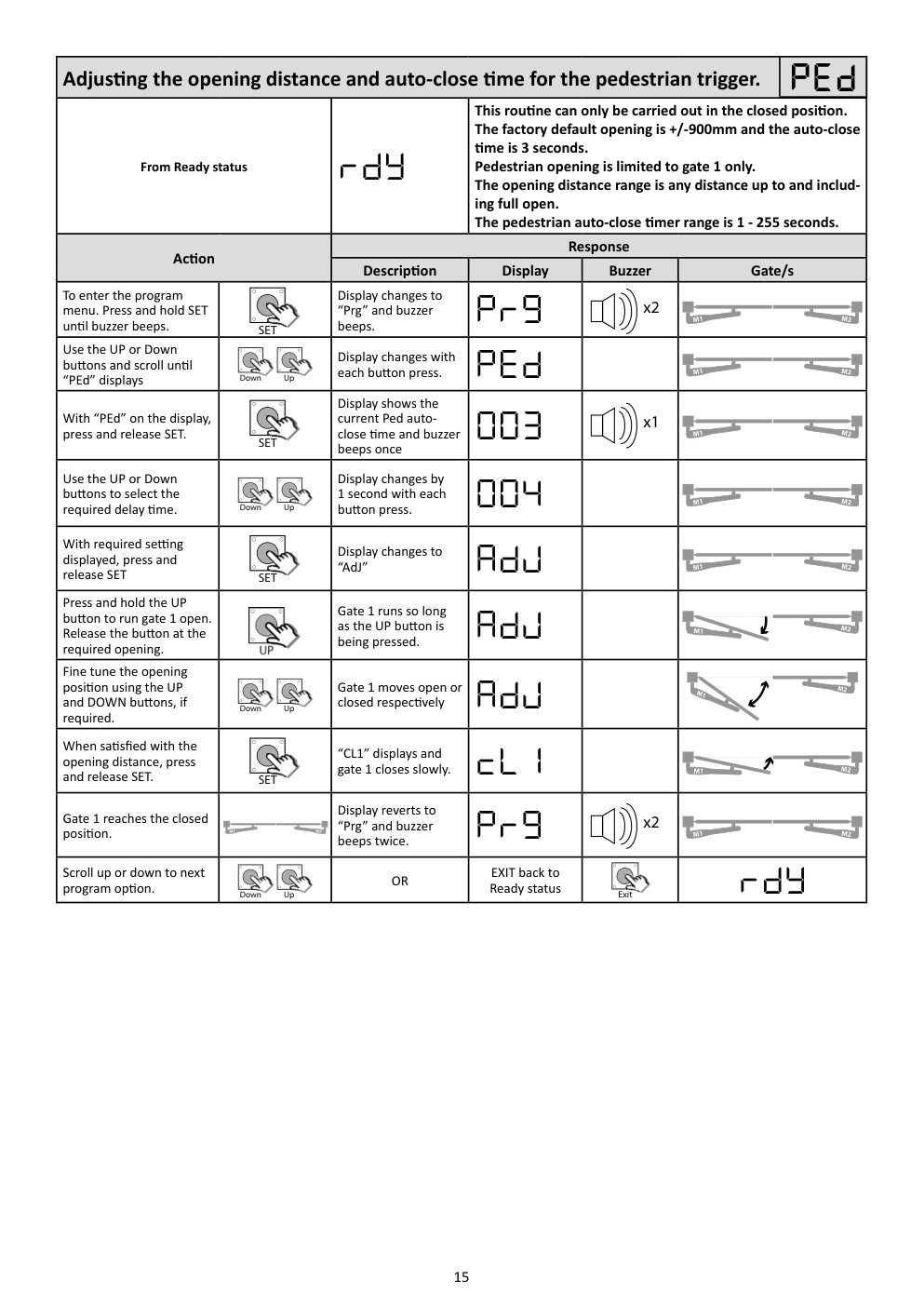

ET NICE SWINGMCU 2019.004.001 Installer instructions ET Nice Swing Controller www.niceforyou.com/za Introduction. Page 3 Be Safe! Instructions, warnings and obligations. Page 5 Technical specifications. Hardware installation. Page 6 Setting up the mechanical ends of travel stoppers and determining the gate mount bracket position. Page 8 Wiring connections. Control card programming and setup. Page 10 Programming and setup quick reference legend. Page 11 Setting up the gates’ runtime. Page 12 Selecting the motor type. Page 12 Setting up a delayed start between the two gates. Page 13 Adjusting the safety level of the collision force sensing. Page 13 Switching the safety beam input on for use in Standard BT mode. Page 14 Selecting a BT mode of operation and setting up the auto-close time for the button trigger mode. Page 15 Adjusting the opening distance and auto-close time for the pedestrian trigger. Page 16 Adjusting the position the gates begin slowing down from at the ends of travel. Page 17 Selecting the auxiliary relay’s mode of operation. Page 18 Selecting the positive close mode. Page 18 Adjusting the loop detector mode auto-close time. Page 19 Switching the AC monitoring…
