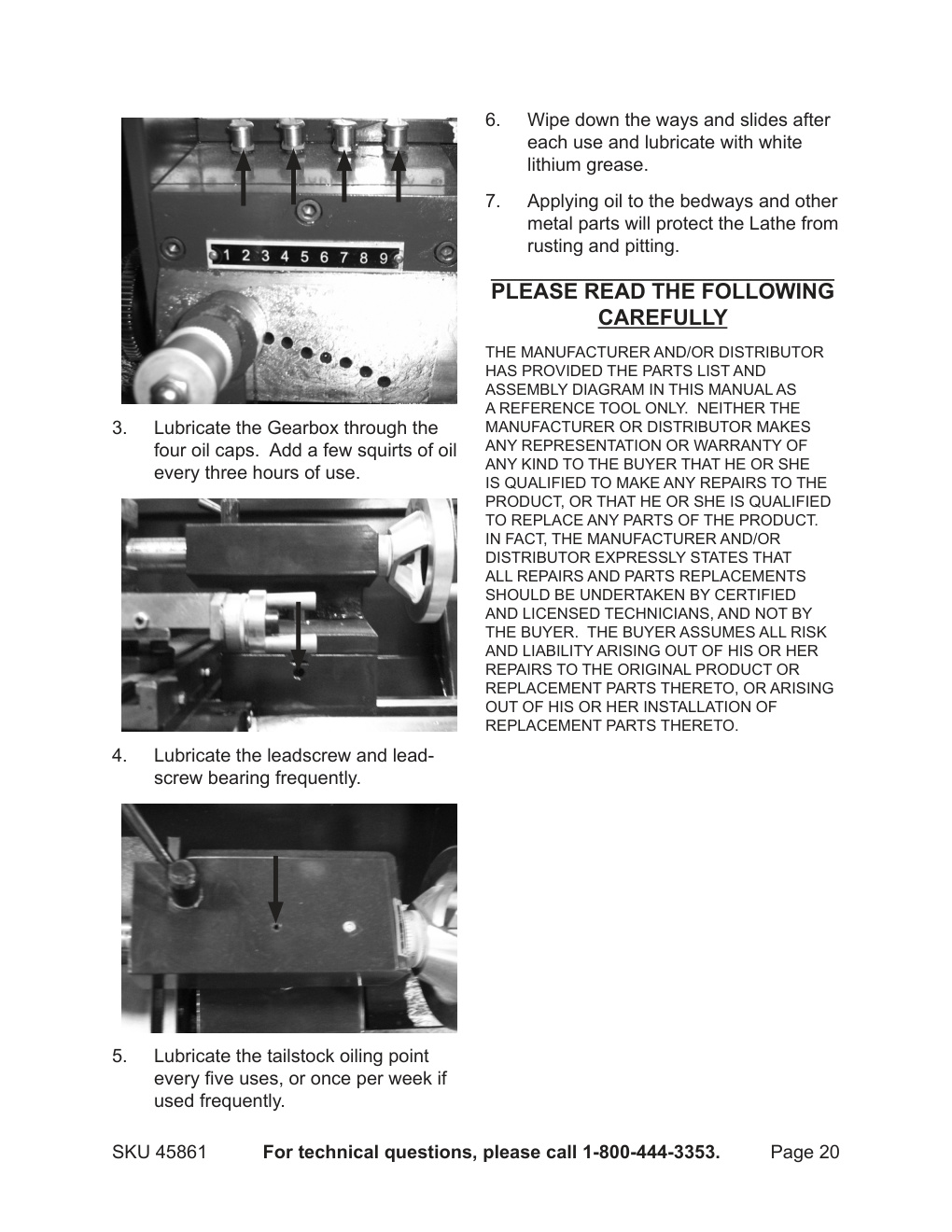

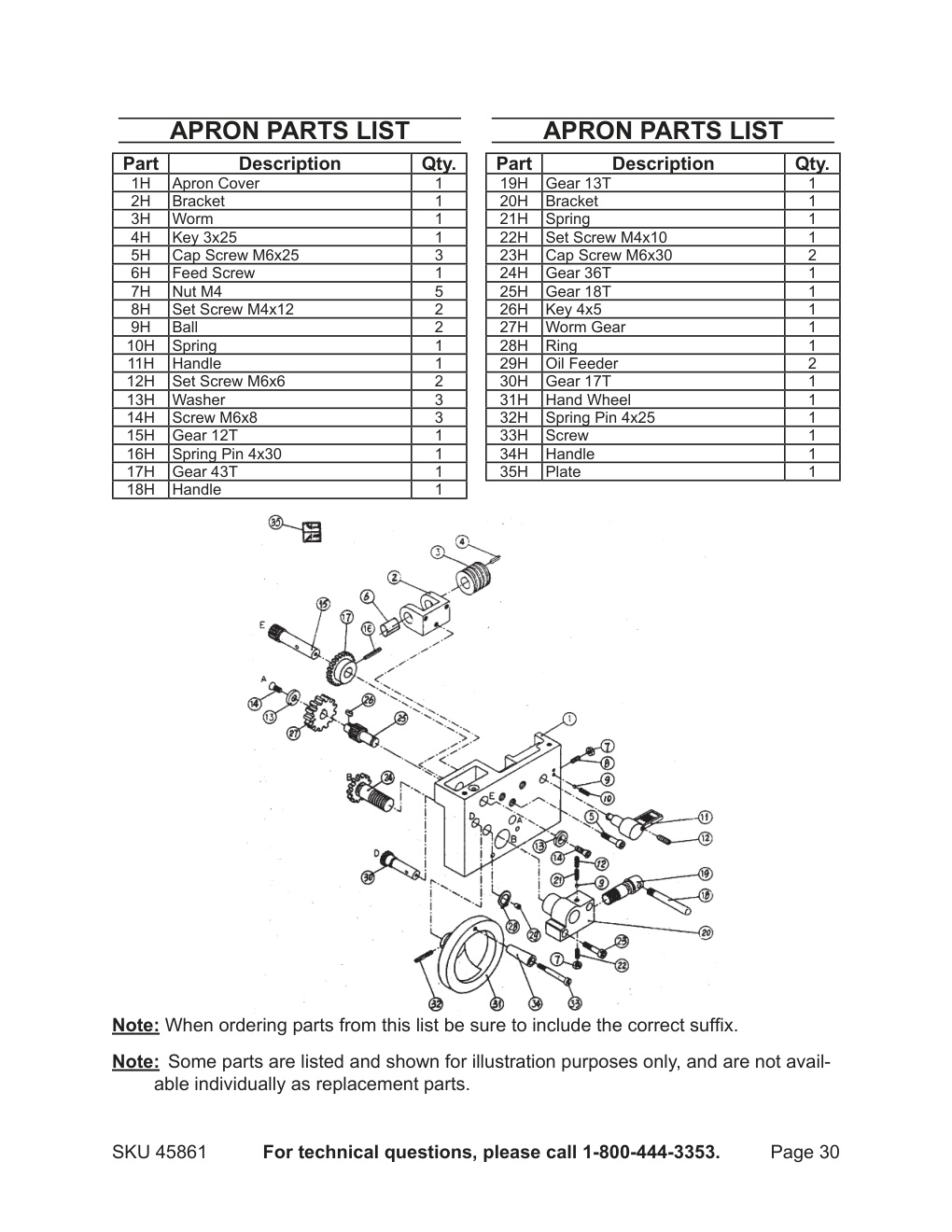

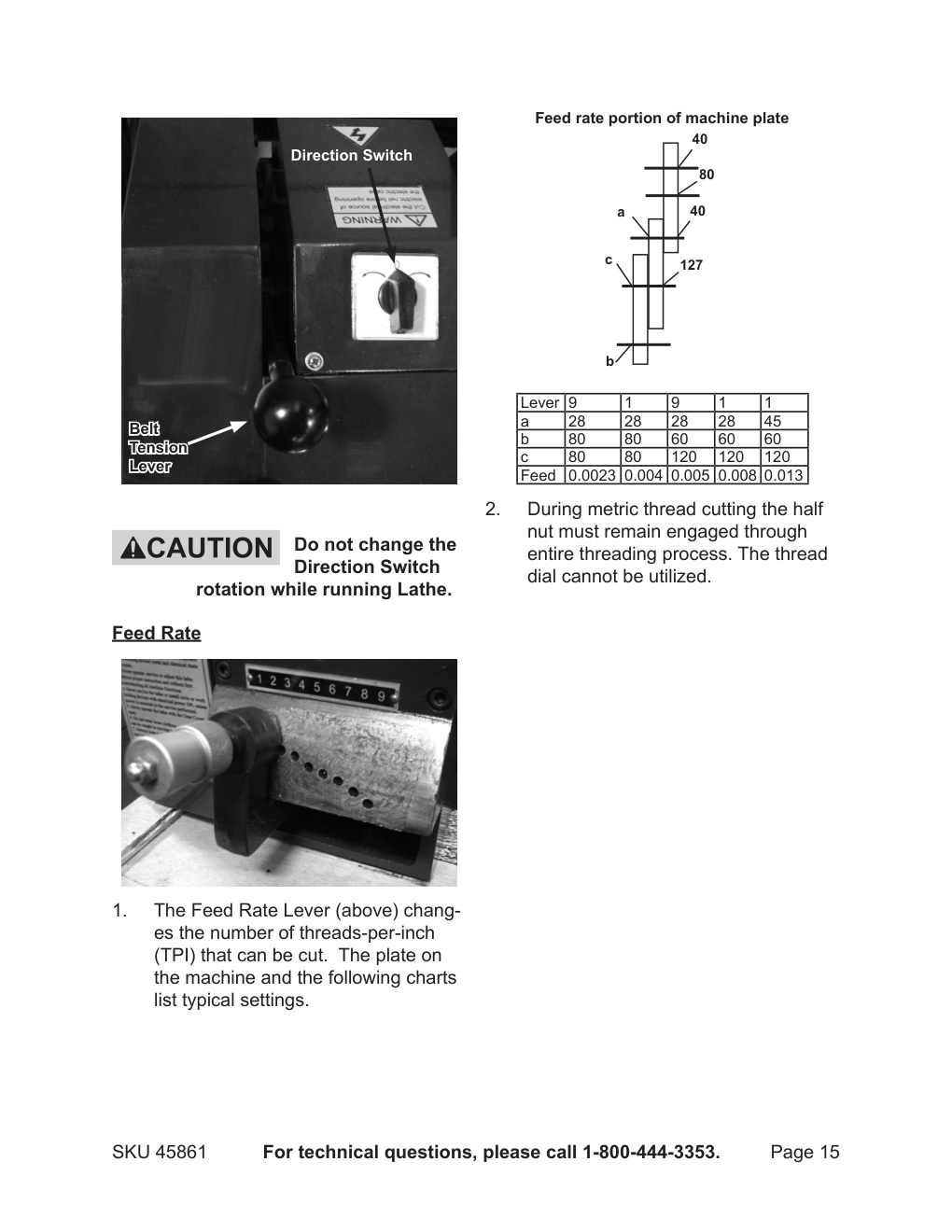

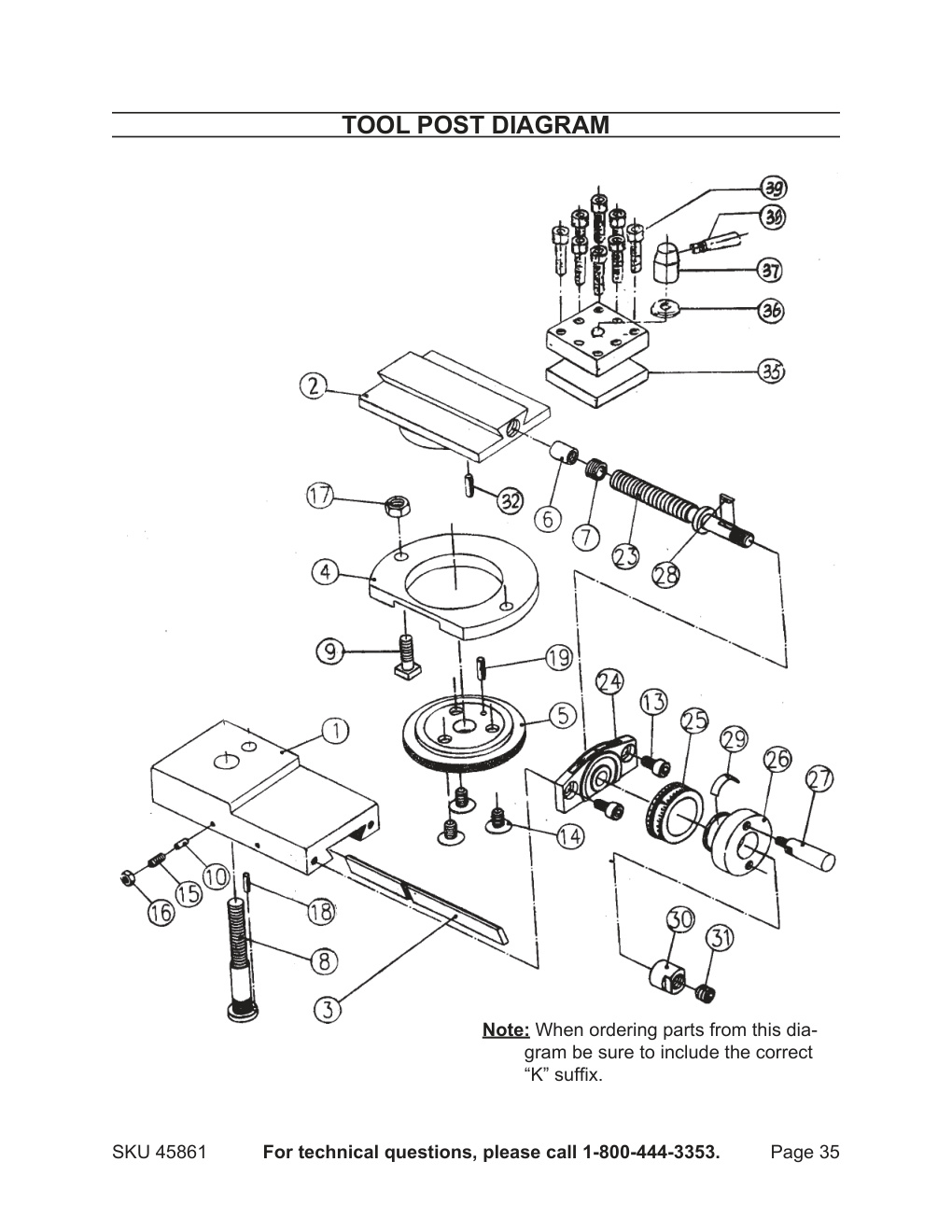

9” X 20” geared head, belt driven, bench lathe Set up And Operating Instructions Distributed exclusively by Harbor Freight Tools®. 3491 Mission Oaks Blvd., Camarillo, CA 93011 Visit our website at: Read this material before using this product. Failure to do so can result in serious injury. Save this manual. artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein. For technical questions or replacement parts, please call 1-800-444-3353. Contents Drive diagram ������������������������23 Tensioning roller PartsImportant SAFETY List �������������������������������������������24 Information ����������������������������3 General Power Too

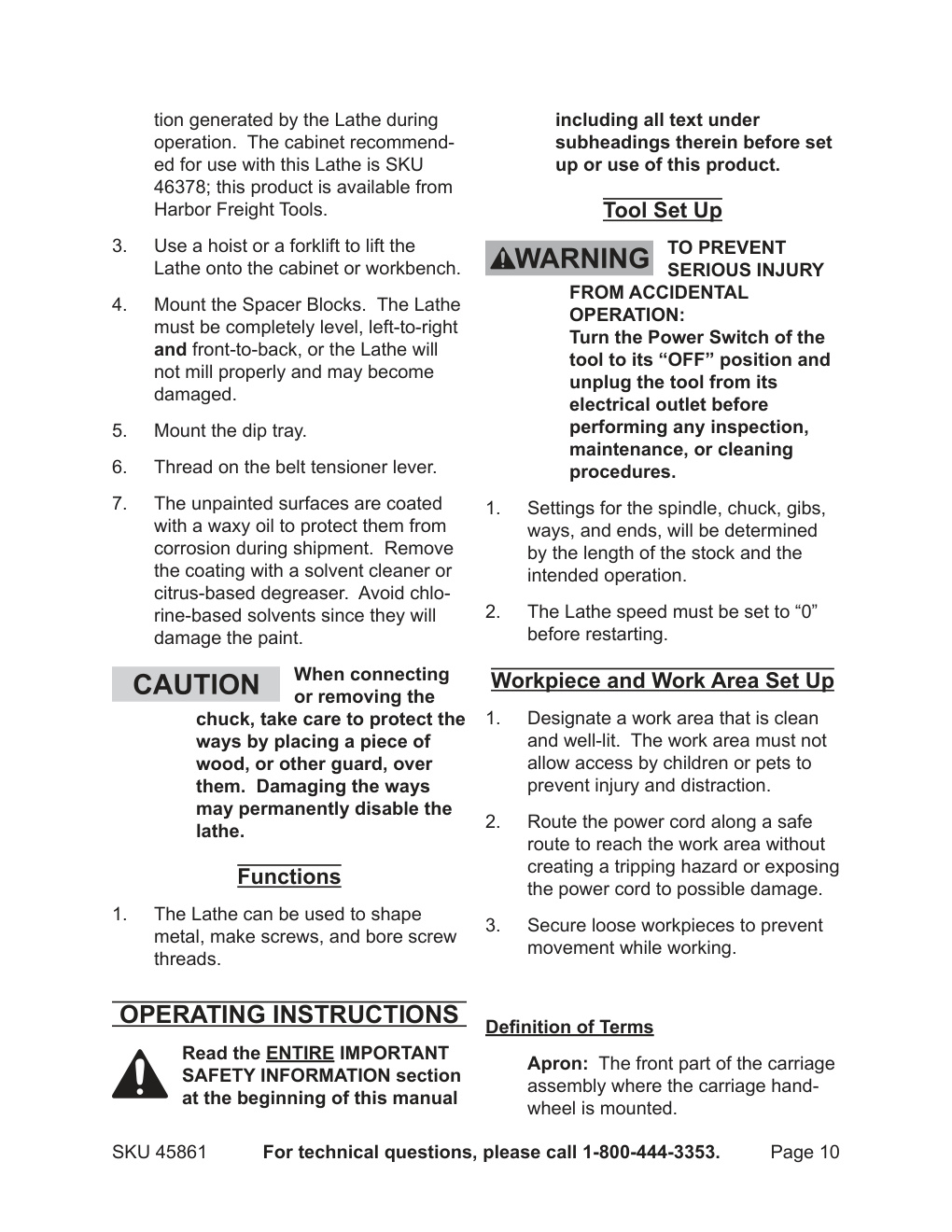

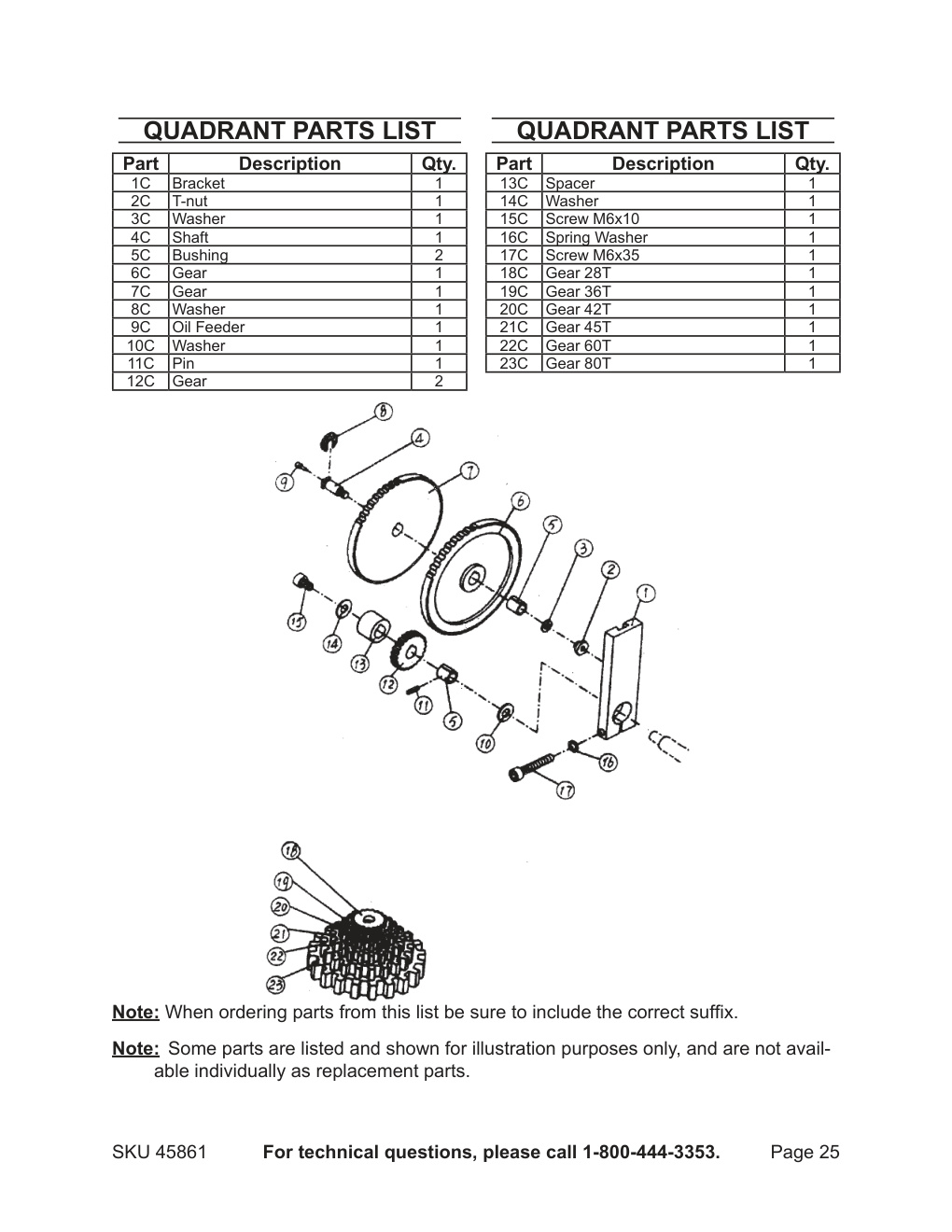

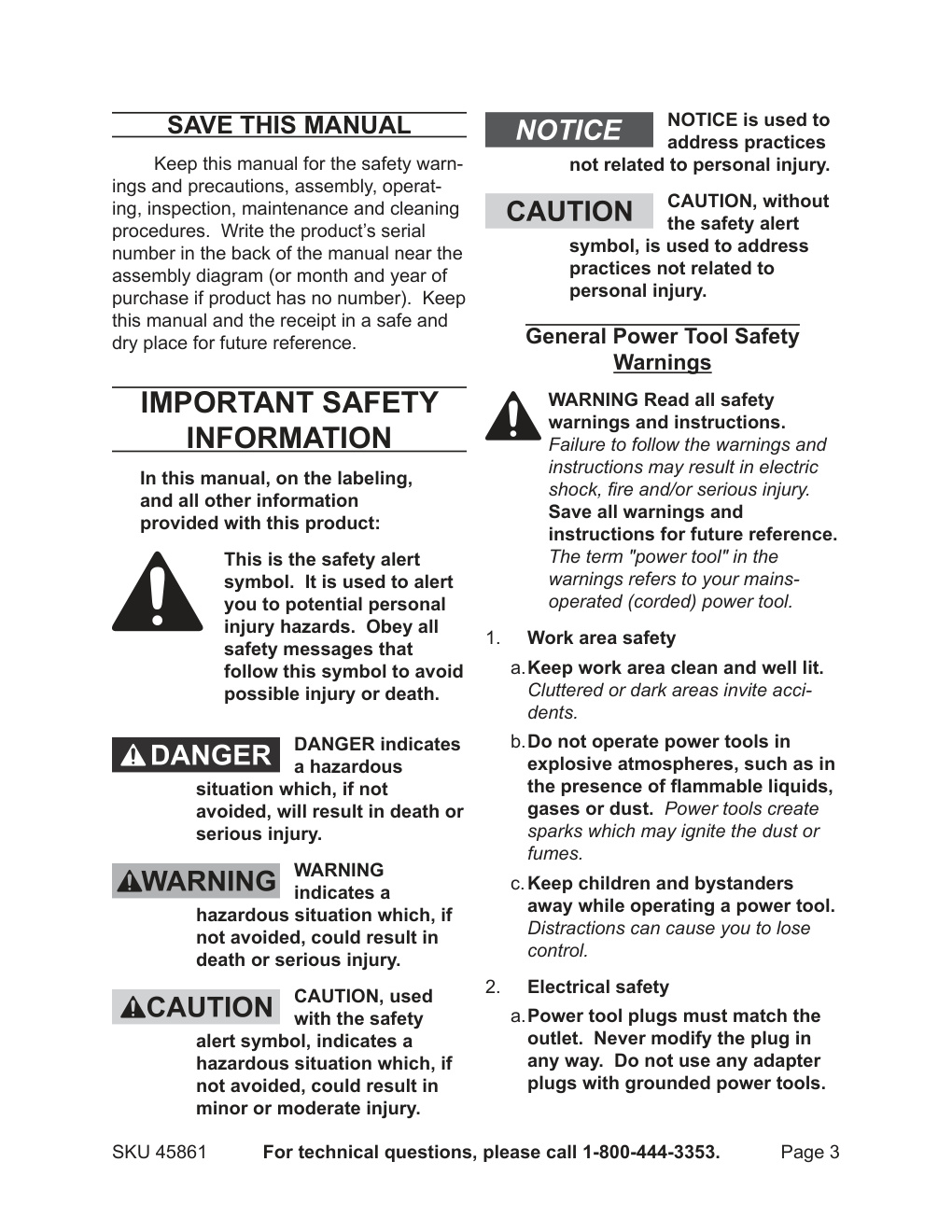

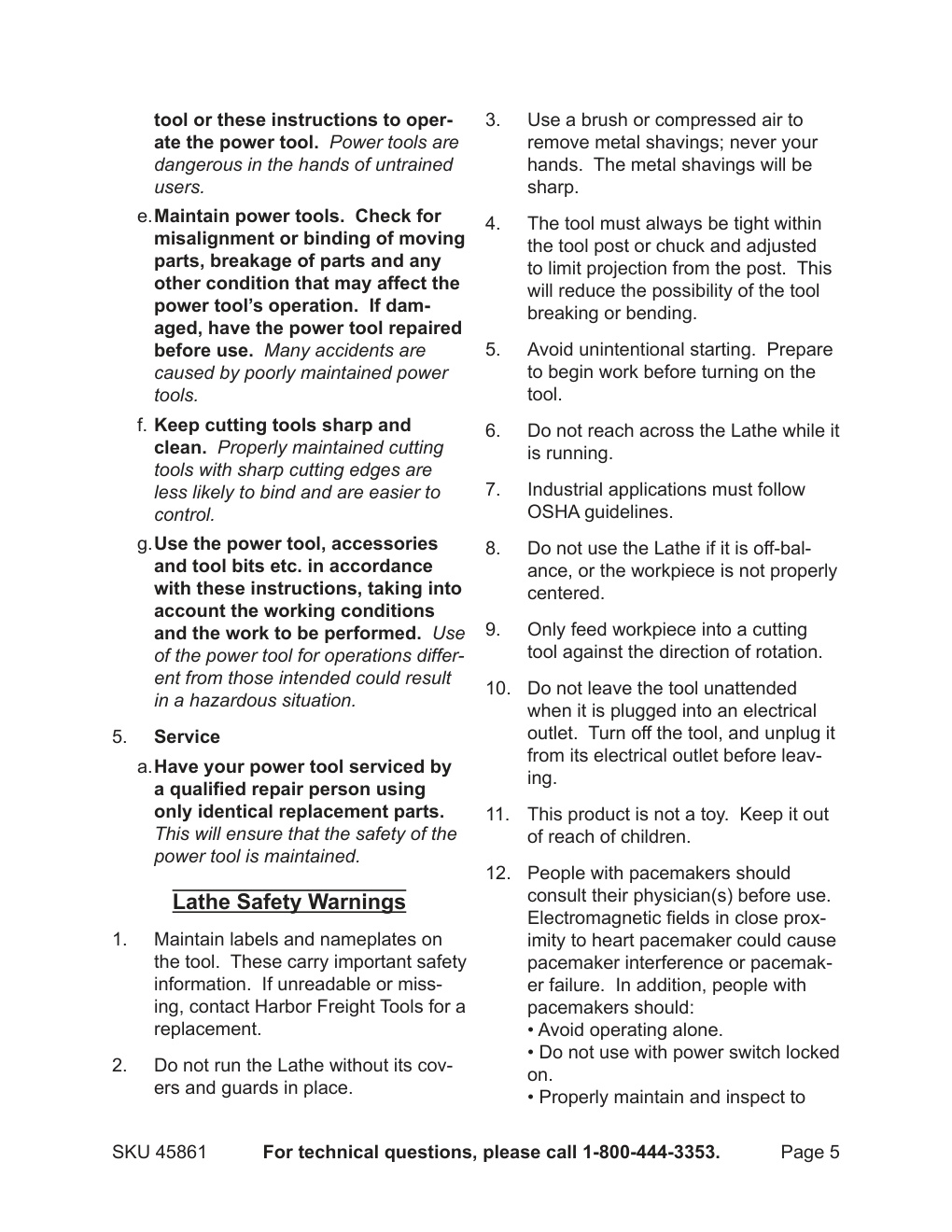

9” X 20” geared head, belt driven, bench lathe Model 45861 Set up And Operating Instructions Distributed exclusively by Harbor Freight Tools®. 3491 Mission Oaks Blvd., Camarillo, CA 93011 Visit our website at: http://www.harborfreight.com Read this material before using this product. Failure to do so can result in serious injury. Save this manual. Copyright© 2008 by Harbor Freight Tools®. All rights reserved. No portion of this manual or any artwork contained herein may be reproduced in any shape or form without the express written consent of Harbor Freight Tools. Diagrams within this manual may not be drawn proportionally. Due to continuing improvements, actual product may differ slightly from the product described herein. For technical questions or replacement parts, please call 1-800-444-3353. Contents Drive diagram ������������������������23 Tensioning roller PartsImportant SAFETY List �������������������������������������������24 Information ����������������������������3 General Power Tool Quadrant Parts List �����������25 Safety Warnings ����������������������3 Motor housing Parts List �26 Lathe Safety Warnings ������������5 Bed Parts List ������������������������27Grounding…
