ASV RT 75 RT 75HD R265T Compact Track Loader Master Parts Manual

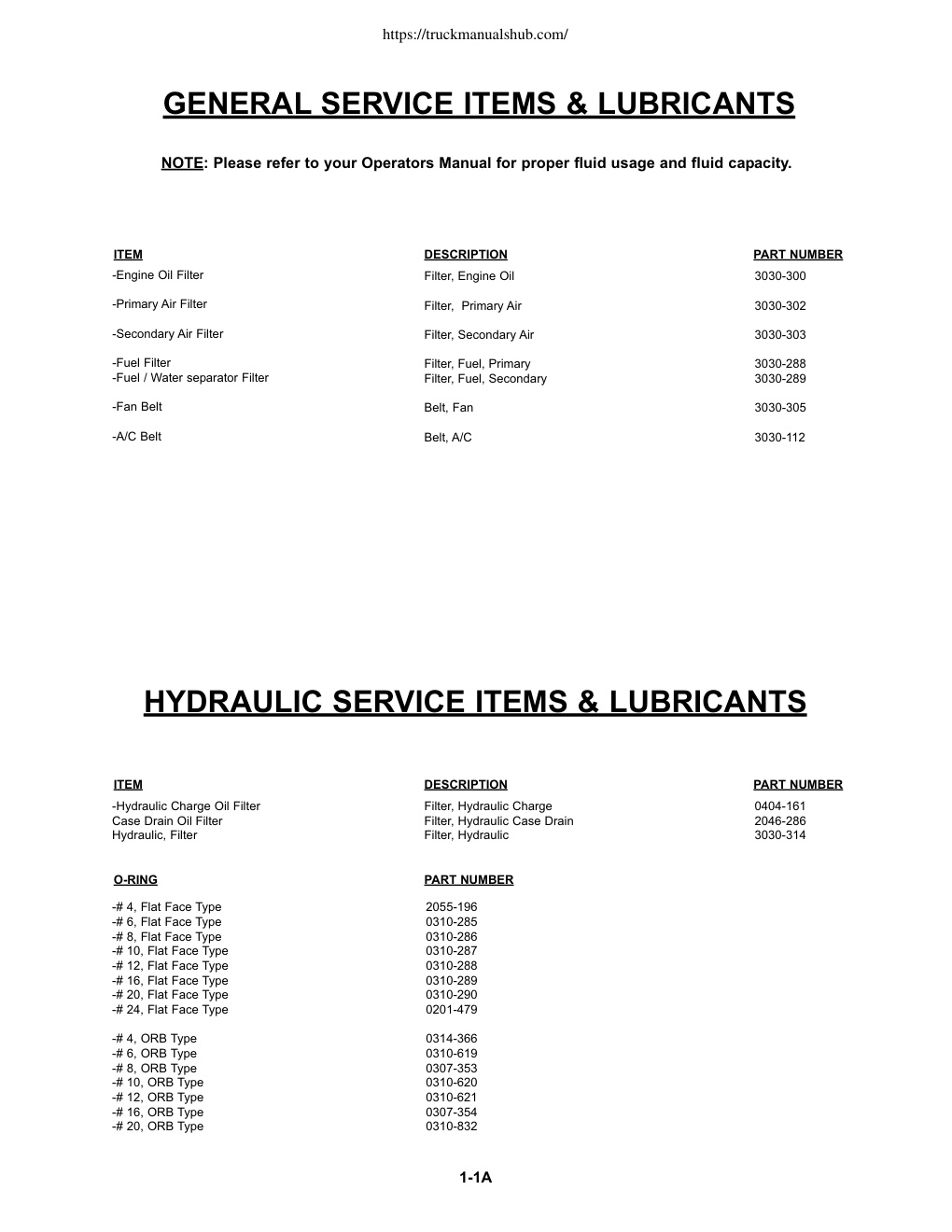

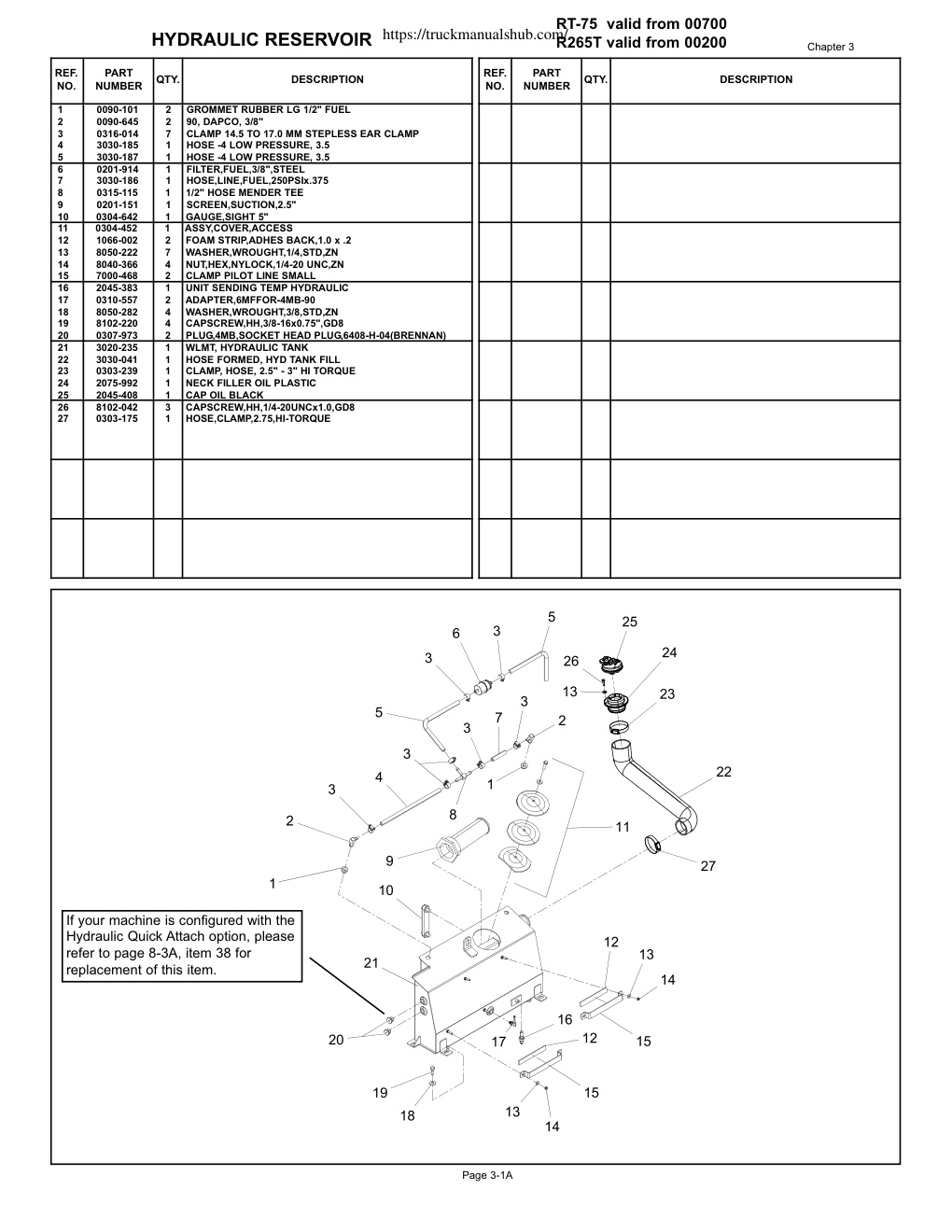

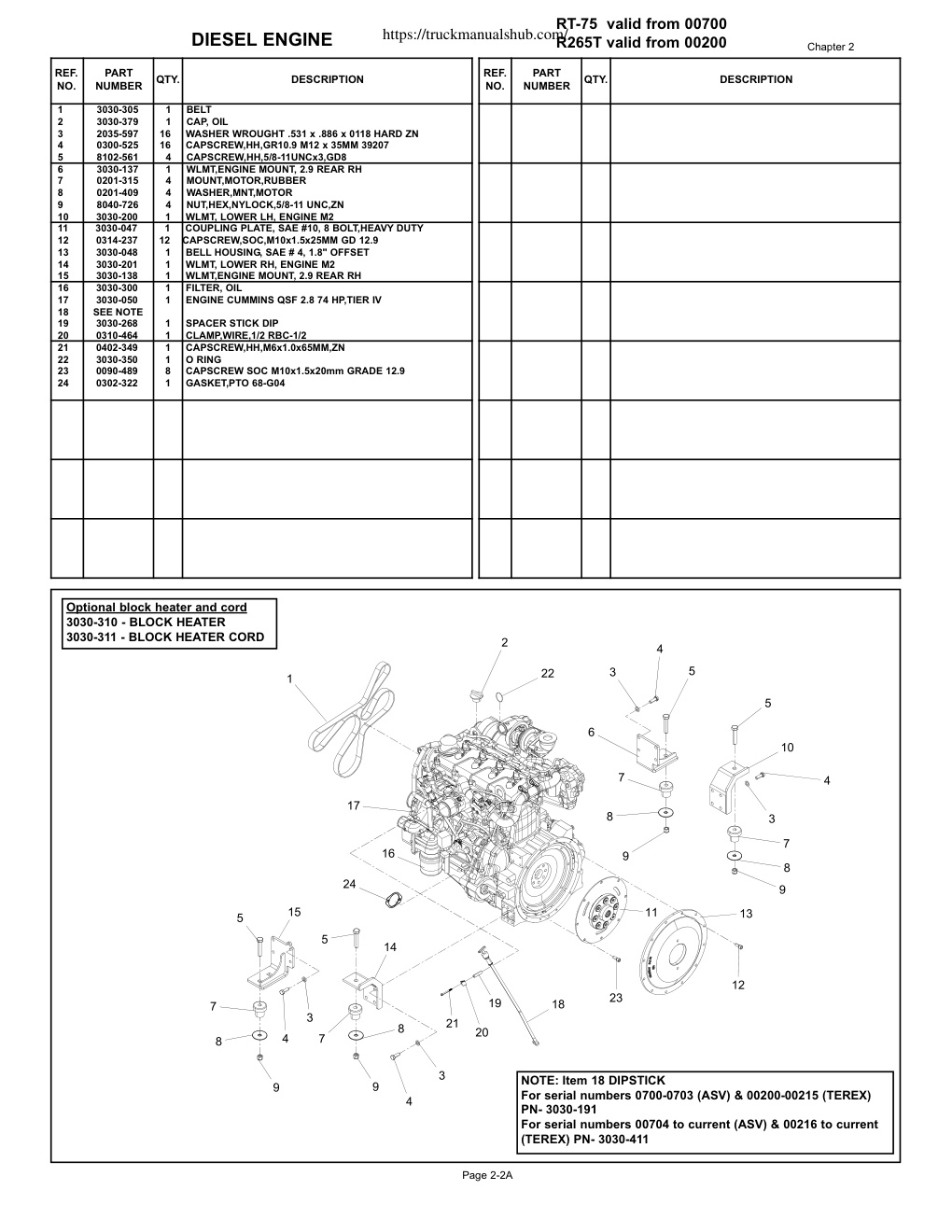

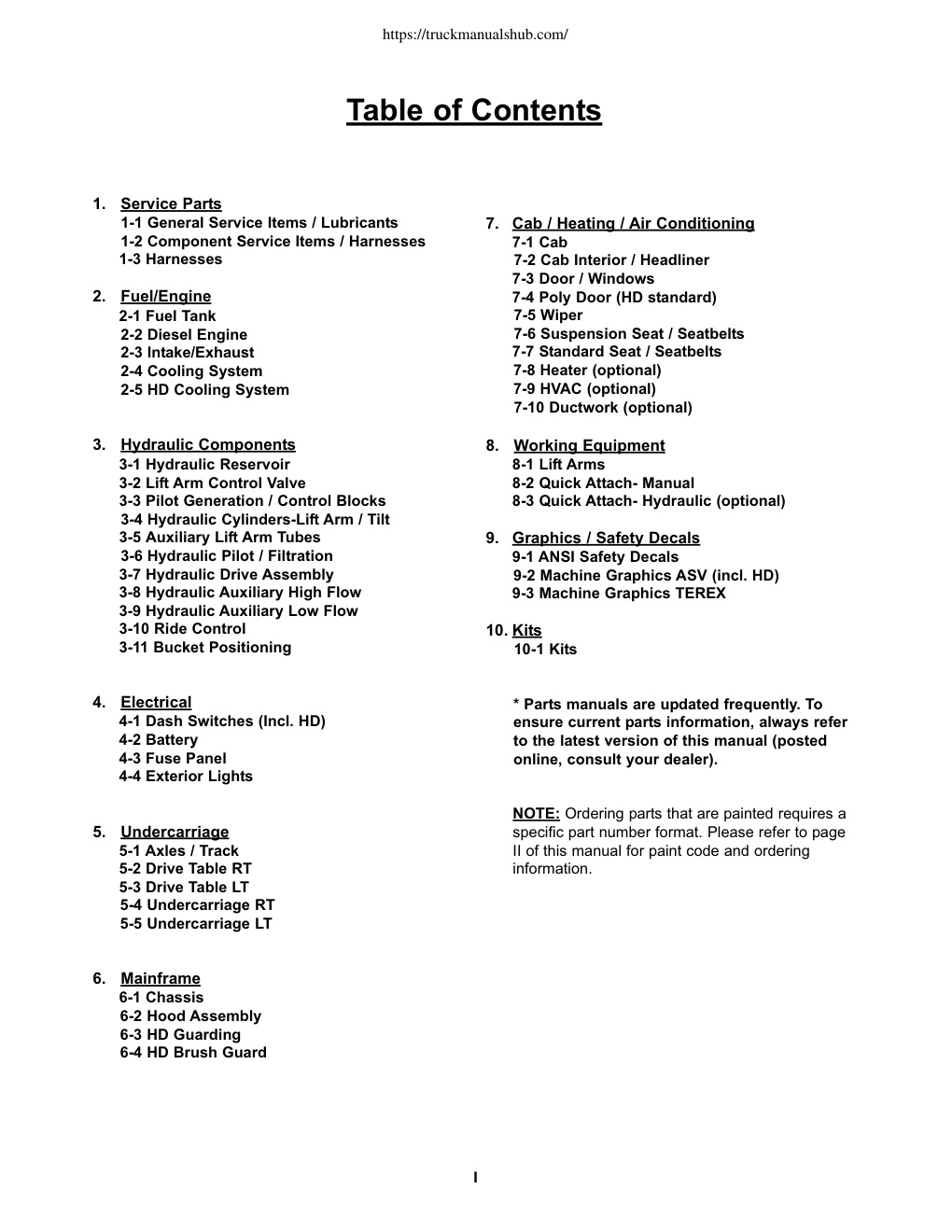

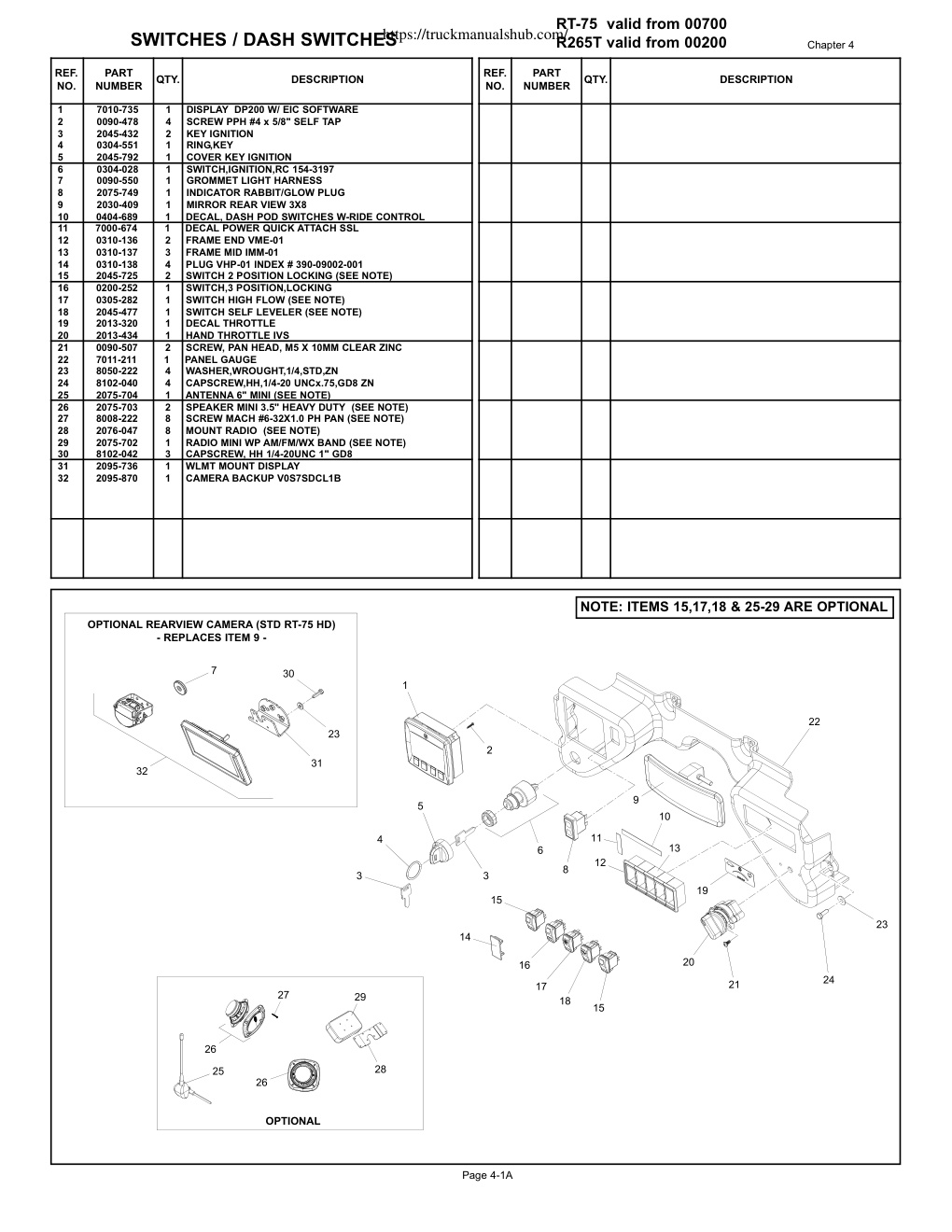

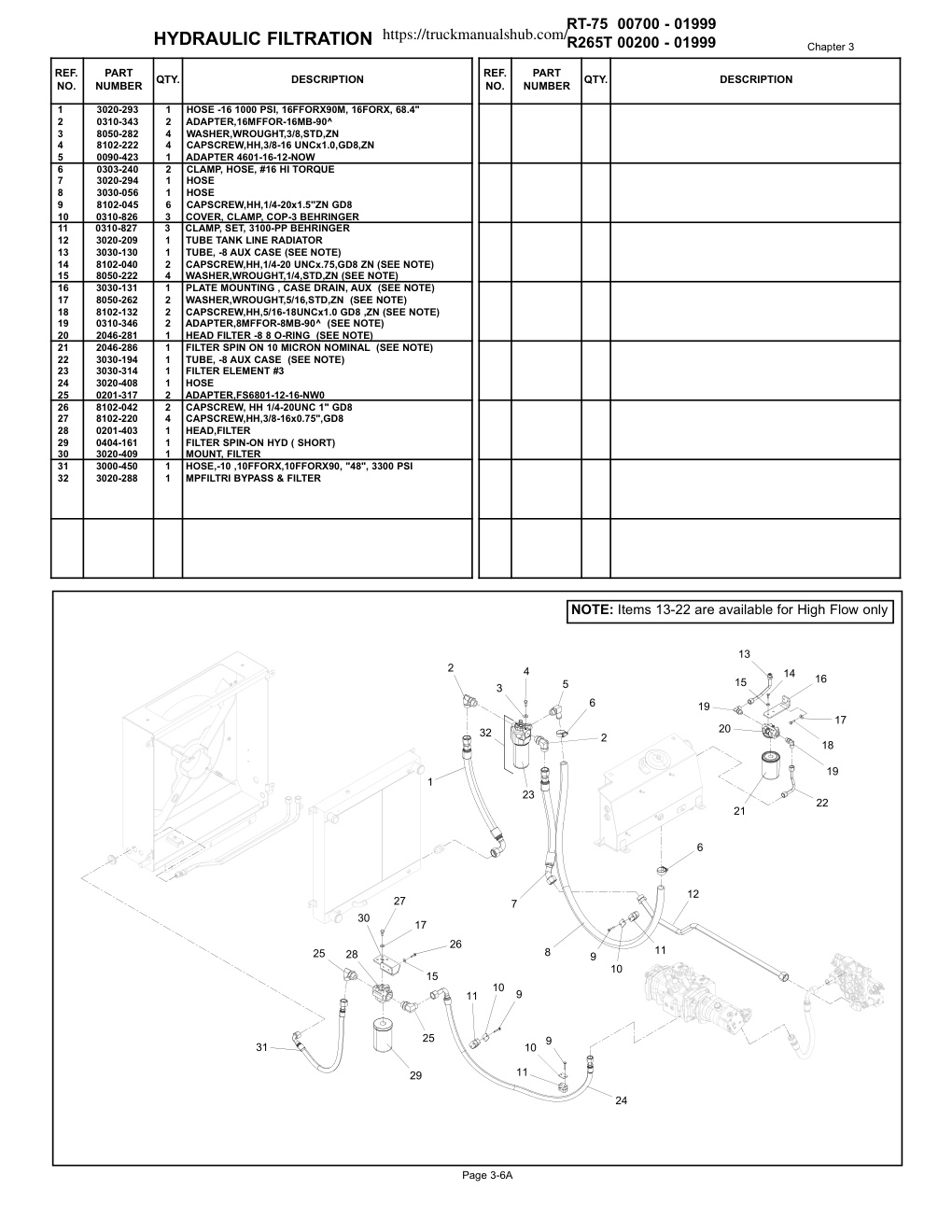

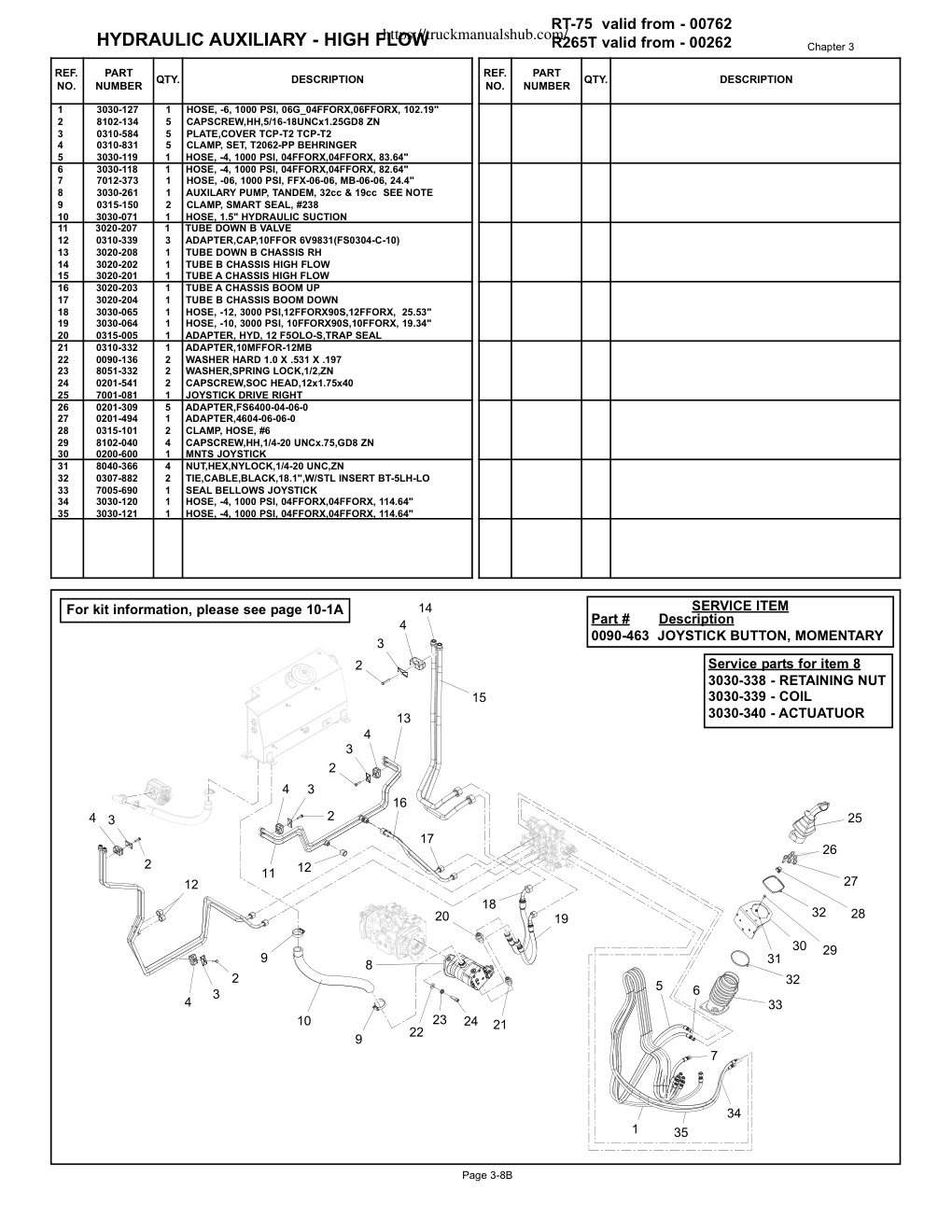

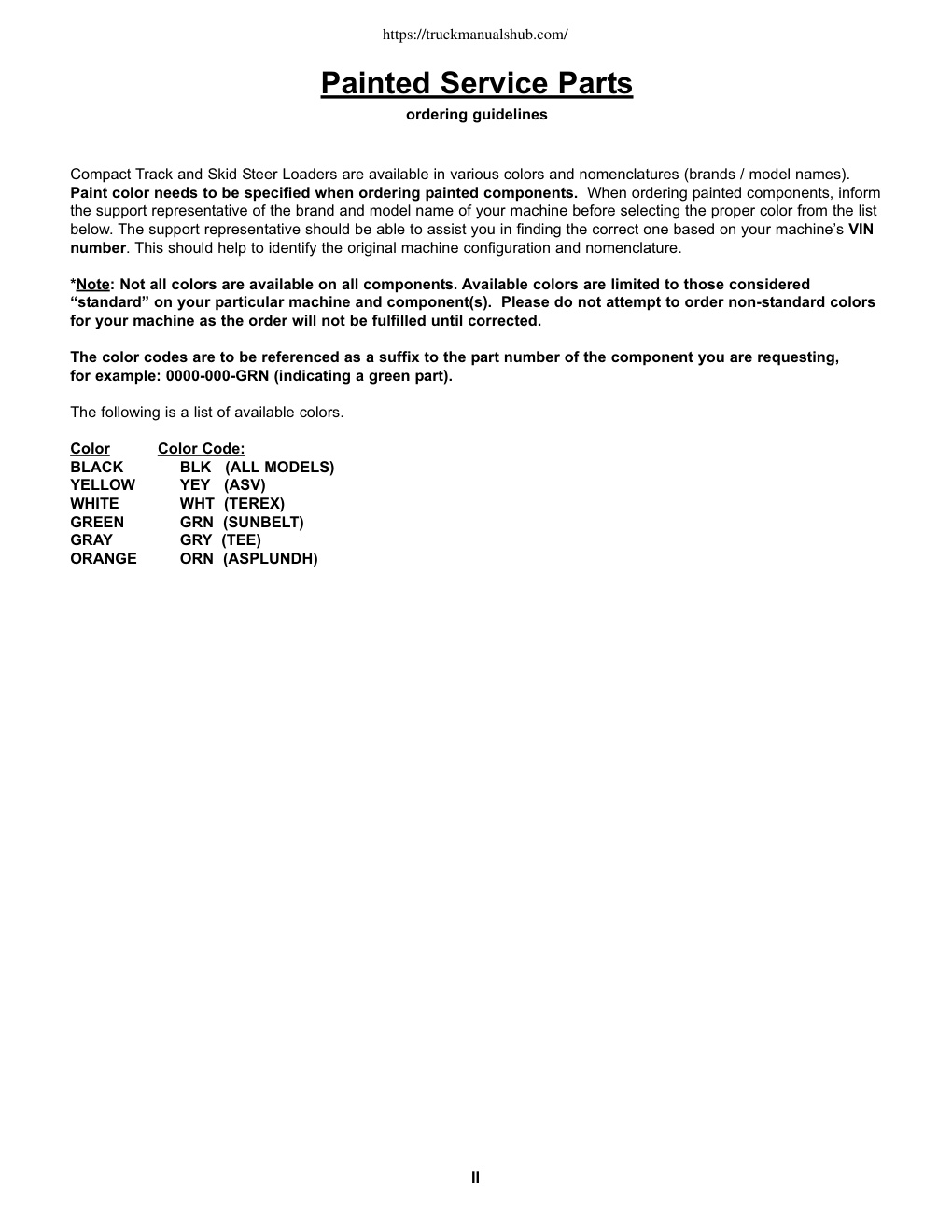

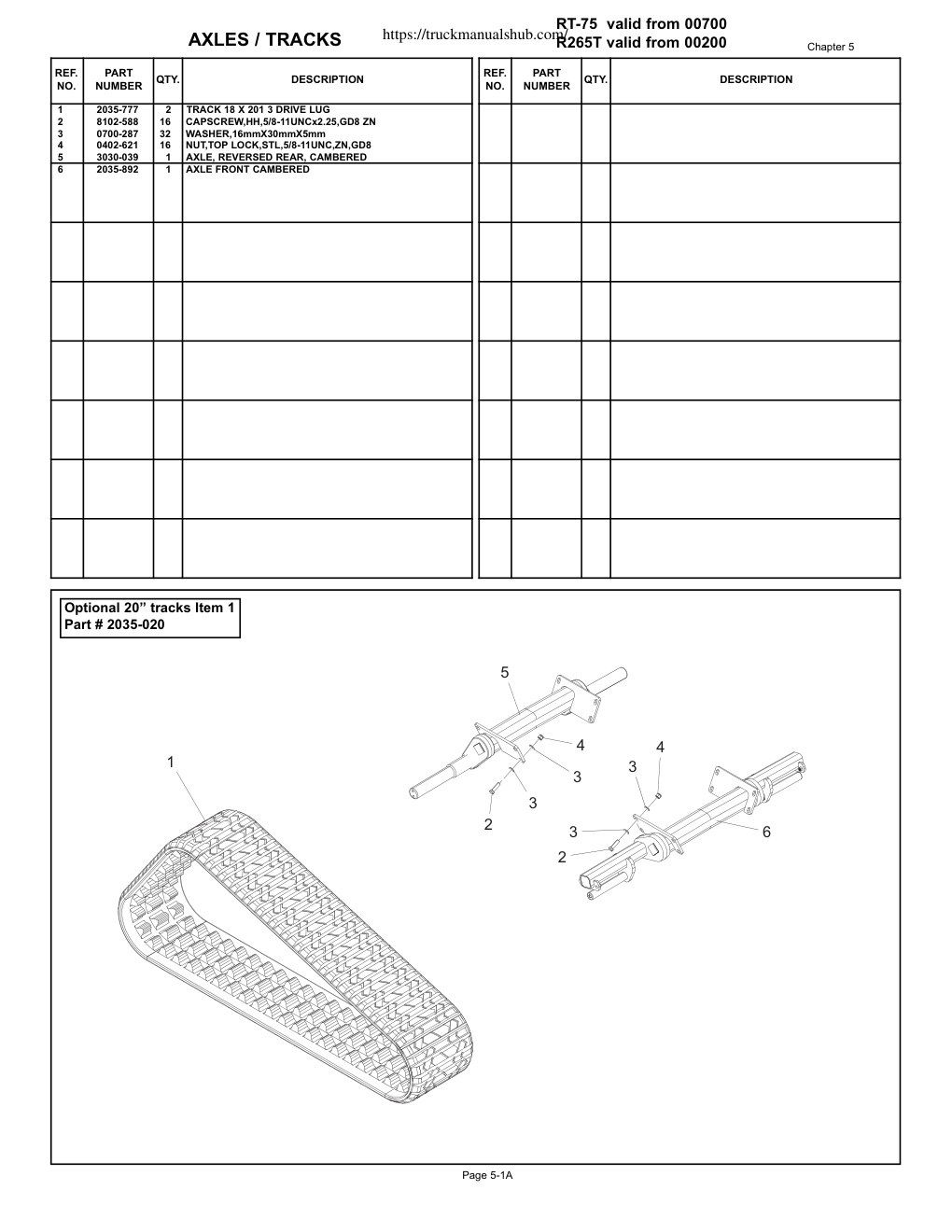

Compact Track Loader RT-75 / RT-75 HD Part Number: 0404-593 Printed: 11/7/2019 Table of Contents 1. Service Parts 1-1 General Service Items / Lubricants 7. Cab / Heating / Air Conditioning 1-2 Component Service Items / Harnesses 7-1 Cab 1-3 Harnesses 7-2 Cab Interior / Headliner 7-3 Door / Windows 2. Fuel/Engine 7-4 Poly Door (HD standard) 2-1 Fuel Tank 7-5 Wiper 2-2 Diesel Engine 7-6 Suspension Seat / Seatbelts 2-3 Intake/Exhaust 7-7 Standard Seat / Seatbelts 2-4 Cooling System 7-8 Heater (optional) 2-5 HD Cooling System 7-9 HVAC (optional) 7-10 Ductwork (optional) 3. Hydraulic Components 8. Working Equipment 3-1 Hydraulic Reservoir 8-1 Lift Arms 3-2 Lift Arm Control Valve 8-2 Quick Attach- Manual 3-3 Pilot Generation / Control Blocks 8-3 Quick Attach- Hydraulic (optional) 3-4 Hydraulic Cylinders-Lift Arm / Tilt 3-5 Auxiliary Lift Arm Tubes 9. Graphics / Safety Decals 3-6 Hydraulic Pilo

https://truckmanualshub.com/ Master Parts Manual Compact Track Loader RT-75 / RT-75 HD R265T Part Number: 0404-593 Printed: 11/7/2019 https://truckmanualshub.com/ Table of Contents 1. Service Parts 1-1 General Service Items / Lubricants 7. Cab / Heating / Air Conditioning 1-2 Component Service Items / Harnesses 7-1 Cab 1-3 Harnesses 7-2 Cab Interior / Headliner 7-3 Door / Windows 2. Fuel/Engine 7-4 Poly Door (HD standard) 2-1 Fuel Tank 7-5 Wiper 2-2 Diesel Engine 7-6 Suspension Seat / Seatbelts 2-3 Intake/Exhaust 7-7 Standard Seat / Seatbelts 2-4 Cooling System 7-8 Heater (optional) 2-5 HD Cooling System 7-9 HVAC (optional) 7-10 Ductwork (optional) 3. Hydraulic Components 8. Working Equipment 3-1 Hydraulic Reservoir 8-1 Lift Arms 3-2 Lift Arm Control Valve 8-2 Quick Attach- Manual 3-3 Pilot Generation / Control Blocks 8-3 Quick Attach- Hydraulic (optional) 3-4 Hydraulic Cylinders-Lift Arm / Tilt 3-5 Auxiliary Lift Arm Tubes 9. Graphics / Safety Decals 3-6 Hydraulic Pilot / Filtration 9-1 ANSI Safety Decals 3-7 Hydraulic Drive Assembly 9-2 Machine Graphics ASV (incl. HD) 3-8 Hydraulic Auxiliary High Flow 9-3 Machine Graphics TEREX 3-9 Hydraulic Auxiliary Low Flow 3-10 Ride Control…
