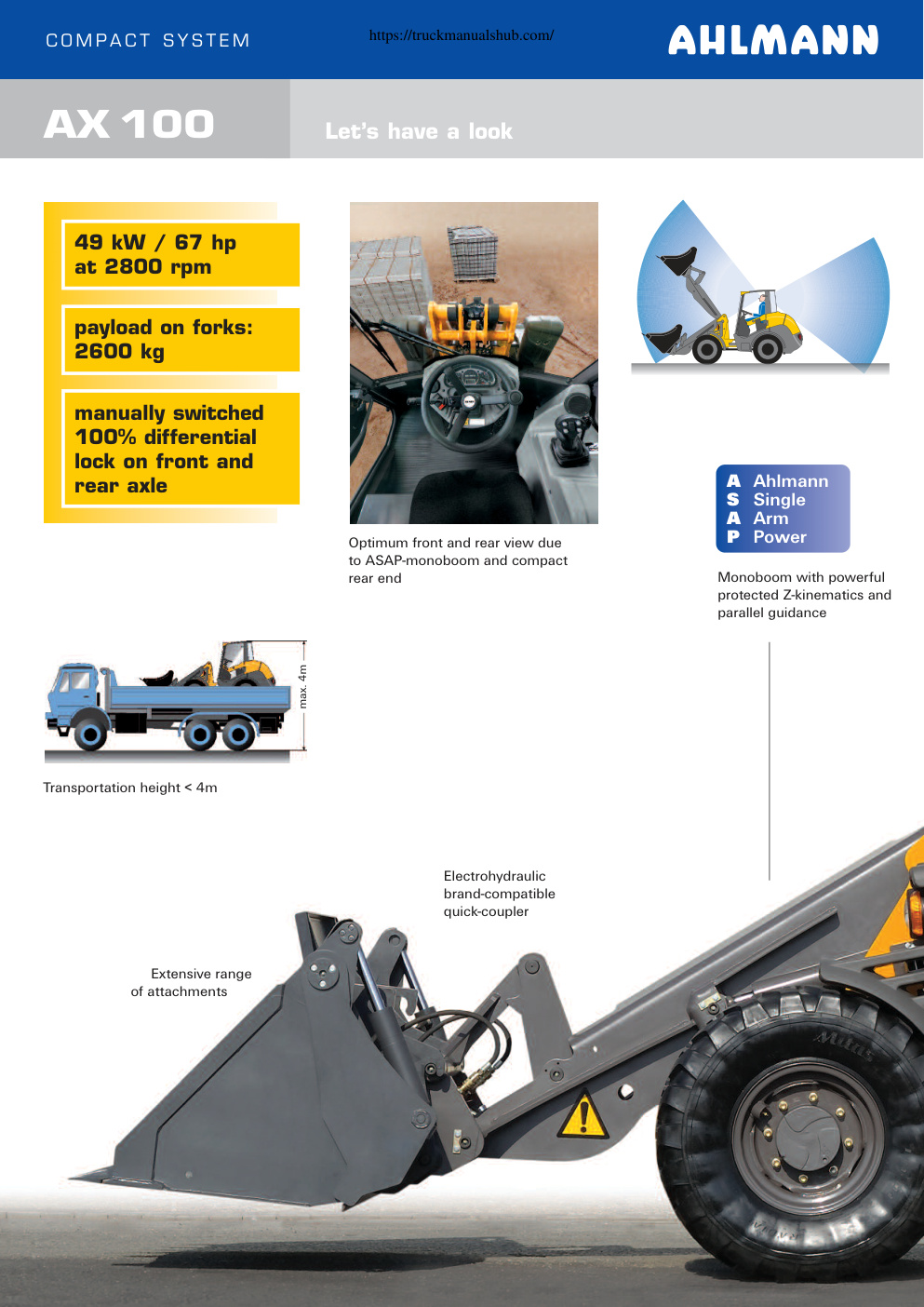

https://truckmanualshub.com/ C O M P A C T S Y S T E M AX 100 > The loader specialist > Articulated Loader 1.0 – 1.6 m3 https://truckmanualshub.com/C O M P A C T S Y S T E M AX 100 Let’s have a look 49 kW / 67 hp at 2800 rpm payload on forks: 2600 kg manually switched 100% differential lock on front and A Ahlmann rear axle S Single A Arm P Power Optimum front and rear view due to ASAP-monoboom and compact rear end Monoboom with powerful protected Z-kinematics and parallel guidance 4m max. Transportation height < 4m Electrohydraulic brand-compatible quick-coupler Extensive range of attachments https://truckmanualshub.com/C O M P A C T S Y S T E M AX 100 at your advantages A Ahlmann S Self S Stabilising C Concept Maximum travelling comfort on any ground thanks to auto-stabilised Easy access to all service points oscillation Device height: 2455 mm Comfortable cab with excellent all-round visibility and easy access A Ahlmann P Panorama S Space C Cab Hydraulic on demand fan control https://truckmanualshub.com/C O M P A C T S Y S T E M AX 100 Powerful at work Due to the ASAP-mono- boom, the Ahlmann AX features high breakout forces. Its Z-kinematics allow for perfect parallel guidance of…
