Alfa Romeo Alfetta 1973 To 1987 All Modeles Inc Gtv Haynes Owners Workshop Manual

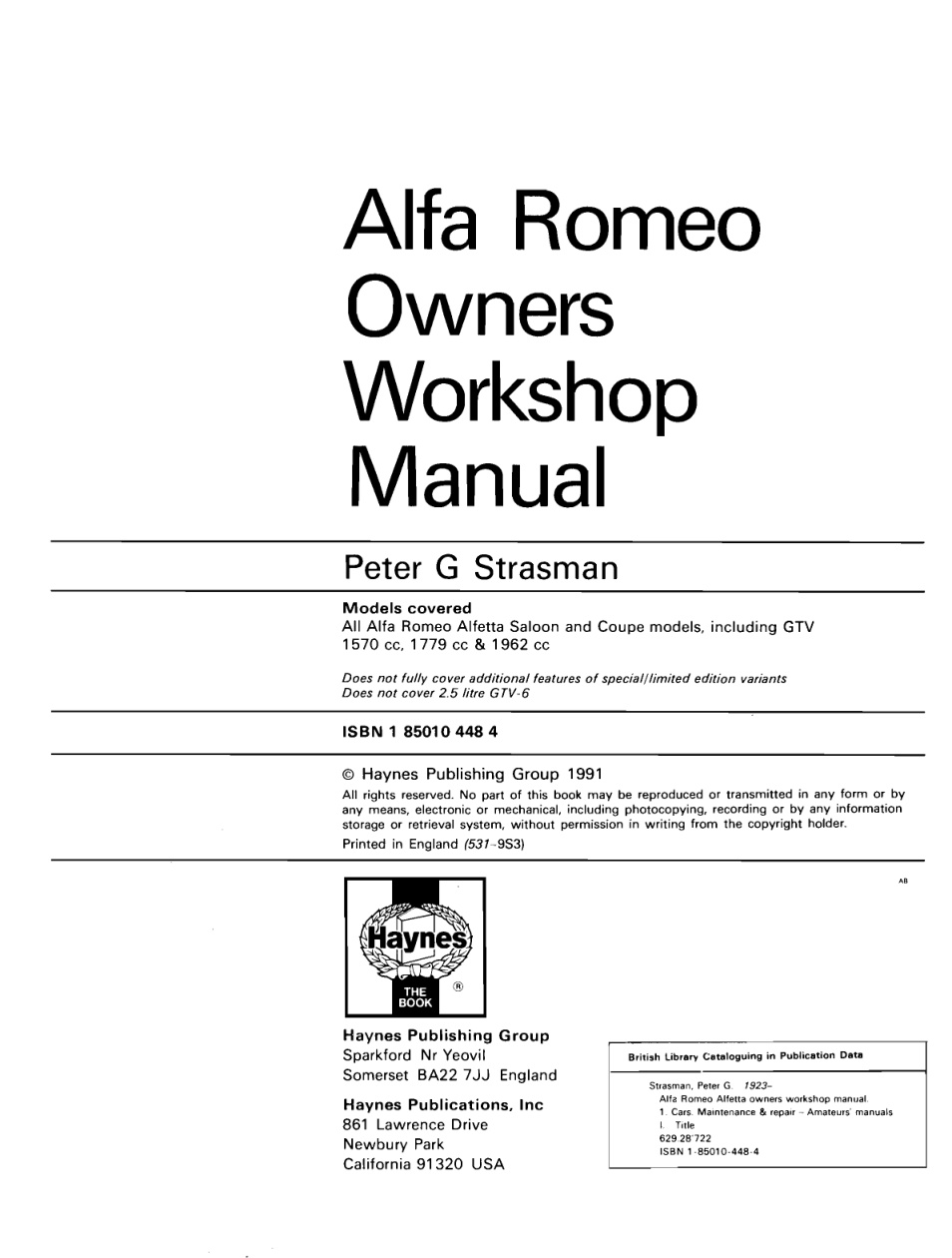

1973 to 1987 o All models inc. GTV ie 1570 cc o 1779 cc co 1962 cc Owners Workshop Manual EE Se a EE a ek a CI = ee | | >) LT im LES SiS = Ger _. = _ = ES EY: 0 » BAA LÀ f J SSSR PTS S| SE SE. All Alfa Romeo Alfetta Saloon and Coupe models, including GTV 1570 cc, 1779 cc & 1962 cc Does not fully cover additional features of special/limited edition variants Does not cover 2.5 litte GTV-6 ISBN 1 85010 448 4 © Haynes Publishing Group 1991 All rights reserved. No part of this book may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording or by any information storage or retrieval system, without permission in writing from the copyright holder. Printed in England {531-9S3) Haynes Publishing Group Sparkford Nr Yeovil British Library Cataloguing in Publication Data Somerset BA22 7JJ England TT Strasman, Peter G. 7923-.. Alfa Rom

General dimensions and weights Saloon and Sport Sedan Dimensions Overall length (with standard burnpers) ..................................................... 4385 rnrn (1 72.6 in) Overall length (with irnpact-absorbing burnpers) ...................................... 4500 rnrn (177.2in) Overall width .................................................................................................... 1640 rnrn (64.6in) Overall height ................................................................................................... 1430 rnrn (56.3in) Ground clearance ............................................................................................. 152.4 rnrn (6.0in) W heel base ........................ ................................................................. 2510 rnrn (98.82in) Front track ............................................................................................. 1366 rnrn (53.78in) Rear track ............................................................................................ 1358 rnrn (53.46in) Weights Kerb weight (full tank): Except N. America ................................................................................... l060…
