{;. i i: | Le OPERATING INSTRUCTIONS | REPAIR PARTS ILLUSTRATIONS | | | © ALLIS-CHALMERS | © MODEL"WD” TRACTOR |. A f eed ey CIT | oe i aia, E ms) | ay |; | |: i QE | à pe m ul Nt mnie | fee i ©) dS), ‘is = Wee 0 || he Le | ae cool) de Le i |l ores | ee | mi 7 ARTE j: _ % + 4 | de" A ee. Pose. SN | | TS oo) || | | | ALLIS-CHALMERS MFG. CO. | | TRACTOR DIVISION ke | MILWAUKEE, WISCONSIN, U.S.A. I) LITHO. IN US. AL FORM TA-98 1, es = SP tl alm inn Tier at = dm a a D a ee El The instructions given in this book cover the operation of the Allis-Chalmers Model “WD” Tractor. A close adherence to these instructions will result in many hours of trouble-free operation and a longer operating life for the unit. This book is written for the purpose of giving the operator essential information regarding the day-to-day care, lubrication and adjustment of the machine.

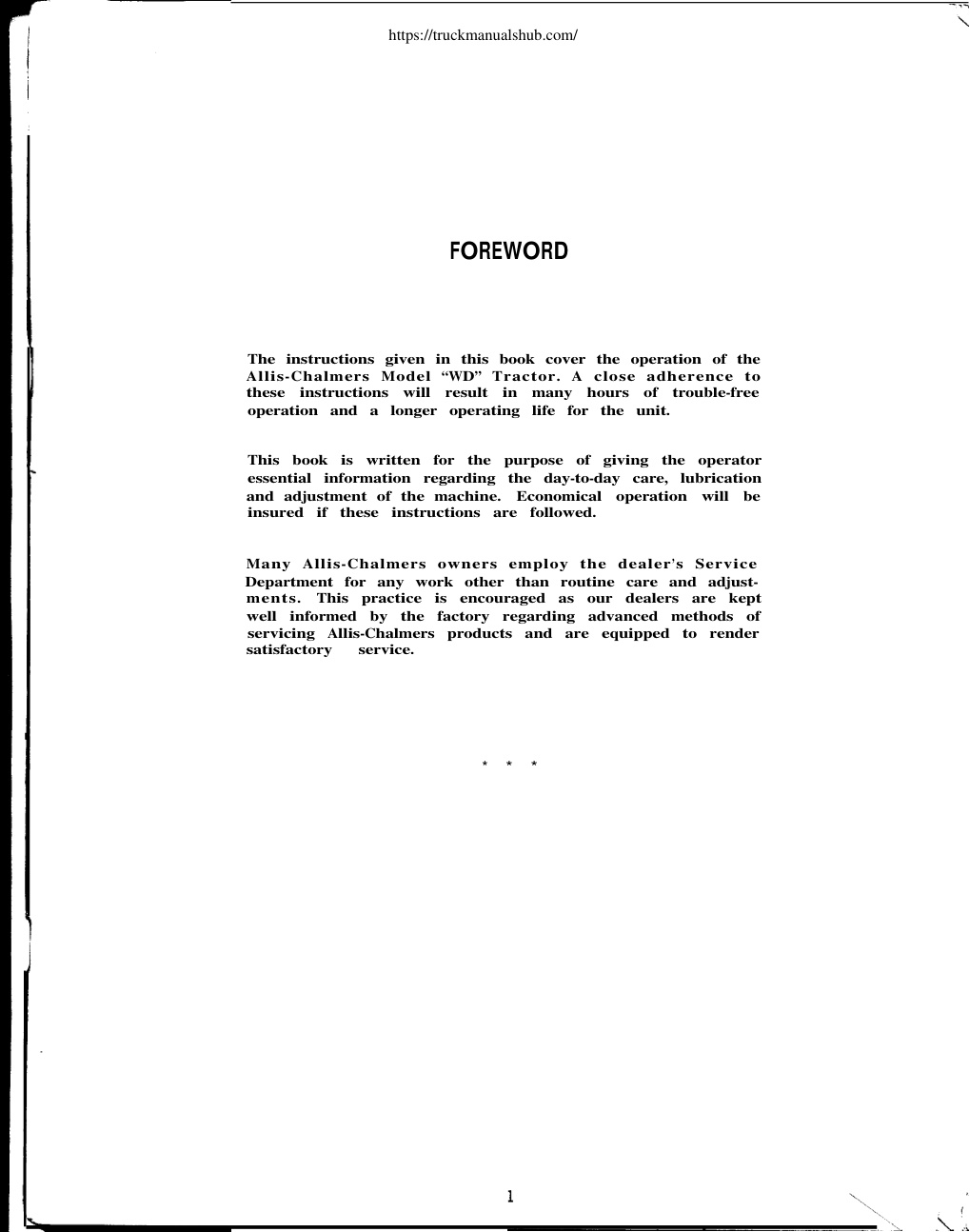

https://truckmanualshub.com/ https://truckmanualshub.com/ FOREWORD The instructions given in this book cover the operation of the Allis-Chalmers Model “WD” Tractor. A close adherence to these instructions will result in many hours of trouble-free operation and a longer operating life for the unit. This book is written for the purpose of giving the operator essential information regarding the day-to-day care, lubrication and adjustment of the machine. Economical operation will be insured if these instructions are followed. Many Allis-Chalmers owners employ the dealer’s Service Department for any work other than routine care and adjust- ments. This practice is encouraged as our dealers are kept well informed by the factory regarding advanced methods of servicing Allis-Chalmers products and are equipped to render satisfactory service. * * * https://truckmanualshub.com/ INDEX BRAKES HYDRAULIC SYSTEM Adjustment . . . . . . . . . . . . . 2 6 Adjustments and Operation Operation . . . . . . . . . . . . . . 26 Delayed Lift . . . . . . . . . . . 3 2 Type. . . . . . . . . . . . . . . . . 26 Drawbar Control. . . . . . . . . 3 3 Hold Position . . . . . . . . . . 3 3 CLUTCHES Lift and Lower. .…
