EN - Instructions and warnings for installation and use

For sliding gates

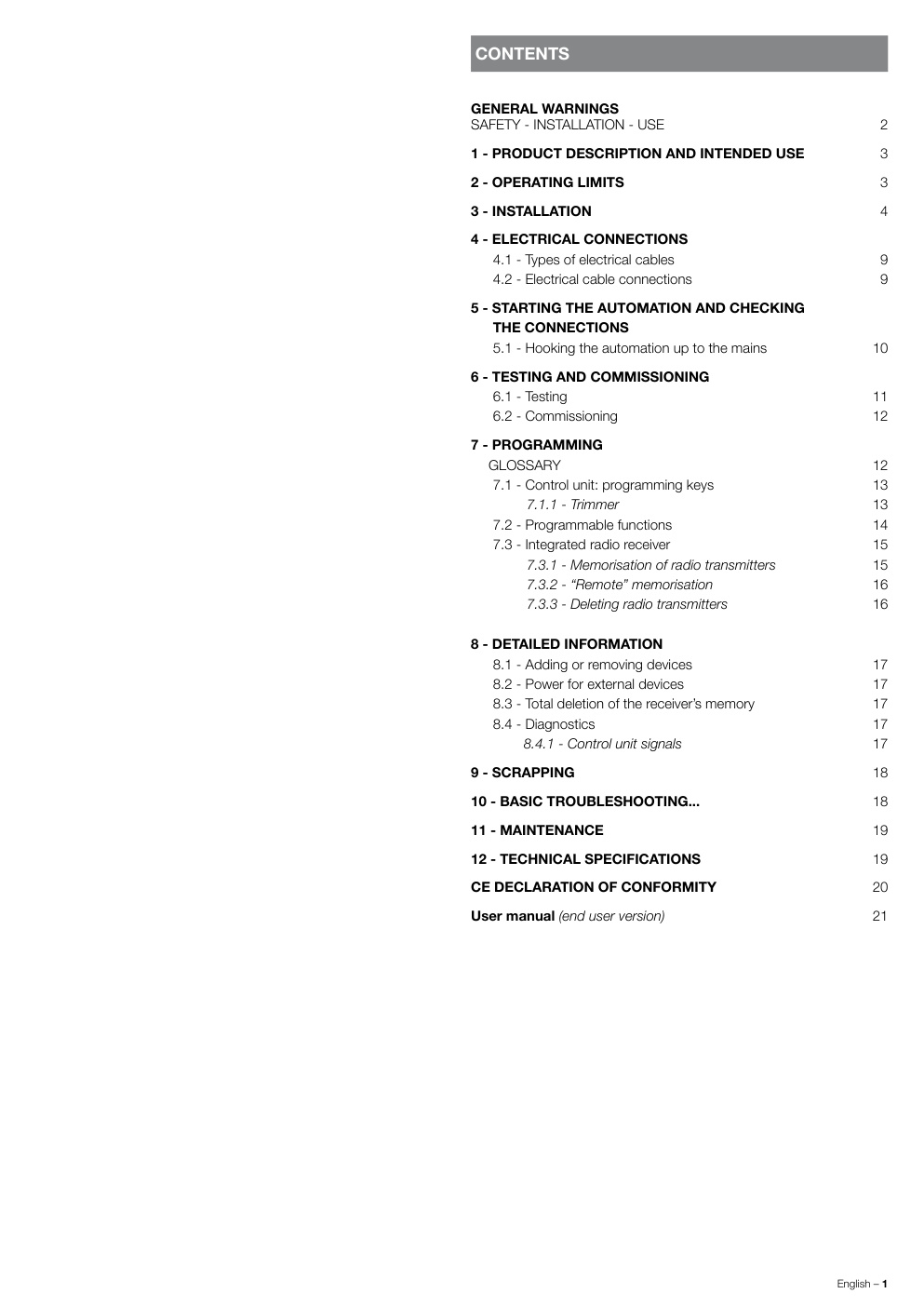

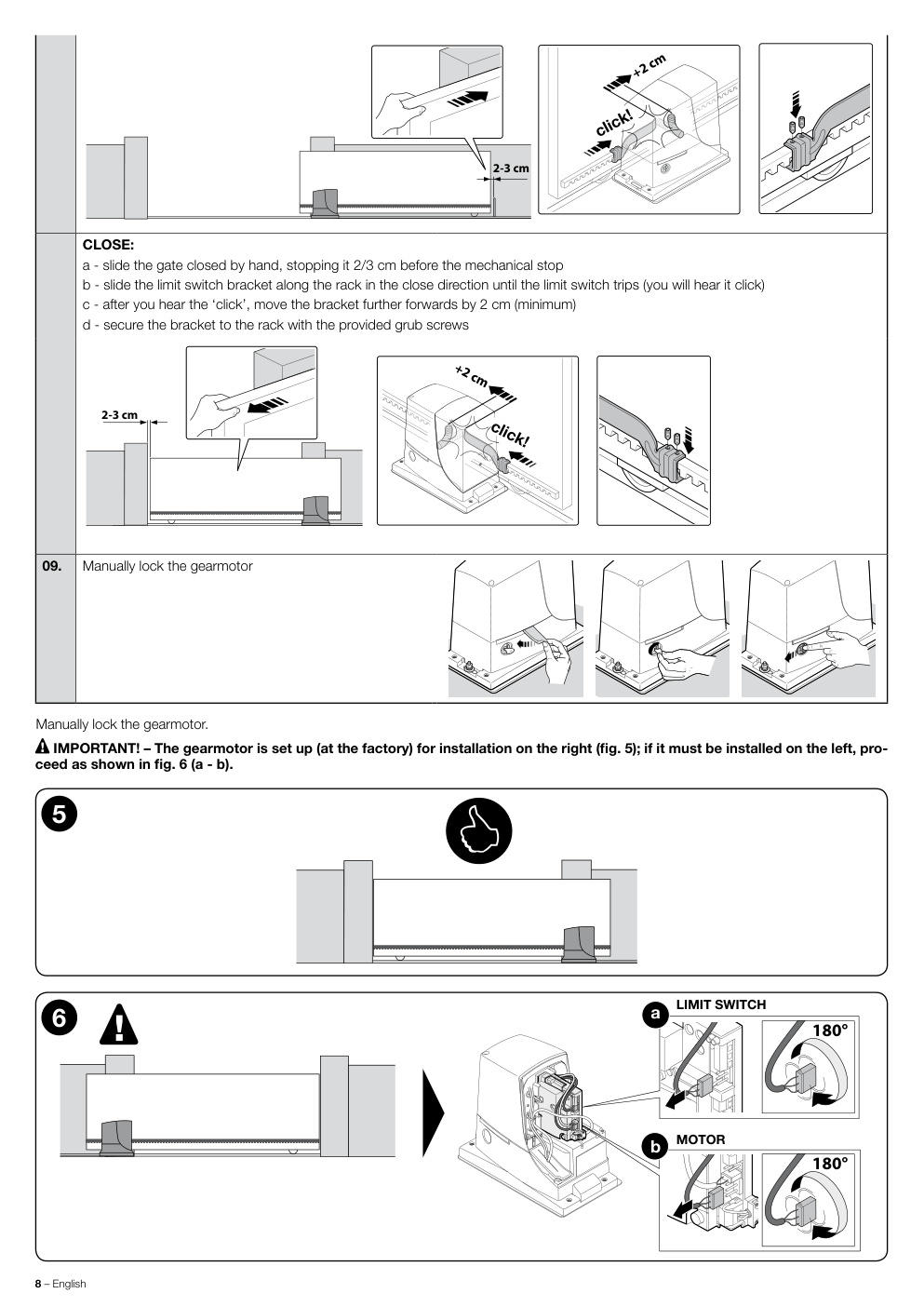

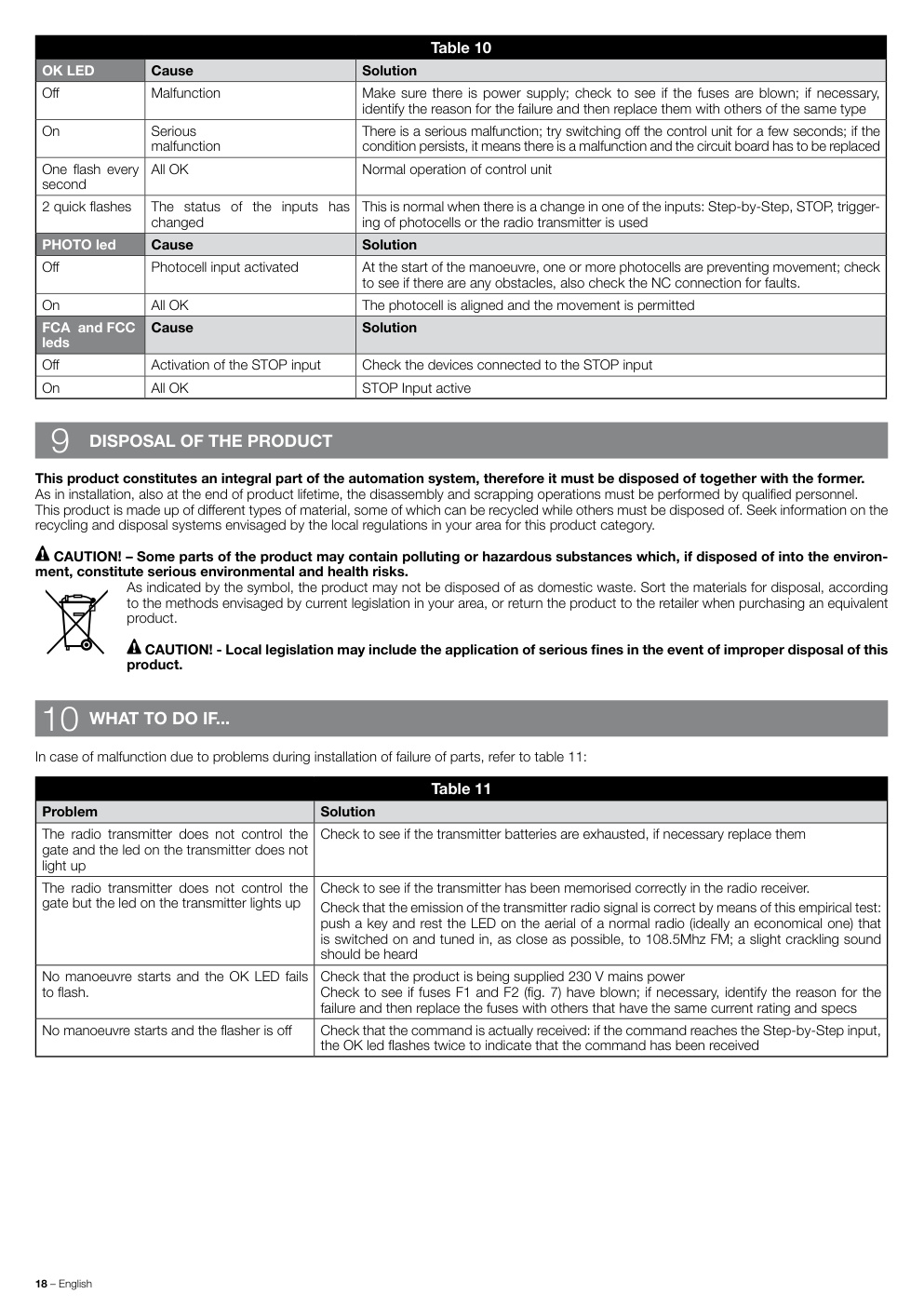

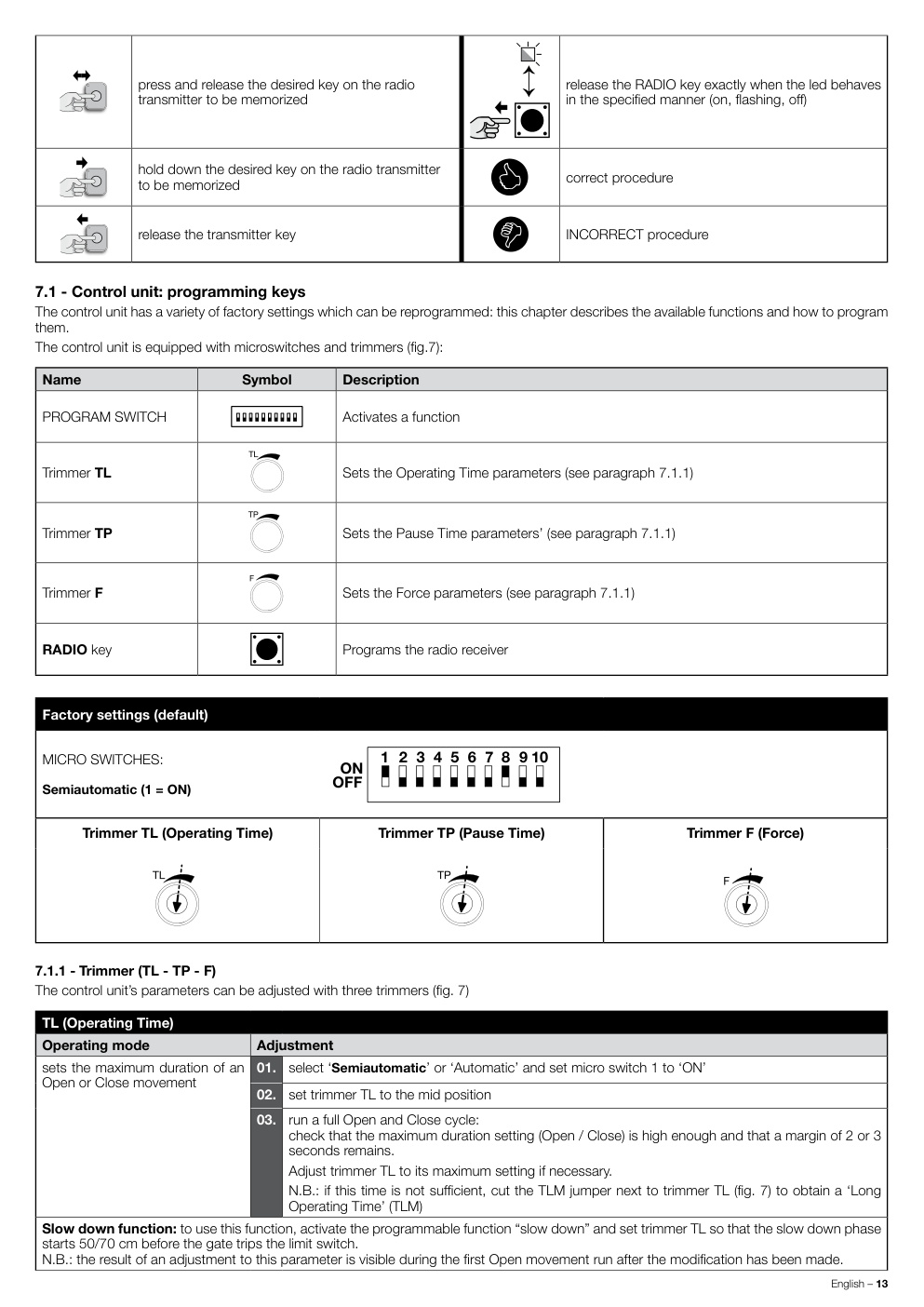

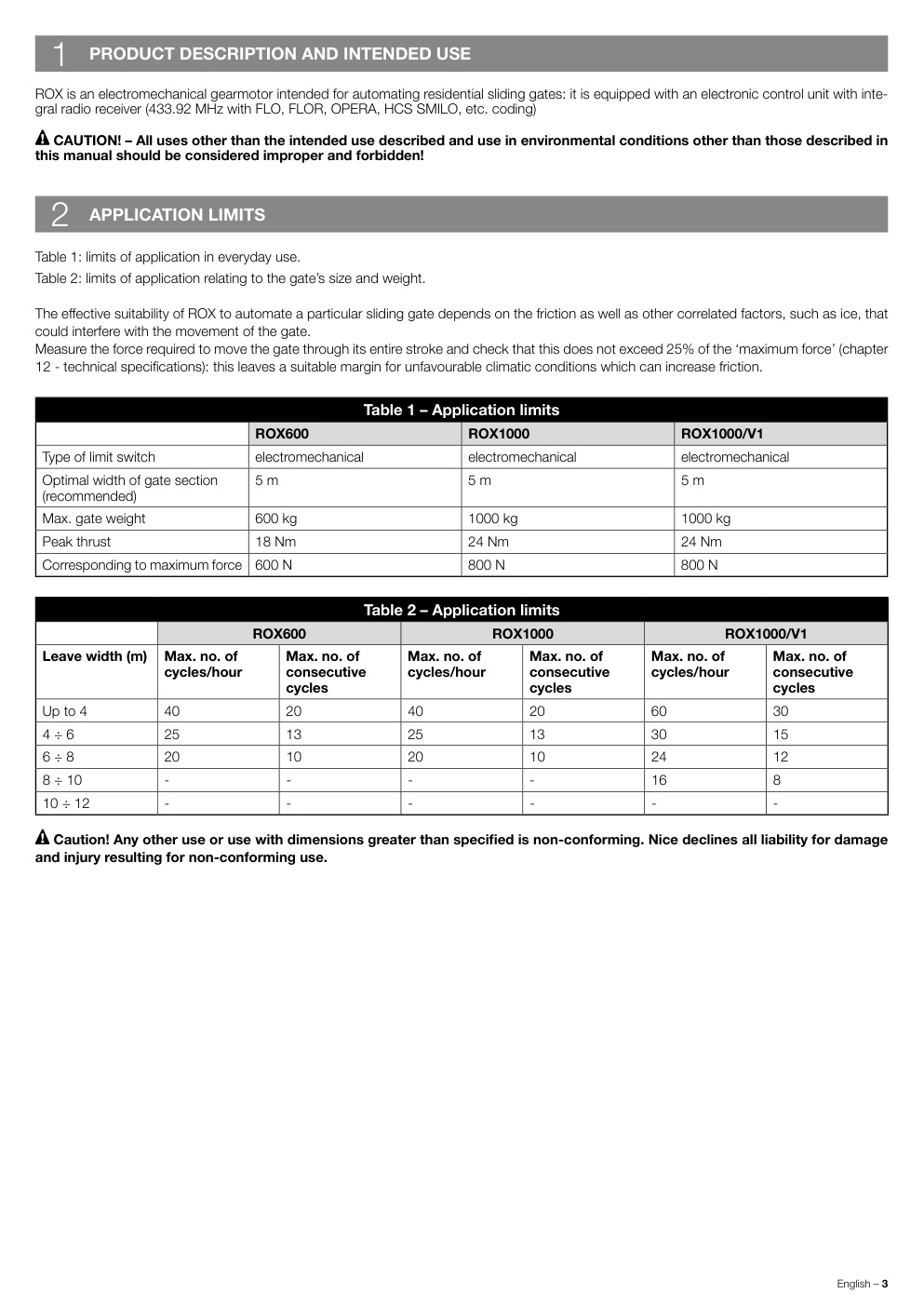

ROX ROX600 ROX1000 ROX1000/V1 For sliding gates EN - Instructions and warnings for installation and use CONTENTS GENERAL WARNINGS SAFETY - INSTALLATION - USE 2 1 - PRODUCT DESCRIPTION AND INTENDED USE 3 2 - OPERATING LIMITS 3 3 - INSTALLATION 4 4 - ELECTRICAL CONNECTIONS 4.1 - Types of electrical cables 9 4.2 - Electrical cable connections 9 5 - STARTING THE AUTOMATION AND CHECKING THE CONNECTIONS 5.1 - Hooking the automation up to the mains 10 6 - TESTING AND COMMISSIONING 6.1 - Testing 11 6.2 - Commissioning 12 7 - PROGRAMMING GLOSSARY 12 7.1 - Control unit: programming keys 13 7.1.1 - Trimmer 13 7.2 - Programmable functions 14 7.3 - Integrated radio receiver 15 7.3.1 - Memorisation of radio transmitters 15 7.3.2 - “Remote” memorisation 16 7.3.3 - Deleting radio transmitters 16 8 - DETAILED INFORMATION 8.1 - Adding or removing devices 17 8.2 - Power for external devices 17 8.3 - Total deletion of the receiver’s memory 17 8.4 - Diagnostics 17 8.4.1 - Control unit signals 17 9 - SCRAPPING 18 10 - BASIC TROUBLESHOOTING... 18 11 - MAINTENANCE 19 12 - TECHNICAL SPECIFICATIONS 19 CE DECLARATION OF CONFORMITY 20 User manual (end user version) 21 English – 1 GENERAL WARNINGS SAFETY -…
