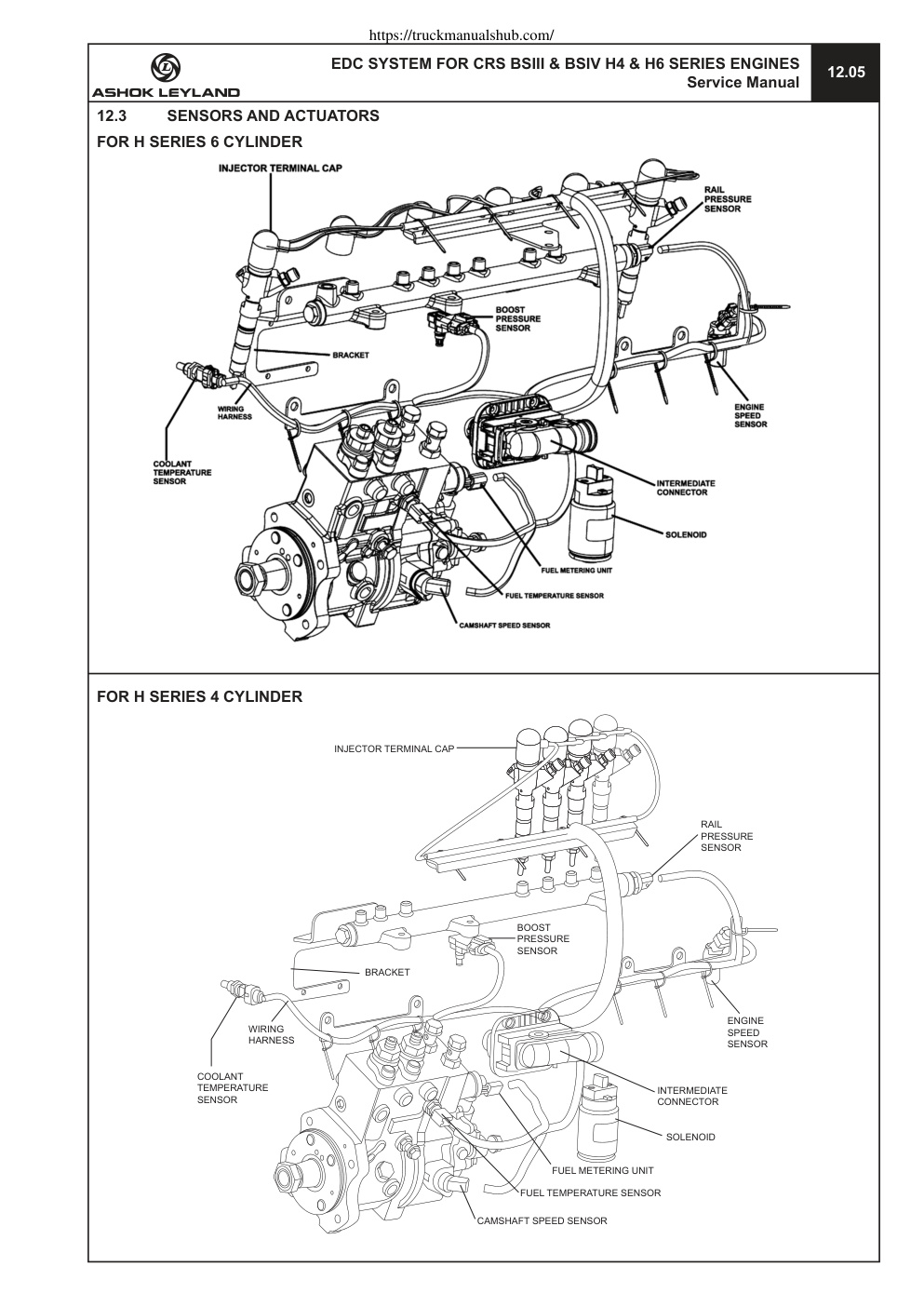

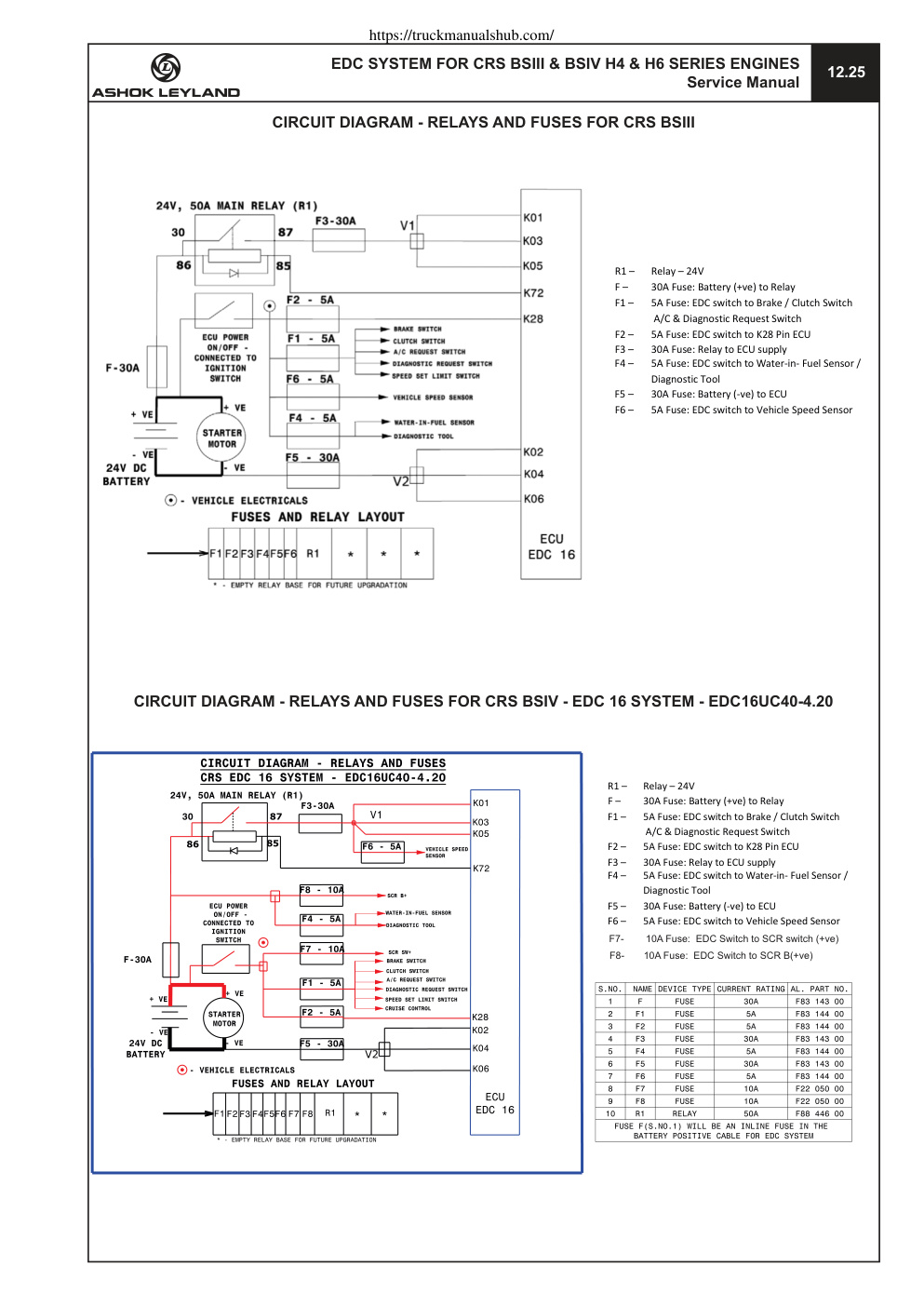

(FOR HA57L165/H6E4S123*/H6E4S165*/ H4E4S95* H4E4S110*/ CRS BSIll / BSIV H SERIES ENGINES) EDC SYSTEM FOR CRS BSIII & BSIV H4 & H6 SERIES ENGINES 12.02 EDC SYSTEM - HA57L165 / H6E4S123 / H6E4S165/H4E4S95 / H4E4S110 CRS BSIII & BSIV H SERIES ENGINES Section Subject Page No. 12.0 ELECTRONIC DIESEL CONTROL SYSTEM - OVERVIEW.............................. 12.03 12.1 CONTROLS...................................................................................................... 12.03 12.2 ENGINE START / STOP PROCEDURE:.......................................................... 12.04 12.3 SENSORS AND ACTUATORS.......................................................................... 12.05 12.3.0 Boost pressure sensor................................................................................ 12.07 12.3.1 Accelerator Pedal Sensor...................................................................

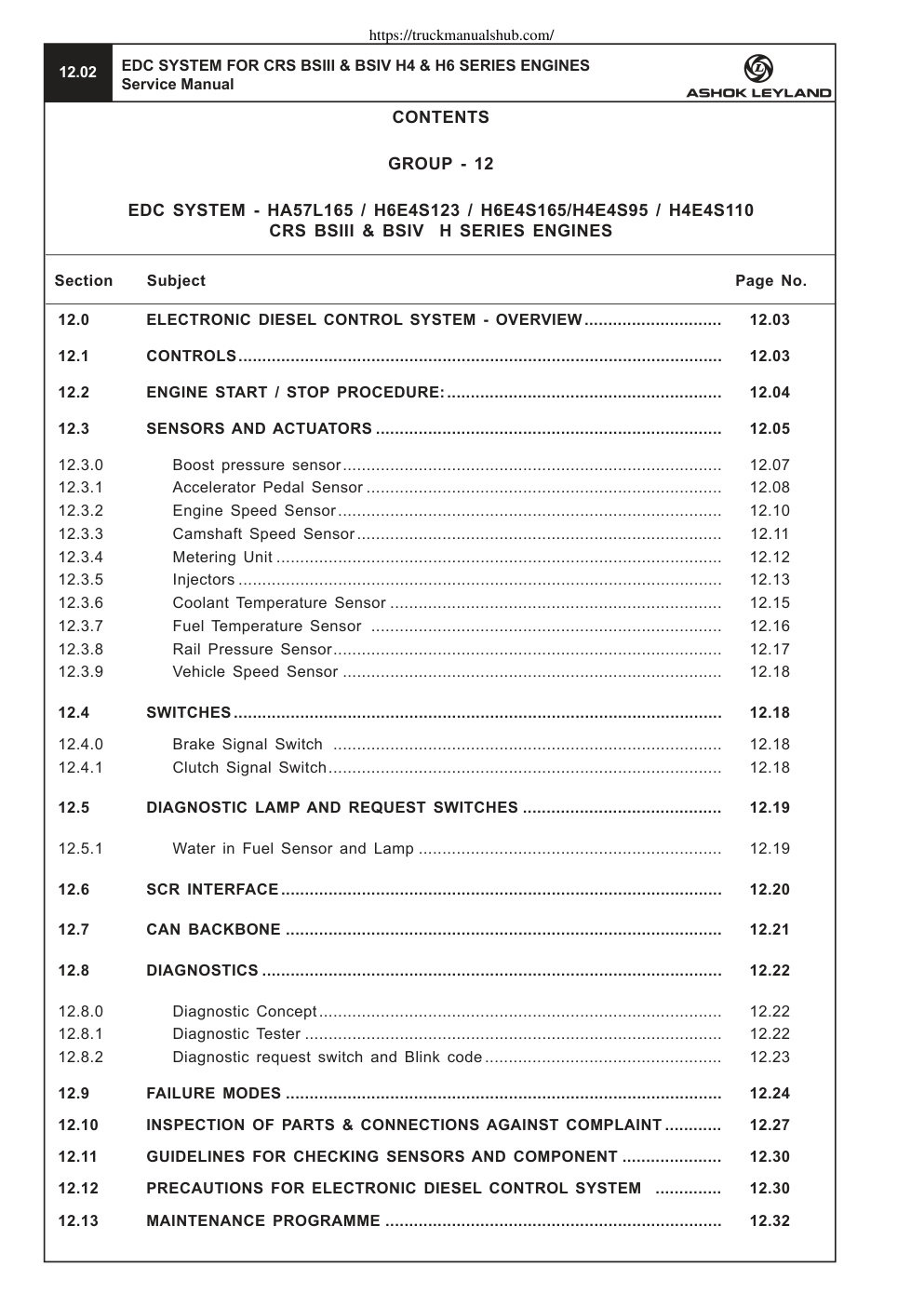

https://truckmanualshub.com/ EDC SYSTEM (FOR HA57L165/H6E4S123*/H6E4S165*/ H4E4S95* H4E4S110*/ CRS BSIII / BSIV H SERIES ENGINES) *BSIV ENGINE MAY 2012 https://truckmanualshub.com/ EDC SYSTEM FOR CRS BSIII & BSIV H4 & H6 SERIES ENGINES 12.02 Service Manual CONTENTS GROUP - 12 EDC SYSTEM - HA57L165 / H6E4S123 / H6E4S165/H4E4S95 / H4E4S110 CRS BSIII & BSIV H SERIES ENGINES Section Subject Page No. 12.0 ELECTRONIC DIESEL CONTROL SYSTEM - OVERVIEW.............................. 12.03 12.1 CONTROLS...................................................................................................... 12.03 12.2 ENGINE START / STOP PROCEDURE:.......................................................... 12.04 12.3 SENSORS AND ACTUATORS.......................................................................... 12.05 12.3.0 Boost pressure sensor................................................................................ 12.07 12.3.1 Accelerator Pedal Sensor............................................................................ 12.08 12.3.2 Engine Speed Sensor.................................................................................. 12.10 12.3.3 Camshaft Speed…
