CONCERT 15 55 SERVICE MANUAL ocr

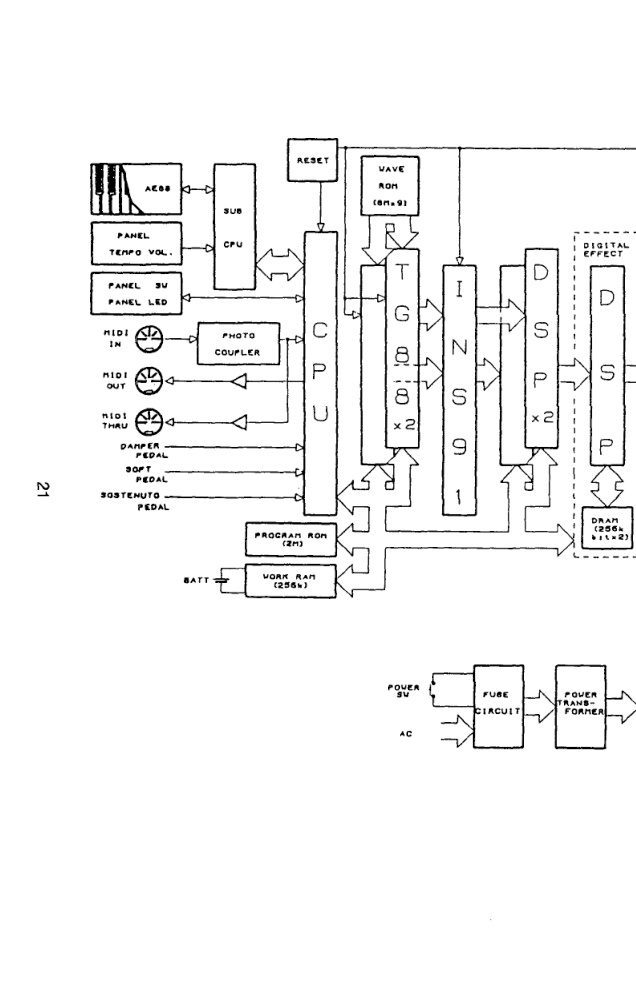

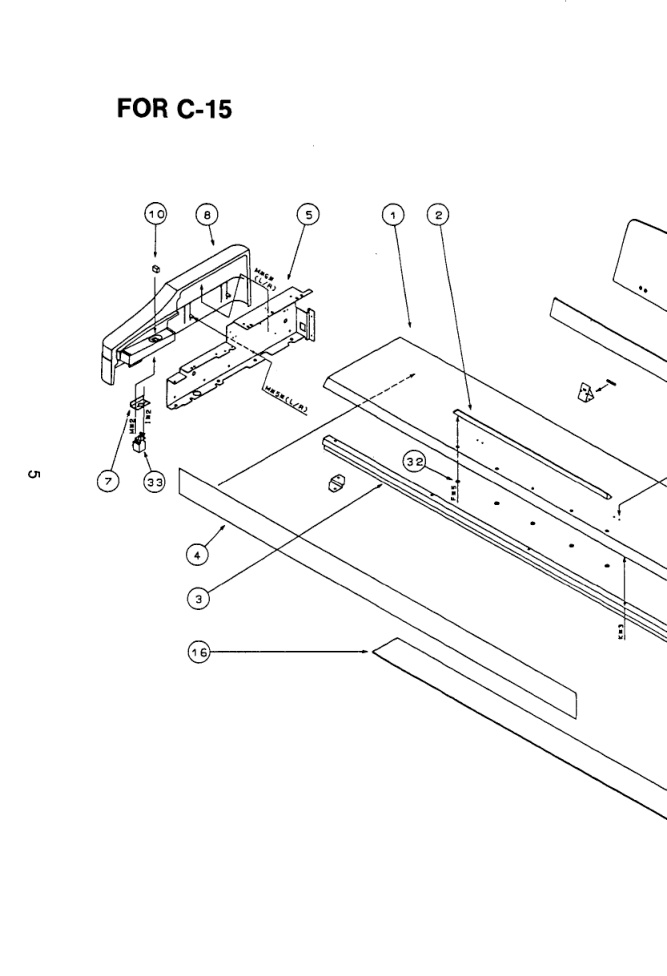

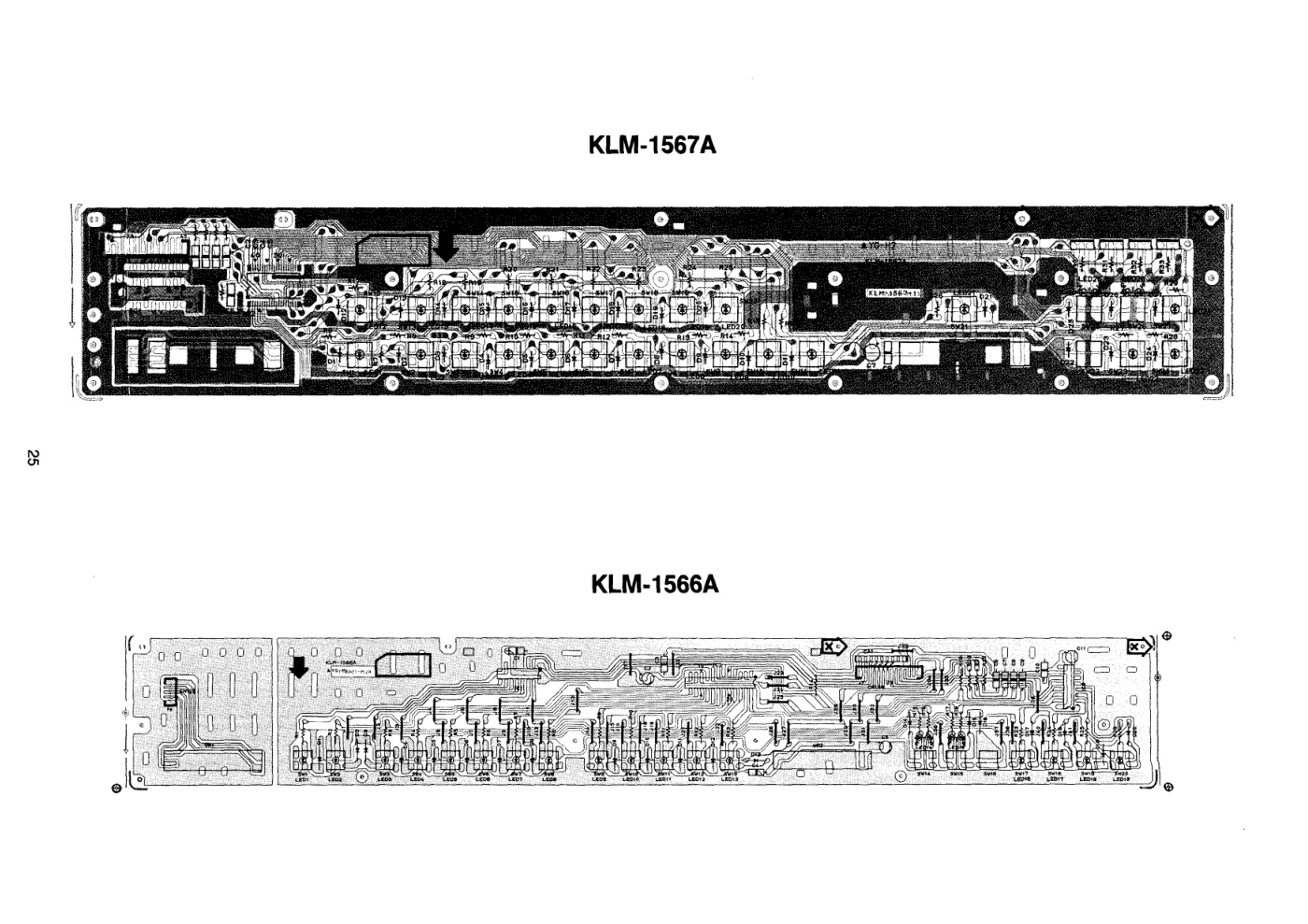

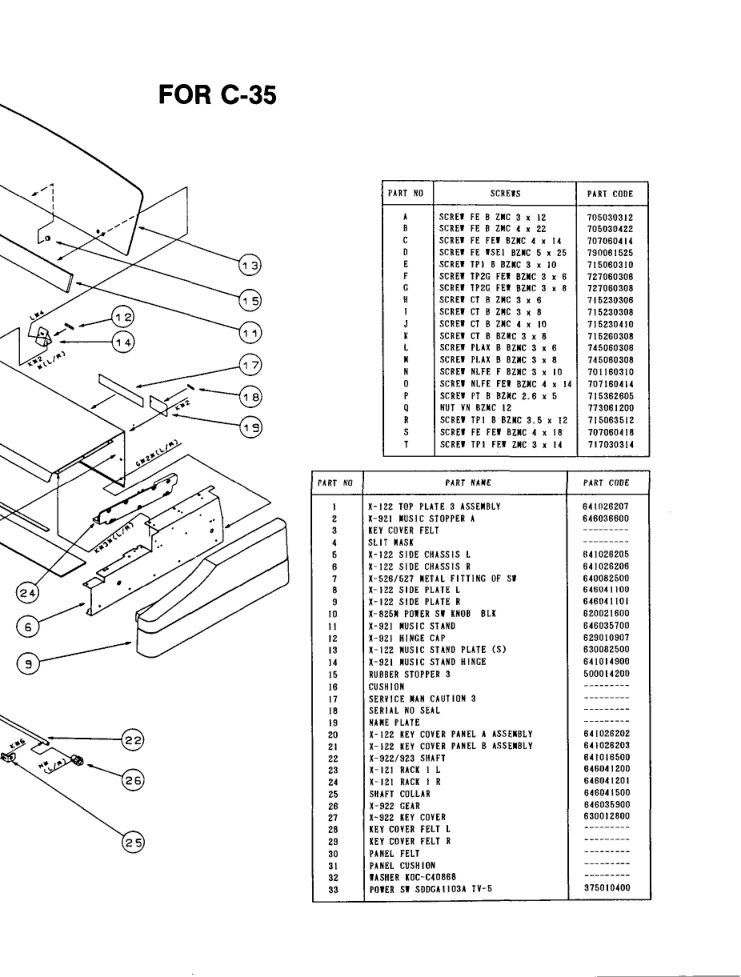

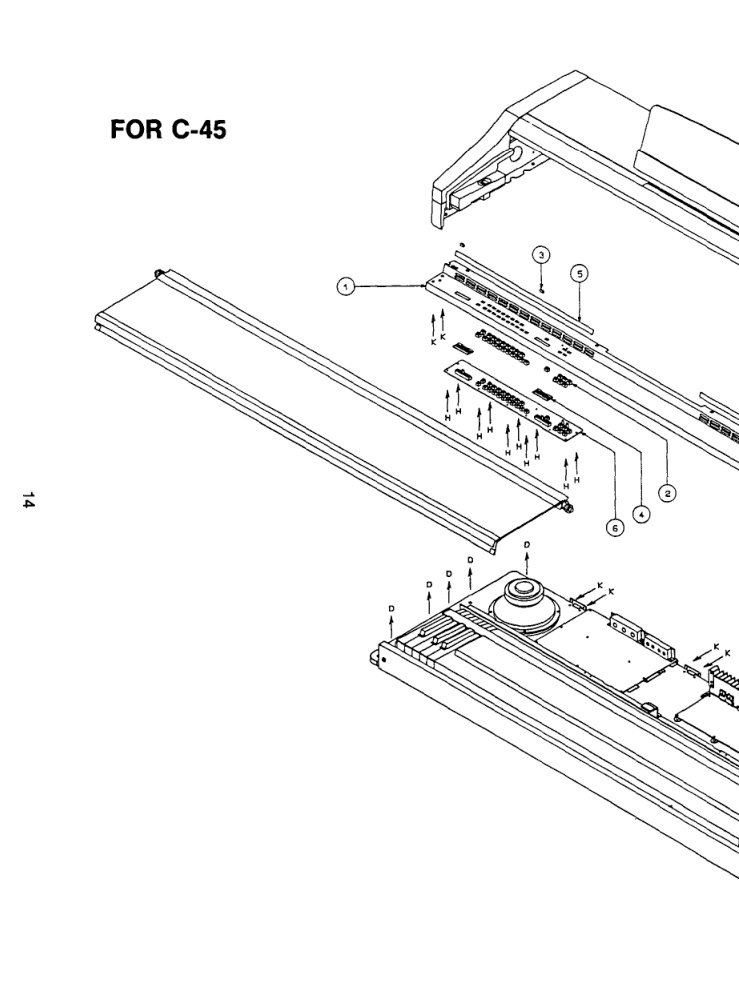

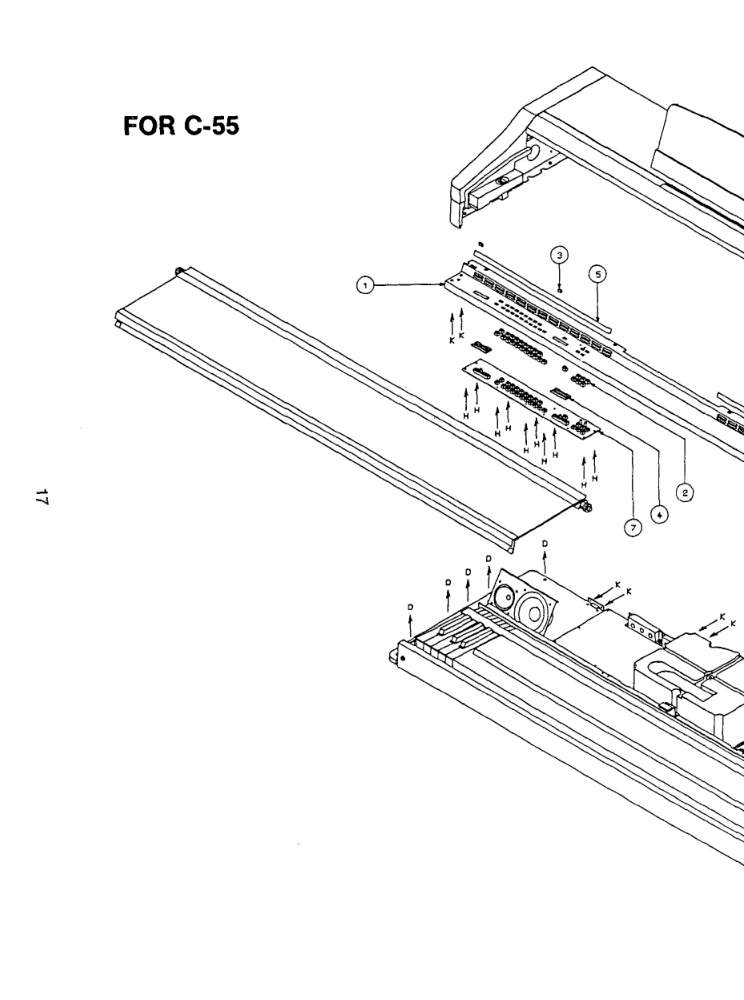

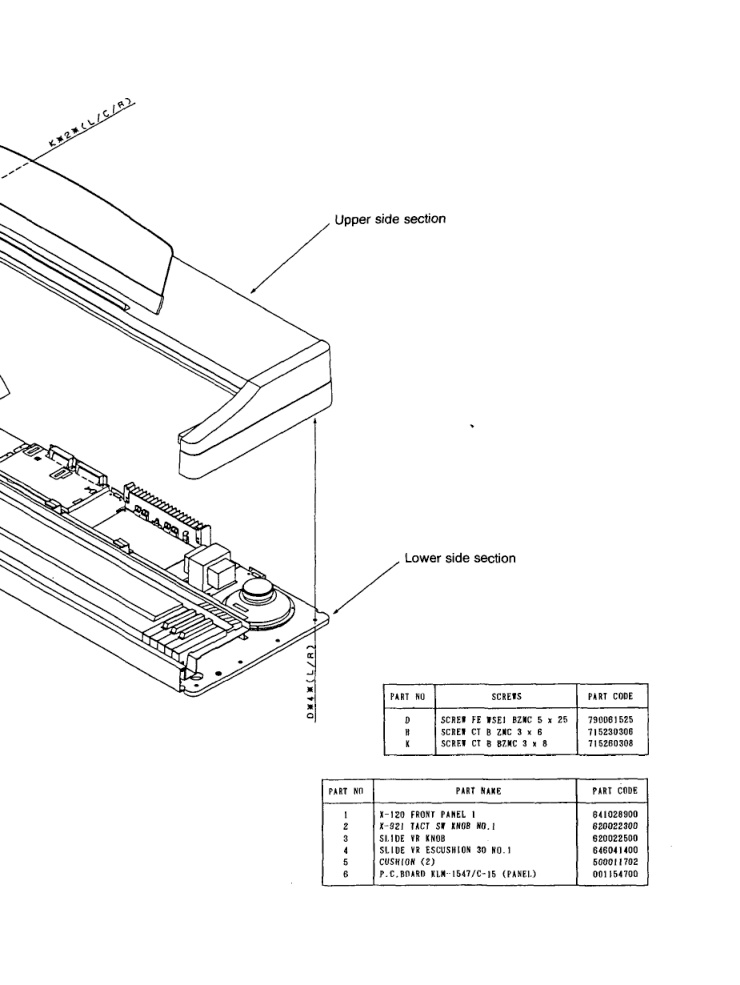

1. SPECIFICATIONS...................................................................... 2 2. STRUCTURAL DIAGRAM........................................................ 4 3. BLOCK DIAGRAM................................................................. 19 4. P.C. BOARD............................................................................. 22 5. DIAGNOSTIC TEST................................................................ 29 6. HARDWARE SPECIFICATIONS........................................... 62 7. REFERENCE DATA.......................................6 5 8. PARTS LIST............................................................................ 83 9. CIRCUIT DIAGRAM..................................................... Insertion 1. SPECIFICATIONS Keyboard 88 keys (A0-C8) with velocity sensitivity Voices Pianol, Piano2, Electric Pianol, Electric Piano2, Harpsichord, Vibes, B

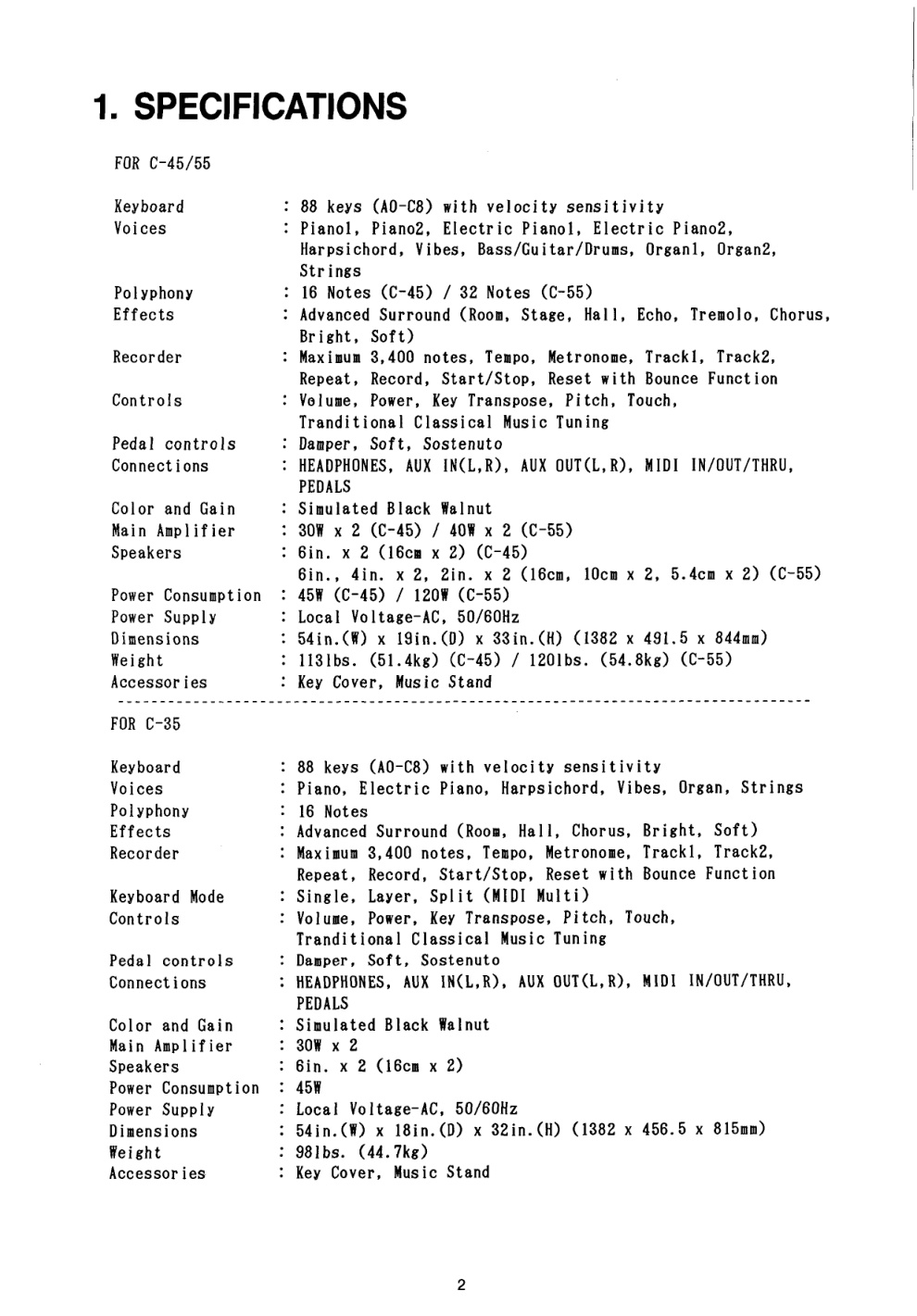

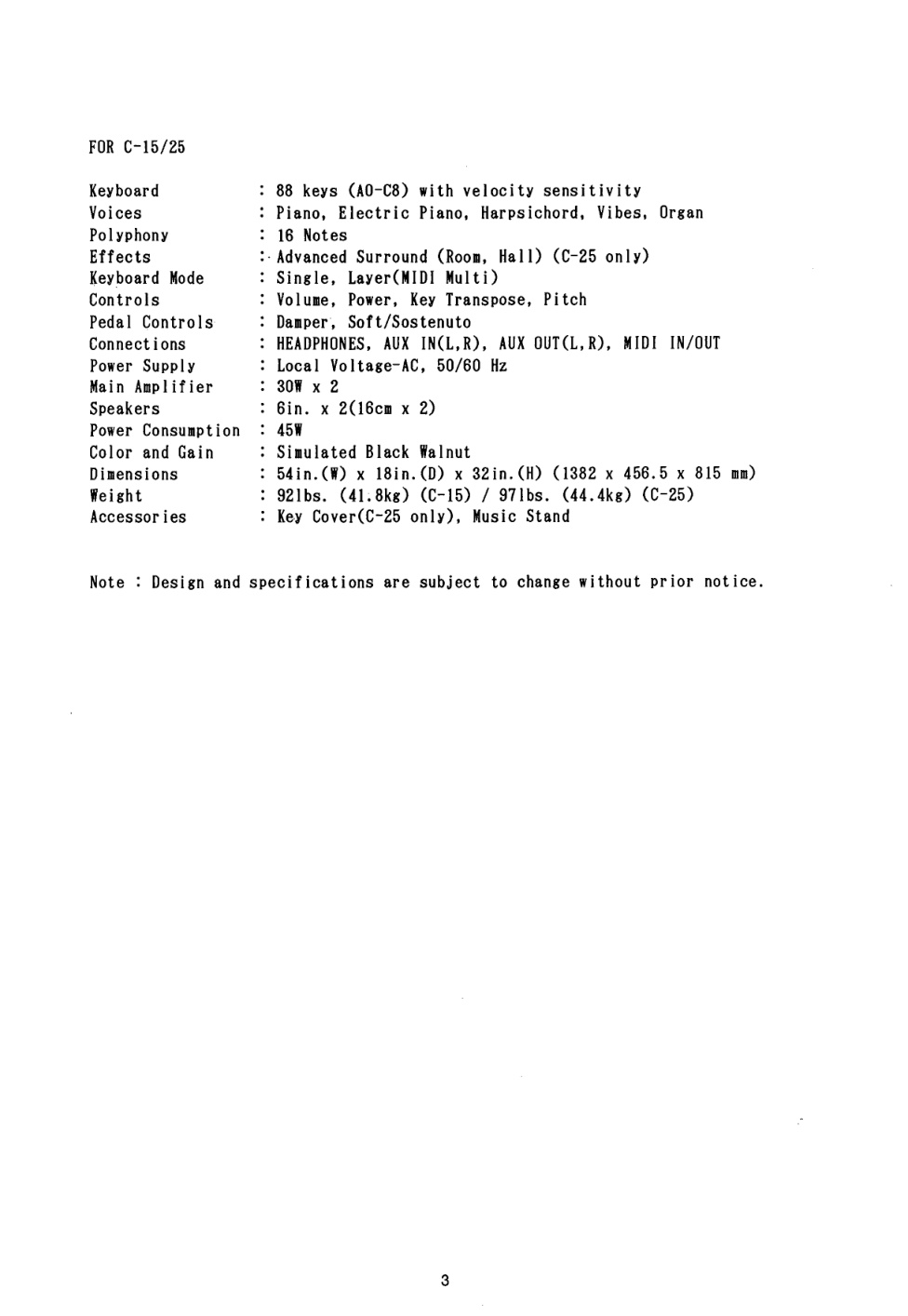

SERVICE MANUAL CONCERT-15/25/ 35/45/55 CONTENTS 1. SPECIFICATIONS ...................................................................... 2 2. STRUCTURAL DIAGRAM ........................................................ 4 3. BLOCK DIAGRAM ................................................................. 19 4. P.C. BOARD ............................................................................. 22 5. DIAGNOSTIC TEST ................................................................ 29 6. HARDWARE SPECIFICATIONS ........................................... 62 7. REFERENCE DATA ...................................... .6 5 8. PARTS LIST ............................................................................ 83 9. CIRCUIT DIAGRAM ..................................................... Insertion 1. SPECIFICATIONS FOR C-45/55 Keyboard 88 keys (A0-C8) with velocity sensitivity Voices Pianol, Piano2, Electric Pianol, Electric Piano2, Harpsichord, Vibes, Bass/Guitar/Drums, Organi, 0rgan2, Strings Polyphony 16 Notes (C—45) / 32 Notes (C-55) Effects Advanced Surround (Room, Stage, Hall, Echo, Tremolo, Chorus, Bright, Soft) Recorder Maximum 3,400 notes, Tempo, Metronome, Trackl, Track2,…
